Why Your O2 Sensor Fails: A Comprehensive UK Guide

The oxygen sensor, often referred to as an O2 sensor, is a critical component in your vehicle’s engine management system. It acts as a vital messenger, continuously monitoring the amount of oxygen present in your exhaust gases compared to the surrounding air. This crucial data is then relayed to the Engine Control Unit (ECU), which uses it to precisely adjust the air-fuel ratio for optimal combustion. Without a properly functioning O2 sensor, your engine can struggle, leading to a host of problems from reduced performance to increased emissions and even damage to other expensive components like the catalytic converter. Understanding why these sensors fail and how to diagnose issues early is key to maintaining your vehicle's health and longevity.

What is an Oxygen Sensor and Why Does It Matter?

Your vehicle's O2 sensor measures the difference in oxygen levels between the exhaust gas and the ambient air. Based on this information, along with data from other sensors, the ECU determines whether the air-fuel mixture is running 'rich' (too much fuel) or 'lean' (too much air). In response, the ECU then adjusts the amount of fuel injected into the engine cylinders to compensate, aiming for a delicate balance between power output, fuel economy, and environmental emissions.

It's important to note that the O2 sensor cannot measure the air or fuel entering the engine directly; its position in the exhaust system means it reads the actual oxygen content *after* combustion has occurred. Depending on your vehicle's make, model, and year, you could have anywhere from one to four O2 sensors located along the exhaust system, typically before and after the catalytic converter. The pre-catalytic converter sensor monitors the exhaust gases directly from the engine, while the post-catalytic sensor assesses the efficiency of the catalytic converter itself.

The ideal air-fuel ratio for petrol engines is approximately 14.7 parts air to 1 part fuel (14.7:1), though this can vary slightly with different fuel types. Both a rich and a lean mixture are detrimental, not only to your vehicle's performance and lifespan but also to the environment due to increased harmful emissions.

How Your ECU Interprets O2 Sensor Data

The information transmitted from the O2 sensor to the ECU is in the form of a voltage signal, which fluctuates above or below a preset baseline. The base voltage, indicating an optimal air-fuel mixture, is typically around 0.45 V (450 mV) DC. A lower voltage output, for instance, around 0.2 V (200 mV) DC, signals a lean mixture, meaning there's too much air. Conversely, a higher voltage output, such as 0.8 V (800 mV) DC or more, indicates a rich mixture, signifying an excess of fuel.

This real-time data allows the ECU to make continuous, precise adjustments to the fuel injection. If your O2 sensor malfunctions or fails to provide accurate readings, the ECU is left to 'guess' the appropriate amount of fuel to inject. This guesswork leads to inefficient combustion, resulting in a poorly running engine, increased pollution, and potentially costly damage over time.

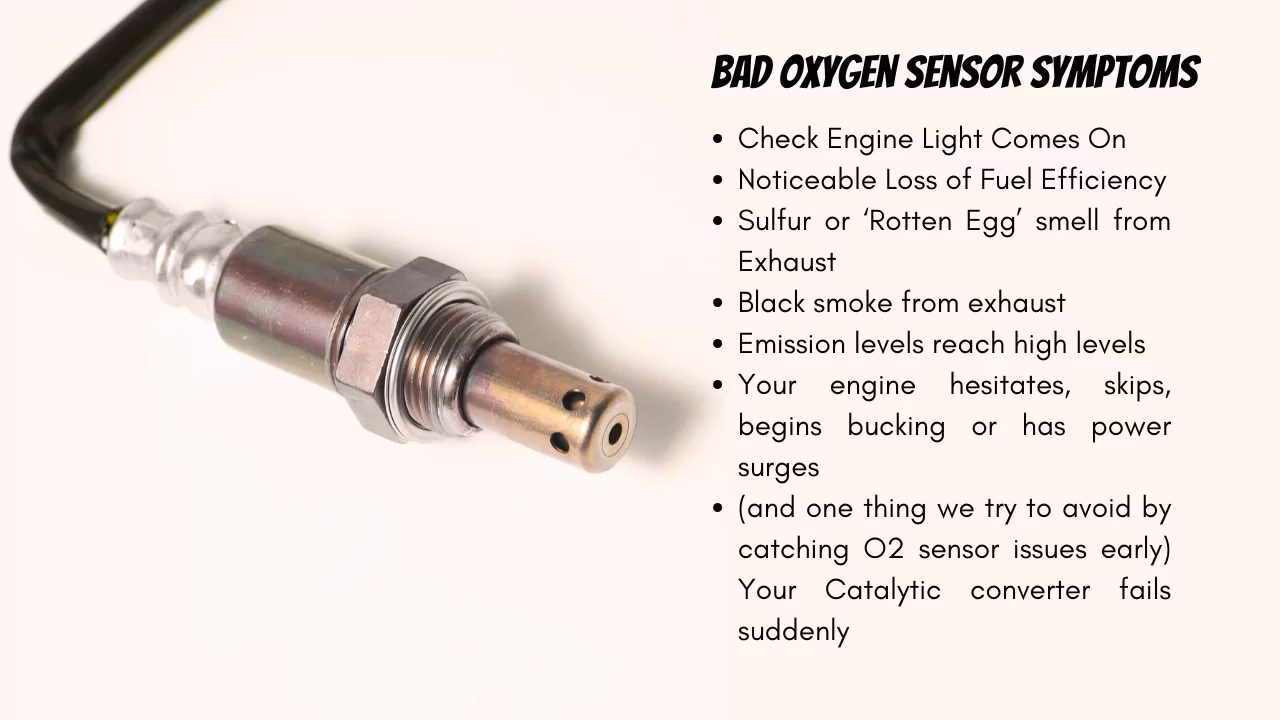

Common Symptoms of a Failing O2 Sensor

Detecting the early signs of a faulty oxygen sensor can save you from significant repairs and ensure your vehicle continues to run smoothly. While many of these symptoms can be indicative of various engine problems, specific trouble codes linked to the O2 sensor can quickly narrow down the diagnosis.

The Dreaded Check Engine Light

One of the most common and often the first indicator of a faulty O2 sensor is the illumination of the Check Engine Light (CEL) on your dashboard. This light is a general warning signal for a problem within the engine's emissions control system. When the O2 sensor sends incorrect data to the ECU, the engine operates inefficiently, which the system detects and flags. While a CEL can be triggered by numerous issues, an O2 sensor fault is a frequent culprit. It's crucial to use a diagnostic tool to retrieve the specific error code, as ignoring this warning can lead to further engine damage.

Noticeable Drop in Fuel Economy

If you observe a sudden and significant decrease in your vehicle's fuel efficiency, a failing O2 sensor could be to blame. These sensors are vital for maintaining an optimal air-fuel mixture, which directly impacts how efficiently your engine consumes fuel. When an O2 sensor fails, the engine might run 'rich,' burning an excessive amount of fuel. This not only empties your wallet faster at the petrol pump but also significantly increases harmful emissions. Regularly monitoring your vehicle's fuel consumption can help you identify such issues early on.

Rough Engine Idle and Performance Issues

A failing O2 sensor can cause your engine to run unevenly, particularly noticeable when the car is stationary or idling. This 'rough idle' occurs because the engine's air-fuel mixture is not being correctly adjusted, causing the engine to struggle to maintain a steady RPM. You might experience vibrations, stalling, or hesitation, especially during deceleration. Furthermore, you may notice reduced power and performance, with the engine struggling to accelerate or maintain speed, particularly at higher speeds. Occasional or continuous engine misfires can also occur, leading to a noticeable reduction in overall performance.

Exhaust Odours and Smoke

Distinct changes in your exhaust can also signal an O2 sensor problem. Black exhaust smoke is a clear indicator of a rich air-fuel mixture (excess fuel), often due to a faulty sensor. Another tell-tale sign is a strong 'rotten egg' smell, which indicates excessive sulphur in the exhaust, suggesting either too much fuel is being burned or there's an issue with the catalytic converter, which an O2 sensor fault can precipitate.

Failed Emissions Tests

Given the O2 sensor's crucial role in managing emissions, a faulty sensor is a common reason for a vehicle to fail its annual MOT emissions test. If the emissions are not properly controlled due to incorrect air-fuel ratio adjustments, your vehicle will not meet the required environmental standards.

What Causes O2 Sensors to Fail?

While O2 sensors are designed to be durable, they are exposed to harsh conditions within the exhaust system, making them susceptible to various forms of failure. Over time, they can become 'fouled' with carbon and sooty deposits, much like a spark plug electrode wears down. This build-up can prevent the sensor from accurately reading oxygen levels.

Specific contaminants and conditions can accelerate this process:

• Contaminated Fuel: Using low-quality or unrecommended fuel can introduce impurities that foul the sensor.
• Silicone and Sealant: If non-sensor-approved silicone sealants or lubricants make their way into the exhaust stream, they can coat and damage the sensor element.
• Corrosion: Exposure to moisture, road salt, and extreme temperatures can lead to corrosion, especially on the electrical connections.
• Leaks from Oil, Antifreeze, and Fuel: If engine oil, antifreeze, or unburnt fuel enters the combustion chambers and subsequently the exhaust, these substances can quickly degrade and foul the O2 sensor.
• Leaded Fuel: Although rare in modern vehicles, historical use of leaded petrol would rapidly destroy O2 sensors. Modern fuel additives can sometimes have similar, albeit milder, effects.

When an O2 sensor becomes caked with byproducts of combustion like sulphur, lead, fuel additives, and oil ash, it loses its ability to send accurate signals to your engine's computer. This can manifest as a delayed response time or a complete cessation of function.

The Perilous Link: O2 Sensor Failure and Your Catalytic Converter

A failing O2 sensor doesn't just impact your engine's immediate performance; it can have severe, costly consequences for other components, most notably the catalytic converter. Incorrect readings from a faulty O2 sensor can lead to a consistently rich or lean air-fuel condition, both of which are problematic for the converter.

If the engine runs too rich, an excess of unburned fuel enters the exhaust system. This fuel, which is only meant to burn in the combustion chamber, will ignite when it reaches the catalytic converter. This uncontrolled combustion can cause the converter to superheat far beyond its normal operating temperature, potentially leading to a 'meltdown' where the internal ceramic matrix collapses. Replacing a catalytic converter is an incredibly expensive repair, often running into hundreds, if not thousands, of pounds.

Conversely, if the engine runs too lean, the catalytic converter may not be able to effectively convert harmful hydrocarbons into safer elements. This not only increases pollution but can also result in your vehicle failing mandatory emissions tests, such as the MOT.

Beyond the Sensor: Other Related Issues to Investigate

Sometimes, what appears to be an O2 sensor issue might be a symptom of a deeper problem. It's always wise to consider other potential culprits that can affect the air-fuel ratio and mislead the O2 sensor readings.

Vacuum Leaks: The Silent Saboteur

A vacuum leak in your engine can introduce unmeasured air, leading to an air-fuel ratio higher than 14.7:1, commonly known as a 'lean' mixture. This excess air means the engine will run poorly, or in severe cases, not at all. What's particularly challenging about vacuum leaks is that their symptoms can often mimic other issues, including those of a failing O2 sensor. The proper amount of air is crucial for efficient combustion, and any unmeasured air entering the engine will upset this delicate balance, causing a range of performance problems.

The Role of the EGR Valve

The Exhaust Gas Recirculation (EGR) valve helps reduce nitrogen oxide emissions by feeding a small amount of exhaust gas back into the combustion chambers. If the EGR valve gets stuck open, it will introduce recirculated exhaust gas—which has already had its oxygen burnt—into the intake manifold. This creates a lack of fresh oxygen in the exhaust, which the ECU might misinterpret as a rich mixture, even though the issue is with the EGR. The ECU sometimes uses the O2 sensor to check for proper EGR operation and will set a fault code if necessary. If the ECU detects a rich O2 sensor signal due to a stuck-open EGR valve, it will try to compensate with a lean command, attempting to lower the O2 sensor's high voltage signal.

Diagnosing a Faulty O2 Sensor: A Practical Guide

Effective diagnosis is crucial to avoid unnecessary part replacements. While the CEL is a good starting point, further investigation is often required.

Decoding Trouble Codes

As mentioned, retrieving trouble codes (e.g., P0130, P0150, P0132, P0141, P0171, P0420, P0430) is the first step. However, it's important to remember that most issues that trigger O2 sensor codes are not a result of a bad sensor itself, but rather something *causing* the sensor to read incorrectly.

Harnessing Diagnostic Tools

Diagnostic tools, such as an OBD-II scanner, are invaluable. Connect the tool to your vehicle's OBD-II port (usually under the dashboard), turn the ignition on (without starting the engine), and scan for error codes. These tools provide real-time data and can help confirm if the sensor is indeed the problem or if it's reacting to another engine issue. Once a specific problem is identified, you can take targeted steps to remedy it, whether that involves cleaning or replacing the sensor.

The Power of Visual Inspection

A visual inspection can help identify obvious signs of wear or damage. Locate the O2 sensors in your exhaust system (you may need to consult your vehicle's service manual). Look for:

• Frayed or damaged wires.
• Signs of corrosion on the sensor body or connectors.
• Heavy soot, oil, or discolouration, indicating contamination.

While a visual check won't confirm internal sensor operation, it can rule out obvious external damage. Combine this with diagnostic tools for a comprehensive assessment.

Step-by-Step Voltage Testing

Testing the O2 sensor's voltage signals with a voltmeter can provide definitive answers:

1. Normal Operation Check: Start the engine and allow it to reach operating temperature. The sensor voltage should cycle or fluctuate rapidly within the 100 mV to 900 mV (0.10V to 0.90V) range. Consistent cycling indicates proper sensor operation. If the sensor produces only a consistently low or high voltage, it suggests either an engine performance issue or a dead sensor.
2. Test for a 'Lean Fuel' Condition: To simulate a lean condition, carefully disconnect the hose from the PCV valve leading to the intake manifold (consult your vehicle's service manual for location). This will allow more unmetered air to enter the engine. A properly functioning O2 sensor should interpret this increase in oxygen as a lean condition and emit a signal close to 200 mV (0.20 V). If the sensor doesn't respond accordingly or takes an unusually long time to react, it's not working correctly.
3. Test for a 'Rich Fuel' Condition: To simulate a rich condition, disconnect the plastic duct from the air cleaner assembly and block the opening leading to the engine with a clean rag. This reduces the amount of air entering the engine. A functioning O2 sensor should interpret this decrease in oxygen as a rich fuel condition and emit a signal close to 800 mV (0.80 V). Again, if the sensor's response is slow or incorrect, it indicates a fault.

If your O2 sensor responds correctly to these tests, the problem might lie with another component affecting fuel efficiency, highlighting that thorough testing is far more cost-effective than simply replacing parts speculatively.

The Long-Term Repercussions: Why You Can't Ignore a Failing Sensor

Ignoring problems with your O2 sensors can lead to severe and expensive consequences for both your vehicle and the environment.

Catastrophic Converter Damage

As discussed, a failing O2 sensor can cause the engine to run consistently rich, leading to unburned fuel entering and igniting in the catalytic converter. This superheating can cause the converter to melt down, rendering it useless. Replacing a catalytic converter is one of the most expensive exhaust system repairs, making early O2 sensor diagnosis and replacement a vital preventative measure.

Environmental Impact and Emissions Failures

Faulty O2 sensors significantly increase the level of harmful emissions your vehicle produces. When the air-fuel ratio is incorrect, the engine burns fuel inefficiently, leading to higher outputs of gases like carbon monoxide and hydrocarbons. This not only contributes to environmental pollution but will also cause your vehicle to fail mandatory emissions tests, potentially leading to fines or the inability to renew your vehicle's registration.

Replacing and Maintaining Your O2 Sensors

Properly replacing and maintaining your O2 sensors is an essential aspect of vehicle care, ensuring optimal performance and longevity.

Selecting the Correct Replacement

When it comes to replacing an O2 sensor, choosing the correct type is paramount. Not all sensors are interchangeable, and compatibility with your vehicle's specific make and model is crucial. Always consult your vehicle's service manual or a trusted mechanic to identify the exact sensor type required. You can opt for OEM (Original Equipment Manufacturer) sensors or high-quality aftermarket alternatives, ensuring they meet the necessary specifications and environmental standards. Installing the wrong sensor can lead to continued poor engine performance and potential complications.

Essential Maintenance Tips

Regular maintenance can significantly extend the lifespan of your O2 sensors and ensure your vehicle runs efficiently:

• Schedule Regular Diagnostics: Incorporate diagnostic scans into your routine maintenance to check for any O2 sensor-related error codes, even if the CEL isn't illuminated.
• Perform Periodic Visual Inspections: During other maintenance tasks, take a moment to visually inspect your O2 sensors for any signs of physical damage, frayed wiring, or contamination.
• Maintain Your Exhaust System: Ensure there are no exhaust leaks or blockages that could affect sensor performance or readings.
• Use Quality Fuel: Stick to the fuel type recommended by your manufacturer and avoid low-quality fuels that can lead to sensor fouling.

By following these simple maintenance tips, you can proactively prevent common O2 sensor failures, saving yourself from costly repairs and ensuring your vehicle remains in top condition.

Frequently Asked Questions (FAQs)

Here are some common questions vehicle owners have about O2 sensors:

What exactly does an O2 sensor do?

An O2 sensor measures the amount of unburned oxygen in your vehicle's exhaust gases. It sends this data to the ECU, which then adjusts the air-fuel mixture for optimal engine performance, fuel efficiency, and reduced emissions.

How many O2 sensors does my car have?

The number of O2 sensors can vary depending on your vehicle's make, model, and year. Most modern cars have at least two: one before the catalytic converter (upstream) and one after it (downstream), but some vehicles may have up to four.

Can I drive with a faulty O2 sensor?

While you might be able to drive your car with a faulty O2 sensor, it's strongly advised against. Driving with a bad sensor will lead to poor fuel economy, reduced engine performance, increased emissions, and can cause severe, expensive damage to your catalytic converter over time.

How often should O2 sensors be replaced?

The lifespan of an O2 sensor can vary significantly. Older vehicles (pre-1996) might require replacement every 30,000-50,000 miles, while newer vehicles with heated O2 sensors can last up to 100,000 miles or more. It's best to consult your vehicle's service manual for specific recommendations or replace them when symptoms or diagnostic codes indicate a fault.

Is it expensive to replace an O2 sensor?

The cost of replacing an O2 sensor can vary depending on the vehicle, the specific sensor's location (some are harder to access), and whether you use OEM or aftermarket parts. While the sensor itself isn't always the most expensive component, labour costs can add up. However, it's generally far less expensive than replacing a damaged catalytic converter, which is a common consequence of ignoring a faulty O2 sensor.

Conclusion

The O2 sensor is undeniably one of the most important sensors in modern vehicles. By continuously monitoring the amount of unburned oxygen exiting the engine, it provides the crucial data needed to measure and adjust the air-fuel ratio. This ensures your engine operates efficiently, delivers optimal power, maximises fuel economy, and minimises harmful emissions. Understanding the symptoms of failure, common causes, and effective diagnostic techniques will empower you to address issues promptly, preventing minor problems from escalating into significant, costly repairs. Prioritising the health of your O2 sensors is paramount for the overall health and longevity of your vehicle.
