When it comes to keeping your scooter running smoothly and, more importantly, safely, your braking system is paramount. Among the most critical components are the brake pads. These unassuming pieces of material are responsible for creating the friction needed to bring your two-wheeled machine to a halt. Choosing the right brake pads can significantly impact your scooter's stopping performance, longevity, and even the condition of your brake discs. This guide will delve into what makes a good scooter brake pad, with a particular focus on the EBC FA181R Sintered Brake Pads, and help you make an informed decision.
Understanding Scooter Brake Pads
Brake pads work by pressing against the brake disc (or drum in some older or smaller scooters) when the brake lever is applied. This friction converts the kinetic energy of your moving scooter into heat, slowing it down. The material composition of the brake pad is crucial, as it dictates its stopping power, wear rate, heat resistance, and how it interacts with the brake disc.
There are generally three main types of brake pads:
- Organic (or NAO - Non-Asbestos Organic): These are typically made from a blend of fibres like Kevlar, aramid, carbon, and fibreglass, bonded together with a resin. They offer good initial bite and are gentler on discs, but tend to wear out faster and can be susceptible to performance degradation in wet or very hot conditions.
- Semi-Metallic: As the name suggests, these pads contain a higher percentage of metallic fibres (like steel, copper, or iron) mixed with organic materials. They offer better heat dissipation and durability than organic pads, providing more consistent performance across a wider range of temperatures. However, they can be a bit harder on discs and may produce more noise.
- Sintered: These pads are manufactured by fusing metallic powders (often copper-based) under high heat and pressure. This process creates an extremely dense and durable material. Sintered pads are known for their exceptional durability, high resistance to heat fade, and consistent performance even in harsh conditions like mud, water, and grit. They generally offer strong stopping power but can be harder on discs than organic pads and might require a bedding-in period to reach their full potential.

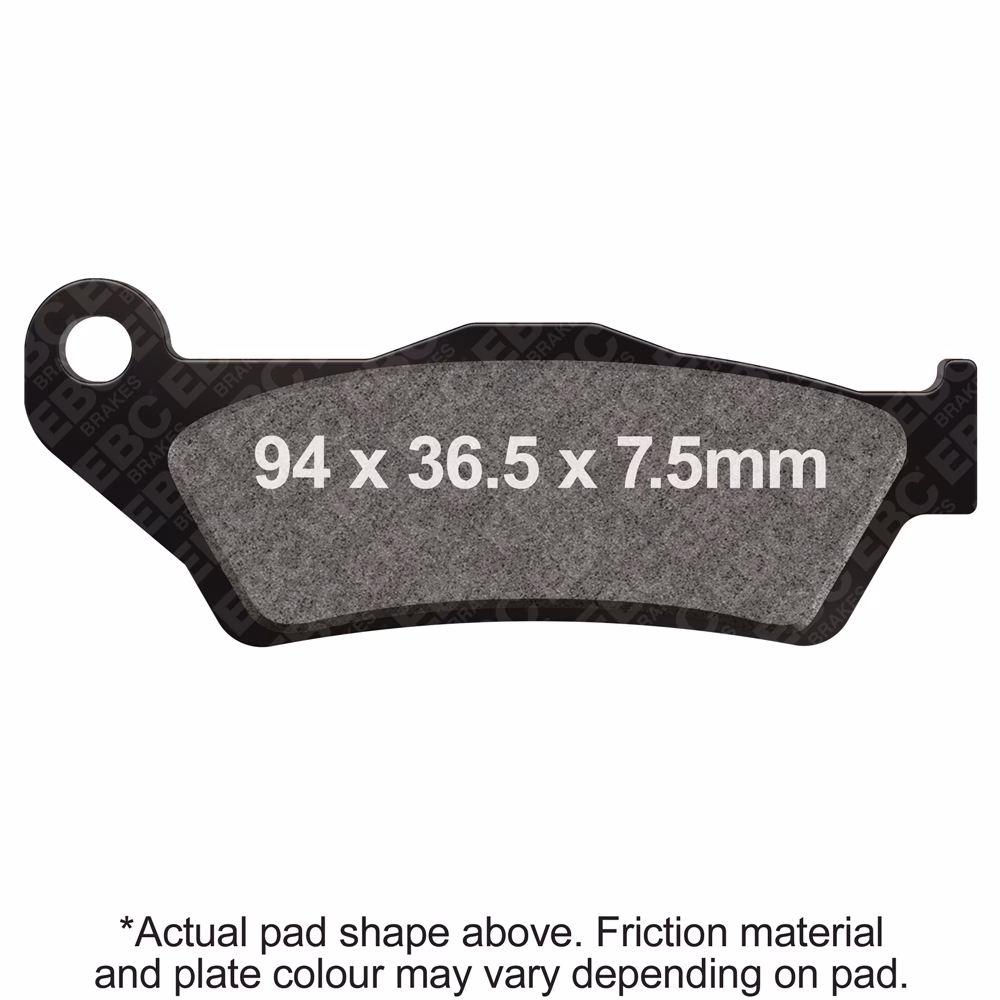

Spotlight: EBC FA181R Sintered Brake Pads
The EBC FA181R Sintered Brake Pads are a prime example of a high-performance option for scooters. EBC is a well-respected name in the braking industry, and their "R" series is specifically designed for demanding applications. Let's break down what makes these pads stand out:
Material and Construction
The FA181R pads are constructed from a high-density sintered copper material, manufactured in the USA. Copper is an excellent conductor of heat, which helps to dissipate the heat generated during braking, preventing brake fade. The sintering process creates a molecular bond between the metal particles, resulting in a pad that is incredibly strong and resistant to wear.
Durability and Performance
The "R" series designation signifies that these are heavy-duty moto-x disc pads. This means they are engineered to withstand extreme conditions. Their high density and robust material composition translate to:
- Ultimate Durability: These pads are built to last, offering a significantly longer lifespan compared to many organic or semi-metallic options.
- High Resistance to Contamination: The sintered copper material is less porous and more resistant to damage from contaminants like mud, water, sand, and grit. This is crucial for scooter riders who may encounter varied road conditions.
- Reduced Disc Damage: While sintered pads can be harder on discs than organic pads, EBC's formulation aims to minimise excessive wear. The long pad life often offsets any slightly increased disc wear over time, and proper bedding-in is key here.
- Consistent Stopping Power: They provide reliable and strong stopping power across a wide operating temperature range, meaning you can count on them whether you're cruising in the city or facing more demanding braking situations.
Application Note
It's important to note that brake pads are sold as a set, and typically, one set is required per caliper. Always ensure you are purchasing the correct part number for your specific scooter model. The FA181R is designed for specific caliper fitments, so double-checking compatibility is essential.
Choosing the Right Brake Pads for Your Scooter
While the EBC FA181R offers excellent performance, the "best" brake pad ultimately depends on your riding style, the type of scooter you own, and your priorities. Consider the following:
Riding Conditions
- City Commuting: For frequent stop-and-go traffic, good initial bite and reasonable disc wear are important. Organic or good quality semi-metallic pads might suffice.
- Touring/Long Distance: Durability and consistent performance under varying temperatures are key. Sintered pads often excel here.
- All-Weather Riding: If you ride in all conditions, including rain and grit, pads with good resistance to contamination and consistent performance, like sintered pads, are highly recommended.
Scooter Type
The weight and performance of your scooter will influence the braking demands. A lightweight 50cc scooter will have different needs than a heavier, more powerful maxi-scooter. High-performance scooters often benefit more from the heat resistance and stopping power of sintered pads.
Your Priorities
- Longevity: If you want pads that last a long time, sintered pads are usually the top choice.
- Stopping Power: For maximum stopping force, sintered pads often provide the best performance, especially when hot.
- Disc Wear: If preserving your brake discs is your absolute top priority, organic pads are the gentlest, but you'll sacrifice some longevity and heat resistance.
- Cost: Organic pads are typically the cheapest, followed by semi-metallic, with sintered pads often being the most expensive upfront, but their longer life can make them more cost-effective in the long run.
Installation and Bedding-In
Proper installation is crucial for any brake pad. If you're not comfortable doing this yourself, it's always best to have a qualified mechanic handle it. For sintered pads, the bedding-in process is particularly important to ensure optimal performance and longevity.
Bedding-in involves a series of controlled stops from moderate speeds, gradually increasing the intensity. This process ensures the pad material is evenly transferred to the disc surface, creating a uniform contact area. Typically, this involves:
- Make 5-6 moderate stops from about 30 mph down to 10 mph without coming to a complete halt.
- Let the brakes cool down for a few minutes.
- Make 2-3 harder stops from slightly higher speeds, again without fully stopping.
- Allow the brakes to cool completely.
Always refer to the manufacturer's specific bedding-in instructions, as they can vary.
Frequently Asked Questions
Q1: How often should I replace my scooter's brake pads?
A: This varies greatly depending on your riding habits and the type of pads. A visual inspection is the best way to tell. Look for a minimum thickness of around 1-2mm of pad material remaining. If they are worn down close to the metal backing plate, it's time for a change.
Q2: Can I mix different types of brake pads on my scooter?
A: It is generally not recommended to mix different types of brake pads (e.g., organic on one side, sintered on the other) within the same caliper or even on the same axle. This can lead to uneven braking performance and premature wear.
Q3: Do EBC FA181R pads fit all scooters?
A: No, brake pads are specific to the scooter's make, model, and year. The FA181R is a specific part number and will only fit scooters designed for it. Always check your scooter's manual or consult a parts supplier to confirm compatibility.
Q4: Are sintered brake pads noisy?
A: Sintered pads can sometimes be noisier than organic pads, especially during the bedding-in period or in certain conditions. However, advancements in manufacturing have reduced noise levels significantly in many modern sintered pads.
Conclusion
Choosing the right brake pads for your scooter is a vital aspect of its maintenance. While options like the EBC FA181R Sintered Brake Pads offer exceptional durability and performance, especially in challenging conditions, it's essential to consider your specific needs. By understanding the different types of pads and their characteristics, you can make an informed choice that ensures your scooter stops reliably and safely, giving you peace of mind on every journey.
