F30 Big Brake Upgrade: A DIY Guide

Embarking on a brake upgrade for your BMW F30 can be a rewarding experience, offering enhanced stopping power and a more aggressive aesthetic. While the allure of larger discs and pads is strong, the process isn't always a straightforward bolt-on affair. This guide delves into the intricacies of fitting larger 340mm discs and pads, drawing from the experiences of those who have tackled this modification themselves. We'll explore the common challenges, the often-overlooked components, and the solutions required to achieve a successful upgrade.

Understanding the Need for an Upgrade

For many BMW enthusiasts, the standard braking system, while adequate for daily driving, can feel somewhat lacking during spirited driving or track day sessions. The desire for improved thermal management, reduced brake fade, and a more potent pedal feel often leads to exploring aftermarket braking solutions. The F30 generation offers a good platform for upgrades, but compatibility with larger components, particularly from performance variants like the M3, requires careful consideration.

The 340mm Disc Dilemma: Front vs. Rear

While the F30 platform might come with various disc sizes depending on the specific model (e.g., 330i), the popular upgrade path often involves fitting larger discs. The initial question often revolves around the availability of schematics or direct-fit kits. However, as many DIYers discover, the reality involves more than just matching part numbers. The primary differences often lie in subtle design variations between models, such as the caliper mounting points, hub depth, and even the material of the brake shield.

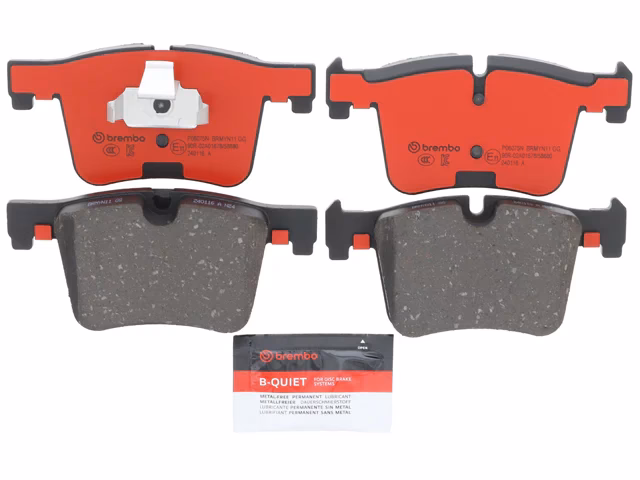

Front Disc & Pad Considerations

Upgrading the front brakes typically involves sourcing larger discs and corresponding calipers. The F30 platform often accommodates larger front discs with fewer modifications compared to the rear. The key is to ensure the caliper clears the disc and has adequate pad surface contact. This might involve specific caliper brackets or simply ensuring the correct offset disc is chosen.

Rear Disc & Pad Challenges: A Deeper Dive

The rear brake upgrade, as highlighted by the user experience, presents a more complex set of challenges. The initial assumption that M3 rear discs are a direct fit for a 330i model is a common misconception. The user's experience revealed that the perceived issue with the caliper hitting the 'handbrake rim' was, in fact, a clearance problem with the brake shield. This metal component behind the disc, designed to protect against dust and debris, can interfere with the caliper's seating when larger discs are fitted.

The Brake Shield Revelation

The critical insight here is that the brake shield is often the culprit. Trimming or modifying the brake shield is frequently a necessary step to allow the caliper to sit correctly over the larger disc. This is a relatively minor modification but requires precision to avoid damaging other components.

Disc Hat Depth and Offset

Another significant hurdle encountered was the difference in disc hat depth and offset. The M3 rear discs, while larger, had a deeper hat/offset that prevented proper caliper alignment. This reinforces the need to carefully select discs that match the desired offset for the specific F30 hub and caliper combination. In this instance, retaining the original 330 rear discs and modifying the caliper mounting proved to be a viable alternative.

Spindle Bolt Size Mismatch

A less obvious but crucial issue is the difference in spindle bolt sizes. The F30 rear spindle might be designed for M10 bolts, while the F30 calipers utilise M12 bolts. This 2mm difference is significant and requires careful modification of the spindle's mounting holes. Drilling out the spindle from M10 to M12 needs to be done with extreme precision to maintain structural integrity and ensure the caliper is securely mounted. The user's approach of incrementally widening the holes (10mm to 10.5mm, 11mm, 11.5mm, and finally 12mm) is a testament to the meticulous nature of this modification.

Calibrating the Caliper Position

Once the spindle is drilled, achieving perfect centralisation of the disc within the caliper becomes the next objective. This often requires the use of shims or washers. Adding 1.5mm washers between the spindle and the caliper mounting holes effectively pushes the caliper outwards. However, this can lead to the caliper slightly interfering with the disc. Careful filing or grinding of the caliper's mounting face is then necessary to resolve this minor interference, ensuring the caliper doesn't rub against the disc.

Shaving the Caliper: A Delicate Task

When modifying the caliper, it's important to only remove material from the area facing the disc, not the spindle. Over-grinding could compromise the caliper's threads. The goal is to achieve just enough clearance for the caliper to sit flush without binding.

Centring the Disc: Piston Alignment

Even with the caliper positioned correctly, there's a chance the disc might sit slightly outboard of its ideal position. To compensate for this and ensure even piston extension, the user employed custom-made backing plates (essentially 1.5mm steel sheets) placed between the inner pistons of the caliper. This subtle adjustment helps to centre the disc within the caliper's effective range, promoting even pad wear.

Ancillary Components: Spacers and Hoses

Beyond the core disc and caliper fitment, other components might require attention:

• Wheel Spacers: Depending on the caliper design and disc offset, wheel spacers might be necessary to clear the inner spokes of the alloy wheels. In this case, 5mm spacers were required for the rear MV1 wheels.
• Brake Hoses: It's crucial to ensure the brake hoses have sufficient length and the correct fittings to accommodate the new caliper position. The user opted for aftermarket braided E46 M3 Brembo/Porsche hoses from HEL for the rear, while using F30 hoses for the front. Braided hoses offer improved pedal feel and durability.

Tools and Techniques

Successfully executing this upgrade requires a good set of tools and a methodical approach. Essential tools include:

• HSS drill bits (various sizes for incremental drilling)
• A reliable drill or drill press for accuracy
• A grinding wheel or Dremel tool for metal modification
• Measuring tools (calipers, feeler gauges)
• Torque wrench for final assembly
• Wheel chocks and jack stands for safety
• Appropriate personal protective equipment (PPE)

The process can be time-consuming, especially when troubleshooting on the fly. Patience and meticulousness are key. The user's success in completing the job in a day and a half highlights the importance of preparation and having all necessary components and tools readily available.

Troubleshooting and Common Pitfalls

The most common pitfalls in this type of upgrade stem from incorrect assumptions about parts compatibility. Always:

• Verify Disc Offset: Ensure the disc's hat depth and offset are correct for your F30 hub and the chosen caliper.
• Inspect Brake Shields: Always check for interference with the brake shield before attempting to mount the caliper.
• Confirm Bolt Sizes: Double-check spindle and caliper bolt thread sizes.
• Check Wheel Clearance: Test fit wheels after installing larger calipers and discs, as clearance can be tight.

Frequently Asked Questions

Q1: Will fitting larger discs automatically improve my car's braking?
While larger discs generally offer better thermal capacity and can contribute to improved braking, the effectiveness also depends on the caliper, brake pads, and the overall brake system condition.

Q2: Can I use M3 discs on my F30 without any modifications?
It's unlikely that M3 discs will be a direct bolt-on for all F30 models, especially for the rear. Modifications to brake shields, caliper mounting, or spindle holes are often necessary.

Q3: Is drilling the rear spindle safe?
Drilling the spindle requires extreme precision. If done correctly, maintaining concentricity and avoiding over-sizing, it can be safe. However, any error could compromise the mounting and safety of the caliper. It's a modification best left to experienced DIYers or professionals.

Q4: Do I need longer brake hoses for a big brake upgrade?
Yes, it's highly recommended. When calipers are moved or repositioned, the original hoses may become strained, posing a safety risk. Braided hoses offer better durability and feel.

Q5: What is the most critical part of this modification?
Ensuring the caliper is securely mounted and correctly aligned with the disc is paramount. This includes proper spindle drilling, correct shimming, and adequate clearance.

Conclusion

Upgrading your F30's brakes to larger 340mm discs and pads is an achievable modification for the dedicated enthusiast. While schematics might not always provide a complete picture, understanding the common challenges related to brake shields, disc offsets, spindle bolt sizes, and caliper alignment is crucial. By approaching the task methodically, with the right tools and a willingness to adapt, you can significantly enhance your BMW's braking performance and driving experience. Remember, safety should always be the top priority throughout the installation process.
