Reinstalling Your Brake Caliper: A UK Guide

Reinstalling a brake caliper might seem like a daunting task, but with the right guidance, tools, and a healthy dose of patience, it’s a perfectly achievable DIY project for the keen home mechanic. Proper brake maintenance is paramount for road safety, and correctly reassembling your braking system ensures reliable stopping power. This detailed guide will walk you through the process, offering insights and troubleshooting tips, particularly for those tricky moments you might encounter, drawing on real-world experience.

Getting Started: Preparation and Safety First

Before you even think about touching a spanner, ensuring your safety and having all necessary tools at hand is crucial. Brake work involves heavy components and working under a vehicle, so never cut corners on safety.

Essential Tools and Materials You'll Need

Having the correct tools makes the job significantly easier and safer. Here's a list of what you'll likely require:

• Hydraulic Jack and at least two sturdy Axle Stands
• Wheel Chocks
• Wheel Nut Wrench/Socket
• 7mm Allen Bit (for caliper guide bolts)
• 6mm Allen Bit (for rotor holding bolt)
• 18mm Socket (for caliper bracket bolts)
• Ratchet Wrench (with extension if needed)
• Breaker Bar (highly recommended for stubborn bolts)
• C-Clamp or Brake Piston Compression Tool
• Sturdy Wire or Bungee Cord (to suspend caliper)
• Flat-head Screwdriver
• Wire Brush or Sandpaper
• Rubber Mallet
• Brake Parts Cleaner
• Brake Grease (specific for caliper pins and pad backing)
• Anti-Seize Compound
• Clean Rags/Paper Towels
• Personal Protective Equipment (safety glasses, gloves)
• Torque Wrench (essential for correct tightening)
• A piece of wood or an old brake pad

Prioritising Safety During Brake Work

Safety is non-negotiable. Always follow these precautions:

• Secure the Vehicle: Park on a flat, level surface. Engage the handbrake and place wheel chocks on the wheels that will remain on the ground.
• Proper Jacking: Use a high-quality hydraulic jack to lift the vehicle. Never work under a vehicle supported solely by a jack.
• Use Axle Stands: Once lifted, immediately place sturdy axle stands under the vehicle's designated jacking points. For brake work, placing one under where the lower control arm attaches to the frame provides excellent stability. Give the car a gentle shake to ensure it's stable on the stands.
• Personal Protection: Wear safety glasses to protect your eyes from debris, brake dust, and cleaning chemicals. Gloves will protect your hands from grease and sharp edges.
• Cleanliness: Brake dust can be harmful. Avoid inhaling it and clean components in a well-ventilated area.
• Work Methodically: Take your time. Rushing leads to mistakes and potential hazards.

The Reinstallation Process: A Step-by-Step Guide

Now, let's get down to the nitty-gritty of putting everything back together. We'll assume you've already removed the old components and are ready to install new ones.

Initial Component Preparation and Cleaning

Before anything goes back on, thorough cleaning and preparation are vital for optimal performance and longevity.

Firstly, if you're installing new rotors, it's crucial to clean them thoroughly with brake parts cleaner. New rotors often come coated in a protective grease (to prevent rust during shipping), which must be entirely removed before installation. Failure to do so can lead to ineffective braking and a contaminated braking surface. Spray liberally and wipe clean with a lint-free cloth until no residue remains. Remember, once clean, avoid touching the rotor's braking surface with greasy hands.

Next, focus on the caliper bracket. Wipe the guide rails on the bracket clean with a wire brush or sandpaper. These are the surfaces where the brake pads slide, and any corrosion or old grease can impede their movement, leading to uneven wear or noise. Once clean, apply a thin, even layer of high-temperature brake grease to these guide rails. Ensure you wipe away any excess grease meticulously to prevent it from contaminating the rotor surface – even a tiny amount can compromise braking performance.

Finally, apply a thin, even layer of anti-seize compound to the hub face where the rotor mounts. This prevents the rotor from seizing onto the hub over time, making future removal much easier. Be sparing with anti-seize; a little goes a long way. Apply it around the bolt holes, not on the braking surface!

Rotor Installation and Securing

With the hub and new rotor clean, it's time to put the rotor back on. Carefully align the rotor with the hub, ensuring it sits flush. Remember to hold the rotor from underneath or on the sides to avoid touching the clean braking surface. Once in place, apply a small amount of anti-seize to the rotor holding bolt before reinstalling it. Use your 6mm Allen bit to tighten it securely. Make sure the Allen bit is fully seated in the bolt head to prevent stripping, which can turn a simple task into a major headache!

Reinstalling the Caliper Bracket

The caliper bracket holds the brake pads and the caliper itself. Reinstall it using the 18mm socket and the two large bolts. These bolts are critical for safety and must be extremely tight. If your car is relatively new and components haven't seized, a breaker bar or a good hammer might suffice. However, older vehicles, especially those that have seen a decade of use with original rotors, might require more drastic measures. Seized bolts on the bracket can be incredibly stubborn; past experiences have shown they might even crack sockets. In severe cases, heating the bolts with a blow torch until red-hot can be the only way to loosen them. Always ensure these bolts are tightened to the manufacturer's specified torque – a torque wrench is indispensable here for peace of mind and safety.

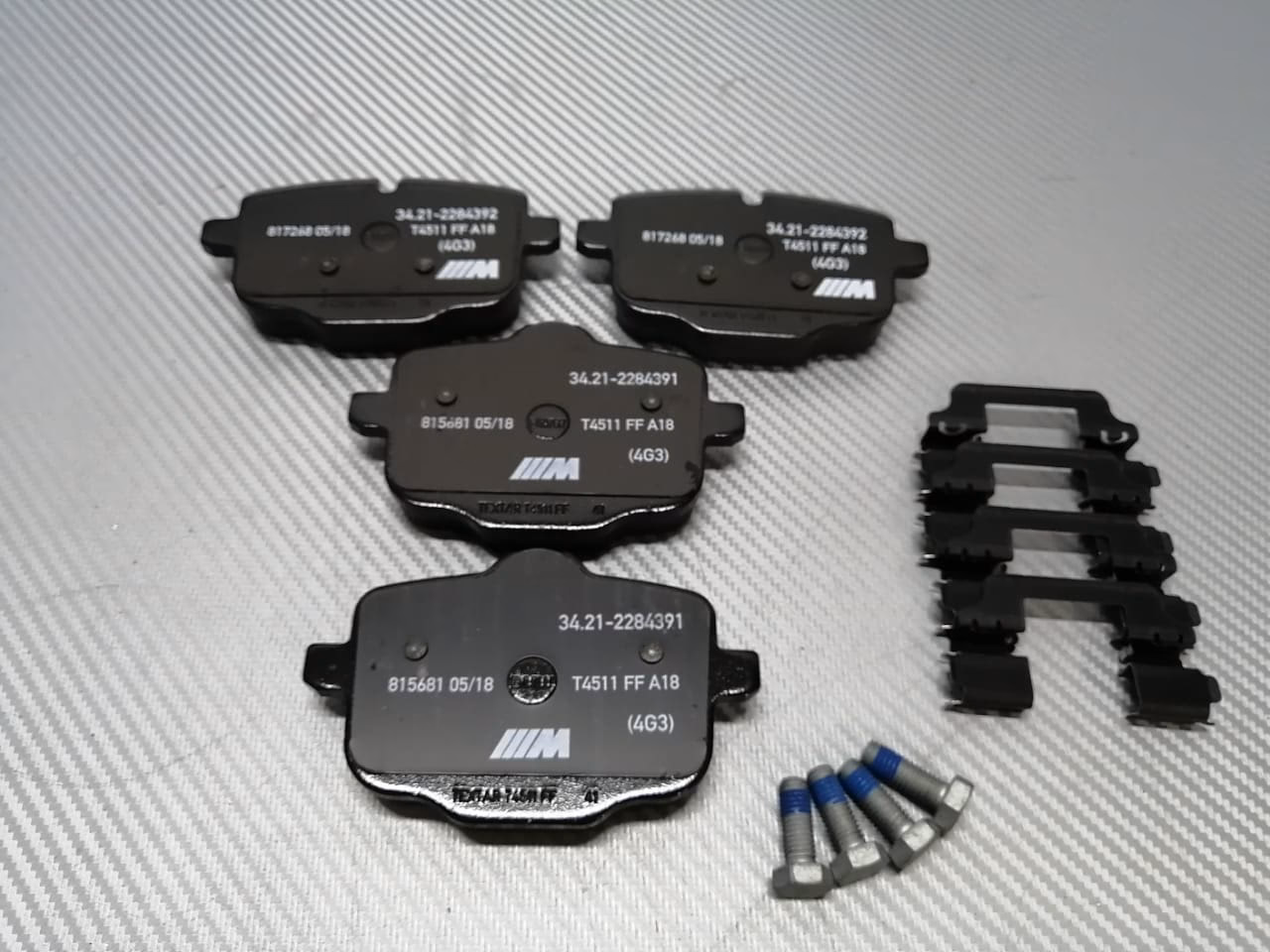

Pad Installation and Caliper Re-attachment

With the bracket firmly in place, you can now install the brake pads. The outer pad slides into the bracket itself. The inner pad, however, sits directly into the caliper piston. Carefully place it there, ensuring it's seated correctly.

Now, untie the caliper from its suspended position. Before re-installing it onto the bracket, clean the caliper guide bolts with brake parts cleaner. Apply a thin layer of brake grease to them. These bolts allow the caliper to slide smoothly, which is essential for even pad wear and effective braking. Insert the guide bolts back into their rubber holes, using your 7mm Allen bit to tighten them to the specified torque. Don't forget to replace the two small plastic covers over the guide bolt holes; these protect the bolts from dirt and moisture.

The Stubborn Anti-Rattle Clip (F10 Specific Challenge)

Reinstalling the anti-rattle clip can surprisingly be one of the most frustrating parts of the job, especially on certain models like the F10 where it seems to require a special knack (or tool!). On many older cars, this was a simple one-person task, but on the F10, it can become a significant challenge. Here's a method that has proven successful when faced with this particular clip:

1. First, push the top and bottom parts of the clip into their respective positions on the caliper. They will likely fight you, requiring a fair amount of force.
2. Once these ends are partially seated, you'll ideally need assistance. Have two people hold these top and bottom parts firmly in place.
3. With the two ends held, use a flat-head screwdriver and a small hammer. Place the tip of the screwdriver against the centre of the clip, specifically the part that needs to be pushed into its final hole.
4. Carefully pry the centre clip outwards (away from the hub's centre) and, while maintaining outward pressure, use the hammer to gently tap/push it into its retaining hole. This often requires a precise combination of outward leverage and inward force.

This method, while potentially requiring an extra pair of hands, has been found to work efficiently, turning a 15-minute struggle into a quick, one-minute task per side. It suggests that BMW might indeed have a specialised tool for this, but the described technique is a viable workaround for the home mechanic.

Addressing Brake Squeal: The 'Brake Quiet' Debate

After all that hard work, the last thing you want is a persistent squeal every time you touch the brakes. The use of 'brake quiet' compound on the back of the pads is a common recommendation, designed to dampen vibrations that cause noise. However, its effectiveness can be debated, and some experienced mechanics find it unnecessary or ineffective with certain pad types.

One common experience is that despite applying brake quiet, squealing persists, especially at low speeds. This often leads to the conclusion that the issue might not be the lack of a compound, but rather the quality or material composition of the brake pads themselves. Cheaper, aftermarket pads are notorious for being noisy, even when correctly installed. In such cases, the only true solution might be to upgrade to higher-quality, often OEM (Original Equipment Manufacturer), pads known for their quiet operation.

If you choose to use brake quiet, follow the product instructions carefully. Some require a significant curing time (e.g., 24 hours) before the vehicle is driven, which can be inconvenient if you're on a tight schedule. Ultimately, if squealing persists despite proper installation and lubrication, consider the brake pad material as the primary culprit.

The Critical Step: Brake Bedding-In (Break-In Procedure)

Congratulations, your brakes are reinstalled! But your job isn't quite done. The most crucial final step is the brake bedding-in, or break-in, procedure. This process conditions the new pads and rotors, allowing them to transfer a thin, even layer of pad material onto the rotor surface. This creates an optimal friction layer, improving braking performance, reducing noise, and extending component life.

Many guides exist, but the core principle is to avoid coming to a complete stop during the initial bedding-in period. Coming to a full stop while the brakes are hot can 'imprint' pad material onto the rotor unevenly, which is often mistakenly referred to as 'warping' your rotors. This uneven deposit can cause pulsation and noise.

A typical bedding-in procedure involves a series of moderate to hard accelerations and decelerations:

1. Find a safe, open road with no traffic.
2. Perform several (e.g., 5-7) moderate stops from around 40-45 mph down to about 10 mph. Do not come to a complete stop.
3. Drive for a few minutes without braking to allow the brakes to cool slightly.
4. Repeat the process with a few harder stops from around 60 mph down to 10 mph. Again, avoid coming to a full stop.
5. After the last set of stops, drive for a longer period (e.g., 10-15 minutes) without braking to allow the entire braking system to cool down completely.

During this process, you might notice some brake fade or a burning smell; this is normal. Following this procedure correctly will significantly enhance the performance and longevity of your new brakes.

Common Issues and Troubleshooting Tips

Even with the best preparation, you might encounter some common issues. Knowing how to troubleshoot can save you time and frustration.

Seized Bolts and Stripped Heads

As mentioned, caliper bracket bolts can be incredibly stubborn. If a breaker bar isn't enough, consider a penetrating oil applied generously and left to soak for several hours, or even overnight. For severely seized bolts, controlled heat from a blow torch (with extreme caution and fire safety measures) can expand the metal, helping to break the bond. If you encounter a stripped Allen bolt head (like the rotor holding bolt), your options are limited. You might try an impact driver designed for stripped screws, or as a last resort, drilling out the bolt head. This is time-consuming and often requires replacing the bolt, so prevention (ensuring the Allen bit is fully seated) is key.

The Persistent Squeal: Understanding Brake Noise

If your brakes squeal after installation, despite attempts with brake quiet, revisit a few areas. First, ensure all sliding surfaces (caliper guide pins, pad ears on the bracket) are clean and properly lubricated with appropriate brake grease. Second, verify the anti-rattle clip is correctly installed and providing adequate tension. Third, consider the quality of your brake pads. As discussed, cheaper pads are often noisier. Finally, ensure your bedding-in procedure was followed correctly. Sometimes, another bedding-in cycle can help, or the noise may simply diminish over time as the pads wear in, as experienced by many.

Frequently Asked Questions (FAQs)

Q: How important is using a torque wrench?

A: Extremely important. Over-tightening can strip threads, deform components, or make future removal difficult. Under-tightening can lead to loose components, vibrations, and potentially dangerous failures. Always refer to your vehicle's service manual for specific torque specifications for each bolt.

Q: Can I reuse my old brake pads?

A: It is generally not recommended to reuse old brake pads, especially if you're installing new rotors. Pads wear to the contours of the old rotor, and using them on a new, perfectly flat rotor can lead to poor contact, reduced braking efficiency, and premature wear on the new components. Always install new pads with new rotors.

Q: Why do my new brakes squeal even after I used brake quiet?

A: As detailed in the article, while brake quiet can help, persistent squealing often points to the brake pad material itself. Some aftermarket pads are simply prone to noise. Ensure all moving parts are properly lubricated and the anti-rattle clip is correctly installed. If the noise persists, higher-quality pads might be necessary.

Q: What if I can't push the piston back in?

A: Some caliper pistons, particularly on vehicles with electronic parking brakes, require a special diagnostic tool to retract them, as they are electronically controlled. Attempting to force them with a C-clamp can damage the caliper. For standard calipers, ensure the bleeder screw isn't blocked and that the master cylinder cap is loose to relieve pressure. If still stuck, the caliper might be seized and require replacement.

Reinstalling brake calipers is a rewarding task that saves money and gives you a deep understanding of your vehicle's most critical safety system. By following these steps carefully, prioritising safety, and paying attention to detail, you can ensure your braking system is in top condition, providing reliable and safe stopping power for miles to come.
