The Cool Science of Evaporative Cooling

Understanding Evaporative Cooling: A Breath of Fresh, Cool Air

In the relentless pursuit of comfort, particularly when the mercury climbs, we often turn to air conditioning. However, a simpler, more natural, and often more energy-efficient method of cooling exists, harnessing the power of water's phase change: evaporative cooling. This technology, at its core, uses the principle that when water evaporates, it absorbs heat from its surroundings, thereby lowering the temperature. It's a process as old as nature itself, seen in the cooling effect of perspiration on our skin or the refreshing mist after a rainfall.

Evaporative cooling systems are broadly categorised into three main types: direct, indirect, and hybrid systems. Each offers a unique approach to leveraging the cooling potential of evaporation, catering to different needs and environmental conditions. Understanding these distinctions is key to appreciating the versatility and efficiency of this eco-friendly cooling method.

Direct Evaporative Cooling: Simple and Effective

The direct evaporative cooling system is the most straightforward implementation of this technology. It operates by drawing warm, dry air through a water-saturated medium, often made of materials like cellulose or specially designed pads. As the air passes through this moist environment, water evaporates from the medium into the air. This evaporation process requires energy, which it draws directly from the air in the form of heat. Consequently, the air is cooled down significantly, and its humidity level increases. Think of it like a wet towel left out on a hot day; the towel cools down as the water evaporates from it.

The fundamental principle is that evaporation occurs at the liquid-vapor interface and can take place at temperatures below the boiling point of water. This means that even on a warm day, water can readily turn into vapour, taking heat with it.

The Process on a Psychrometric Chart

To visualise this, we can look at a psychrometric chart. Imagine air entering the system at a certain dry bulb temperature and relative humidity (State A). As it passes through the saturated medium, water evaporates into it. This process cools the air (lowering the dry bulb temperature) and adds moisture, increasing the relative humidity. In an ideal scenario, where the air becomes saturated, the final dry bulb temperature can approach the wet bulb temperature of the incoming air. For instance, air at 70°F dry bulb and 60% relative humidity might be cooled down to approximately 61°F with 100% humidification.

The Process on a Mollier Diagram

Similarly, a Mollier diagram (or enthalpy-humidity chart) illustrates the same process. Air at 30°C dry bulb and 60% relative humidity (State A) entering a direct evaporative cooler will be cooled to a lower temperature (State B) as water vapour is added. With complete humidification, the dry bulb temperature could be reduced to around 23.5°C.

Indirect Evaporative Cooling: Cooling Without Humidification

While direct evaporative cooling is effective, it does add moisture to the air, which may not always be desirable, especially in humid climates or for specific applications. This is where indirect evaporative cooling systems come into play. In these systems, the cooling process is more nuanced. Instead of the air being directly exposed to water, a secondary air stream is used to facilitate the cooling.

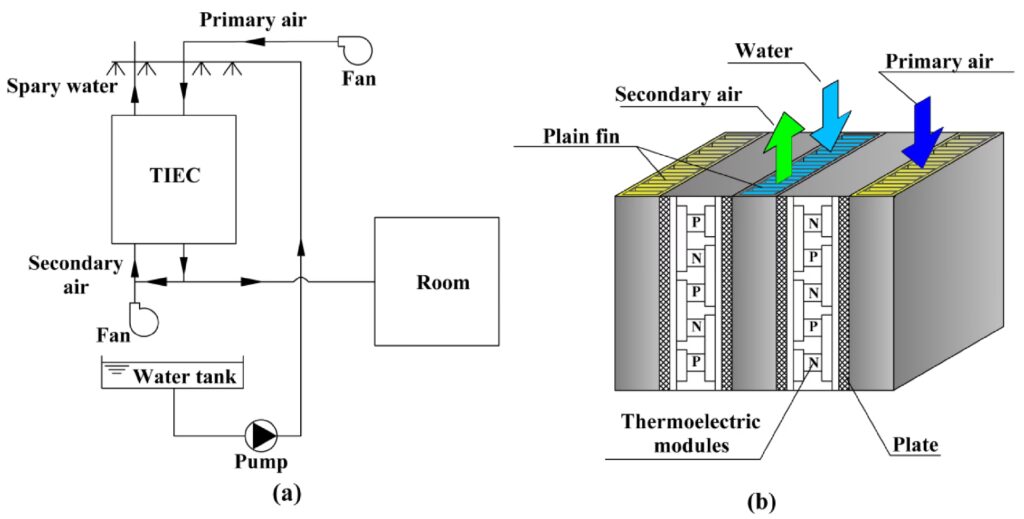

Here's how it works: Warm, dry air (the primary air stream) flows through one side of a heat exchanger. On the other side of the heat exchanger, a secondary air stream, which has been cooled through direct evaporation (by being passed through a water-saturated medium or sprayed with water), flows. The cooler secondary air absorbs heat from the primary air stream without coming into direct contact with it. This effectively cools the primary air stream, significantly reducing its temperature, while its humidity remains largely unchanged. The dry bulb temperature is reduced, the wet bulb temperature is also reduced, the relative humidity increases, and crucially, the specific humidity (the actual amount of water vapour in the air) remains constant.

The Process on a Psychrometric Chart

On a psychrometric chart, this looks different. The primary air (State A: 70°F dry bulb, 60% relative humidity) is cooled to State B by the indirect process. The secondary air, having been cooled by evaporation, facilitates this heat transfer. With 100% humidification of the secondary air, the dry bulb temperature of the primary air can approach its initial wet bulb temperature, which in this example might be around 70°F, with its relative humidity increasing to approximately 83%.

The Process on a Mollier Diagram

In a Mollier diagram, the primary air at 30°C dry bulb and 60% relative humidity (State A) is cooled to State B via the heat exchanger and the cooled secondary air. With a fully humidified secondary air stream, the primary air's dry bulb temperature could be reduced to approximately 23.5°C, with its relative humidity rising to around 86%.

Hybrid Evaporative Cooling Systems: The Best of Both Worlds

Recognising the strengths and limitations of both direct and indirect systems, hybrid evaporative cooling systems combine them to achieve optimal performance. These systems often feature indirect evaporative cooling units followed by direct evaporative cooling units, or they can be integrated with traditional compressor-based (DX - Direct Expansion) cooling systems.

In a serial configuration, an indirect unit can pre-cool the air, reducing its temperature and humidity before it enters a direct unit for further cooling. Alternatively, evaporative cooling can be used as a pre-cooling stage for a DX system. By reducing the temperature of the air entering the DX unit, it significantly decreases the workload on the compressor, leading to substantial energy savings and extended equipment lifespan. This approach is particularly effective in climates with both dry and humid periods, allowing the system to adapt and optimise its performance.

Benefits of Evaporative Cooling Systems

The advantages of adopting evaporative cooling technologies are numerous and compelling:

• Economic Efficiency: Evaporative cooling systems can be significantly more economical than conventional DX air conditioning systems. They require less energy to operate, and their ability to reduce the load on DX systems means that the required size of compressor-based cooling can be reduced, or their run time can be substantially shortened. This translates directly into lower electricity bills.
• Environmental Friendliness: Unlike traditional air conditioning systems that rely on refrigerants (which can have a significant environmental impact, including ozone depletion and global warming potential), evaporative cooling systems primarily use water and air. This makes them a much more environmentally friendly choice, as they do not contain harmful refrigerants.
• Effectiveness in High Temperatures: Evaporative cooling can be surprisingly effective, even at higher ambient temperatures, especially in dry climates. The cooling potential is directly related to the difference between the dry bulb and wet bulb temperatures, meaning the hotter and drier the air, the more effective the evaporative cooling will be.
• Reduced Airflow Requirements: Evaporative cooling is more efficient at heat transfer than standard sensible heat transfer. This means that for a given cooling capacity, evaporative cooling requires significantly less airflow compared to dry cooling methods. This can lead to smaller ductwork and fans, further reducing installation and operational costs. It's estimated that evaporative cooling can require up to four times less airflow for the same heat transfer capacity, meaning they can use as little as a quarter of the electrical energy of dry cooling processes.

Why is Evaporative Cooling More Efficient Than Conventional Cooling?

The core reason for the superior efficiency of evaporative cooling lies in the fundamental physics of heat transfer. Conventional air conditioning relies on a refrigeration cycle, which involves compressing and expanding refrigerants to move heat. This is an energy-intensive process. Evaporative cooling, on the other hand, leverages the natural process of water evaporation. As mentioned, evaporation removes a substantial amount of heat (latent heat of vaporization) from the air. This phase change is a highly efficient way to absorb thermal energy. Because more heat is removed through evaporation than through sensible heat transfer alone, less airflow is needed to achieve the desired cooling effect, directly translating to lower energy consumption. As highlighted, this can mean needing only a quarter of the electrical energy used in conventional dry cooling processes.

Considerations and Best Practices

While evaporative cooling offers many advantages, it's important to be aware of certain considerations:

• Humidity Levels: The effectiveness of evaporative cooling is directly tied to the ambient humidity. In very humid conditions, the air is already saturated with moisture, meaning less water can evaporate, and thus the cooling effect is diminished. Direct evaporative cooling is best suited for arid and semi-arid climates.
• Water Quality and Maintenance: Like any system involving water, proper maintenance is crucial. Water systems operating within a certain temperature range (between 20.5°C and 50°C) can be a potential source for the growth of bacteria, including Legionella. Regular cleaning, flushing, and appropriate water treatment are essential to ensure safe and hygienic operation.
• Airflow and Ventilation: For direct evaporative coolers, adequate exhaust ventilation is necessary to allow the humidified air to escape, maintaining the system's efficiency and preventing excessive indoor humidity buildup.

Frequently Asked Questions

Q1: Can evaporative cooling be used in humid climates?
Direct evaporative cooling is less effective in humid climates because the air already holds a significant amount of moisture, limiting further evaporation. However, indirect and hybrid systems can still offer benefits by pre-cooling air without adding much humidity, or by reducing the load on conventional AC systems.

Q2: How much water does an evaporative cooler use?
The water consumption varies depending on the size of the unit, the ambient temperature and humidity, and how long it runs. However, compared to the energy consumption of conventional AC, the water usage is generally considered a worthwhile trade-off for the energy savings.

Q3: Is evaporative cooling safe?
Evaporative cooling is generally safe. The primary concern, as with any water system, is the potential for microbial growth if not properly maintained. Regular cleaning and adherence to manufacturer guidelines mitigate this risk.

Q4: What is the difference between direct and indirect evaporative cooling?
Direct evaporative cooling cools air by passing it through a water-saturated medium, increasing both its coolness and humidity. Indirect evaporative cooling uses a separate, cooled air stream (generated by direct evaporation) to cool the primary air stream through a heat exchanger, cooling the air without significantly increasing its humidity.

Q5: How does evaporative cooling compare to air conditioning?
Evaporative cooling is generally more energy-efficient and environmentally friendly than traditional air conditioning, as it doesn't use refrigerants and relies on a natural process. It's particularly effective in dry climates. Air conditioning can achieve lower temperatures and operates effectively in all climates but consumes more energy and uses refrigerants.

Conclusion

Evaporative cooling offers a compelling alternative to conventional air conditioning, providing an energy-efficient, environmentally friendly, and often more economical way to achieve comfortable indoor temperatures. By understanding the principles behind direct, indirect, and hybrid systems, individuals and businesses can make informed decisions about adopting this innovative and sustainable cooling technology. As the world increasingly seeks greener solutions, evaporative cooling stands out as a natural and effective way to beat the heat.
