Cylinder Re-boring vs. Re-lining: A Comprehensive Guide

When your car's engine begins to show signs of wear, such as a seizure, excessive consumption, or overheating, it's crucial to address the health of the cylinder block and its liners. Two common solutions for restoring cylinder integrity are re-boring and re-lining. While both aim to rectify damage and wear, understanding the nuances of each process is vital for making the right decision for your vehicle. This article delves into the intricacies of cylinder re-boring and re-lining, exploring when each is appropriate and the meticulous steps involved, drawing upon the expertise of J and E Engineering Services.

Understanding Cylinder Wear and Damage

Cylinder wear is a natural consequence of an engine's operation. Over time, the constant friction between the piston rings and the cylinder walls leads to a gradual removal of metal. This wear can manifest in several ways:

• Ovality: The cylinder bore loses its perfect circular shape, becoming oval.
• Taper: The diameter of the cylinder changes from the top to the bottom.
• Scoring/Scratches: Debris or lubrication failures can cause deep scratches on the cylinder walls.
• Overheating Damage: Extreme temperatures can distort the cylinder bore.
• Seizure: A catastrophic failure where the piston momentarily fuses with the cylinder wall, causing significant damage.

These forms of wear and damage compromise the seal between the piston rings and the cylinder wall, leading to reduced compression, increased oil consumption, blow-by, and a general loss of engine power and efficiency.

The Art of Cylinder Re-boring

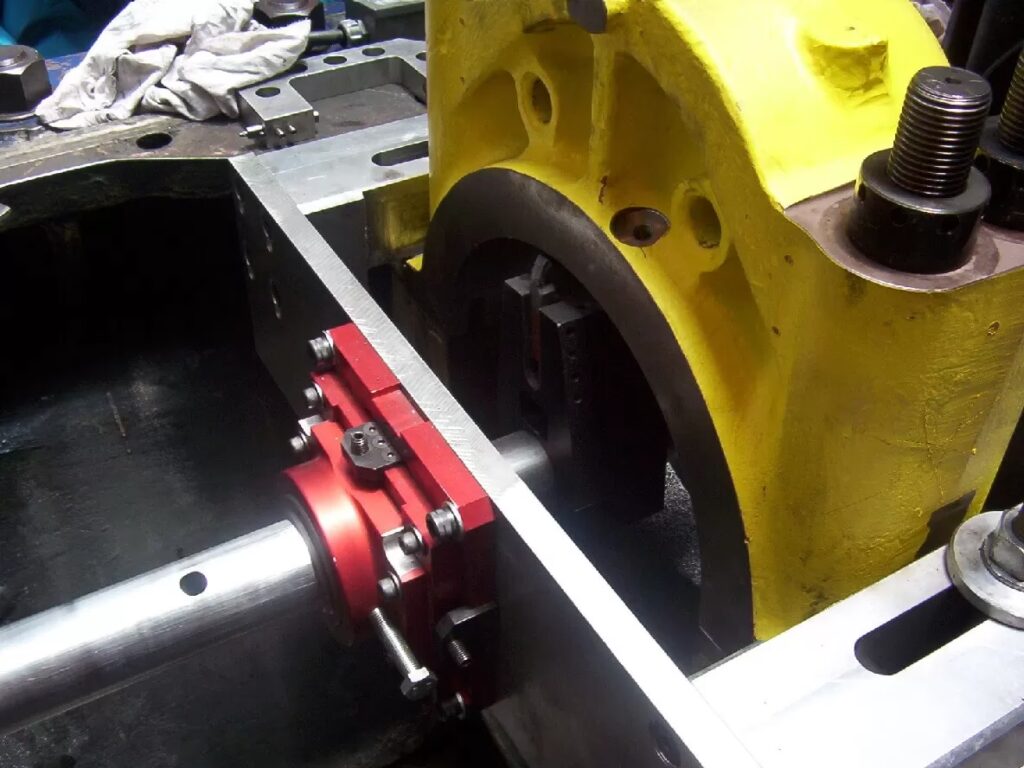

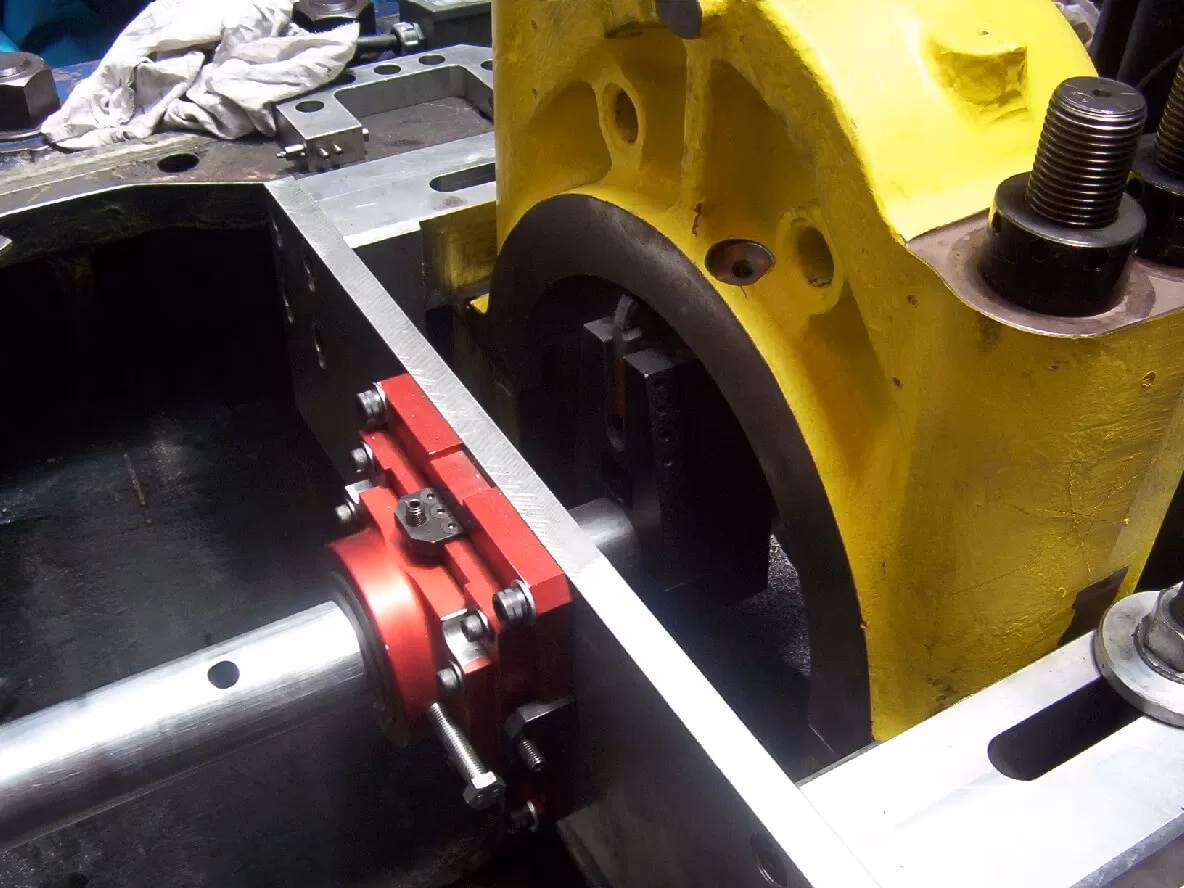

Cylinder re-boring is a process that involves removing a precisely controlled amount of metal from the existing cylinder bore to restore its original roundness and parallelism. This is achieved using a specialised boring machine, often described as an air-floating boring machine. The machine's cutting head is guided precisely within the cylinder, progressively removing material until the bore is perfectly round and parallel throughout its length.

Key aspects of the re-boring process:

• Restoring Geometry: The primary goal is to eliminate ovality and taper, ensuring a uniform bore.
• Oversize Pistons: Once the cylinder is re-bored to a larger diameter, new, oversized pistons are required to match the new bore size. Pistons are typically available in standard sizes and incremental oversizes, such as +.25mm, +.5mm, +.75mm, and +1mm.
• Measuring Piston Diameter: The piston diameter is measured at its widest point, perpendicular to the gudgeon pin axis.
• Clearance: The fitting clearance, also known as 'Spiel' or 'clearance', is crucial for proper piston movement. This is meticulously set during the re-boring and honing process. An example might show a clearance of 0.10mm.
• Oversize Indication: The extent of the oversize is clearly indicated, often in millimetres or 'thou' (thousandths of an inch), for example, '.060" = +60 thou'.

When is Re-boring the Right Choice?

Re-boring is generally suitable when the cylinder block is not excessively damaged or worn beyond the available oversize piston sizes for your specific engine. It's a cost-effective way to bring worn cylinders back to life, provided a suitable oversize piston can be sourced.

The Necessity of Cylinder Honing

Re-boring alone is not sufficient. The process of boring, while restoring the cylinder's dimensions, leaves a microscopically rough surface. This roughness is detrimental to the piston rings, leading to accelerated wear, poor oil consumption, increased temperatures, and inadequate sealing. This is where cylinder honing becomes indispensable.

Honing is a finishing process that refines the cylinder bore surface. It uses abrasive stones (or sometimes diamond abrasives) that rotate and reciprocate within the cylinder, removing the high peaks and torn metal left by the boring tool. This creates a uniform, plateaued surface finish that is ideal for piston ring seating and lubrication.

J and E Engineering Services employs a dedicated honing machine, such as the 'Sunnen Cylinder King', to achieve this critical finish. The process typically involves:

• Multi-Stage Honing: Often, a two-stage honing process is used. A coarser grit stone (e.g., 120 grit) is used for initial sizing and removing the majority of the surface imperfections, followed by a finer grit stone (e.g., 220 grit) for achieving the final bore finish. For high-performance or specialised applications, an even finer grit (400+ grit) and plateau honing with brushes might be employed.
• Plateau Honing: This is the final, crucial step. It removes the sharp peaks from the honing process, leaving a smoother surface with oil-retaining valleys. This is particularly important for modern engine designs with finer piston ring configurations.
• Diamond Honing Stones: For significant material removal, especially when honing rather than boring, diamond stones can be used. These allow for faster stock removal, often for amounts of 0.5mm and upwards, saving on setup time.
• Finishing Stones: New 220 grit finishing stones are used to remove the final 0.1mm as the bore approaches its target size.
• Honing Guides: These ensure the honing head remains parallel to the cylinder bore, guaranteeing roundness and true alignment. Shorter guides are used for longer cylinder lengths.
• Coolant and Flushing: A generous amount of cutting oil is used during honing to flush away swarf and worn stone material, while also cooling the cylinder to prevent distortion. The characteristic clicking noise often heard is the automatic feed maintaining consistent stone pressure.

When Re-lining Becomes Necessary

While re-boring is effective for moderate wear, there are situations where the cylinder block or liner is too severely damaged to be salvaged by boring alone. In these cases, re-lining or re-sleeving is the required solution.

Re-lining involves inserting a new cylinder liner into the existing bore. This is typically done when:

• Severe Damage: The cylinder bore is cracked, porous, or has suffered extreme damage (e.g., deep scoring or distortion) that cannot be corrected by the available oversize pistons.
• Restoring to Standard Size: If the block has already been bored to its maximum oversize limit, fitting a new liner allows it to be machined back to standard size, enabling the use of standard pistons.
• Repairing Damaged Blocks: Liners can be used to repair cylinder blocks that have cracked through or are porous, which would otherwise render them scrap.

The Re-lining Process:

When a cylinder is to be re-lined, the old liner (if present) is pressed out. The block is then prepared, often requiring a specific machining operation to create a seat for the new liner. The new liner is then pressed or shrunk into place. The crucial step after fitting the liner is to machine and hone it to the correct size and finish, using oversized pistons as required, just as with a re-bored cylinder. This ensures perfect alignment and a smooth, efficient bore.

Special Considerations and Modifications

Engine builders and enthusiasts often undertake modifications to enhance engine performance. One common modification, particularly for air-cooled Volkswagen engines, is increasing engine capacity. This is achieved by fitting larger barrels with increased bore sizes and bigger pistons. This modification necessitates machining the crankcase and cylinder head recesses to accommodate the larger components, a task expertly handled by CNC milling machines.

Nikasil Cylinders: A Delicate Balance

Some modern engines, including certain high-performance variants, feature 'Nikasil' coated cylinders. In this design, the piston operates directly against the aluminium cylinder wall, with a thin, hard Nikasil coating providing the wear resistance. While offering excellent performance when new, Nikasil coatings are extremely delicate. Even minor issues like piston pickup, cylinder distortion, or a faulty fuel injector can quickly destroy the coating, leading to rapid wear.

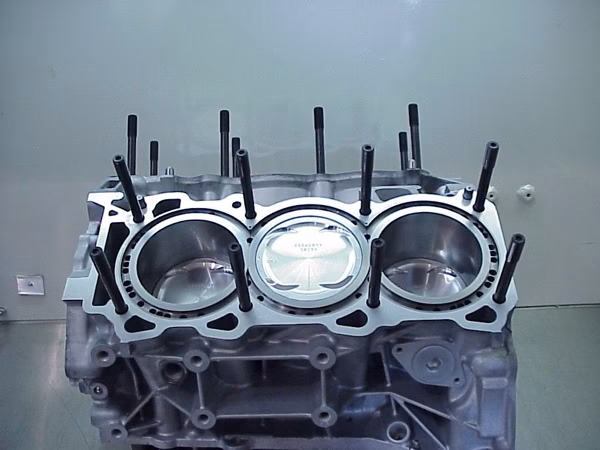

For engines with damaged Nikasil coatings, a repair solution involves removing the old coating entirely, boring the aluminium cylinder, and fitting either a stepped or flanged cylinder liner. If the original pistons are undamaged, they can often be reused, though new piston rings are always essential. J and E Engineering Services has extensive experience in performing such repairs, as shown in their examples of modified cylinder blocks.

Essential Ancillary Checks and Maintenance

When the cylinder block is out of the vehicle and stripped for re-boring or re-lining, it's an opportune time to address other crucial maintenance items:

• Core Plugs (Freeze Plugs): These are often overlooked but play a vital role in the engine's cooling system. Over time, they can corrode from the inside out, leading to coolant leaks. Removing and replacing the core plugs while the block is accessible is highly recommended. A wide range of both cup and dish type core plugs are readily available.
• Water Jacket Cleaning: The internal passages of the water jacket can accumulate significant amounts of sludge and rust over the years. Thoroughly cleaning these passages, along with any visible cooling aids like slots and passages that are revealed once old liners are removed, is critical. Neglecting this can lead to compromised cooling and potential future overheating issues.
• Oil Galleries: Similarly, all oil galleries and passages should be meticulously cleaned to ensure unimpeded oil flow throughout the engine.

Choosing the Right Process: A Summary

The decision between re-boring and re-lining hinges on the extent of wear and damage to the cylinder block or liner.

Frequently Asked Questions

Q1: How do I know if my cylinders need re-boring or re-lining?
A1: Signs of wear include increased oil consumption, blue smoke from the exhaust, loss of engine power, and rough idling. A professional engine inspection, including measuring cylinder bore for ovality and taper, will determine the best course of action.

Q2: Can I reuse my old pistons after re-boring?
A2: Only if the pistons are within tolerance and have not been damaged. If you re-bore the cylinders, you will almost always need new pistons that match the new, larger bore size.

Q3: What is the importance of plateau honing?
A3: Plateau honing is crucial for creating an optimal surface finish for piston rings to seat correctly, ensuring a good seal, reducing oil consumption, and prolonging ring and cylinder life.

Q4: Is re-lining a cylinder block always more expensive than re-boring?
A4: Typically, yes. Re-lining involves the cost of the new liner, plus the machining to fit it, in addition to the boring and honing of the new liner itself. However, if a block is severely damaged, re-lining might be the only viable option, making it more cost-effective than replacing the entire block.

Q5: What are 'thou' in relation to engine measurements?
A5: 'Thou' is a colloquial term for thousandths of an inch. For example, +60 thou means the bore has been increased by 0.060 inches.

In conclusion, the decision to re-bore or re-line a cylinder block or liner is a critical one in engine maintenance and rebuilding. Both processes, when executed with precision and coupled with meticulous honing, are vital for restoring engine performance, efficiency, and longevity. By understanding the distinct roles and applications of re-boring and re-lining, and by entrusting the work to experienced professionals like those at J and E Engineering Services, you ensure your engine receives the best possible care.
