Briggs & Stratton Oil Filters: Do You Need One?

Many Briggs & Stratton engine owners, particularly those with older models like a 1996 Craftsman riding mower with a 15.5 hp single-cylinder engine, often find themselves asking a crucial question: does my engine have an oil filter? It's a common point of confusion, especially when you're diligently maintaining your equipment with frequent oil changes, only to discover no filter in sight. The simple answer is, it depends on the engine's design, age, and intended application. Not all Briggs & Stratton engines are equipped with an oil filter, and understanding why can save you a lot of head-scratching and ensure your valuable machinery receives the correct care.

Understanding Lubrication Systems in Small Engines

To comprehend why some engines have oil filters and others do not, it's essential to grasp the basics of engine lubrication. An engine's oil serves multiple vital functions: it lubricates moving parts to reduce friction and wear, cools the engine by carrying away heat, cleans by suspending contaminants, and helps seal combustion chambers. How this oil circulates within the engine largely dictates the need for a filter.

Splash Lubrication Systems

Many smaller, older, or less powerful Briggs & Stratton engines, including your 1996 15.5 hp single-cylinder model, often utilise a splash lubrication system. In this setup, a dipper or splasher attached to the connecting rod or crankshaft dips into the oil sump (oil pan) with each revolution. This action splashes oil onto the crankshaft, camshaft, connecting rod bearings, and cylinder walls. It's a simple, effective, and cost-efficient method for engines that operate at relatively low RPMs and don't generate excessive heat or contaminants.

Because the oil is primarily splashed rather than forced through narrow passages under pressure, a dedicated oil filter is typically absent. The philosophy here is that frequent oil changes are the primary method of removing contaminants. Your practice of changing the oil every 10 hours, while seemingly excessive for some, is actually a highly effective maintenance strategy for an engine relying on splash lubrication, especially given its small oil capacity of 1.5 quarts (approximately 1.4 litres).

Full Pressure Lubrication Systems

In contrast, larger, more powerful, and modern Briggs & Stratton engines, particularly those found on higher-end riding mowers, garden tractors, or commercial equipment, often feature a full pressure lubrication system. These engines incorporate an oil pump that pressurises the oil and forces it through internal passages to critical components like the crankshaft bearings, connecting rod bearings, and sometimes even the valve train. This ensures a consistent and controlled supply of lubricant, even under varying loads and RPMs.

With a full pressure system, the oil is constantly circulated through the engine and then typically passes through an oil filter before being recirculated. The filter's job is to trap microscopic particles, metal shavings, and other contaminants, preventing them from causing wear and tear on precision-machined engine parts. These systems are designed for greater durability and longer service intervals between oil changes, precisely because of the continuous filtration.

Identifying if Your Engine Has an Oil Filter

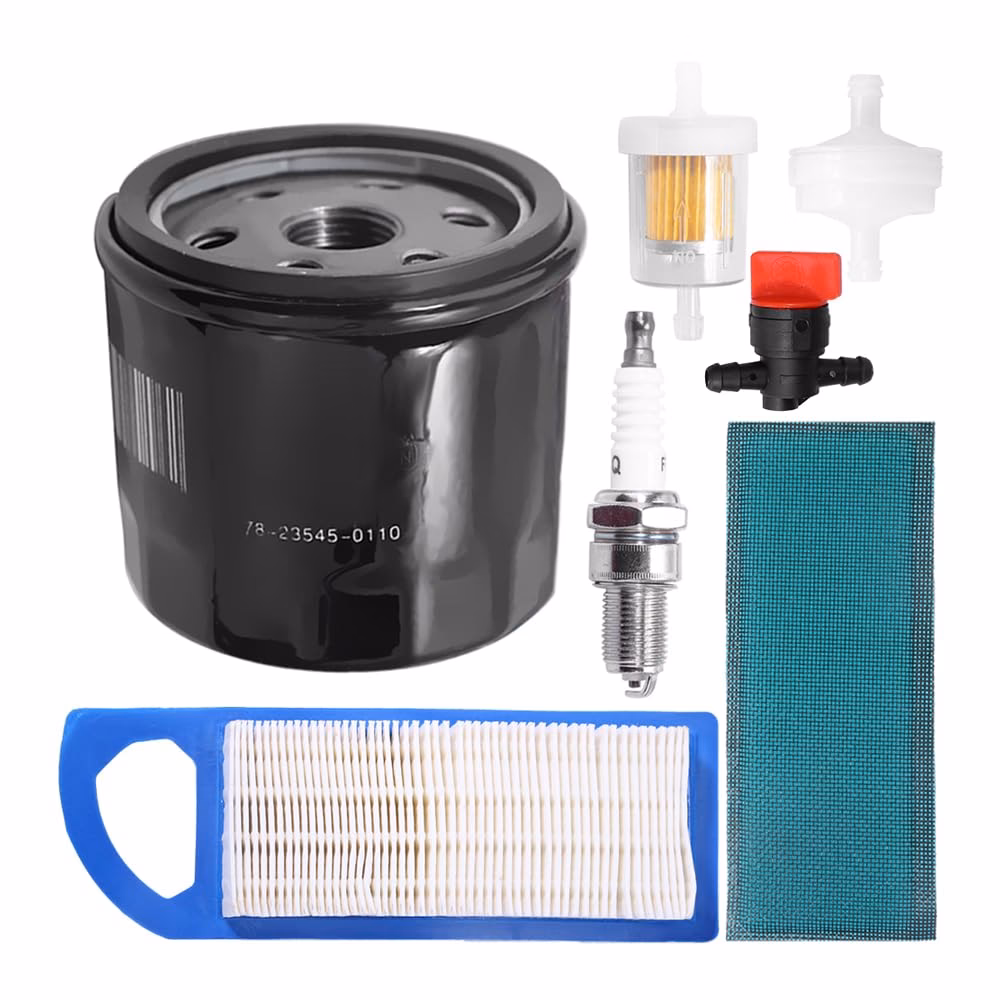

For someone unsure about their specific engine, visual inspection is the first step. Look for a cylindrical canister, usually black or white, screwed onto the side of the engine block. It will be plumbed into the oil circulation system. If you don't see one, especially on an older, smaller engine, it's a strong indicator that your model doesn't use a spin-on oil filter.

The most definitive way to confirm is to consult your engine's owner's manual. This document will detail the recommended maintenance procedures, including whether an oil filter is present and how often it should be replaced. If you don't have the physical manual, you can often find a digital version on the Briggs & Stratton website by entering your engine's model, type, and code numbers (usually stamped directly on the engine).

The Importance of Oil Changes, With or Without a Filter

Regardless of whether your Briggs & Stratton engine has an oil filter, regular oil changes are the cornerstone of engine longevity. Engine oil degrades over time due to heat, contamination from combustion by-products, and sheer mechanical stress. This degradation leads to a loss of its lubricating and protective properties. For engines without a filter, the oil itself is the primary means of contaminant removal, making frequent changes even more critical.

Oil Change Frequency

Briggs & Stratton generally recommends changing the oil at least once a season or every 25-50 operating hours, whichever comes first, for engines without a filter. For engines with a filter, the intervals might be slightly longer, perhaps 50-100 hours, often coinciding with the filter replacement.

Your practice of changing the oil every 10 hours on your 15.5 hp engine, while exceeding the minimum recommendations, is certainly not detrimental. In fact, for an engine with a small oil capacity and no filter, this proactive approach minimises the accumulation of harmful contaminants and helps ensure the engine's internal components remain well-lubricated and clean. It’s a testament to good preventative maintenance.

Choosing the Right Oil

Always use the type of oil recommended by Briggs & Stratton for your specific engine model. For most small air-cooled engines, this is typically SAE 30 for warmer temperatures (above 4°C/40°F) or a multi-viscosity oil like 10W-30 for broader temperature ranges. Using the correct oil viscosity ensures proper lubrication and protection across various operating conditions.

Maintenance Best Practices

Beyond oil changes, here are other crucial maintenance tips for your Briggs & Stratton engine:

• Check Oil Levels Regularly: Before each use, or at least weekly, ensure the oil level is within the recommended range on the dipstick. Running an engine with low oil is one of the quickest ways to cause severe damage.
• Keep it Clean: Regularly clean the engine's cooling fins and air intake areas. Overheating can accelerate oil degradation and engine wear.
• Air Filter Maintenance: A clean air filter is vital. It prevents dirt and debris from entering the engine, which can contaminate the oil and cause internal wear. Clean or replace it as per your manual's recommendations.
• Spark Plug Inspection: A healthy spark plug ensures efficient combustion, reducing unburnt fuel and carbon deposits that can contaminate the oil.

Comparative Overview: Filtered vs. Non-Filtered Engines

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil on my 1996 15.5 hp Briggs & Stratton engine without a filter?

A: Briggs & Stratton typically recommends changing the oil on splash-lubricated engines every 25-50 operating hours or at least once per season, whichever comes first. Given your engine's small oil capacity and lack of a filter, your current practice of changing it every 10 hours is excellent and provides superior protection against wear and contaminants.

Q2: Can I install an oil filter on my Briggs & Stratton engine if it didn't come with one?

A: Generally, no. Engines that are not designed with an oil filter from the factory typically lack the necessary internal oil passages, mounting points, and an oil pump to support a filtration system. Attempting to add one would require significant and often impractical modifications to the engine's lubrication system, which is usually not cost-effective or even feasible.

Q3: What type of oil should I use for my Briggs & Stratton engine?

A: Always refer to your engine's owner's manual for the precise recommendation. For most Briggs & Stratton engines, SAE 30 oil is recommended for temperatures above 4°C (40°F). For varying temperatures, a multi-viscosity oil like 10W-30 is often suggested. Using oils specifically designed for small engines is best.

Q4: How do I know if my engine's oil needs changing?

A: Beyond the recommended hour intervals, visual cues can indicate degraded oil. If the oil on your dipstick appears very dark, sludgy, or has a strong burnt smell, it's definitely time for a change. However, relying solely on visual inspection can be misleading, as oil can still be contaminated even if it looks relatively clean. Adhering to the manufacturer's recommended service intervals based on hours or time is the most reliable approach.

Q5: Is it normal for my older 15.5 hp single-cylinder Briggs & Stratton engine to not have an oil filter?

A: Absolutely. For a 1996 15.5 hp single-cylinder engine, it is entirely normal and expected for it not to have an oil filter. These engines were typically designed with splash lubrication, where frequent oil changes are the primary means of maintaining oil cleanliness and engine health. Your diligent maintenance routine is perfectly suited for this type of engine.

Conclusion

The presence or absence of an oil filter on a Briggs & Stratton engine is a design choice dictated by the engine's size, power output, and intended application. Your 1996 15.5 hp single-cylinder engine, like many older and smaller units, most likely relies on a splash lubrication system and therefore does not have an oil filter. This is not a design flaw but rather a characteristic of its engineering.

The key takeaway is that whether your engine has a filter or not, consistent and timely oil changes are paramount. For engines without a filter, your commitment to frequent oil changes, as you've demonstrated, is the single most effective way to ensure longevity and reliable performance. By understanding your engine's specific lubrication system and adhering to a rigorous maintenance schedule, you'll keep your Briggs & Stratton running smoothly for many years to come.
