Modern vehicles are marvels of engineering, packed with sophisticated electronic control units (ECUs) that manage everything from engine performance and fuel injection to anti-lock braking systems and airbag deployment. When something goes awry, these ECUs store valuable information in the form of diagnostic trouble codes (DTCs). But how do we access this information and understand what it means? That's where automotive diagnostic tools, often referred to as OBD-II scanners, come into play. These indispensable devices are the key to unlocking your car's internal communication, providing insights into potential problems and guiding repair efforts.
The Foundation: The OBD-II System
Before delving into how diagnostic tools work, it's crucial to understand the system they interact with: the On-Board Diagnostics, Second Generation (OBD-II) system. Mandated in most countries for vehicles manufactured after 1996, OBD-II is a standardized system that allows for self-diagnosis and reporting of vehicle malfunctions. It's designed to monitor the performance of key engine and emission-related components. The heart of this system is the diagnostic connector, typically located under the dashboard on the driver's side. This connector provides a gateway for diagnostic tools to communicate with the vehicle's ECUs.
How Diagnostic Tools Connect and Communicate
Diagnostic tools, ranging from simple handheld code readers to advanced professional scan tools, connect to the vehicle via the OBD-II port. This connection is usually established using a cable that plugs directly into the port. Once connected, the tool initiates a communication protocol with the vehicle's ECUs. There are several standardized communication protocols used in OBD-II, including:
- SAE J1850 PWM (Pulse Width Modulation): Commonly found in Ford vehicles.
- SAE J1850 VPW (Variable Pulse Width Modulation): Primarily used by General Motors.
- ISO 9141-2: A common protocol used by many European and Asian manufacturers.
- ISO 14230-4 (KWP2000): An evolution of ISO 9141-2, also widely adopted.
- ISO 15765-4 (CAN - Controller Area Network): The most prevalent and rapidly adopted protocol, used by a vast majority of modern vehicles due to its speed and reliability.
The diagnostic tool automatically detects the vehicle's protocol or allows the user to select it. Once the communication link is established, the tool can request specific data from the vehicle's ECUs.
Reading and Interpreting Diagnostic Trouble Codes (DTCs)
The primary function of most diagnostic tools is to read DTCs. When an ECU detects a fault, it records a specific code that identifies the nature and location of the problem. These codes are typically alphanumeric, consisting of a letter followed by four digits. The first character indicates the system affected:
- P - Powertrain (engine and transmission)
- B - Body
- C - Chassis
- U - Network
The subsequent digits provide more specific information about the fault. For example, a P0300 code might indicate a random/multiple cylinder misfire, while a P0420 code could point to a catalytic converter efficiency below threshold.
Diagnostic tools display these codes on their screen. Crucially, a good diagnostic tool will not only display the code but also provide a brief description of what the code means. This interpretation is vital for understanding the potential cause of the problem. Many tools also have the ability to clear codes after a repair has been made, allowing the technician to verify if the issue has been resolved.
Beyond DTCs: Live Data and Advanced Functions
While reading DTCs is a fundamental capability, more advanced diagnostic tools offer a wealth of additional features that are invaluable for in-depth diagnostics:
Live Data Streaming
This feature allows the diagnostic tool to display real-time data from the vehicle's sensors and ECUs. This includes parameters such as engine RPM, coolant temperature, throttle position, oxygen sensor readings, fuel pressure, and much more. By observing this live data, a technician can see how different components are performing under various operating conditions and identify anomalies that might not trigger a DTC immediately.
Example of Live Data Parameters:
| Parameter | Typical Range | Significance |
|---|---|---|
| Engine Coolant Temperature (ECT) | -40°C to 150°C | Affects fuel mixture and engine performance. |
| Mass Air Flow (MAF) Sensor | Varies with engine speed | Measures air entering the engine; crucial for fuel calculation. |
| Throttle Position Sensor (TPS) | 0-100% | Indicates how much the accelerator pedal is pressed. |
| Oxygen (O2) Sensor Voltage | 0.1V to 0.9V (fluctuating) | Monitors exhaust gas to fine-tune fuel mixture. |
Freeze Frame Data
When a DTC is triggered, the ECU also captures a snapshot of various sensor readings and operating conditions at the exact moment the fault occurred. This 'freeze frame' data is invaluable for understanding the circumstances that led to the fault, providing context that might be missed by looking at live data alone.
I/M Readiness Monitors
OBD-II systems have built-in monitors that test the performance of key emission control systems, such as the catalytic converter, oxygen sensors, and evaporative emission control system. The I/M readiness status indicates whether these monitors have completed their self-tests. This is particularly important for emissions testing and ensuring the vehicle is compliant.
Component Testing and Actuator Control
More sophisticated professional diagnostic tools can actively command certain components to operate. This means a technician can use the tool to, for example, turn on the cooling fan, activate the EGR valve, or test the fuel injectors. This allows for direct testing of individual components to confirm their functionality.
Bi-directional Control
This advanced feature allows the diagnostic tool to not only read data but also send commands to various modules within the vehicle. This is essential for tasks like performing a DPF regeneration on a diesel vehicle, resetting steering angle sensors after alignment, or calibrating other electronic systems. It's a powerful tool for active diagnostics and system resets.

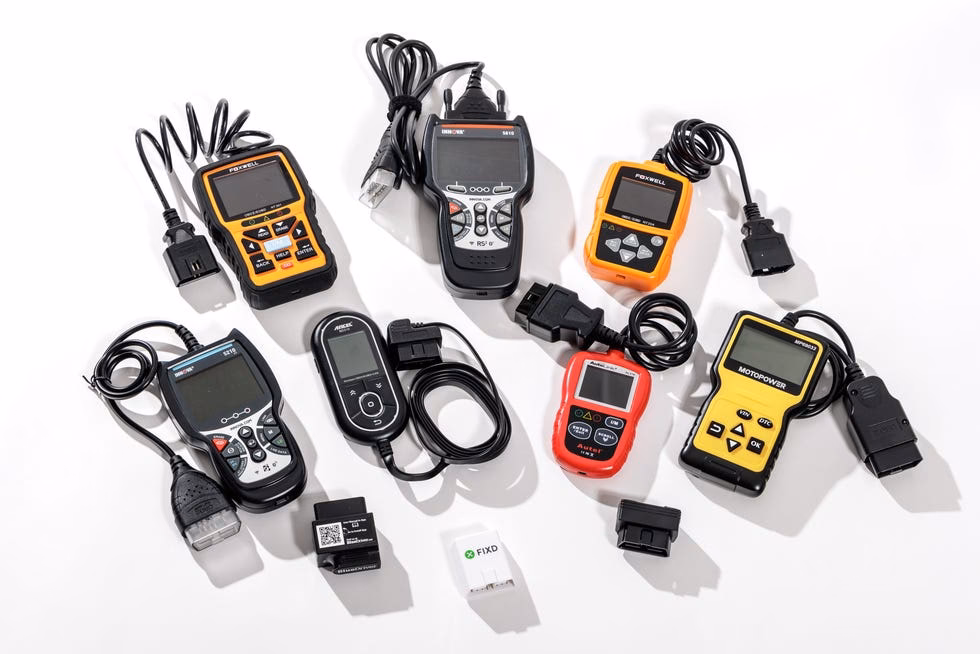

Types of Diagnostic Tools
The world of diagnostic tools is diverse, catering to different needs and budgets:
- Basic Code Readers: These are the most affordable and typically only read and clear DTCs. They are useful for identifying common issues but offer limited diagnostic capabilities.
- Handheld OBD-II Scanners: These offer more features than basic readers, often including live data streaming, freeze frame data, and I/M readiness status. They strike a good balance between cost and functionality for home mechanics.
- Professional Scan Tools: These are high-end devices used by mechanics and dealerships. They offer comprehensive diagnostic capabilities, including bi-directional control, advanced coding, programming, and access to a vast database of vehicle-specific information.
- Smartphone/Tablet Based Scanners: With the advent of Bluetooth and Wi-Fi connectivity, many diagnostic tools now connect to smartphones or tablets via apps. These offer a user-friendly interface and often integrate with online databases for code definitions and repair information.
Benefits of Using Diagnostic Tools
Understanding how diagnostic tools work reveals their significant benefits:
- Accurate Fault Identification: Pinpoint the exact cause of a problem, avoiding guesswork and unnecessary part replacements.
- Cost Savings: By identifying the correct issue, you can avoid paying for unnecessary repairs.
- Proactive Maintenance: Early detection of potential problems can prevent more serious and costly damage down the line.
- Informed Decision Making: Empower yourself with knowledge about your vehicle's health, allowing you to discuss repairs effectively with your mechanic.
- Emissions Compliance: Ensure your vehicle is meeting emission standards by monitoring readiness monitors.
Frequently Asked Questions
Q1: Can any diagnostic tool read all car codes?
While OBD-II is a standard, some manufacturers have proprietary extensions. Higher-end tools are more likely to have access to these specific codes. However, for most common issues, a standard OBD-II scanner will suffice.
Q2: Do I need a diagnostic tool for a simple check engine light?
Yes, the 'check engine' light indicates that the ECU has detected a fault. A diagnostic tool is the most efficient way to determine the specific reason for the light illuminating.
Q3: How often should I use a diagnostic tool on my car?
It's beneficial to scan for codes periodically, especially if you notice any unusual behaviour from your vehicle or if the 'check engine' light comes on. For proactive maintenance, a scan during routine servicing is also a good idea.
Q4: Are there different types of OBD ports?
The OBD-II port is the standard for vehicles manufactured after 1996. Older vehicles might have an OBD-I port, which is not standardized and requires specific tools for each manufacturer.
Q5: Can a diagnostic tool tell me exactly what part to replace?
Diagnostic tools provide codes and data that indicate the *area* of the problem. While they often point directly to a faulty component, further testing and professional knowledge are sometimes needed to confirm the exact faulty part, especially in complex systems.
Conclusion
Automotive diagnostic tools are sophisticated pieces of technology that have revolutionised vehicle maintenance and repair. By understanding how they connect, communicate, and interpret the vast amount of data generated by a vehicle's ECUs, you can gain a deeper appreciation for your car's inner workings. Whether you're a seasoned DIY mechanic or simply want to be a more informed car owner, a diagnostic tool is an invaluable asset for keeping your vehicle running smoothly and efficiently. They are, in essence, the translator between your car's electronic brain and your understanding, empowering you to address issues effectively and maintain your vehicle with confidence.
