P0430: Catalytic Converter Efficiency Explained

Understanding the P0430 Diagnostic Trouble Code

Discovering the P0430 code illuminated on your dashboard can be a cause for concern, but understanding its meaning is the first step towards a resolution. This common OBD-II trouble code signifies an issue with your vehicle's emissions control system, specifically relating to the efficiency of the catalytic converter on "Bank 2". Essentially, your car's Engine Control Module (ECM) has detected that the catalytic converter on this particular bank of cylinders is not performing its job of converting harmful exhaust gases into less harmful substances at the required efficiency level, typically below 95%.

What Exactly is the P0430 Code?

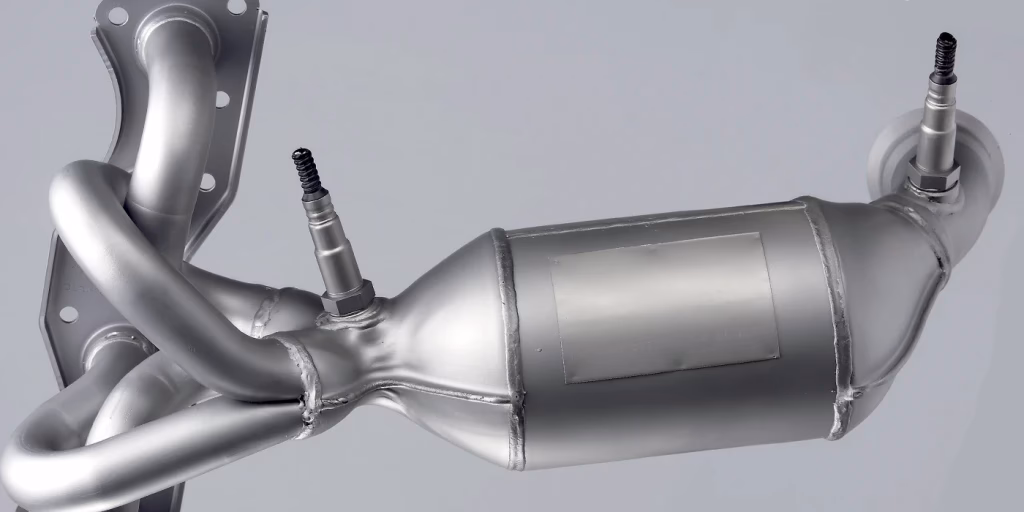

The P0430 code is formally defined as Catalyst System Efficiency Below Threshold (Bank 2). Your vehicle is equipped with oxygen (O2) sensors positioned both before and after the catalytic converter. These sensors meticulously monitor the oxygen levels in the exhaust stream. The ECM uses the data from these sensors to calculate the converter's efficiency. When the downstream O2 sensor reports oxygen levels that are too similar to those measured by the upstream O2 sensor, it indicates that the catalytic converter is not effectively reducing the emissions. Bank 2 refers to the side of the engine that does not house cylinder number 1. If your vehicle has a V-shaped engine, it will have two banks; if it's an inline engine, it typically only has one bank.

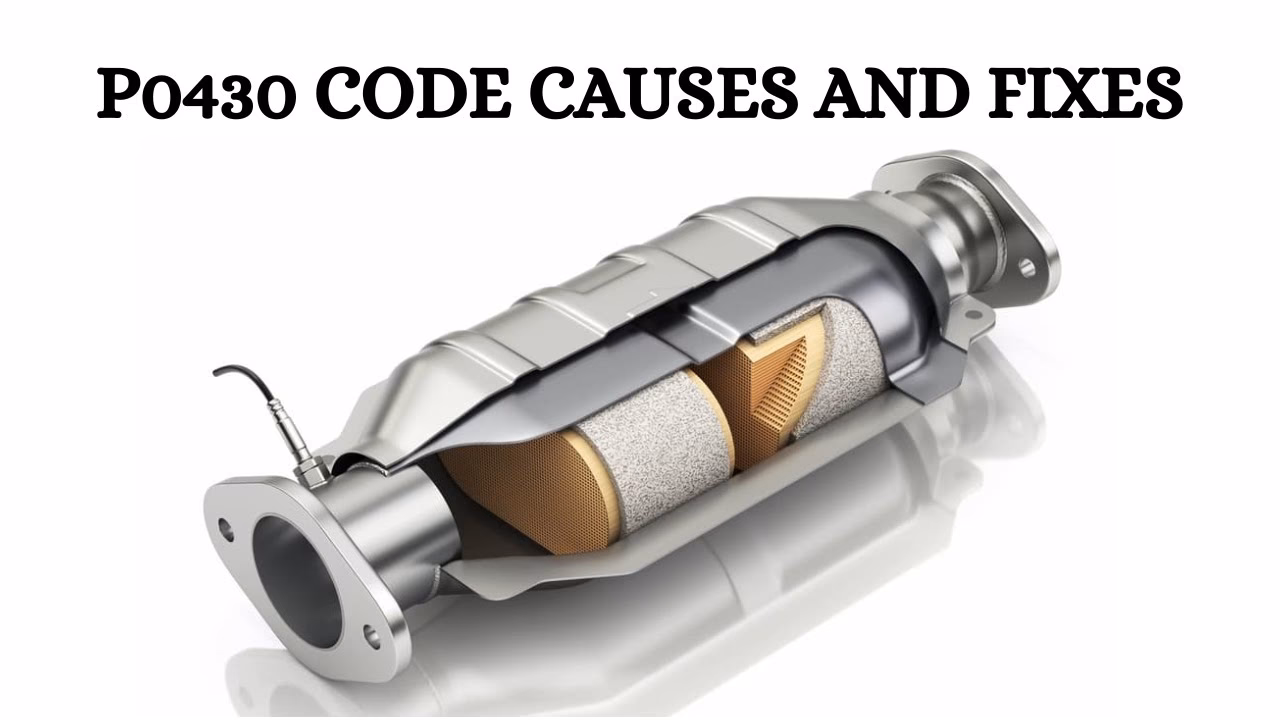

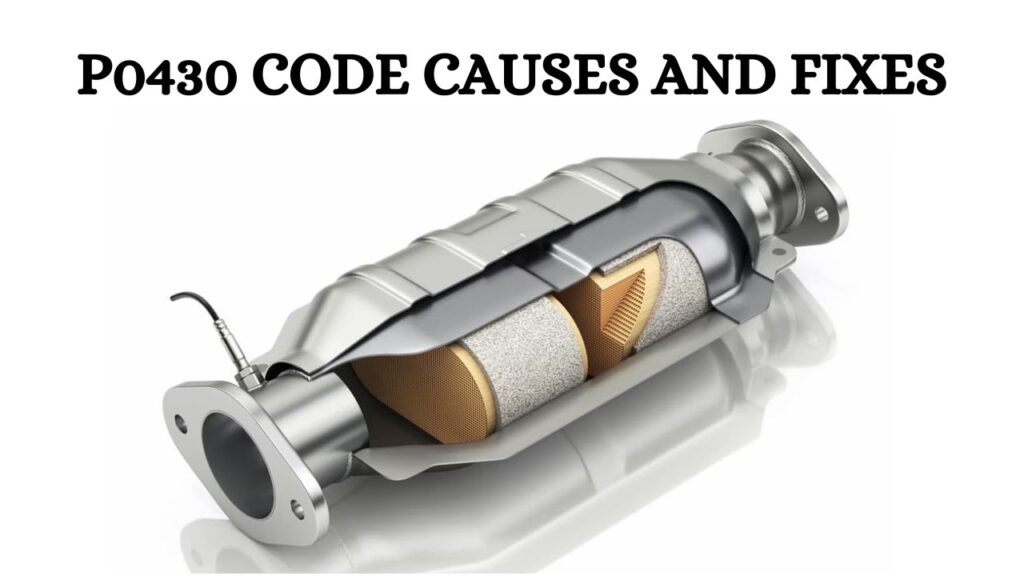

The Crucial Role of the Catalytic Converter

The catalytic converter is a vital component of your vehicle's exhaust system. Its primary function is to reduce harmful pollutants produced during combustion. It chemically converts toxic gases like carbon monoxide (CO), unburnt hydrocarbons (HC), and nitrogen oxides (NOx) into less harmful substances such as carbon dioxide (CO2), water (H2O), and nitrogen (N2). A properly functioning catalytic converter is essential for environmental protection and for your vehicle to pass emissions tests.

Common Culprits Behind the P0430 Code

Several factors can lead to the P0430 code being triggered. Identifying the root cause is key to an effective repair:

1. Degraded or Faulty Catalytic Converter

This is by far the most frequent cause. Over time, the internal ceramic honeycomb structure within the catalytic converter can become clogged, melted, or physically damaged. This can be due to prolonged exposure to extreme temperatures, contamination from engine oil or coolant, or simply wear and tear. When the internal matrix is compromised, its ability to facilitate the chemical reactions needed for emission control is significantly reduced.

2. Oxygen (O2) Sensor Malfunctions

Oxygen sensors are critical for monitoring exhaust gas composition. If either the upstream (pre-catalyst) or downstream (post-catalyst) O2 sensor on Bank 2 is faulty, slow to respond, or providing inaccurate readings, the ECM may incorrectly flag the catalytic converter as inefficient. It's important to test the sensors themselves and their wiring.

3. Exhaust Leaks

Leaks in the exhaust system, particularly those occurring before the catalytic converter or before the downstream O2 sensor, can allow outside air (containing oxygen) to enter the exhaust stream. This extra oxygen can skew the readings of the O2 sensors, leading the ECM to believe the catalytic converter is not working correctly.

4. Engine Misfires or Running Rich

If your engine is experiencing misfires, or if it's running too rich (meaning there's too much fuel in the air-fuel mixture), unburnt fuel can enter the catalytic converter. This unburnt fuel can ignite within the converter, causing excessive heat that can damage its internal structure and lead to premature failure.

5. Fuel System Issues

Leaking fuel injectors or excessively high fuel pressure can also cause the engine to run rich. Similar to misfires, this over-fuelling condition can overload the catalytic converter and lead to damage.

6. Oil or Coolant Contamination

Internal engine problems, such as blown head gaskets or worn valve seals, can allow engine oil or coolant to enter the combustion chamber and subsequently the exhaust system. These fluids can coat and clog the catalytic converter's internal passages, degrading its efficiency.

7. Wiring and Connector Problems

Corroded connectors, frayed wires, or loose connections in the O2 sensor wiring harness can disrupt the communication between the sensors and the ECM, leading to erroneous diagnostic codes.

Recognising the Symptoms of a P0430 Code

While the illuminated Check Engine Light is the most obvious indicator, other symptoms might accompany the P0430 code:

• Check Engine Light (CEL): This is the primary and most direct sign.
• Reduced Fuel Efficiency: The engine may burn more fuel than usual due to inefficient combustion.
• Decreased Engine Performance: You might notice sluggish acceleration, hesitation, or a general lack of power.
• Rotten Egg Smell: A sulfurous odour from the exhaust can indicate that the catalytic converter is not properly processing fuel byproducts.
• Failed Emissions Test: Vehicles displaying this code will almost certainly fail mandatory emissions inspections.
• Rattling Noise: If the catalytic converter's internal structure has broken apart, you might hear a rattling sound, especially at idle or during acceleration.

Diagnosing the P0430 Code: A Step-by-Step Approach

Diagnosing the P0430 code effectively requires a systematic approach and the right tools. While a professional mechanic is recommended for complex issues, understanding the process can be beneficial:

Essential Tools for Diagnosis:

• OBD-II Scanner: To read trouble codes and view live data from sensors.
• Infrared Thermometer (Optional but Recommended): To measure exhaust temperatures before and after the catalytic converter.
• Digital Multimeter: To test electrical components and wiring.
• Smoke Machine (Optional for Leak Detection): To pinpoint small exhaust leaks.

Diagnostic Procedure:

1. Confirm the Code: Use your OBD-II scanner to verify that P0430 is the only active code. Check for any other related codes, such as misfire codes (P030x) or fuel trim codes (P017x), as these can often be the root cause.
2. Inspect for Exhaust Leaks: Visually inspect the exhaust system from the engine manifold back to the downstream O2 sensor. Listen for any hissing or puffing sounds. A smoke machine is the most effective way to identify even minor leaks.
3. Analyse O2 Sensor Data: With the engine running and warmed up, observe the live data from the upstream and downstream O2 sensors on Bank 2 using your scanner. The upstream sensor's voltage should fluctuate rapidly, while the downstream sensor's voltage should remain relatively steady. If both sensors show similar fluctuating patterns, it strongly suggests a catalytic converter issue.
4. Check Catalytic Converter Temperature: Use an infrared thermometer to measure the temperature of the exhaust pipe just before the catalytic converter and then just after it. The outlet temperature should be significantly hotter (at least 100°F or 38°C) than the inlet temperature if the converter is functioning correctly. A lack of temperature difference points to a failed converter.
5. Inspect Spark Plugs and Fuel System: Examine the spark plugs for signs of fouling (oil, fuel, or coolant contamination). Check for proper fuel injector operation and fuel pressure. Issues here can lead to conditions that damage the catalytic converter.
6. Visual Inspection of Wiring: Carefully inspect the wiring harness for the O2 sensors on Bank 2. Look for any signs of damage, corrosion, melted insulation, or loose connections.

Effective Solutions for the P0430 Code

The appropriate repair for the P0430 code hinges on the diagnosed cause:

1. Catalytic Converter Replacement

If diagnostic tests confirm that the catalytic converter on Bank 2 is indeed inefficient or damaged, replacement is typically the most reliable solution. It's crucial to use a high-quality replacement part that meets or exceeds OEM specifications.

2. Oxygen Sensor Replacement

If the O2 sensors are found to be faulty, slow, or inaccurate, replacing them can resolve the issue. It's often recommended to replace both the upstream and downstream O2 sensors on Bank 2 simultaneously for optimal performance.

3. Repairing Exhaust Leaks

Any identified exhaust leaks must be properly repaired. This may involve replacing gaskets, tightening clamps, or welding damaged sections of the exhaust pipe.

4. Addressing Engine Misfires and Fuel System Problems

If the P0430 code is a result of engine misfires or an overly rich fuel mixture, it's essential to rectify these underlying issues first. This could involve replacing spark plugs, ignition coils, fuel injectors, or repairing fuel pressure regulators.

5. Fixing Wiring and Connector Issues

Any damaged wiring or corroded connectors in the O2 sensor circuit should be repaired or replaced to ensure proper sensor communication.

Important Note: After any repairs, reset the Check Engine Light using your OBD-II scanner. Conduct a thorough test drive, covering at least two full drive cycles (combining city and highway driving), to allow the ECM to re-evaluate the system and confirm that the code has been cleared.

Can You Drive with a P0430 Code?

While your vehicle may still be drivable with a P0430 code, it is strongly advised against driving for extended periods. Continuing to drive with a faulty catalytic converter or an unresolved engine issue can:

• Cause further damage to other exhaust components or the engine itself.
• Significantly reduce your vehicle's fuel efficiency.
• Lead to a failed emissions inspection.
• Increase the release of harmful pollutants into the atmosphere.
• Result in more costly repairs down the line.

If you must drive, keep your journeys short and avoid hard acceleration until the problem is addressed.

Estimated Repair Costs for P0430

The cost to fix a P0430 code can vary widely depending on your vehicle's make and model, the specific cause of the code, and local labour rates. Here's a general estimate:

Always obtain a detailed quote from a certified mechanic for an accurate cost assessment.

Preventing Future P0430 Codes

Proactive maintenance is your best defence against emissions-related trouble codes:

• Regular Servicing: Adhere to your vehicle manufacturer's recommended maintenance schedule for oil changes, spark plug replacements, and filter servicing.
• Use Quality Fuel: Opt for high-quality gasoline, which burns cleaner and helps prevent carbon buildup in the engine and exhaust system.
• Address Engine Issues Promptly: Don't ignore rough idling, misfires, or other performance issues. Rectifying these problems early can prevent damage to the catalytic converter.
• Inspect for Leaks: Periodically check for intake and exhaust leaks and repair them as soon as they are detected.
• Prevent Contaminants: Ensure that engine oil and coolant are not entering the combustion or exhaust system due to faulty gaskets or seals.

Conclusion: Taking Charge of Your P0430 Code

The P0430 OBD-II trouble code serves as a critical alert that your vehicle's emissions system is not operating at its optimal efficiency. While it might seem like a complex issue, a systematic diagnostic approach and appropriate repairs can effectively resolve it. Whether it's a worn-out catalytic converter, a faulty O2 sensor, or a simple exhaust leak, addressing the P0430 code is paramount for maintaining your vehicle's performance, fuel economy, and, most importantly, its environmental responsibility. Armed with the knowledge from this guide, you can confidently tackle this common diagnostic code, whether performing DIY repairs or discussing the issue with your trusted mechanic.

Frequently Asked Questions (FAQs)

Q1: Is the P0430 code a serious issue?

Yes, while your vehicle may still be drivable, the P0430 code indicates that your vehicle is emitting higher levels of pollutants. Ignoring it can lead to failed emissions tests, reduced engine performance, and potentially more significant damage to other components.

Q2: Can a faulty O2 sensor cause a P0430 code?

Absolutely. A malfunctioning oxygen sensor can send incorrect data to the Engine Control Module (ECM), leading it to falsely believe that the catalytic converter is underperforming.

Q3: How long can I safely drive with a P0430 code?

It's best to limit driving to short, essential trips. Prolonged driving with this code could exacerbate the problem, potentially damage other parts of the exhaust system or engine, and significantly increase fuel consumption.

Q4: Will a fuel additive resolve a P0430 code?

Fuel additives might offer some benefit by cleaning minor carbon deposits, but they are unlikely to fix a physically damaged catalytic converter or a failing O2 sensor. For a P0430 code, a more direct repair is usually required.

Q5: On an engine, which side is Bank 2?

Bank 2 refers to the side of the engine that does not contain cylinder number 1. The specific location (left or right) depends on the engine's configuration (e.g., V6, V8, inline-4). Consult your vehicle's owner's manual for precise identification.

Q6: Will replacing only the catalytic converter clear the P0430 code?

If the catalytic converter is indeed the root cause of the P0430 code, replacing it should clear the code. However, it is crucial to ensure that no other underlying issues, such as misfires, exhaust leaks, or sensor faults, are contributing to the problem, as these could cause the code to return even after a new converter is installed.
