Decoding Your Car's Language: A Deep Dive into Diagnostic Trouble Codes (DTCs)
Modern vehicles are sophisticated machines, bristling with sensors and controlled by complex onboard computers. When something isn't quite right, these systems don't just throw their hands up; they log a specific code to help pinpoint the issue. These codes, known as Diagnostic Trouble Codes (DTCs), are the secret language your car uses to communicate its ailments. Understanding DTCs is a crucial step for any car owner looking to demystify car maintenance, diagnose potential problems, and communicate effectively with their mechanic.
What Exactly is a Diagnostic Trouble Code (DTC)?
At its core, a Diagnostic Trouble Code (DTC) is a numerical or alphanumeric code generated by your vehicle's On-Board Diagnostic (OBD) system. This system constantly monitors various components and systems within your car, from the engine and transmission to emissions and safety features. When a sensor detects a reading that falls outside its expected or normal operating parameters – for instance, if the fuel mixture is too rich or a sensor is reporting an implausible voltage – the OBD system stores a corresponding DTC. These codes act as a digital breadcrumb trail, guiding technicians towards the specific area of the vehicle where a fault might be occurring. The illumination of a dashboard warning light, such as the ubiquitous "Check Engine" light, is often the first indication that a DTC has been logged.
The Role of DTCs in Diagnosis
DTCs are not a magic bullet that instantly tells you what part to replace. Instead, they serve as a starting point for a comprehensive diagnostic process. A DTC identifies a particular problem area or system, providing a technician with valuable clues. For example, a DTC indicating a 'Mass Air Flow (MAF) sensor circuit malfunction' doesn't automatically mean the MAF sensor itself is faulty. It could be a wiring issue, a vacuum leak affecting the sensor's readings, or even a problem with the engine control module (ECM) that interprets the sensor's data. Therefore, it's essential to use DTCs in conjunction with a vehicle's service manual. The manual provides detailed information on the specific code, including possible causes, related systems, and the recommended diagnostic tests to perform using a car code reader or professional OBD2 software.
Generic vs. Manufacturer-Specific Codes: A Key Distinction
OBD-II codes are broadly categorised into two main types: generic codes and manufacturer-specific codes. This distinction is vital for accurate diagnosis:
| Code Type | Explanation |
|---|---|
| Generic (P0xxx) | These codes are defined by the OBD-II standard and are consistent across all vehicle manufacturers. For example, a P0171 code for "System Too Lean (Bank 1)" will have the same general meaning whether it appears in a Ford or a Toyota. |
| Manufacturer-Specific (P1xxx and beyond) | Manufacturers can create their own DTCs to cover issues unique to their vehicle designs or systems not covered by the generic standards. The definition and interpretation of these codes are set by the individual manufacturer. For example, a P1xxx code might relate to a specific emissions control system found only on certain models. |
The first digit of a DTC indicates its category:
- P: Powertrain (engine, transmission, emissions)
- C: Chassis (brakes, steering, suspension)
- B: Body (airbags, power windows, climate control)
- U: Network Communication (data exchange between modules)
Within these categories, the subsequent digits and letters provide more specific information about the fault. For example, Powertrain codes starting with P0 are generic, while those starting with P1 are manufacturer-specific. Other ranges, like P2xxx (generic) and P30xx-P33xx (manufacturer-specific), also exist to accommodate a growing number of diagnostic parameters.
Is it Safe to Reset a DTC? The Pitfalls of Premature Action
A common temptation when a warning light appears is to simply clear the DTC and hope the problem disappears. However, this is generally not advisable. Replacing parts or components based solely on a DTC without proper diagnosis can lead to unnecessary expenses and may not even fix the underlying issue. Consider the example of a DTC reporting a sensor fault. While the sensor might indeed be malfunctioning, the root cause could be a damaged wire, a corroded connector, or a problem in the system the sensor is monitoring. Clearing the code without addressing the actual fault might temporarily turn off the warning light, but the problem will likely return, potentially causing further damage.
Furthermore, DTCs can be triggered by faults occurring further up the diagnostic chain. A dirty Mass Air Flow (MAF) sensor, for instance, might cause the engine's computer to overcompensate fuel delivery. This could lead to oxygen sensors reporting incorrect fuel mixture readings, triggering a different set of DTCs. Therefore, it's crucial to use a reliable OBD2 scanner that can perform a thorough scan, looking beyond just the initial DTCs to understand the complete picture of the vehicle's health.

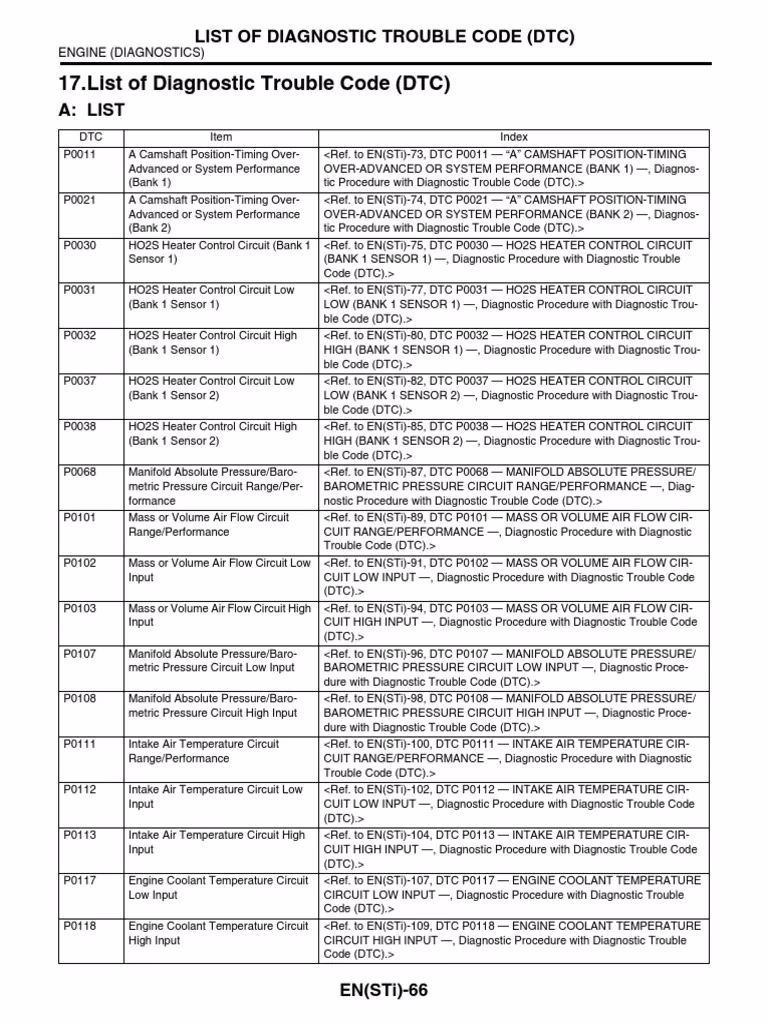

The sheer volume of DTCs can be overwhelming. While a comprehensive list contains thousands of codes, understanding some common categories can be helpful. The provided data offers an extensive catalogue, but here’s a small sample to illustrate the types of issues DTCs can identify:
Common DTC Categories and Examples:
- P0xxx - Air/Fuel Mixture and Metering: These codes often relate to issues with fuel delivery, air intake, and oxygen sensors. Examples include P0171 (System Too Lean - Bank 1) and P0172 (System Too Rich - Bank 1), which indicate problems with the air-fuel ratio.
- P03xx - Ignition System Control and Misfire Detection: These codes point to issues with spark plugs, ignition coils, and the engine's timing. P0300 (Random/Multiple Cylinder Misfire Detected) is a common one, suggesting a general misfire problem that could stem from various sources.
- P04xx - Auxiliary Emissions Control: This group covers systems like the Exhaust Gas Recirculation (EGR) system and the Evaporative Emission Control (EVAP) system. A P0420 (Catalyst System Efficiency Below Threshold - Bank 1) often indicates a problem with the catalytic converter.
- P05xx - Engine Idling Control, Vehicle Speed, and Auxiliary Inputs: These codes relate to idle speed control, vehicle speed sensors, and cruise control systems. P0500 (Vehicle Speed Sensor Malfunction) is a typical example.
- P06xx - Onboard Computer and Auxiliary Outputs: This category includes codes related to the ECM/PCM itself, communication issues between modules, and control of various vehicle systems like cooling fans and lights. P0606 (ECM/PCM Processor Fault) indicates a serious internal issue with the main engine computer.
- P07xx - Transmission Control: These codes are specific to automatic transmissions and cover issues with shift solenoids, torque converter clutches, and transmission fluid temperature. P0740 (Torque Converter Clutch Circuit Malfunction) is a common transmission-related code.
The full list, as provided, is an invaluable resource for anyone needing to understand the specific meaning of a logged DTC. Remember to use your browser's search function (Ctrl+F or Cmd+F) to quickly find a specific code.
When to Seek Professional Help
While a basic OBD2 scanner can retrieve DTCs, interpreting them and performing the necessary diagnostic steps often requires specialized knowledge and equipment. If you're not comfortable diagnosing car problems yourself, or if the DTCs point to complex issues within the engine, transmission, or emissions systems, it's always best to consult a qualified mechanic. They have access to advanced diagnostic tools and the expertise to accurately diagnose and repair the fault, ensuring your vehicle runs smoothly and safely.
Understanding DTCs is an empowering step for any car owner. It allows for more informed conversations with your mechanic and can help prevent costly misdiagnoses. By knowing what these codes signify and their role in the diagnostic process, you can better care for your vehicle and keep it in optimal condition.
