Dirt Bike Engine Rebuilds: When to Get It Done

Riding a dirt bike offers an unparalleled sense of freedom and adrenaline. However, this thrilling activity inherently comes with the need for regular maintenance. A crucial aspect of this upkeep is understanding when your dirt bike's engine, particularly the bottom end, requires attention. Ignoring the signs can lead to significant damage and costly repairs. This guide will delve into the tell-tale indicators that signal it's time for a bottom-end rebuild, how to perform essential checks, and what the process entails.

Identifying the Need for a Bottom-End Rebuild

The bottom end of your dirt bike's engine encompasses vital components like the crankshaft, connecting rod, and bearings. These parts are subjected to immense stress and heat during operation. A common guideline suggests that the bottom end may need attention after approximately 80 hours of riding. However, this is not a strict rule, and other indicators are more telling. The most significant sign that your bottom end is deteriorating is a noticeable loss of power. If your bike no longer responds with the same vigour it once did, it's a strong hint that internal components may be worn.

Beyond a general power reduction, specific symptoms can alert you to an impending bottom-end issue. These include:

• Knocking Noises: Unusual knocking or rattling sounds, especially when the engine is idling, can indicate loose bearings or excessive play in the connecting rod.
• Increased Vibrations: More pronounced vibrations than usual, felt through the handlebars and footpegs, often point to worn bearings or an imbalanced crankshaft.
• Oil Leaks: Leaking crank seals can be a sign of worn seals or excessive pressure within the crankcase, which can be related to bottom-end wear.
• Discoloration or Scorching: Upon disassembly, any discoloration or scorching on the connecting rod or crank shells is a definitive sign of excessive heat and friction, usually due to bearing failure or improper clearance.

How to Inspect Your Dirt Bike's Bottom End

Performing a thorough inspection of the bottom end requires removing the top end of the engine (cylinder, piston, and cylinder head). Once this is done, you can begin your assessment:

Checking the Connecting Rod

The connecting rod is a critical link between the piston and the crankshaft. Inspecting it involves several steps:

1. Visual Inspection: First, carefully examine the connecting rod for any signs of discoloration or scorching. As mentioned, these are indicators of overheating and potential bearing damage. If you find any, it's a clear signal that the connecting rod and potentially the crankshaft bearings need replacement.
2. End-to-End Play: Hold the connecting rod perfectly straight in the centre of the crankshaft. Gently tug the rod back and forth, towards and away from you. There should be no perceptible wiggle or play. Any movement indicates wear in the big-end bearing, necessitating a rebuild.
3. Lateral Movement: With the connecting rod still held centrally, gently push it down towards the centre of the crankshaft. Then, tug it back and forth laterally. Again, there should be no significant side-to-side play. Excessive lateral movement signifies that the clearance between the connecting rod and the crank shells is too great, meaning the big-end bearing is worn and the crankshaft requires rebuilding. This is also a common cause of the scorching you might observe.

Using a Dial Indicator for Precision

For a more precise measurement of the connecting rod's lateral play, a dial indicator is an invaluable tool. This instrument can detect even minute movements. If the dial indicator shows less than 1mm of lateral play, the bearing is generally considered within acceptable limits. Regularly checking this measurement each time you inspect the bottom end can help you track the expansion of the gap, providing an early warning of bearing wear.

Assessing Crank Web Spacing

The spacing between the crank webs is another crucial measurement. Consult your dirt bike's service manual for the specific clearance specifications, which typically fall between 0.6mm and 0.7mm. To check this, push the connecting rod to one extreme (towards you or away from you) and attempt to insert feeler gauges of varying thicknesses into the resulting gap. Start with a 0.6mm gauge; if it fits, try thicker ones until you find the maximum gap. If this gap exceeds the manufacturer's specifications, it indicates wear and the need for a crankshaft rebuild.

Maintaining a Logbook

To effectively monitor the condition of your bottom end over time, it's highly recommended to keep a detailed logbook. Record the measurements and observations from each inspection. This will provide a historical record, allowing you to identify trends in wear and proactively address potential issues before they escalate.

The Importance of Proper Equipment

Accessing the bottom end of a dirt bike often requires removing the top end, which can be a cumbersome process. Furthermore, supporting the bike securely and at a convenient working height is essential. Many generic dirt bike stands are designed for a universal fit, but due to the diverse chassis designs across different manufacturers, they can be frustrating to use. Investing in a specialized stand, such as the A.T.S. Magnetic Stand from Risk Racing, can greatly simplify this process. Its adjustable top allows it to securely level virtually any make or model of dirt bike, saving you time and hassle.

When Should You Rebuild Your Dirt Bike Bottom End?

As a general rule, it's prudent to inspect the bottom end's measurements every time you dismantle the top end for maintenance. This proactive approach helps prevent unexpected failures. For two-stroke engines, a rebuild is typically recommended when you notice a significant loss of power or after accumulating between 70 and 80 hours of riding time. For four-stroke engines, the recommended interval for a top-end rebuild is usually between 80 and 100 hours. While bottom-end rebuilds are less frequent, they are often necessitated after 500 hours of riding time, though this can vary considerably based on riding style and maintenance practices.

What Does a Bottom-End Rebuild Involve?

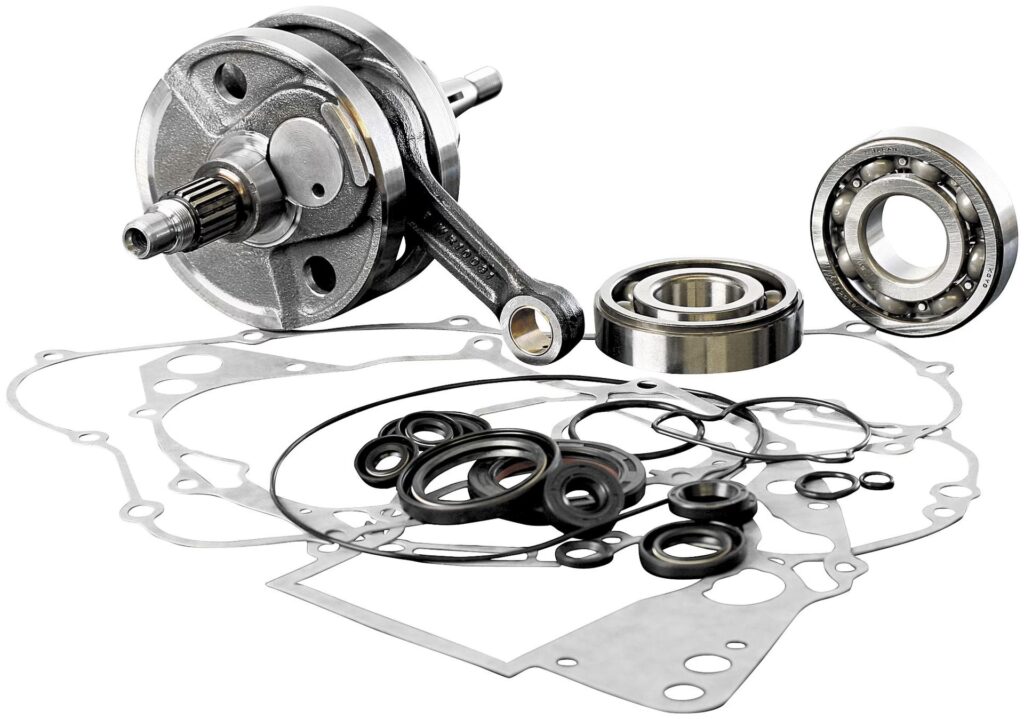

A bottom-end rebuild focuses on the lower half of the engine, primarily addressing the crankshaft and connecting rod assembly. The process typically includes the replacement of:

• Connecting Rod
• Crankshaft Bearings (Main Bearings)
• Transmission Bearings
• All Gaskets and Seals
• O-rings

Tools required for a DIY bottom-end rebuild are specialized and can be costly. These include:

Given the investment in tools and the technical expertise required, many riders opt to have a professional mechanic perform bottom-end rebuilds. Mechanics possess the necessary tools and experience to complete the job efficiently and correctly.

Cost of a Bottom-End Rebuild

The cost of a bottom-end rebuild can fluctuate based on several factors:

• DIY vs. Professional: Whether you undertake the work yourself or hire a mechanic.
• Parts Choice: Using Original Equipment Manufacturer (OEM) parts versus aftermarket alternatives. OEM parts are generally preferred for their quality and fit.
• Labour Rates: Mechanic labour rates vary by region and shop.

According to DIY Moto Fix, a comprehensive bottom-end rebuild using all OEM parts, if done yourself, could range from approximately £1300 to £1500. When a mechanic performs the work, you'll incur the cost of parts plus labour. Mechanic labour typically ranges from £60 to £100 per hour. A bottom-end rebuild, excluding disassembly time, can take around 2 hours, potentially adding another £120 to £200 in labour costs. While the financial outlay can be significant, the satisfaction of maintaining your own machine is often considered priceless by enthusiasts.

Preventative Maintenance and Longevity

Consistent and proper maintenance is key to extending the life of your dirt bike's engine components. Regularly changing your air filter and using high-quality engine oil significantly contributes to the longevity of your parts. It's also wise to inspect both the top and bottom ends of your engine regularly. Often, if one end of the engine experiences a significant failure, the other end may require attention concurrently. As a final piece of advice, consider setting aside funds for potential engine repairs. Being prepared financially can help you avoid the shock of a substantial repair bill.
