Power Window Not Working: A Comprehensive Guide

It's a common frustration: you press the button to lower your car window, expecting a smooth glide, but instead, you're met with silence or a concerning grinding noise. While many instinctively blame the power window motor, the reality is that these motors are surprisingly robust. More often than not, the culprit lies elsewhere in the intricate system that controls your car's windows. This comprehensive guide will walk you through the most frequent causes of a non-functioning power window and provide the knowledge to diagnose and potentially fix the issue yourself.

Check the Lockout Switch First

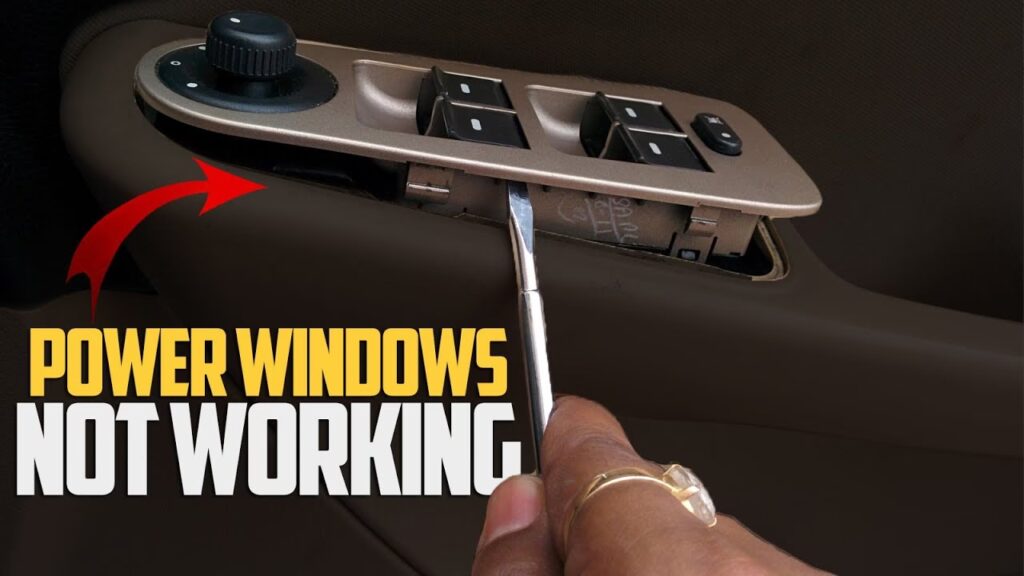

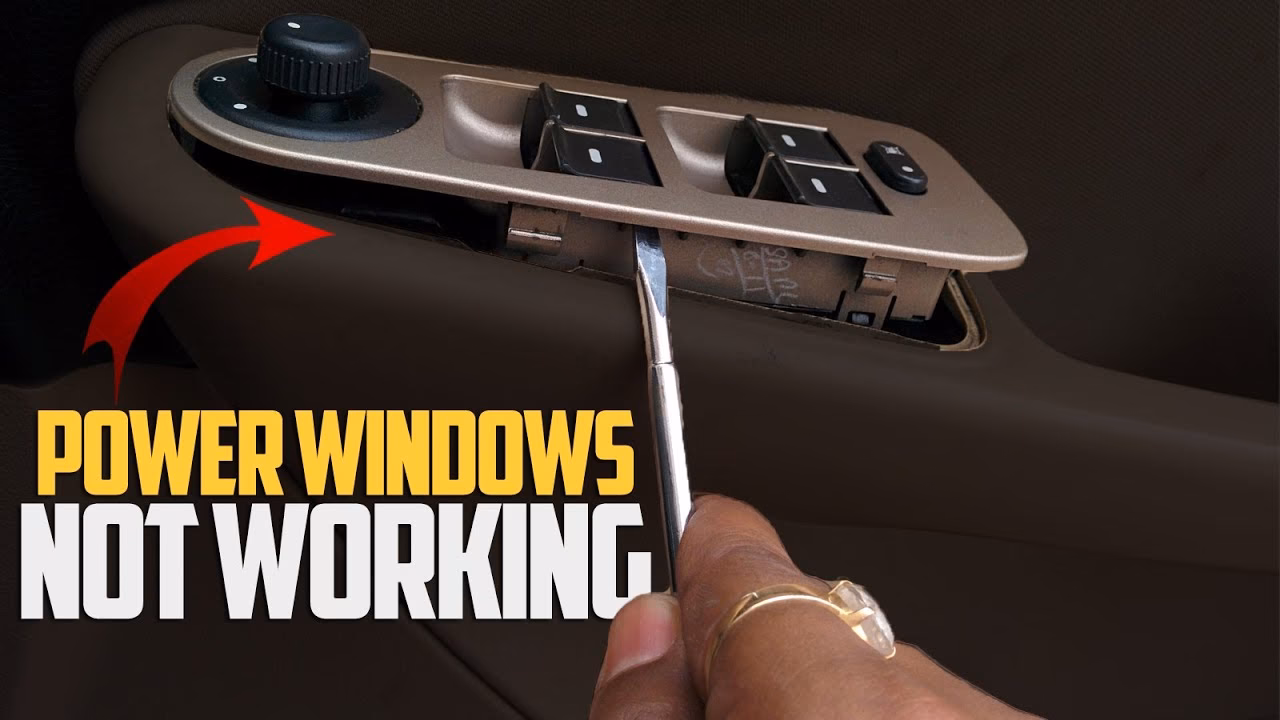

Before diving into complex diagnostics, it's crucial to rule out the simplest explanation. Most vehicles are equipped with a lockout switch, typically found on the driver's master control panel. This feature is designed to prevent passengers from operating their windows, often engaged by parents to keep children from playing with them. If your passenger windows aren't working, double-check that this lockout switch hasn't been accidentally activated. If it's not in the lockout position, proceed to the next diagnostic steps.

Listen for the Motor and Other Sounds

The next crucial diagnostic step involves listening carefully when you operate the window switch. Press the switch to lower or raise the window and pay close attention to any sounds emanating from within the door panel.

• Motor Sounds: If you hear the faint whirring of the motor, it indicates that the motor is receiving power, which suggests that issues with the fuse or circuit breaker are unlikely.
• Clicking, Grinding, or Crunching: These sounds are more telling. They often signify that the motor is receiving power but is unable to move the window. This usually points to a problem with the window regulator – the mechanical assembly responsible for moving the glass. A stuck or damaged regulator, often caused by issues like a broken cable or a stripped gear, will prevent the motor from doing its job.

If you hear the motor whirring without any movement or if you hear those problematic grinding noises, the issue is likely with the regulator. If you hear absolutely nothing, then you're likely dealing with an electrical problem, and you'll want to skip ahead to the section on checking the power window electrical system.

Understanding Window Regulator Types and Failures

The window regulator is the unsung hero of your power window system. Historically, older vehicles used a scissor-type mechanism with gears. However, to save weight and reduce manufacturing costs, most modern vehicles have transitioned to cable regulators. In these systems, the motor drives a cable that slides along tracks, moving the glass up and down via sliders. While more efficient, cable regulators are also more prone to failure.

Common Causes of Window Regulator Failure:

Several factors can lead to a window regulator failing:

1. Frozen Glass: Attempting to operate a power window when the glass is frozen to the door seals can put immense stress on the regulator. This can lead to broken plastic pulleys, stripped motor gears, and fractured "sash clips" that secure the glass to the regulator mechanism.
2. Dirt and Debris: Over time, dirt, grit, and other debris can accumulate in the window channels. This build-up creates friction and drag, forcing the regulator motor and its components to work harder, increasing the likelihood of failure.
3. Rapid Opening/Closing: Perhaps most commonly found in family cars, repeated and rapid operation of the power windows, often by enthusiastic children, can overheat and damage the motor, gears, and pulleys. This constant strain can lead to premature failure.

How to Fix a Power Window Regulator Problem

Repairing a faulty window regulator typically involves removing the door trim panel. For specific instructions tailored to your vehicle, consulting a shop manual is highly recommended. Websites like Alldatadiy.com or Eautorepair.net offer subscription-based access to comprehensive repair manuals. While a subscription might seem like an added expense, it can often save you a significant amount compared to professional labour costs. Don't forget to check your local library; many offer free in-library access to these valuable resources.

Steps to Replace a Window Regulator:

1. Remove Trim Panel: Begin by locating and removing any screws securing the door trim panel, often hidden behind door pulls or trim pieces. Carefully pry off the door trim panel, being mindful of any clips or fasteners that may still be attached.
2. Disconnect Electrical Connectors: Once the trim panel is loosened, disconnect all electrical connectors attached to the door switches, power locks, and any other door-mounted electronics.
3. Remove Glass: Carefully disconnect the power window glass from the regulator mechanism. This often involves releasing clips or bolts. Once disconnected, gently remove the glass from the door cavity.
4. Remove Regulator: The regulator assembly is usually secured by several bolts, though some older designs might use rivets. If riveted, you'll need to drill out the rivets to remove the old regulator.
5. Install New Regulator: Fit the new window regulator into place and secure it with the appropriate bolts or by riveting if necessary. Reconnect the glass to the new regulator.
6. Clean and Lubricate: Before reassembly, thoroughly clean the window channels where the glass slides. Apply a silicone-based spray or a dry Teflon lubricant to ensure smooth operation and prevent future binding.
7. Test and Reassemble: Temporarily reconnect the door switches and power the window up and down to test the new regulator. Ensure it operates smoothly before fully reassembling the door trim panel.

Checking The Power Window Electrical System

If your initial sound test indicated an electrical problem (i.e., no motor sound or clicking), it's time to investigate the wiring and switches.

Understanding Electrical System Variations

The electrical architecture for power windows can vary significantly between vehicles:

• Pre-BCM Systems: In older vehicles, predating the widespread adoption of Body Control Modules (BCMs), all window wiring was routed through the master switch. Activating a switch directly sent power to the individual window motor.
• BCM Systems: Modern vehicles often utilise a BCM. In these systems, the window switches act as inputs to the BCM. When you press a switch, you're essentially sending a signal to the BCM, which then controls the power and ground to the window motor. This adds a layer of complexity to troubleshooting.

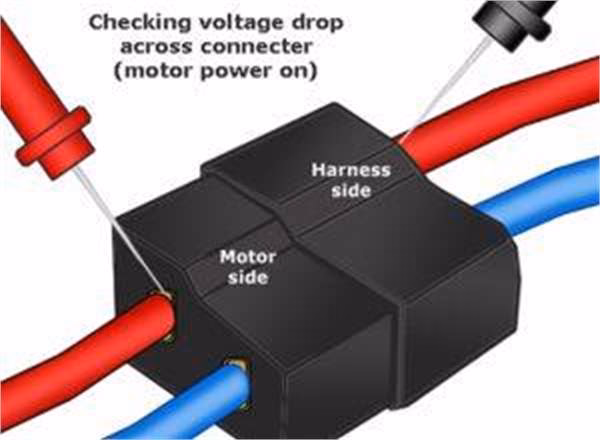

How to Test a Power Window Motor

To determine if the motor itself is functioning, you'll need a multimeter.

1. Disconnect Motor Connector: Locate and disconnect the electrical connector going to the power window motor.
2. Set Multimeter: Set your multimeter to measure DC voltage (VDC).
3. Test Voltage: Connect the red probe of your multimeter to one wire on the harness connector and the black probe to the other. Ensure your vehicle's ignition is in the 'RUN' position.
4. Operate Switch: Toggle the window switch up and down. If the multimeter reading consistently toggles between approximately +12 volts and -12 volts, it means the switch is sending the correct signals to the motor. In this scenario, the problem is almost certainly with the window regulator or the motor itself failing to respond.

Troubleshooting Voltage and Movement

• Voltage Toggles, Window Doesn't Move: If you observed the voltage toggling as described above, but the window still doesn't move, the issue lies within the regulator assembly or the motor's inability to drive it. Reconnect the electrical connector to the motor. If the motor is good, you should hear it attempting to operate or see some slight movement of the glass. If you see movement, the regulator is likely the culprit. For cable-type regulators, replacing the entire assembly is usually the most effective solution. If the motor makes no attempt to move the window, it's likely the motor itself that has failed, and again, replacing the entire regulator assembly is often the most practical repair.
• No Voltage or Ground at Motor: If your multimeter shows no voltage or ground at the motor's electrical connector when the switch is operated, the problem is likely a faulty master switch or a break in the wiring harness. To diagnose further, obtain a wiring diagram for your vehicle. Check for proper power and ground supply to the master switch itself. If the switch is receiving power and ground but not sending it out, the switch is likely bad. If the switch is functioning correctly but no power is reaching the motor, investigate the wiring harness, particularly in the flexible conduit between the door and the vehicle body. This area experiences constant flexing, making it a common point for wire breaks or chafing. Repair any damaged wires, and your power window should be back in business.

Key Takeaway: While power window motors are generally reliable, issues with the window regulator, wiring, or switches are far more common. By systematically checking these components, you can often pinpoint the cause of your malfunctioning power window and embark on a DIY repair, saving both time and money.

Frequently Asked Questions:

Q1: Can I fix a power window without replacing the whole regulator?

A1: It depends on the specific failure. If only a minor component like a plastic pulley has broken on a geared regulator, it might be repairable. However, for cable regulators, which are more common, replacing the entire unit is usually the most cost-effective and reliable solution.

Q2: How do I know if my power window motor is bad?

A2: If you're getting the correct voltage at the motor connector when operating the switch, but the motor doesn't make any noise or attempt to move the window, the motor itself is likely faulty.

Q3: What causes power windows to go down but not up?

A3: This often indicates a problem with the switch, the motor's reversing polarity function, or a partial failure in the regulator mechanism that allows movement in one direction but not the other.

Q4: Is it safe to drive with a broken power window?

A4: While not ideal, it's generally safe to drive. However, you'll need to secure the window in its current position to prevent it from rattling or falling further. Consider temporarily taping it shut with strong tape if necessary.

Q5: Where can I find a wiring diagram for my car?

A5: Wiring diagrams are typically found in vehicle-specific repair manuals, often available through online subscription services or your local library.
