EPB Rear Brake Pads: DIY or Pro Job?

Modern vehicles are packed with advanced technology, and while this often enhances comfort and safety, it can also introduce complexities for even the most seasoned DIY mechanic. One such area where technology has significantly altered traditional maintenance is the Electronic Parking Brake (EPB). Gone are the days of a simple mechanical lever; many cars now feature an electric motor that engages and disengages the rear brakes. This innovation brings convenience but also a specific set of procedures when it comes to routine maintenance, particularly when replacing rear brake pads.

If you're contemplating a rear brake pad change on a vehicle equipped with an EPB, you've likely encountered conflicting advice or even frustrating issues after the fact. The common questions often revolve around whether a special diagnostic tool is essential, how to retract the caliper pistons, and what to do if your electronic park brake suddenly stops working or flashes a warning light. This article aims to demystify the process, explain the critical steps, and troubleshoot common problems associated with EPB systems.

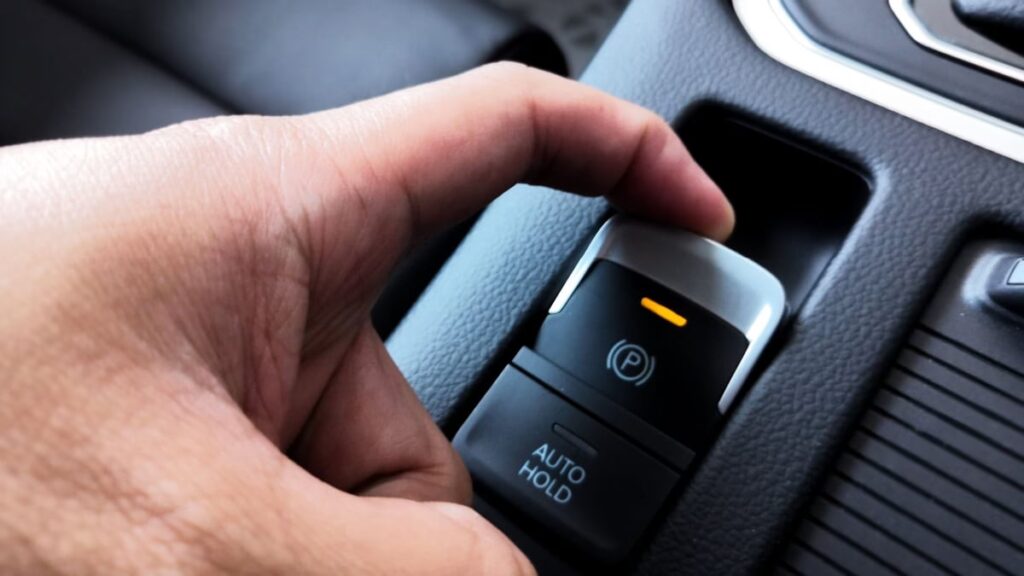

Understanding the Electronic Parking Brake (EPB) System

Firstly, let's clarify what we mean by an 'electric brake' in this context. Yes, when we talk about an 'electric brake' in relation to brake pad changes and parking brake issues, we are indeed referring to the Electronic Parking Brake (EPB), often simply called the electric handbrake. Unlike older systems that used a cable to mechanically pull the brake shoes or calipers, an EPB system employs an electric motor (or motors) directly on the rear calipers to apply the parking brake. This motor winds or pushes the caliper piston to engage the pads against the disc.

The EPB system is integrated with the vehicle's onboard computer (ECU) and various sensors. It's designed for seamless operation, automatically engaging or disengaging in certain situations, such as when you shift into park or release the clutch. While convenient, this integration is precisely what makes DIY maintenance more intricate.

The Critical Step: Retracting EPB Caliper Pistons

This is where most of the confusion and problems arise. With traditional brake calipers, you can simply use a C-clamp or a wind-back tool to push or wind the piston back into the caliper body to create space for new, thicker brake pads. However, with EPB calipers, it's not always that straightforward.

The electric motor that operates the parking brake needs to be put into a 'service mode' or 'maintenance mode' before the pistons can be safely retracted. This mode effectively tells the EPB motor to fully retract, allowing manual or tool-assisted winding/pushing of the piston without damaging the motor or the internal gears. If you attempt to force the piston back without entering this mode, you risk serious damage to the EPB motor, the caliper itself, or the internal mechanism, leading to costly repairs.

Why the Confusion? Winding vs. Pushing

The debate about whether to "wind" or "push" EPB pistons often stems from different caliper designs. Some EPB calipers require the piston to be wound back (like older screw-type calipers), while others simply need to be pushed straight back once the EPB motor is retracted via service mode. The key takeaway is that the EPB motor *must* be disengaged or fully retracted first, regardless of the specific piston retraction method.

Can You Change Rear Brake Pads Without a Diagnostic Tool?

In most cases, for vehicles equipped with an Electronic Parking Brake (EPB), the answer is a resounding no, not safely or correctly. A dedicated diagnostic tool (often referred to as an OBD-II scanner with EPB functionality) is almost always required. Here's why:

• Service Mode Activation: The primary reason is to put the EPB system into 'service mode' or 'maintenance mode'. This electronically retracts the EPB motor fully, disengaging it from the caliper piston. Without this, attempting to push or wind the piston back can damage the motor and the caliper internals.
• Piston Retraction: Once in service mode, the tool often facilitates the retraction of the pistons. Some tools even automate this process.
• System Reset and Calibration: After fitting new pads, the EPB system needs to be 'reset' or 'calibrated' to acknowledge the new pad thickness. The diagnostic tool is used to close the EPB motors, bring the pads into contact with the disc, and clear any potential fault codes. This ensures the system operates correctly and the parking brake functions as intended.
• Clearing Fault Codes: If the pads are changed incorrectly (e.g., by forcing pistons back), the system will detect an anomaly, trigger a fault code, and often disable the EPB. A diagnostic tool is essential to read these codes, understand the problem, and clear them once the issue is resolved.

Attempting to change EPB pads without the proper diagnostic tool is a common cause of flashing EPB lights, non-functional parking brakes, and subsequent visits to a garage or dealership, often at a higher cost than simply using the correct tool in the first place.

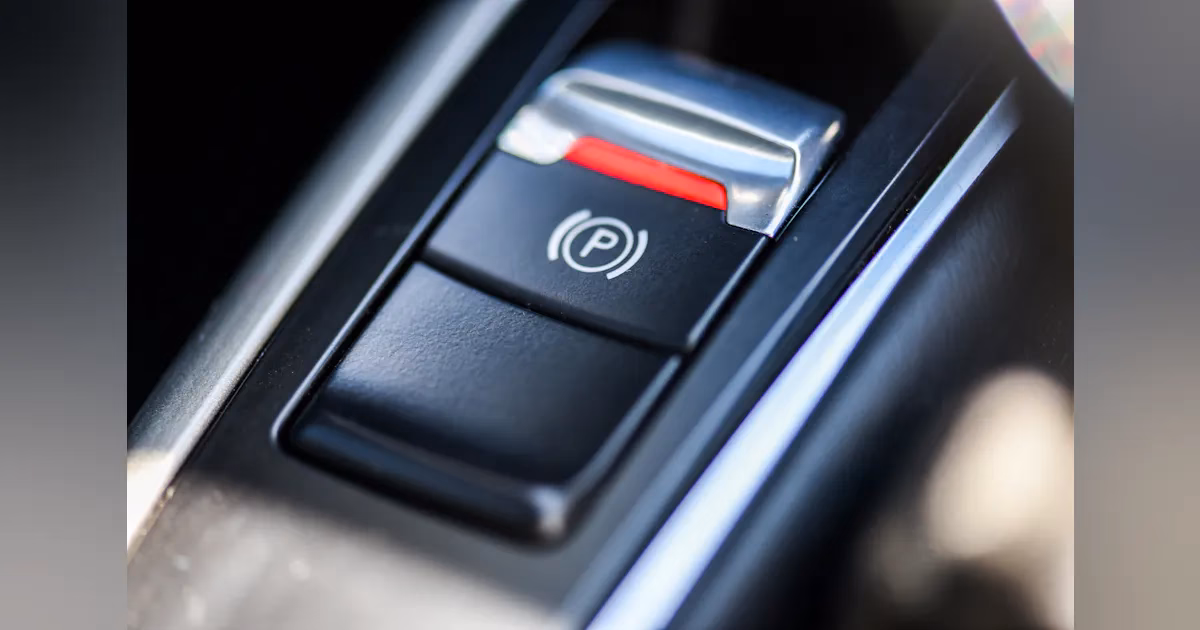

Troubleshooting a Non-Functional Electronic Park Brake

If your EPB light is flashing or the parking brake isn't working after a rear brake job, you're not alone. This is a very common scenario. Let's break down the potential causes and what steps you can take.

Common Symptoms and Their Meanings:

• Flashing EPB Light: This is the most common indicator of a problem. It usually signifies that the EPB system has detected a fault. This could be due to incorrect pad installation, a faulty EPB motor, wiring issues, or even a low battery voltage.
• EPB Not Engaging/Disengaging: If the brake won't apply or release, it points to a more severe issue, potentially a seized caliper, a completely failed EPB motor, or a major electrical fault.
• "Not Communicating" Diagnostic Error: If a diagnostic tool (like the one used at Halfords) can't communicate with the EPB module, it suggests a power supply issue to the module, a faulty module itself, or a break in the communication wiring (CAN bus).

Potential Causes and Solutions:

1. Incorrect Pad Replacement Procedure:

   • Cause: The most frequent culprit. If the EPB service mode wasn't activated, and the pistons were forced back, the EPB motors or their internal gears are likely damaged.
   • Solution: This often necessitates replacement of the damaged caliper, which includes the EPB motor assembly. There's no 'reset' for physical damage.

2. Damaged Caliper Pistons/Motors ("Pins may be knackered"):

   • Cause: As mentioned, forcing pistons can damage the motor. The 'pins' refer to the internal mechanism of the caliper/motor that translates the motor's rotation into piston movement. If these are "knackered" (damaged), the motor can't move the piston.
   • Solution: Caliper replacement.

3. Faulty EPB Switch:

   • Cause: The interior switch sends a signal to the EPB module. If the switch itself is faulty, it won't send the correct command, or any command at all.
   • Solution: Replacing the switch is a good troubleshooting step, especially if it's cheap and easy to do, but it's often not the root cause for post-brake job issues if the problem started immediately after.

4. Wiring Issues:

   • Cause: Damaged wiring to the EPB calipers or the EPB control module can prevent communication or power delivery. This can happen during the brake job if wires are accidentally snagged or crushed.
   • Solution: Visual inspection of wiring, followed by continuity testing with a multimeter if damage isn't obvious. Repair or replace damaged sections.

5. EPB Motor Failure (Internal):

   • Cause: Even without improper installation, EPB motors can fail due to wear and tear, water ingress, or electrical faults within the motor itself.
   • Solution: Replacement of the caliper/motor assembly.

6. Control Module Fault:

   • Cause: Less common, but the EPB control module itself can fail, leading to communication issues or complete system shutdown.
   • Solution: Diagnostic testing to confirm module failure, followed by replacement and programming (often a dealership-level job).

When a Diagnostic Tool Shows "Not Communicating"

This is a particularly frustrating error. If your diagnostic tool can't communicate with the EPB module, it implies a more fundamental issue than just a fault code. Possible reasons include:

• No Power to the Module: Check fuses related to the EPB system.
• Damaged Wiring: As mentioned, a break in the power or communication (CAN bus) wires to the EPB module.
• Faulty EPB Control Module: If power and wiring are confirmed good, the module itself might be dead.
• Incompatible Diagnostic Tool: Less likely with a general diagnostic check, but some cheaper tools may not fully support all vehicle modules.

Start with fuse checks, then a thorough visual inspection of wiring before considering a module replacement.

My Parking Brake is Stuck On! What Do I Do?

This is a critical situation as it renders your car immobile. If your EPB is stuck engaged, here's what you should consider:

• Do NOT Force It: Do not attempt to drive the car with the parking brake engaged, as this will severely damage the brake components and could be dangerous.
• Check Basic Resets: Sometimes, disconnecting the car battery for 15-30 minutes can reset some modules, though this is less likely to resolve a mechanically stuck EPB.
• Look for Manual Release (if applicable): Some (but not all) vehicles have a manual release mechanism for the EPB, often a cable or a specific procedure in the boot or under the car. Consult your vehicle's owner's manual. However, for many modern EPB systems, especially those where the motor is integral to the caliper, there is no easy manual release without professional intervention.
• Professional Assistance: If there's no easy manual release or it doesn't work, your best course of action is to call for breakdown recovery. They can transport your vehicle to a reputable garage or dealership.
• Dealership Experience: Be prepared for a potentially lengthy process, as parts for EPB systems can sometimes be on backorder, as highlighted by the user's frustrating experience. It's advisable to get an estimated time of arrival (ETA) for parts and discuss loan car options upfront.

The user's experience with the dealer highlights a common frustration: sometimes the customer's research and knowledge can surpass that of the service department, especially when dealing with specific part availability. Always push for clear communication, ETAs, and understand exactly what parts are being ordered (e.g., motor vs. full caliper assembly).

Comparison: Traditional Handbrake vs. Electronic Parking Brake - Rear Pad Replacement

Frequently Asked Questions (FAQs)

Can I change EPB pads without a diagnostic tool?

While technically possible to physically remove and replace the pads, you cannot properly retract the caliper pistons or reset the system without a diagnostic tool that can activate the EPB service mode. Doing so risks damaging the EPB motors and causing fault codes, rendering your parking brake inoperable.

Why is my electronic park brake light flashing?

A flashing EPB light indicates a fault within the system. Common reasons include: incorrect rear brake pad replacement (especially if pistons were forced), a faulty EPB motor, wiring issues, or a problem with the EPB control module. A diagnostic scan is needed to identify the specific fault code.

What does it mean if my diagnostic tool shows 'not communicating' with the EPB?

This suggests a more fundamental problem. It could mean the EPB control module isn't receiving power (check fuses), there's a break in the communication wiring (CAN bus), or the module itself is faulty. This usually requires more in-depth electrical troubleshooting.

Should EPB pistons be wound or pushed back?

This depends on the specific caliper design of your vehicle. Some require winding, others pushing. However, regardless of the method, the crucial step is to first put the EPB system into 'service mode' using a diagnostic tool. This retracts the EPB motor, allowing safe piston retraction.

What if my parking brake is stuck on?

Do not attempt to drive the vehicle. Check your owner's manual for any manual release procedures (though many modern EPBs lack an easy manual override). If none is available or it doesn't work, you'll need professional breakdown recovery to transport your car to a garage or dealership for repair.

Conclusion

While the prospect of saving money on car maintenance is always appealing, the Electronic Parking Brake system on modern vehicles presents a unique challenge for the DIY enthusiast. Attempting to change rear brake pads on an EPB-equipped car without the correct diagnostic tool and knowledge of the specific service procedure is a high-risk endeavour. It often leads to damaged components, flashing warning lights, and a non-functional parking brake, ultimately costing more in repairs than a professional job would have in the first place.

If you're unsure, or if your EPB system is already exhibiting problems like a flashing light or being stuck, it's always best to seek assistance from a qualified mechanic or a reputable garage that has the necessary diagnostic equipment. Investing in the correct tools or professional service ensures your vehicle's braking system, a critical safety component, functions correctly and reliably.
