Selecting the correct fuel injection pump is far more critical than many vehicle owners and enthusiasts realise. It's not merely about getting fuel from the tank to the engine; it's about ensuring a consistent, precise supply at the right pressure and volume to match your engine's demands. An improperly chosen pump can lead to a myriad of issues, from poor performance and efficiency to severe engine damage. This comprehensive guide will walk you through the essential factors to consider, helping you make an informed decision for your British motoring needs, whether you're optimising an existing setup or making the switch to Electronic Fuel Injection (EFI).
Why the Right Fuel Pump is Paramount
Imagine trying to run a marathon on a diet of crisps and fizzy drinks – not ideal, is it? Your engine feels much the same if its fuel supply is inadequate. A fuel injection pump is the heart of your vehicle's fuel system. If it's too small, your engine will starve under load, leading to hesitation, misfires, and a lack of power, particularly at higher RPMs or under heavy acceleration. Conversely, an oversized pump, while seemingly harmless, can put unnecessary strain on your electrical system, generate excessive heat, and potentially overwhelm your fuel pressure regulator, leading to inconsistent fuel delivery.
Moreover, modern engines, especially those running EFI, demand very precise fuel delivery. Deviations can impact air-fuel ratios, leading to increased emissions, reduced fuel economy, and potential long-term damage to components like catalytic converters. Choosing wisely ensures your engine receives precisely what it needs, when it needs it, for optimal performance and longevity.
Key Factors Influencing Your Fuel Pump Choice
Several critical parameters must be carefully assessed to ensure you select the appropriate fuel injection pump. Overlooking any of these could lead to sub-optimal performance or outright system failure.
Engine Horsepower (BHP)
The amount of horsepower your engine produces directly correlates with its fuel consumption. More power means more fuel is needed. To determine the required fuel flow rate, you'll typically consider the engine's Brake Specific Fuel Consumption (BSFC). This figure represents how much fuel an engine consumes per horsepower per hour. For petrol engines, a common BSFC value is around 0.50 to 0.60 lbs/hp/hr at wide-open throttle (WOT), while forced induction engines (turbocharged or supercharged) might be higher, around 0.65 to 0.70 lbs/hp/hr. Diesel engines operate differently and typically have lower BSFC values.
The calculation generally involves: (Max HP x BSFC) / (Fuel Specific Gravity x 60 minutes) to get flow in gallons per minute (GPM) or litres per hour (LPH). It's always wise to add a safety margin, perhaps 20-25%, to account for variations in fuel quality, injector flow, and future modifications. An undersized pump will simply not be able to keep up with the engine's demands when it's working hard, leading to dangerous lean conditions.
Fuel Type
The type of fuel you intend to use is a crucial determinant. Standard unleaded petrol (E5 or E10 in the UK) behaves differently from high-ethanol fuels like E85, or even racing fuels like methanol. E85, for instance, requires significantly higher flow rates (typically 30-40% more volume) compared to petrol due to its lower energy density. Furthermore, ethanol is corrosive to certain materials, meaning pumps used with E85 must be compatible with ethanol to prevent premature failure. This often means stainless steel components and specific seal materials. Ensure your chosen pump is rated for the specific fuel type you'll be running.
Diesel fuel injection pumps also operate under very different principles and pressures compared to petrol pumps and are not interchangeable. Always verify the pump's compatibility with your intended fuel.
System Pressure Requirements
Your vehicle's fuel system operates at a specific pressure, dictated by the engine's fuel rail and injectors. For most modern EFI systems, this system pressure typically ranges from 40-60 PSI (pounds per square inch), but some high-performance or direct injection systems can run much higher. It's vital that the pump can supply the required fuel volume at this operating pressure, plus any additional pressure needed to overcome line losses and the fuel pressure regulator's differential pressure. Remember, a pump's flow rate decreases as the pressure it works against increases. Therefore, when evaluating a pump's specifications, always look at its flow rate at the maximum expected system pressure, not just its free-flow rate.
If you're converting from a carburettor to EFI, note that carburetted systems operate at very low pressures (typically 5-7 PSI), so a high-pressure EFI pump is absolutely necessary for the conversion.
Supply Voltage
Most automotive fuel pumps operate on a 12-volt electrical system. However, high-performance pumps can draw significant amperage, sometimes exceeding 15-20 amps under load. It's crucial that your vehicle's wiring, relay, and fuse are adequately sized to handle the pump's current draw. Inadequate wiring can lead to a voltage drop at the pump, reducing its efficiency and output, and generating excessive heat. Some extreme performance applications might even use a 16-volt electrical system to maximise pump output, but this is rare for road cars.
Always ensure your chosen pump is compatible with your vehicle's supply voltage and that your electrical system is robust enough to deliver consistent power without significant voltage drop.
In-line vs. In-tank Fuel Pumps
When selecting a fuel pump, one of the primary decisions is its mounting location: in-line or in-tank. Both have distinct advantages and disadvantages.
In-tank Fuel Pumps
As the name suggests, these pumps are submerged directly within the fuel tank. This is the favoured setup for most modern production vehicles due to several key benefits:
- Cooling: Being submerged in fuel helps to dissipate heat, keeping the pump cooler and extending its lifespan.
- Noise Reduction: The fuel acts as a sound dampener, making in-tank pumps significantly quieter than their in-line counterparts.
- Cavitation Resistance: Being gravity-fed, in-tank pumps are less prone to cavitation (the formation of vapour bubbles), which can damage the pump and reduce flow.
- Reduced Priming Issues: They are constantly primed, ensuring immediate fuel delivery upon engine start-up.
However, installation can be more involved, often requiring removal of the fuel tank or access through a dedicated opening in the vehicle floor. They are generally more complex to service or replace.

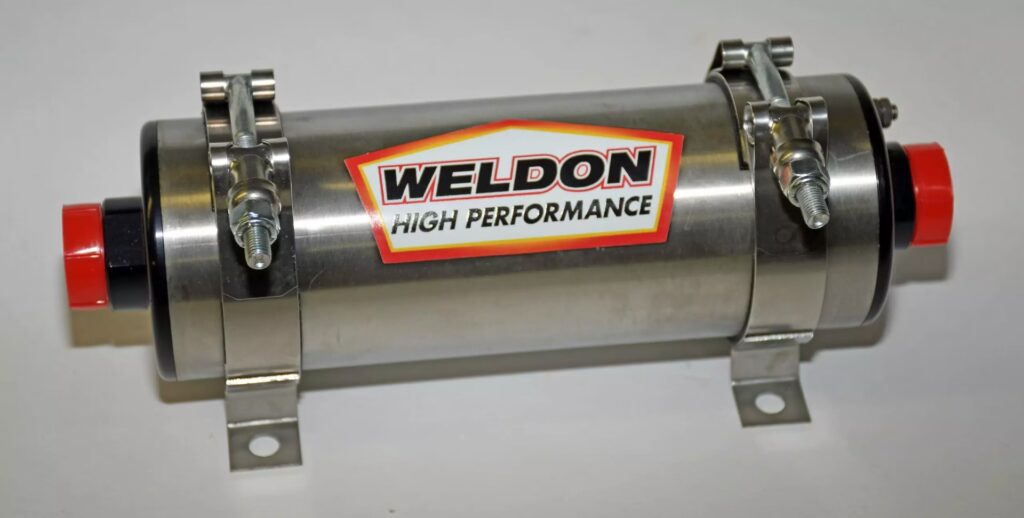

In-line Fuel Pumps
These pumps are mounted outside the fuel tank, typically along the fuel line somewhere between the tank and the engine. They are often used for:
- Ease of Installation: Generally much simpler to install or replace, as they don't require tank removal.
- Supplementary Systems: Ideal for adding an additional pump for high-performance applications, or as a lift pump for a more powerful main pump.
- Custom Setups: When an in-tank solution isn't feasible or practical.
The drawbacks include being louder, more susceptible to heat build-up (requiring careful mounting and potentially external cooling), and a greater risk of cavitation if not positioned correctly (ideally below the fuel tank level). They also require a pre-filter to protect them from debris.
Holley, a well-known name in automotive performance, offers a range of both in-line and in-tank pumps, catering to various needs from mild upgrades to extreme power demands, making the transition or upgrade to EFI considerably easier.
Understanding Pump Flow Rate vs. Pressure
This is arguably the most misunderstood aspect of fuel pump selection. A pump's advertised flow rate (e.g., 255 LPH or 400 LPH) is typically its free-flow rate – the volume it can pump with no resistance. As the pressure in the system increases, the pump has to work harder, and its actual flow rate will decrease. Every reputable pump manufacturer provides a flow vs. pressure curve (or graph) for their pumps. It is imperative to consult this curve. You must ensure the pump can deliver your calculated required fuel volume at your maximum operating pressure (e.g., 60 PSI for many EFI systems, or even higher if you have boost-referenced fuel pressure).
Choosing a pump that delivers sufficient flow at a very low pressure but struggles at your target system pressure is a common and critical mistake.
Comparison: In-Tank vs. In-Line Fuel Pumps
| Feature | In-Tank Fuel Pump | In-Line Fuel Pump |
|---|---|---|
| Installation Complexity | Medium to High (often tank removal) | Low to Medium (external mounting) |
| Noise Level | Very Quiet (submerged) | Noticeably Louder (external) |
| Heat Dissipation | Excellent (fuel-cooled) | Moderate (relies on air cooling) |
| Cavitation Risk | Low (gravity-fed) | Higher (requires careful positioning) |
| Lifespan Potential | Generally Longer (cooler operation) | Shorter (due to heat, cavitation risk) |
| Ideal Application | OEM replacements, new EFI conversions, high-performance builds | Supplementary pumps, carburettor conversions, custom setups where in-tank is impractical |
Common Pitfalls and How to Avoid Them
Despite careful planning, mistakes can happen. Here are some common errors when selecting or installing fuel pumps:
- Undersizing the Pump: The most frequent mistake. Always calculate your needs with a safety margin. Better to slightly oversize than undersize.
- Ignoring Voltage Drop: Using inadequate wiring or faulty relays can starve the pump of power, reducing its output significantly. Always use appropriately gauged wiring and a dedicated relay.
- Incorrect Fuel Type Compatibility: Using a non-E85 compatible pump with E85 fuel will lead to premature failure.
- Neglecting Pre- and Post-Filters: Pumps are sensitive to debris. A good pre-filter (before the pump) protects it, and a post-filter (after the pump, before the fuel rail) protects your injectors.
- Poor Mounting Location for In-line Pumps: Mounting an in-line pump too high above the tank or too far away increases the risk of cavitation.
- Not Considering Future Upgrades: If you plan to add more power later, choose a pump that can handle the increased fuel demands from the outset.
Frequently Asked Questions (FAQs)
How do I calculate my exact fuel flow requirements?
You'll need your engine's maximum brake horsepower (BHP) and its Brake Specific Fuel Consumption (BSFC). For petrol, a common BSFC is 0.50-0.60 lbs/hp/hr, but for forced induction, use 0.65-0.70. For E85, multiply petrol requirements by 1.3 to 1.4. The formula is generally: (Max HP * BSFC) / Fuel Specific Gravity (approx. 6.2 for petrol, 6.7 for E85) = lbs/hr. Convert lbs/hr to LPH by multiplying by 0.453592 (kg/lb) and dividing by fuel density (approx. 0.75 kg/L for petrol, 0.78 kg/L for E85). Always add a 20-25% safety margin.
Can I use a diesel fuel pump for a petrol engine?
Absolutely not. Diesel fuel systems operate at much higher pressures and use different pump designs (e.g., rotary or common rail pumps) that are completely incompatible with the lower pressure, higher volume requirements of most petrol EFI systems. Furthermore, the materials used in diesel pumps are not designed for petrol, and vice-versa, leading to rapid failure.
What's the difference between a low-pressure and high-pressure fuel pump?
A low-pressure pump (typically 5-15 PSI) is generally used for carburettor systems, which require minimal pressure to feed the float bowl. A high-pressure pump (typically 40-100+ PSI) is required for Electronic Fuel Injection (EFI) systems, as the injectors need significantly higher pressure to atomise fuel effectively into the intake manifold or combustion chamber. Never use a low-pressure pump for an EFI system.
Do I need a fuel pressure regulator with my new fuel pump?
Yes, for almost all EFI systems, a fuel pressure regulator (FPR) is essential. The pump is designed to deliver more fuel than the engine needs at idle or cruise. The FPR maintains a consistent pressure at the fuel rail by bleeding excess fuel back to the tank. Without it, your fuel pressure would be uncontrolled and excessively high, leading to rich running and potential damage.
How often should I replace my fuel pump?
Fuel pumps are generally designed for the lifespan of the vehicle, but factors like running on a consistently low fuel tank (which deprives the pump of cooling), contaminated fuel, or excessive heat can shorten their life. There isn't a fixed interval, but if you notice symptoms like whining noises from the tank, engine hesitation, or difficulty starting, it might be time for a replacement. Regular fuel filter replacement also helps prolong pump life.
In conclusion, selecting the correct fuel injection pump is a foundational step in building a reliable and high-performing automotive fuel system. By carefully considering your engine's horsepower, the specific fuel type you're using, the required system pressure, and ensuring adequate supply voltage, along with understanding the nuances of in-line versus in-tank designs, you can ensure your vehicle's heart beats strong and true on the UK roads.
