Spotting a Dodgy Motor Brush: Your Essential Guide

Motor brushes are often unsung heroes in the world of electric motors. These small, yet crucial, components play a vital role in transmitting electrical current between the stationary and rotating parts of a motor. Without them functioning correctly, your motor can lose power, behave erratically, or even refuse to start altogether. Knowing how to identify a failing motor brush is a fundamental skill for any car enthusiast or mechanic, preventing minor issues from escalating into costly repairs or complete motor failure.

Understanding the signs of a worn or damaged brush can save you significant hassle and expense. This comprehensive guide will walk you through everything you need to know, from the basic function of a motor brush to the detailed symptoms and diagnostic methods for spotting a dodgy one. Let's delve into the mechanics and learn how to keep your motors purring efficiently.

What Exactly Are Motor Brushes?

Before we dive into diagnosing problems, it's essential to understand what motor brushes are and how they work. In many electric motors, particularly DC motors and some AC universal motors, the stationary part (stator) generates a magnetic field, and the rotating part (rotor or armature) needs to receive electrical current to interact with that field and create rotational force. The problem is, how do you get electricity to a spinning component?

This is where motor brushes come in. They are typically made from a soft carbon or graphite compound, sometimes mixed with copper or other metals to enhance conductivity and reduce wear. These brushes are held in place by brush holders and pressed against a rotating component called the commutator by springs. As the commutator spins, the brushes maintain continuous electrical contact, allowing current to flow into the armature windings. This constant contact, however, leads to gradual wear and tear, making brushes a common consumable component in many motors.

Their primary function is to conduct electricity while also providing lubrication and preventing excessive arcing. The carbon material is soft enough to wear down before damaging the harder metal commutator, and its self-lubricating properties help ensure smooth operation. When these brushes begin to fail, the electrical connection becomes compromised, leading to a cascade of performance issues.

Tell-Tale Signs of Bad Motor Brushes

Identifying a failing motor brush often comes down to observing your motor's behaviour and listening for unusual sounds. Here are the most common symptoms that suggest your motor brushes might be on their way out:

1. Loss of Power or Intermittent Operation

One of the earliest and most noticeable signs of failing brushes is a reduction in the motor's overall power or an inconsistent output. If your power tool feels weaker, your car's starter motor struggles, or a fan motor spins slower than usual, it could be due to poor electrical contact from worn brushes. This can manifest as the motor running normally for a bit, then suddenly losing power, or only working intermittently. The compromised connection means the armature isn't receiving a consistent, strong current.

2. Excessive Sparking at the Commutator

A small amount of sparking at the commutator is normal, especially under load. However, if you observe excessive, bright, or continuous sparking, often described as a 'fireworks display' inside the motor, it's a strong indicator of bad brushes. This can be caused by brushes that are too short, not making proper contact, worn unevenly, or by a commutator that is dirty or damaged. Excessive sparking not only wastes energy but also rapidly wears down both the brushes and the commutator, potentially leading to further damage.

3. Unusual Noises

Motors are generally designed to run with a consistent hum or whir. Any new or unusual noises should immediately raise a red flag. Failing motor brushes can cause:

• Whining or High-Pitched Squealing: This often indicates that the brushes are not making smooth contact with the commutator, possibly due to insufficient spring tension or uneven wear.
• Grinding or Scraping: If the brushes are severely worn down, the metal brush holder might start to make contact with the commutator, leading to a harsh grinding sound and severe damage to the commutator.
• Clicking or Rattling: This could be caused by broken brush fragments or loose brushes within their holders.

4. Motor Not Starting or Starting Slowly

If your motor completely fails to start, or if it struggles to get going, requiring a nudge or multiple attempts, bad brushes are a prime suspect. Without proper electrical contact, the motor simply cannot initiate its rotation. This is particularly common in starter motors in vehicles, where a weakened current due to worn brushes can prevent the engine from cranking effectively.

5. Burning Smell or Overheating

Excessive sparking and poor electrical contact generate a lot of heat. If you detect a burning smell, often described as an electrical burning smell, it's a serious sign of trouble. This smell comes from the overheating of the brushes, commutator, or even the motor windings due to the increased resistance and arcing. Continued operation under these conditions can lead to irreversible damage to the motor.

6. Visible Wear or Damage to Brushes

Sometimes, the problem is evident upon visual inspection. If you can access the brushes, look for the following:

• Short Length: Brushes have a minimum operational length. If they are worn down too much, they won't make adequate contact.
• Uneven Wear: A healthy brush should wear evenly. If one side is significantly shorter or tapered, it indicates an issue with the brush holder, spring tension, or commutator alignment.
• Chips, Cracks, or Breakage: Carbon brushes can become brittle. Physical damage compromises their integrity and ability to conduct current.
• Discolouration: Overheating can cause brushes to discolour, appearing charred or unusually dark.

How to Diagnose Bad Motor Brushes: A Step-by-Step Guide

Once you suspect bad brushes, you'll need to perform a more detailed inspection. Always ensure the motor is disconnected from its power source before you begin any work!

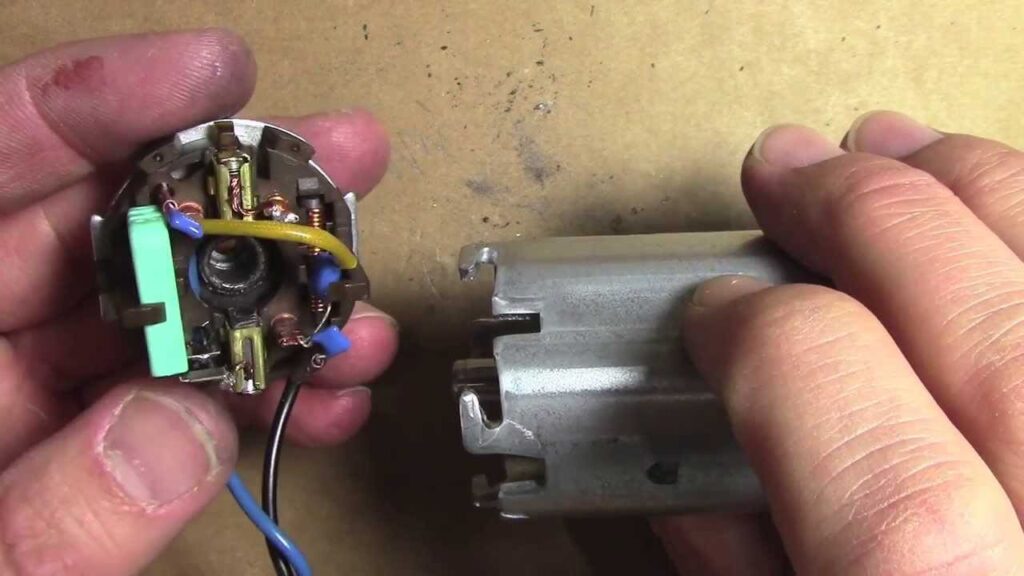

Step 1: Access the Brushes

The first step is to locate and access the brush holders. This usually involves removing a cover or disassembling part of the motor casing. Be gentle and take note of how everything is assembled, as you'll need to put it back together correctly.

Step 2: Visual Inspection of the Brushes

Carefully remove each brush from its holder. Examine them for the visible signs of wear mentioned above:

• Length: Compare the brush length to a new one or the manufacturer's specification. If it's too short, it needs replacing.
• Wear Pattern: The contact surface should be smooth and conform to the curvature of the commutator. Uneven wear, pitting, or grooves indicate problems.
• Physical Damage: Look for cracks, chips, or any signs of breakage.
• Spring Tension: While the brush is out, check the spring that presses it against the commutator. It should feel firm and provide adequate pressure. A weak or broken spring is as bad as a worn brush.

Step 3: Inspect the Commutator

The commutator is just as important as the brushes. A healthy commutator should be smooth, clean, and have a uniform copper colour. Look for:

• Grooves or Pitting: Deep grooves or pits indicate severe wear, often caused by prolonged use with worn or improperly seated brushes.
• Discolouration: Dark spots, blackening, or streaking can indicate overheating, excessive arcing, or contamination.
• Dirt and Carbon Buildup: Accumulation of carbon dust or other contaminants can create an insulating layer, leading to poor contact and sparking. Clean with a non-abrasive commutator cleaning tool or very fine sandpaper (P1000 or finer), followed by a clean cloth.
• High Mica: The insulating material (mica) between the commutator segments should be slightly recessed. If it's flush or protrudes, it can prevent the brushes from making good contact with the copper segments, leading to sparking. This requires professional attention, as the commutator might need to be 'undercut'.

Step 4: Electrical Continuity Check (Optional but Recommended)

While less common for brushes themselves, you can check the continuity of the brush-commutator path if you suspect a complete break in the circuit. With a multimeter set to continuity mode, you can check from the brush holder to the corresponding winding terminal, ensuring the path is clear. However, visual inspection and observation of symptoms are usually sufficient for brushes.

Good Brush vs. Bad Brush: A Comparison

To help solidify your understanding, here's a quick comparison of what to look for:

The Impact of Ignoring Bad Brushes

Ignoring the signs of failing motor brushes is a recipe for disaster. While brushes themselves are relatively inexpensive to replace, the damage they can cause if left unchecked can be substantial. Excessive sparking and heat can permanently damage the commutator, requiring expensive machining or even full motor replacement. A damaged commutator can also lead to short circuits in the armature windings, burning out the motor entirely. Furthermore, the increased resistance and inefficient operation will draw more current, potentially stressing other electrical components in your system. Timely diagnosis and replacement are key to extending the life of your motor and avoiding much larger repair bills.

Frequently Asked Questions About Motor Brushes

How long do motor brushes typically last?

The lifespan of motor brushes varies significantly depending on the motor's design, load, operating conditions, and hours of use. In high-use applications, they might need replacing every few hundred hours, while in intermittent-use motors, they could last for many years. Regular inspection is more reliable than relying on a fixed schedule.

Can I replace motor brushes myself?

In many cases, yes. Replacing motor brushes is often a straightforward task, especially in smaller appliances or power tools where they are designed to be user-serviceable. Always ensure you use the correct replacement brushes specified by the manufacturer, and disconnect the power before attempting any work. If you're unsure, consulting a professional is always the safest option.

What causes excessive sparking at the commutator?

Excessive sparking is a common symptom of bad brushes. It can be caused by brushes that are too short, not making proper contact, worn unevenly, a dirty or grooved commutator, weak brush springs, or even an overloaded motor drawing too much current. Addressing the underlying issue is crucial to prevent further damage.

Are all motor brushes the same?

Absolutely not. Motor brushes vary significantly in size, shape, material composition, and the type of terminal connection. Using the wrong brush can lead to poor performance, rapid wear, or even damage to the motor. Always refer to the motor's manufacturer specifications or match the existing brushes precisely when sourcing replacements.

How often should I check my motor brushes?

For motors in critical applications or those subjected to heavy, continuous use, it's wise to perform visual inspections every few hundred hours or as part of a routine maintenance schedule. For domestic appliances or tools used infrequently, checking them when you notice any of the symptoms mentioned above is usually sufficient. Prevention through regular checks can save you from unexpected breakdowns.

What tools do I need to inspect or replace motor brushes?

Typically, you'll need basic hand tools such as screwdrivers (Phillips and flathead), perhaps a socket set, and possibly needle-nose pliers. A multimeter can be useful for advanced diagnostics, but for basic brush inspection, visual examination is often enough. Always ensure you have good lighting and a clean workspace.

By understanding these signs and following the diagnostic steps, you'll be well-equipped to identify a dodgy motor brush before it leads to more serious and expensive problems. Regular maintenance and attentive observation are your best allies in keeping your motors running efficiently and reliably.
