EGR Blanking: Unveiling the Unofficial Practice

In the intricate world of automotive mechanics, few topics spark as much debate and curiosity as the practice of EGR blanking. For many vehicle owners, particularly those with diesel engines, the Exhaust Gas Recirculation (EGR) system is often seen as a necessary evil, designed for emissions control but frequently blamed for a host of engine woes. But what exactly is EGR blanking, why do people consider it, and what are the true implications for your vehicle, especially here in the UK?

This article aims to shed light on this unofficial modification, exploring its theoretical basis, the purported benefits, the undeniable risks, and the critical legal considerations that every UK driver must be aware of. We'll delve into the mechanics, discuss the common misconceptions, and equip you with a clearer understanding of what happens when you decide to block your EGR valve.

Understanding the Exhaust Gas Recirculation (EGR) System

Before we dive into blanking, it’s essential to understand the fundamental role of the EGR system itself. The Exhaust Gas Recirculation (EGR) valve is an emissions control device found on most modern internal combustion engines, both petrol and diesel, though it's particularly prevalent and often problematic on diesels. Its primary function is to reduce nitrogen oxide (NOx) emissions, a harmful pollutant that contributes to acid rain and smog.

The EGR system works by recirculating a small portion of your engine's exhaust gases back into the combustion chambers. By introducing inert exhaust gases into the intake manifold, the oxygen content of the incoming air charge is reduced. This, in turn, lowers the peak combustion temperatures within the cylinders. Why does this matter? Because NOx gases are primarily formed at high temperatures and pressures during combustion. By cooling the combustion process, the EGR system effectively curtails the formation of these harmful pollutants, helping vehicles meet stringent emissions regulations.

While vital for environmental compliance, the EGR system, particularly in diesel engines, is a double-edged sword. The exhaust gases contain soot and other particulate matter. When these gases are mixed with oil vapours from the crankcase ventilation system, they can create a thick, tar-like substance that coats and clogs the intake manifold, EGR valve itself, and sometimes even the swirl flaps. This build-up can restrict airflow, reduce engine efficiency, and lead to various performance issues over time.

What Does an EGR Blank Do?

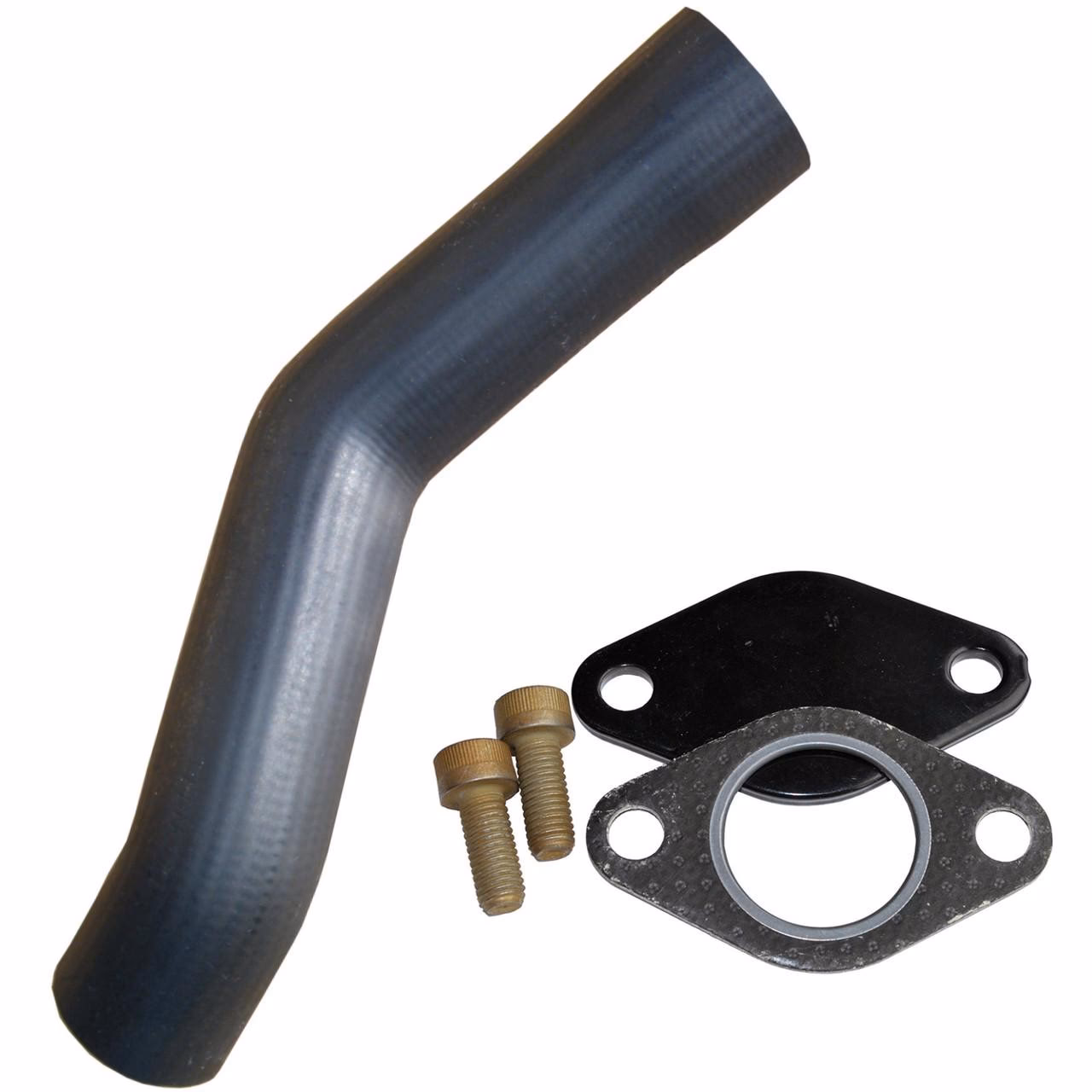

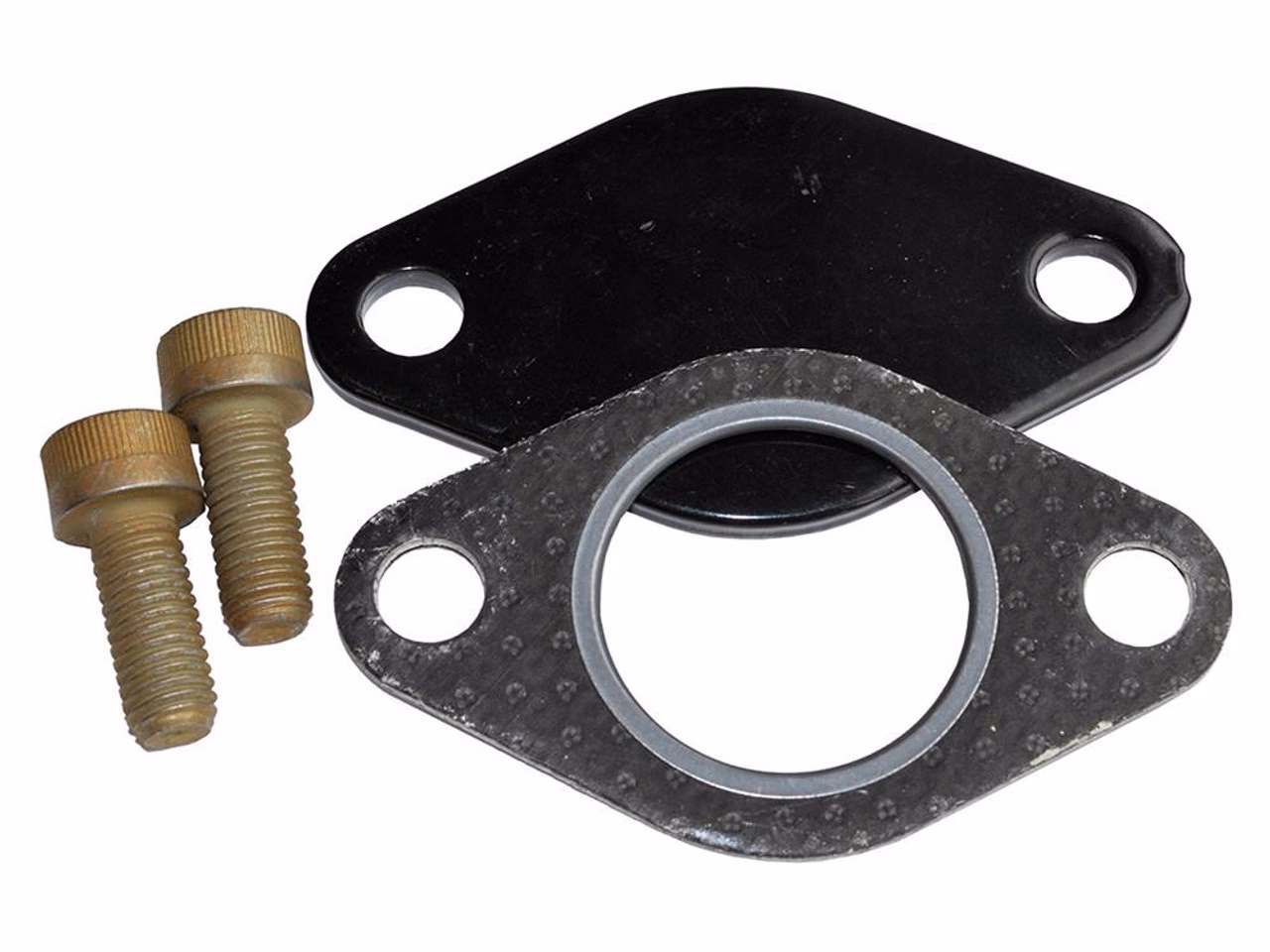

An EGR blank, or blanking plate, is essentially a small, solid piece of metal – often a thin steel or aluminium plate – designed to be inserted into the EGR system to physically block the flow of exhaust gases. It's typically fitted between the EGR valve and the intake manifold, or sometimes between the exhaust manifold and the EGR pipe, depending on the vehicle's design. The immediate and intended effect is to completely stop the recirculation of exhaust gases into the engine's intake.

By installing an EGR blank, the engine effectively breathes only fresh, clean air from the atmosphere, rather than a mixture of fresh air and exhaust gases. This is the core principle behind the modification, and it leads to a series of knock-on effects that proponents argue are beneficial, while critics highlight the environmental and potential mechanical drawbacks.

The Unofficial Reasons for EGR Blanking

So, why would a driver choose to bypass a system designed to reduce harmful emissions? The motivations for EGR blanking are typically rooted in a desire to mitigate perceived issues associated with the system or to unlock potential performance gains. Here are the main reasons people consider this modification:

1. Preventing Carbon Build-Up

This is arguably the most common reason. As mentioned, the combination of soot from exhaust gases and oil vapours can lead to significant carbon deposits in the intake manifold, EGR valve, and associated pipework. This build-up restricts airflow, leading to:

• Reduced engine performance and responsiveness.
• Decreased fuel efficiency.
• Rough idling and hesitation.
• Increased likelihood of the EGR valve sticking open or closed, leading to costly repairs.
• Potential for damage to other components, such as swirl flaps, which can break off and enter the engine.

By blanking the EGR, you prevent these sooty gases from entering the intake system altogether, thereby eliminating the source of this problematic carbon build-up.

2. Potential for Improved Performance and Fuel Economy

When the engine receives only fresh, oxygen-rich air, combustion can theoretically be more complete and efficient. This can lead to a slight increase in horsepower and torque, particularly at lower RPMs where the EGR system is often most active. Some drivers report a noticeable improvement in throttle response and a smoother power delivery. Furthermore, a more efficient combustion process can, in some cases, translate to marginally better fuel economy, though this is often debated and highly dependent on driving style and vehicle specifics.

3. Extending Engine Life and Reducing Maintenance

By preventing carbon build-up and the associated issues, some believe that EGR blanking contributes to the overall longevity of engine components, particularly those related to the intake system. It can also reduce the frequency of costly cleaning procedures or valve replacements.

The Potential Drawbacks and Risks of EGR Blanking

While the perceived benefits might sound appealing, EGR blanking is not without significant drawbacks and risks. It's crucial to understand these before considering such a modification.

1. Increased Exhaust Gas Temperatures (EGTs)

This is a critical point, as highlighted in the provided forum discussion. The EGR system's primary role is to lower combustion temperatures, which in turn reduces NOx formation. When the EGR is blanked, no exhaust gases are recirculated, meaning the engine runs hotter during combustion. This can lead to higher Exhaust Gas Temperatures (EGTs). While modern engines are designed to operate within specific temperature ranges, sustained higher EGTs could, in theory, put additional stress on components such as the turbocharger, exhaust manifold, and catalytic converter/DPF, potentially leading to premature wear or failure over the long term. The exact impact varies greatly depending on the engine design, driving conditions, and whether other modifications that increase power (and thus heat) have been made.

2. Legal Implications and MOT Failure in the UK

This is perhaps the most significant hurdle for UK drivers. In the United Kingdom, it is illegal to modify a vehicle in a way that negatively affects its emissions output or bypasses emission control systems. The EGR system is a fundamental part of a vehicle's emissions control. Therefore, blanking the EGR valve is considered an illegal modification for a road-going vehicle. If discovered, it could lead to:

• MOT Failure: During an MOT test, vehicles are checked for the presence and functionality of emissions control equipment. While a blanking plate might not always be immediately visible, if the vehicle fails its emissions test (due to increased NOx) or if a visual inspection reveals the modification, it will fail the MOT.
• Insurance Issues: Modifying your vehicle without informing your insurance provider can invalidate your policy. If you're involved in an accident and your insurer discovers the EGR blanking, they may refuse to pay out, leaving you liable for damages.
• Police Scrutiny: While rare for a roadside stop, if your vehicle is suspected of being non-compliant, you could face fines or be required to remove the modification.

It's important to remember that manufacturers and dealerships are strictly opposed to such modifications, and a licensed mechanic cannot legally undertake or endorse them.

3. Engine Management Light (EML) Illumination

Most modern vehicles are equipped with sophisticated Engine Control Units (ECUs) that monitor the performance of various systems, including the EGR. If the EGR valve is blanked, the ECU will detect that exhaust gases are not flowing as expected (e.g., via differential pressure sensors or oxygen sensors). This will almost certainly trigger the Engine Management Light (EML) on your dashboard. While the car might still run, this warning light indicates a fault, and it can sometimes put the vehicle into 'limp mode' to prevent potential damage, severely limiting performance.

4. Impact on Diesel Particulate Filter (DPF) Regeneration

For diesel vehicles equipped with a Diesel Particulate Filter (DPF), EGR blanking can have adverse effects. The EGR system plays a role in regulating exhaust gas temperatures, which are crucial for the DPF regeneration process (burning off trapped soot). Altering the exhaust gas composition and temperature by blanking the EGR can disrupt or prevent proper DPF regeneration, leading to the DPF becoming clogged more quickly. A blocked DPF is a serious and expensive problem to rectify.

5. Environmental Impact

While often overlooked by individuals, the collective impact of EGR blanking is significant. By increasing NOx emissions, these modifications contribute to air pollution, which has documented negative effects on human health and the environment.

EGR Blanking vs. EGR Delete (Software Remap)

It's important to distinguish between physical EGR blanking and an EGR 'delete' via a software remap. While both aim to bypass the EGR system, they do so differently:

• EGR Blanking: This is a physical modification using a blanking plate. It stops the flow of gases but may still trigger an EML because the ECU detects the system isn't functioning as expected.
• EGR Delete (Software Remap): This involves reprogramming the vehicle's ECU to electronically disable the EGR function. This method typically prevents the EML from illuminating as the ECU is 'told' that the EGR system is working correctly. This is often done in conjunction with physical blanking. However, it carries the same, if not greater, legal and environmental implications, as it's a deliberate manipulation of the emissions system.

Both methods are illegal for road-going vehicles in the UK.

Considerations Before Taking Action

Given the complexities, risks, and legalities, it's clear that EGR blanking is not a straightforward 'fix' for common engine issues. Here's a summary of considerations:

Frequently Asked Questions About EGR Blanking

Is EGR blanking legal in the UK?

No, EGR blanking is illegal for road-going vehicles in the UK. It is a modification that interferes with a vehicle's emissions control system, which is a breach of environmental regulations.

Will EGR blanking affect my MOT?

Yes, it will very likely cause your vehicle to fail its MOT. An MOT test includes checks for emissions compliance, and a blanked EGR system will typically lead to increased NOx emissions, failing the test. Furthermore, visual inspections can sometimes identify the modification.

Will blanking my EGR improve my fuel economy?

While some drivers report marginal improvements, the effect on fuel economy is often negligible or highly dependent on driving style. Any potential gains are often outweighed by the risks and legal implications.

Will EGR blanking damage my engine?

There is a theoretical risk. By increasing combustion and exhaust gas temperatures, there's a potential for increased wear on components like the turbocharger and exhaust manifold over time. However, the extent of this risk is debated and depends on engine design and driving conditions.

What about the Engine Management Light (EML)?

In most modern vehicles, blanking the EGR will cause the Engine Management Light (EML) to illuminate, as the ECU detects that the system is not functioning as expected. This can sometimes put the vehicle into a 'limp mode'.

Is EGR blanking reversible?

Yes, a physical EGR blanking plate can be removed, and the system can be returned to its original state. However, if a software remap was done, that would also need to be reversed.

Do I need a remap after blanking my EGR?

A remap (EGR delete) is often done in conjunction with physical blanking to prevent the EML from illuminating. However, both the physical blanking and the software delete are illegal for road use in the UK.

Conclusion

EGR blanking remains a contentious and unofficial modification in the automotive world. While it offers potential benefits like reduced carbon build-up and a cleaner intake system, these come at a significant cost: increased harmful emissions, potential mechanical risks from higher temperatures, and, most critically for UK drivers, severe legal ramifications including MOT failure and invalid insurance. Given the strict emissions regulations and enforcement in the UK, it is generally not recommended to perform such a modification on a road-going vehicle. Always consider the full spectrum of consequences before tampering with your vehicle's emissions control systems.
