Fuel Injector Voltage Testing: A Comprehensive Guide

The Crucial Role of Fuel Injectors and Voltage Testing

Modern internal combustion engines rely on a precise ballet of fuel and air to achieve optimal performance. At the heart of this intricate system are the fuel injectors, sophisticated components responsible for atomising and delivering the exact amount of fuel required for efficient combustion. When a fuel injector falters, the consequences can range from a subtle dip in fuel economy to more severe issues like rough idling, hesitation, and even catastrophic engine misfires. A fundamental diagnostic step in pinpointing fuel injector problems is the meticulous examination of the voltage supply they receive. This comprehensive guide will empower both seasoned automotive enthusiasts and aspiring DIY mechanics with the knowledge and procedure to effectively test fuel injector voltage, thereby demystifying fuel system diagnostics.

Understanding the Mechanics of Fuel Injection

Before delving into the practicalities of testing, it's imperative to grasp the fundamental operation of a fuel injector. Essentially, a fuel injector functions as a high-speed, electronically controlled solenoid valve. The engine control unit (ECU), the vehicle's brain, orchestrates the opening and closing of these injectors by sending precise electrical pulses. These pulses energise a solenoid coil within the injector, which in turn actuates a needle valve, allowing fuel to be sprayed into the engine's intake manifold or, in direct injection systems, straight into the combustion chamber. The typical voltage supplied to a fuel injector is battery voltage, usually around 12 volts. The ECU meticulously controls the duration of this voltage pulse, known as the 'pulse width,' which directly dictates the volume of fuel injected. Any deviation from the correct voltage or an inaccurate pulse width can disrupt the delicate air-fuel mixture, leading to a cascade of performance maladies.

Why is Testing Fuel Injector Voltage So Important?

Testing fuel injector voltage is not merely a procedural step; it's a critical diagnostic manoeuvre that serves several vital purposes:

• Identifying Electrical Faults: A complete absence of voltage or a weak, inconsistent voltage signal at the injector connector is a clear indicator of an issue within the electrical circuit. This could stem from a damaged wiring harness, a blown fuse protecting the circuit, a faulty relay, or even a problem within the ECU itself.
• Ruling Out Injector Malfunctions: Conversely, if the fuel injector is receiving the correct voltage and pulse signals but still fails to perform adequately, the problem likely resides within the injector itself. This could manifest as a clogged injector, a worn-out nozzle, or a faulty internal solenoid.
• Preventing Escalation of Damage: Early and accurate diagnosis of fuel injector issues can preempt more significant and costly engine damage. Addressing electrical problems or injector malfunctions promptly can save you from extensive repairs down the line.

Essential Tools for the Task

To conduct a thorough and accurate fuel injector voltage test, you will require a specific set of tools:

The Step-by-Step Voltage Testing Procedure

Adhering to these steps will ensure a safe and effective fuel injector voltage test:

1. Safety First: Before commencing any electrical work, always disconnect the negative terminal of the battery. This critical step prevents accidental electrical shocks and protects the vehicle's sensitive electronic components from damage.
2. Locate the Fuel Injectors: Identify the fuel injectors on your engine. They are typically situated on the intake manifold, strategically positioned near each cylinder.
3. Identify the Injector Connector: Each fuel injector will have an electrical connector attached to it. Carefully disconnect this connector from the injector. Most connectors feature a locking mechanism that must be released before the connector can be safely detached.
4. Consult the Wiring Diagram: This is where your wiring diagram becomes indispensable. Identify the specific wires corresponding to the fuel injector's power supply (usually a constant 12V) and the control signal wire originating from the ECU.
5. Configure the Multimeter: Set your multimeter to the Direct Current (DC) voltage mode. This is typically indicated by a 'V' symbol with a straight line above it. Select an appropriate voltage range, generally 20 volts, to accommodate the expected battery voltage.
6. Static Voltage Test (Engine Off):
   • Connect the black lead of your multimeter to a reliable ground point on the vehicle's chassis or engine block.
   • Connect the red lead of the multimeter to the positive wire of the fuel injector connector (ensure the connector is still disconnected from the injector).
   • Turn the ignition key to the 'ON' position, but do not attempt to start the engine.
   • The multimeter should display a reading close to battery voltage (approximately 12V). If you observe no voltage or a significantly lower reading, it indicates a problem with the power supply to the injector.
7. Dynamic Voltage Test (Engine Running):
   • Carefully reconnect the fuel injector connector to the injector.
   • Employ the back-probing technique. This involves gently inserting the multimeter probes into the rear of the connector, where the wires enter, without fully disconnecting the connector. This allows for live voltage readings while the injector is actively operating.
   • Start the engine.
   • With the engine running, the multimeter should display a fluctuating voltage. This is normal, as the ECU rapidly pulses the injector on and off. The voltage will not be a steady 12V but a series of pulses. The exact voltage and pulse duration will vary based on engine load and operating conditions.
   • If the voltage remains constant, or if there are no discernible pulses, it suggests the ECU may not be sending the correct control signal to the injector.
8. Using a Test Light (Alternative Method):
   • Connect the clip of the test light to a good ground point.
   • With the injector connector disconnected, probe the positive wire of the connector with the test light probe.
   • Turn the ignition key to 'ON'. The test light should illuminate, confirming the presence of voltage.
   • For the dynamic test, use back-probing with the engine running. The test light should blink intermittently as the ECU pulses the injector.

Interpreting Your Findings

Understanding what your readings mean is paramount:

• No Voltage: If no voltage is detected at the injector connector, the investigation should focus on the power supply. Check:
  • Fuses: Examine the fuse box for any blown fuses related to the fuel injector circuit.
  • Wiring Harness: Inspect the entire wiring harness for damage, such as frayed wires, corroded terminals, or loose connections.
  • Relays: If your system uses a fuel injector relay, test it for proper operation.
  • ECU: In rare instances, a faulty ECU can be the root cause of a lack of voltage.
• Low Voltage: A voltage reading significantly below battery voltage suggests a voltage drop within the circuit. This can be caused by:
  • Corroded Connections: Clean any suspect connections in the wiring harness.
  • Faulty Wiring: Replace any wires that show signs of damage or deterioration.
• Constant Voltage (No Pulses): If voltage is present but the injector isn't pulsing when the engine is running, the ECU is likely not sending the correct control signal. Potential causes include:
  • ECU Malfunction: A defective ECU may be unable to control the injectors.
  • Sensor Issues: Malfunctioning engine sensors (e.g., crankshaft or camshaft position sensors) can interfere with the ECU's ability to signal the injectors correctly.

Oscilloscope Analysis: A Deeper Dive

For a more in-depth analysis of a fuel injector's mechanical operation, an oscilloscope can be an invaluable tool, particularly for low-pressure injectors. This method assesses how the injector responds to the ECU's commands.

How it Works:

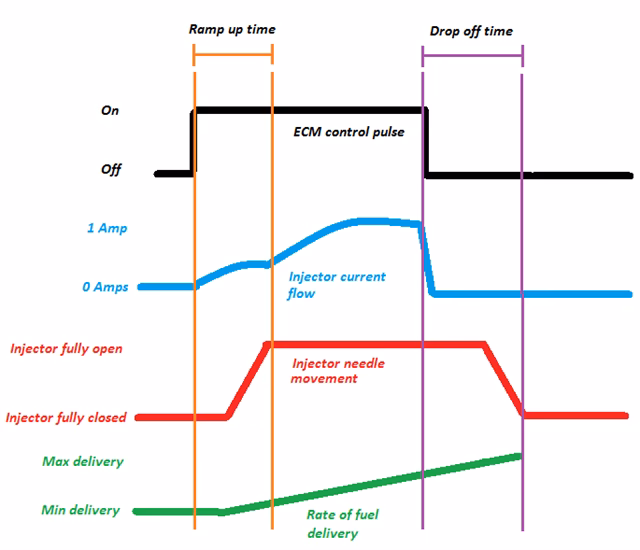

The ECU grounds the injector's control wire, allowing current to flow through its winding. This current flow creates a magnetic field that opens the injector pintle. The duration of this current flow is the 'injector pulse width,' typically ranging from 2-4 milliseconds at idle to 15-18 milliseconds at wide-open throttle.

Oscilloscope Setup and Interpretation:

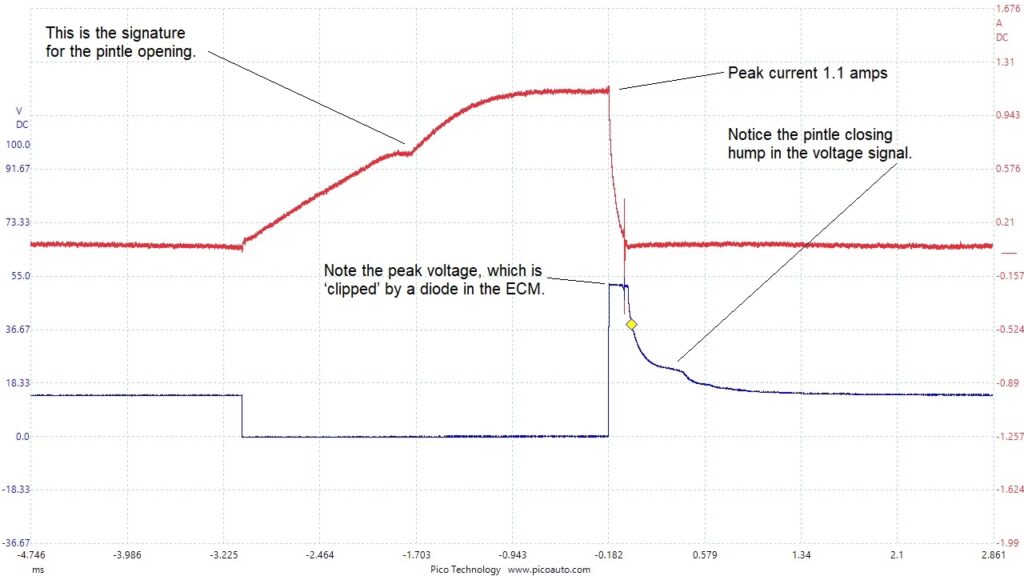

A two-channel lab scope is used, with specific settings for voltage and current monitoring. Channel 1 might monitor the supply voltage, while Channel 2 monitors the current flow using a low-amp clamp. The resulting waveform reveals crucial information:

• Injector Control Circuit (Green Trace): When the injector is off, this wire shows open circuit (system) voltage. When the ECU activates it, the wire is pulled to ground, and current begins to flow.
• Current Ramp-Up: The current increases due to the injector winding's inductance. A noticeable 'knee point' in this trace indicates the pintle valve has fully opened. The absence of this point suggests the injector is either stuck closed or not opening at all.
• Injection Duration: Cursors on the trace measure the pulse width, indicating how long the injector remained open.
• Back EMF: When the ECU deactivates the injector, the collapsing magnetic field induces a high voltage spike (Back EMF). The ECU often uses the presence of this voltage to validate the injector's electrical operation. OBD codes like P020x can be triggered by anomalies here.
• Pintle Valve Closure: A subtle change in the voltage trace can indicate the pintle valve closing. Comparing multiple injectors helps confirm this observation.
• Injector Supply Voltage (Yellow Trace): Monitoring this in AC coupling can reveal voltage drops across the circuit when current is flowing. An acceptable voltage drop indicates efficient power delivery.

This oscilloscope analysis provides a visual representation of the entire actuation process, including delays caused by the pintle valve's inertia, which the ECU factors into its pulse width calculations.

Crucial Precautions and Safety Tips

Safety must always be the foremost consideration when working on your vehicle's electrical system:

• Always disconnect the negative battery terminal before commencing any work.
• Wear safety glasses to protect your eyes from potential hazards.
• Exercise extreme caution when working near fuel lines and electrical components.
• Refer to your vehicle's specific repair manual or wiring diagram for accurate information.
• If you are uncertain or uncomfortable with any aspect of this procedure, it is always best to seek assistance from a qualified mechanic.

Final Thoughts: Mastering Fuel Injector Diagnostics

Testing fuel injector voltage is a fundamental yet powerful diagnostic skill for anyone involved in automotive repair. By diligently following the outlined procedures, you can effectively troubleshoot fuel system issues, ensuring your engine operates at peak efficiency and performance. Remember the paramount importance of safety and always consult your vehicle's specific documentation. With practice and a methodical approach, you can gain confidence in your diagnostic abilities and potentially save significant costs on professional repairs.

Frequently Asked Questions (FAQs)

Q1: What if my car won't start, but I'm getting voltage at the fuel injector?
If you have voltage at the injector but the engine still won't start, the electrical supply is likely not the primary issue. The problem could lie with a clogged or faulty injector, insufficient fuel pressure, or a problem with the ECU's control signal. Further diagnostics, such as checking fuel pressure and injector pulse width, would be necessary.

Q2: Can I test the fuel injector voltage while it's still installed in the engine?
Yes, you can test fuel injector voltage with the injector installed using the back-probing technique. This involves carefully inserting your multimeter probes into the rear of the electrical connector without disconnecting it from the injector, allowing you to read live voltage signals.

Q3: Is it normal for the voltage reading to fluctuate rapidly during the test?
A rapidly fluctuating voltage reading during the dynamic test (engine running) is perfectly normal. This fluctuation indicates that the ECU is actively pulsing the injector on and off to regulate fuel delivery. The speed and duration of these pulses will vary based on the engine's operating conditions.
