Boosting Your Big-Block: Edelbrock 454 Power

For many automotive enthusiasts in the UK, the allure of the big-block Chevrolet engine is undeniable. Its sheer displacement and inherent potential for monumental power and torque make it a favourite for everything from classic muscle cars to robust trucks. But what happens when you take a seemingly humble 454 cubic inch (7.4L) big-block, perhaps even one salvaged from a local scrapyard, and introduce it to a suite of carefully engineered performance parts from a reputable name like Edelbrock? The results, as our comprehensive testing reveals, are nothing short of spectacular, demonstrating just how much untapped potential lies within these legendary powerplants.

The journey to unlocking significant gains often begins with a solid foundation. In our case, this foundation was a Gen VI 454, sourced from a local salvage yard. While the idea of a 'junkyard dog' engine might raise an eyebrow, it perfectly illustrates the accessibility of these upgrades for any big-block Chevy owner. These engines, particularly the Gen V and Gen VI variants, are plentiful, making them excellent candidates for a performance makeover. Our Gen VI 454, originally equipped with electronic fuel injection, was converted to a more user-friendly carburetted setup for testing, a common modification for those seeking simplicity and proven performance.

The Baseline: A Foundation of Power

Before any performance components from Edelbrock or COMP Cams were introduced, it was crucial to establish a reliable baseline. The Gen VI 454, in its modified 'stock' trim, retained its factory heads, camshaft, and short block. However, to facilitate carburetion, it was augmented with an Eliminator dual-plane intake, a Holley 650 XP carburettor, and an MSD distributor. A new Speedmaster damper also replaced the worn-out factory unit, ensuring reliable operation during the rigorous dyno testing. It’s worth noting that the factory Gen VI heads proved to work best with a minimal amount of total timing, an interesting characteristic compared to more conventional big-block Chevy heads.

After careful tuning of the timing and air/fuel mixture, this carburetted 454 delivered solid, albeit not earth-shattering, numbers. It produced a peak of 369 horsepower at 4,700 rpm and an impressive 476 lb-ft of torque at 3,400 rpm. These figures clearly indicate that General Motors designed this 7.4L engine with one primary goal in mind: abundant torque for heavy hauling and work applications. The relatively low RPM at which both peak power and torque were achieved is a testament to its truck-oriented design, prioritising grunt over high-revving performance.

The Edelbrock Transformation: Unleashing True Potential

With a clear baseline established, it was time for the main event: introducing the performance upgrades. The stock heads, intake, and hydraulic roller camshaft were carefully removed. While the factory lifters were retained, the original camshaft was replaced with a far more aggressive grind from COMP Cams. The chosen XR271HR12 grind boasted a .591/.610 inch lift split, a 224/230-degree duration split, and a 112-degree lobe separation angle (LSA). This particular cam was selected to balance strong performance with good drivability, making the engine suitable for a daily driver application.

The centrepiece of this transformation, however, was the installation of a set of Edelbrock Performer RPM 454-O cylinder heads. The immediate benefit of these new aluminium heads was the significant weight reduction over their cast-iron counterparts. Less weight over the front axle translates to improved handling dynamics, a crucial consideration for any performance vehicle, alongside the inherent power gains. These RPM 454-O heads feature generous 290cc intake ports, 110cc exhaust ports, and 110cc combustion chambers. They also come equipped with robust 2.19/1.88-inch stainless-steel valves and retain stock exhaust port locations for easy fitment.

These heads are designed to support well over 600 horsepower in optimised applications, providing ample headroom for future engine developments. While our scrapyard base engine, with its relatively low compression and conservative cam timing, wasn't going to fully tax their flow capabilities, the potential for future growth was a significant advantage. The Edelbrock heads were perfectly complemented by an oval-port version of the renowned Performer RPM Air-Gap intake manifold. This dual-plane design is celebrated for its ability to deliver an exceptional balance of both peak and average power, making it an ideal choice for a street-oriented 454.

A minor challenge encountered during the build was the limited piston-to-valve clearance with the factory flat-top pistons of the Gen VI. The larger valves in the Edelbrock heads, combined with the new cam profile, necessitated a slightly milder cam grind than what Edelbrock typically supplies in their full packages. However, even with this adjustment, the combination proved incredibly potent, demonstrating the remarkable effectiveness of the Edelbrock components.

Dyno Results: The Proof is in the Power

With all the new components in place, including new hardened pushrods and roller rockers, the transformed big-block was ready for its moment on the dyno. One initial concern was ensuring sufficient valve spring pressure to prevent valve float with the revised cam timing, but the spring specifications confirmed adequate clearance and performance. Our fears were quickly dispelled as the Edelbrock-enhanced 454 roared to life, delivering truly impressive numbers.

The upgraded engine produced a peak of 481 horsepower at 5,500 rpm and a formidable 527 lb-ft of torque at 3,800 rpm. This represents a substantial leap in performance over the baseline figures. The new components shifted the torque peak by a modest 400 rpm, but the power peak saw a significant shift of 800 rpm higher in the rev range, indicating a much stronger pull through the upper RPMs. Crucially, the engine now produced over 500 lb-ft of torque from below 3,000 rpm all the way up to 4,800 rpm. This broad and flat torque curve means that there's always an abundance of pulling power available, eliminating the need to constantly hunt for the right gear or engine speed.

Performance Comparison: Stock vs. Edelbrock Upgrade

To truly appreciate the impact of the Edelbrock top-end kit, let's look at the numbers side-by-side:

As the table clearly illustrates, the Edelbrock heads and intake, combined with the carefully selected COMP Cams hydraulic roller, resulted in an improvement of over 90 horsepower and more than 50 lb-ft of torque. This is a truly remarkable gain, especially considering the relatively mild nature of the camshaft chosen for drivability and the existing piston-to-valve clearance limitations. The added top-end power is always welcome, but the significant increase in torque across the entire rev range is what fundamentally transforms the driving experience of a big-block.

Why Edelbrock? The Unpacked Benefits

The results speak for themselves. The Edelbrock top-end components offer a compelling proposition for any big-block Chevy owner. Here’s a summary of the key benefits:

• Significant Power and Torque Gains: Over 90 hp and 50 lb-ft of torque from a single, well-matched upgrade package.
• Weight Reduction: The aluminium heads shed crucial weight from the front of the vehicle, improving handling and overall vehicle dynamics.
• Broad, Usable Powerband: The extended torque curve ensures strong acceleration and responsiveness at virtually any engine speed, making for a fantastic street engine.
• Future Potential: The Edelbrock Performer RPM heads have ample flow capacity to support even wilder future builds, offering a clear upgrade path.
• Drivability: Despite the substantial power increase, the combination was configured with daily driving in mind, ensuring a pleasant and predictable driving experience.

Ultimately, a big-block is chosen for its immense torque, and this upgrade delivers precisely that – more torque, more often. For anyone looking to seriously boost the performance of their big-block Chevy, whether it’s a scrapyard find or a cherished classic, the Edelbrock top-end system is a proven path to unlocking incredible power and transforming the driving experience.

Frequently Asked Questions (FAQs)

How much power does an Edelbrock 454 make?

Based on our dyno testing, a Gen VI 454 equipped with Edelbrock Performer RPM 454-O cylinder heads, an Edelbrock Performer RPM Air-Gap intake, and a COMP Cams XR271HR12 hydraulic roller camshaft produced a peak of 481 horsepower at 5,500 rpm and 527 lb-ft of torque at 3,800 rpm. This represents a gain of over 90 hp and 50 lb-ft of torque compared to its carburetted stock configuration.

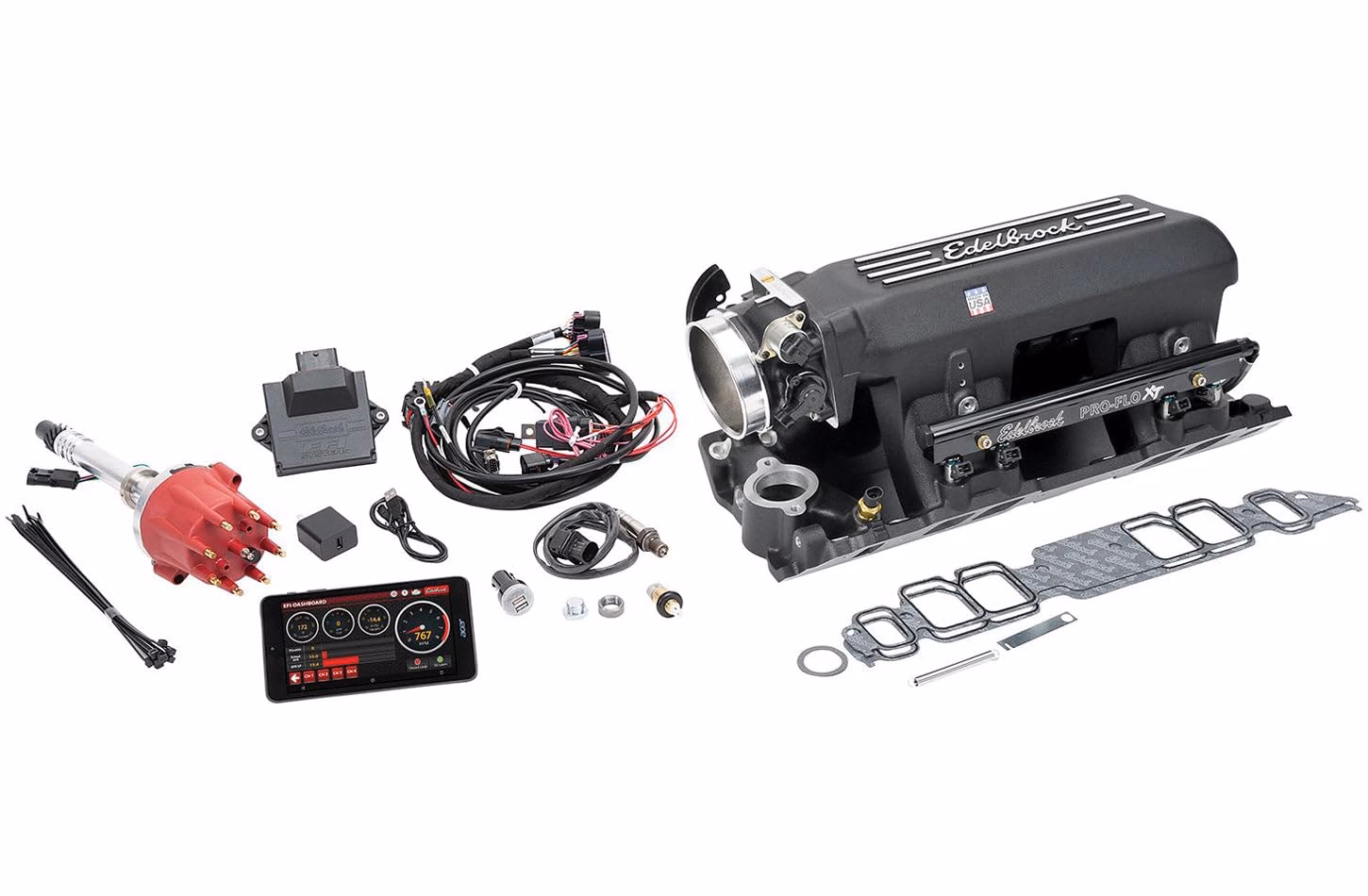

What does Edelbrock Pro-Flo 4 replace?

The Edelbrock Pro-Flo 4 is designed as a complete engineered electronic fuel injection (EFI) system. It replaces your traditional carburettor setup, offering superior performance, drivability, and fuel economy. It's a modern upgrade for those looking to move away from carburetion and embrace the benefits of contemporary EFI technology.

Are Edelbrock aluminium heads worth the investment for a big-block?

Absolutely. Beyond the significant horsepower and torque gains they provide, Edelbrock aluminium heads offer a considerable weight saving over cast-iron factory heads. This reduces overall vehicle weight, particularly over the front axle, which can improve handling dynamics. Their superior flow characteristics also provide excellent potential for future engine upgrades, making them a worthwhile long-term investment for performance enthusiasts.

Can these Edelbrock components be used on older big-block Chevy engines, like the Mark IV?

Yes, Edelbrock offers top-end upgrade components for various generations of big-block Chevy engines, including the Mark IV, Gen V, and Gen VI. It's crucial, however, to ensure you select the correct components that are compatible with your specific engine generation and camshaft type (e.g., flat-tappet or hydraulic roller) to ensure proper fitment and optimal performance.

What should I know about piston-to-valve clearance when upgrading big-block heads and cams?

Piston-to-valve clearance is a critical consideration when installing performance camshafts and cylinder heads with larger valves. As demonstrated in our build, factory pistons often have limited valve reliefs, which can restrict the maximum lift and duration of the camshaft you can run without the valves contacting the pistons. It's always advisable to check piston-to-valve clearance during assembly, especially with aggressive cam profiles, to prevent engine damage. In some cases, pistons with deeper valve reliefs may be required for more radical cam timing.
