Unravelling the Cost of 4-Wheel Alignment Gear

For any modern automotive workshop aiming to provide comprehensive vehicle servicing, a 4-wheel alignment machine is an indispensable piece of kit. It’s not merely about correcting a car’s steering; it’s crucial for optimising tyre wear, improving fuel efficiency, and enhancing vehicle handling and safety. However, the initial outlay for such advanced equipment can be a significant consideration for garage owners. Understanding the various factors that influence the price, from the technology type to the brand and included features, is key to making an informed investment. This article will delve deep into the costs associated with purchasing a 4-wheel alignment machine, helping you budget effectively and select the right system for your business.

The Importance of 4-Wheel Alignment for Your Business

Before exploring the costs, it’s vital to acknowledge why this investment is so critical. Proper wheel alignment ensures that all four wheels are parallel to each other and perpendicular to the ground, according to the manufacturer’s specifications. Misalignment can lead to premature tyre wear, compromised handling, increased fuel consumption, and even safety hazards. By offering this service, your garage can attract a wider customer base, increase revenue streams, and build a reputation for thorough and professional vehicle maintenance. It’s a service that car owners frequently need, especially after hitting potholes, replacing suspension components, or simply as part of routine maintenance.

Types of 4-Wheel Alignment Machines and Their Price Implications

The core technology used in an alignment machine significantly dictates its price and capabilities. There are generally three main types you’ll encounter on the market, each with its own benefits and cost bracket:

1. CCD (Charge-Coupled Device) Sensor Systems

These systems use sensors attached to each wheel that communicate wirelessly (or via cables) with a central console. They measure angles by emitting infrared light and calculating the precise position of the wheels relative to each other. CCD systems are often considered the entry to mid-range option.

• Pros: Generally more affordable, relatively compact, and accurate enough for most general workshops.
• Cons: Can be sensitive to ambient light, require a perfectly level floor, and setup can sometimes be more involved.
• Typical Cost Range: Expect to pay anywhere from £5,000 to £15,000 for a new, good quality CCD system.

2. 3D Imaging (Reflector) Systems

3D alignment machines utilise high-resolution cameras that capture images of targets (reflectors) mounted on each wheel. Software then translates these images into precise 3D measurements of wheel angles. These systems are typically found in mid to high-end workshops and are becoming increasingly popular due to their speed and ease of use.

• Pros: Extremely fast and accurate measurements, less sensitive to floor levelness, user-friendly software often with animated guides. Can often perform measurements with the vehicle on the ground or on a lift.
• Cons: Higher initial investment, requires a clear line of sight between cameras and targets, and can be more sensitive to camera calibration.
• Typical Cost Range: Prices usually start around £15,000 and can go up to £40,000 or more for top-tier models with advanced features.

3. Laser Alignment Systems (Older Generation)

While less common for new purchases today, some older workshops might still use laser-based systems. These involve laser emitters and receivers to measure angles. They are generally simpler and less expensive but also less precise and slower than modern CCD or 3D systems.

• Pros: Very basic and lowest cost.
• Cons: Lower accuracy, slower setup, and not suitable for modern vehicle alignment requirements which demand higher precision.
• Typical Cost Range: If available new, likely under £5,000. More commonly found used.

Factors Influencing the Price of a 4-Wheel Alignment Machine

Beyond the core technology, several other elements contribute to the final price tag:

• Brand Reputation: Established brands like Hunter, John Bean, Hofmann, and Beissbarth often command higher prices due to their proven reliability, innovation, and extensive after-sales support.
• Features and Software: Advanced features such as automatic caster sweep, rolling compensation, vehicle specification databases (which need regular updates), customer databases, print-out capabilities, and intuitive graphical interfaces add to the cost. Wireless connectivity is also a premium feature.
• Installation and Training: Most suppliers include installation and initial training in the purchase price, but it’s crucial to confirm this. Complex systems may require more extensive training.
• Warranty: Longer or more comprehensive warranties can slightly increase the price but offer peace of mind.
• Lift Compatibility: Some alignment systems are designed to work seamlessly with specific types of lifts (e.g., 4-post lifts with integrated turnplates or scissor lifts with alignment capabilities). The cost of the lift itself is a separate, significant investment.
• Optional Accessories: Additional wheel clamps, steering wheel holders, brake pedal depressors, and particularly turnplates, can add to the total.

Essential Components and Hidden Costs: Beyond the Machine Itself

Purchasing the alignment machine is often just one part of the total investment. To operate a full 4-wheel alignment service effectively, you'll need additional equipment and consider ongoing costs:

Alignment Lifts

This is arguably the most significant additional cost. A dedicated alignment lift (typically a 4-post or scissor lift with integrated or flush-mounted turnplate recesses and slip plates) is essential for accurate measurements and comfortable working conditions. These lifts are designed to provide a level platform and allow for suspension settling.

• Cost of Alignment Lift: Expect to pay anywhere from £8,000 to £25,000, depending on capacity, features, and brand. Some premium options can exceed this.

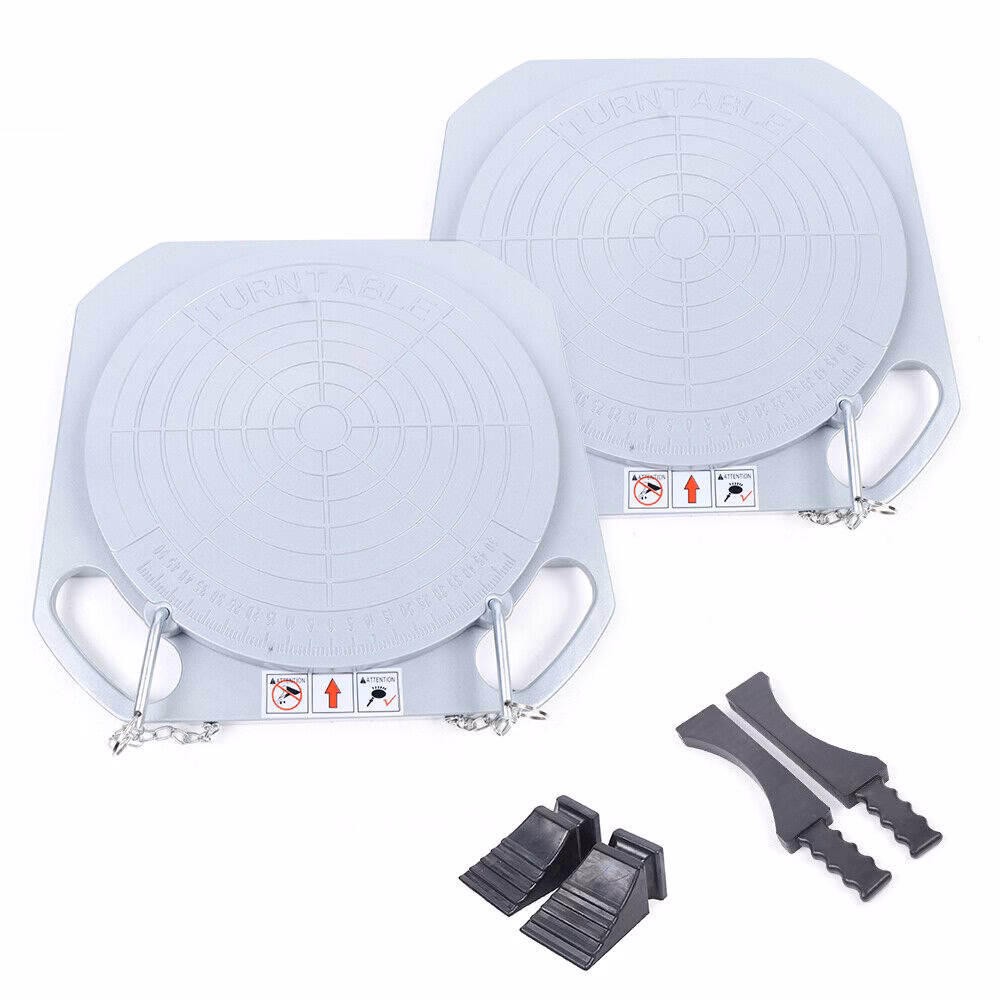

Turnplates and Slip Plates

Turnplates are crucial for allowing the wheels to turn freely during measurements, especially for procedures like caster swing. Slip plates allow for lateral movement of the wheels as the suspension settles. High-quality, durable turnplates are vital for precision.

• QUICKTRAK Dished Turnplates for Wheel Alignment Gauges X2 - Handmade in The UK: These are an excellent example of high-quality, precision-engineered turnplates. Being dished, they accommodate various wheel sizes and provide a stable platform. As UK-made products, they often come with the assurance of robust construction and local support. A pair of such premium turnplates can cost from £500 to £1,500 or more, depending on load capacity and features. While they are a component, their quality directly impacts the accuracy of your alignment readings.

Wheel Clamps and Targets/Sensors

The mechanisms that attach to the wheels are critical. High-quality clamps ensure stability and prevent slippage, while durable targets/sensors are essential for accurate readings. Some systems offer self-centring or touchless clamps, which are more expensive but reduce the risk of wheel damage.

Calibration and Maintenance

Alignment machines require periodic calibration to maintain their accuracy. This is often an annual service carried out by the supplier and comes with a cost, typically a few hundred pounds per visit. Regular maintenance, including cleaning and checking components, also contributes to longevity.

Software Updates and Subscriptions

Vehicle manufacturers constantly release new models and update specifications. Your alignment machine's database needs to keep pace. This often involves annual software subscription fees, which can range from £200 to £800 per year, depending on the supplier and database comprehensiveness.

Return on Investment (ROI) and Profitability

While the initial cost seems substantial, a 4-wheel alignment machine offers a strong Return on Investment (ROI) for a busy workshop. Here's why:

• Service Pricing: A typical 4-wheel alignment service in the UK can be charged between £60 and £120, depending on your location, the complexity of the adjustment, and the vehicle type.
• Increased Throughput: Modern 3D alignment systems can perform a full measurement check in minutes, allowing you to service more vehicles per day.
• Add-on Sales: Alignment often highlights the need for new tyres, suspension components, or steering parts, leading to additional repair work.
• Customer Loyalty: Offering a high-demand service with precision builds trust and encourages repeat business.
• Competitive Edge: Not all garages offer comprehensive 4-wheel alignment, giving you a competitive advantage.

To calculate your potential ROI, consider your expected number of alignment jobs per week/month, the average charge, and subtract your operational costs (labour, electricity, software fees, calibration). Many busy workshops can see a payback period of 18 months to 3 years for a mid-range system.

Comparative Table: CCD vs. 3D Alignment Systems

Here’s a quick comparison to help you weigh your options:

Buying New vs. Used Equipment

Just like vehicles, alignment machines can be purchased new or used. Each option has its pros and cons:

• New: Comes with full warranty, latest technology, professional installation, and training. Higher initial cost but greater peace of mind.
• Used: Significant cost savings, especially on older laser or CCD models. However, you might compromise on warranty, software updates, and the latest features. It's crucial to inspect used equipment thoroughly, ideally by a qualified technician, and verify its calibration history. Factor in potential costs for refurbishment or recalibration.

Frequently Asked Questions About 4-Wheel Alignment Machine Costs

Q1: Do I absolutely need a special alignment lift?

While some basic checks can be done on a flat surface or a standard lift with alignment accessories, for truly accurate and efficient 4-wheel alignment, a dedicated alignment lift (like a 4-post or scissor lift with integrated turnplate recesses and slip plates) is highly recommended. It ensures the vehicle is perfectly level and stable, which is critical for precise measurements.

Q2: How often should I calibrate my alignment machine?

Most manufacturers recommend annual calibration by a certified technician to ensure the machine maintains its accuracy. Some very busy workshops might opt for semi-annual checks. This is a non-negotiable part of maintaining reliable service.

Q3: Can I buy just the alignment heads and use my existing lift?

Yes, in many cases, you can purchase the alignment heads (sensors/targets, console, software) separately if you already have a suitable alignment-ready lift with turnplates and slip plates. However, ensure compatibility between the machine and your lift, and that your lift truly provides the level and stable platform required.

Q4: Are software updates really necessary, and what do they cost?

Yes, software updates are crucial. They provide updated vehicle specifications, new car models, and often include software enhancements or bug fixes. Most suppliers offer these through annual subscription services, typically ranging from a few hundred to nearly a thousand pounds per year. Without them, your machine's database will become outdated, limiting the range of vehicles you can accurately service.

Q5: What's the difference between 2-wheel and 4-wheel alignment?

2-wheel alignment (often just front-end alignment) focuses only on the front wheels' angles relative to the vehicle's centre line. 4-wheel alignment measures and adjusts all four wheels, taking into account the rear axle's thrust angle. Modern vehicles, especially those with independent rear suspension, require 4-wheel alignment for optimal handling and tyre wear. Investing in a 4-wheel system is essential for comprehensive service.

Conclusion

Investing in a 4-wheel alignment machine is a significant decision for any automotive workshop, with costs ranging from approximately £5,000 for an entry-level CCD system to over £40,000 for a state-of-the-art 3D setup, not including the essential alignment lift. Factors such as technology, brand, features, and necessary accessories like high-quality turnplates (such as the UK-made QUICKTRAK dished turnplates) all contribute to the final price. While the initial outlay can seem daunting, the potential for increased revenue, enhanced customer satisfaction, and a stronger competitive position makes it a worthwhile investment. By carefully evaluating your workshop's needs, budget, and potential return on investment, you can select the right alignment system that will serve your business effectively for years to come.
