The E92 M3: A V8 Masterpiece

For many automotive aficionados, the BMW E92 M3 occupies a hallowed space in the pantheon of performance cars. It stands out as a truly unique proposition, distinguished as the sole M3 generation to ever feature a V8 engine, and regrettably, the last to do so. Beyond its iconic powerplant, the E92 M3 is also celebrated as the final "pure" M3, eschewing modern performance crutches like turbocharging, all-wheel drive, and electric power steering. However, the undisputed star of the E92 M3 show is its magnificent V8, a 4.0-litre, naturally-aspirated screamer that fearlessly spins past 8,200 rpm. This engine has rightfully earned the adoration of BMW fans, and it's gratifying to see its brilliance acknowledged by a wider audience, as evidenced by its inclusion in a recent list of the best engines from the past decade.

A V8 Engine Like No Other

Technically speaking, the S65 V8 engine that powered the E92 BMW M3 debuted in 2007, placing it in the decade prior to the one surveyed by the list. Nevertheless, its enduring presence and saleability within the 2010-2019 period, coupled with its exceptional qualities, warrant its inclusion. Especially when one considers the calibre of the other engines it was compared against. While the E92 M3's V8 placed eleventh out of seventeen on this esteemed list, this position is far from a detraction. The engines that outperformed it are universally acclaimed sensational units, including the likes of Audi/Lamborghini's 5.2-litre naturally-aspirated V10 and Ferrari's potent 4.5-litre V8. Topping the list was the Lexus LFA's awe-inspiring naturally-aspirated V10, an engine capable of revving from 0 to 9,000 rpm in approximately one second, producing an unparalleled sound without any artificial enhancement.

The mere fact that the E92 M3's S65 V8 is mentioned in the same breath as engines from Lamborghini and the Lexus LFA is a testament to its engineering prowess. While it's acknowledged that these engines can suffer from rod bearing issues, these are known weaknesses that can be mitigated and addressed with diligent maintenance and proper care. Despite this, it remains a brilliant engine that imbues the driving experience of an E92 BMW M3 with a level of engagement and exhilaration that far surpasses most vehicles within its price bracket.

The E92 M3: A Timeline of Excellence

The BMW E9X M3 range, encompassing the E90 sedan, the E92 coupe, and the E93 convertible, was produced from May 2007 through to October 2013. It was initially unveiled at the Geneva Motor Show in March 2007. Over its production life, the E92 M3 was offered with a variety of wheel designs, with four distinct variants available. These wheel styles were also shared across the E90 M3 sedan and the E93 M3 convertible models. It's worth noting that special or limited-edition models, such as the E92 M3 GTS or the E90 M3 CRT, featured unique wheel sizes specifically tailored to those exclusive vehicles.

Interior Customisation: Personalising Your M3

For those seeking to enhance the driving position and aesthetics of their E92 M3, the aftermarket offers a plethora of options. For fixed-back racing seats, popular choices among owners include the Recaro Pole Position and Sparco Evo seats, renowned for their support and lightweight construction. Beyond seating, a host of smaller interior modifications can elevate the E92 M3 experience. These can range from swapping out the standard DCT (Dual Clutch Transmission) paddles for more tactile or ergonomically pleasing units, to changing interior trim buttons for a refreshed feel. For a more purposeful and track-oriented cabin, a rear seat delete can shed valuable weight. The integration of carbon fibre interior parts can add a touch of motorsport flair and reduce mass. Essentially, the possibilities for interior customisation are vast, limited only by imagination and budget.

The Art of Engine Rebuilding: M539 Restorations

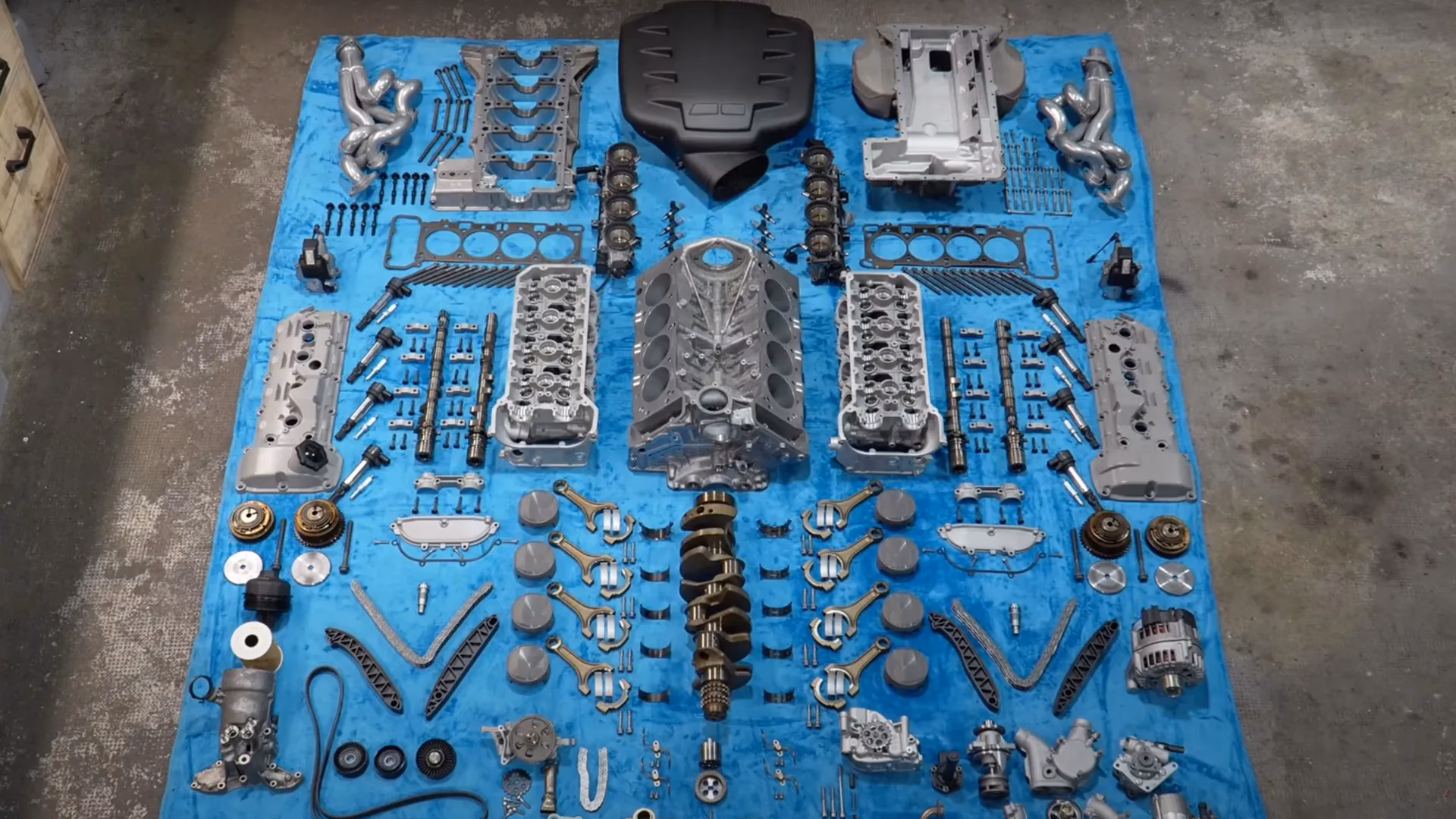

The M539 Restorations channel provides an enthralling insight into the meticulous world of automotive restoration, with a particular focus on the legendary BMW E92 M3. In one compelling installment, the dedicated team embarks on the ambitious undertaking of rebuilding the S65 B40 V8 engine, the very heart of this mid-2000s masterpiece. This detailed process showcases the engine's capability to produce a thrilling 8,400 rpm. The journey begins with the precise installation of the piston oil spraying nozzles, ensuring every minute detail is attended to. The engine block undergoes a thorough cleaning, with all oil passages meticulously cleared using compressed air. Screws are treated with a medium thread locker and torqued to the specified 6 Nm, demonstrating an unwavering commitment to accuracy.

The clean crankshaft is then carefully positioned, followed by the bed plate and main bearing bolts, each step executed with extreme precision. A critical aspect of the rebuild involves the selection of King race bearings, considered the pinnacle of bearing technology for optimal performance. The team installs these components dry initially, utilising plastic gauges to meticulously check bearing clearances. Once satisfactory, the final installation proceeds with assembly lube. Maintaining impeccable cleanliness is paramount throughout this process, with the main bearing housings being thoroughly cleaned before the bearings are delicately inserted. The crankshaft is then gingerly positioned, followed by the substantial bed plate.

A distinctive feature of this V8 engine, and a point of particular interest in the rebuild, is its bed plate design. This integrated component eliminates the need for a conventional gasket, instead requiring a specialised sealing procedure. The bed plate is torqued to specification, after which the front and rear crank seals are installed. Sealant is then injected through dedicated ports on the sides, creating a robust and permanent seal. This meticulous procedure highlights the engineering sophistication and the demanding nature of rebuilding such a high-performance powerplant.

Viewer Reactions and Community Engagement

The M539 Restorations video detailing the S65 V8 engine rebuild for the E92 M3, titled "Project Frankfurt: PT6," garnered significant positive feedback from viewers. The community expressed considerable excitement and anticipation for the engine's first start. There was widespread appreciation for Sreten's dedication and the highly meticulous nature of his work. Many viewers praised the quality of the editing and the overall content, finding immense satisfaction and enjoyment in watching the detailed engine rebuild process. Compliments were frequently made regarding Sreten's exceptional attention to detail and his evident skill. Gratitude was expressed for the informative nature of the content, which served as an inspiration for viewers to undertake their own projects on BMW vehicles.

Comments also touched upon the thumbnail and editing choices, indicating a keen eye for presentation. Viewers showed curiosity regarding specific parts and techniques employed in the rebuild, highlighting the educational value of the content. Admiration for Sreten's craftsmanship and work ethic was a recurring theme. While the overwhelming sentiment was positive, a small amount of criticism was noted concerning the expenditure involved in such an extensive project, a common sentiment for high-level automotive restorations.

Frequently Asked Questions

Q1: What makes the E92 M3's V8 engine so special?
A1: The E92 M3 is unique as it's the only M3 generation to feature a V8, and it's the last naturally-aspirated M3. The S65 V8 engine is praised for its high-revving nature and engaging sound, earning it a place among the best engines of its era.

Q2: Can I modify the interior of my E92 M3?
A2: Absolutely. Popular interior modifications include upgrading to racing seats like Recaro Pole Positions or Sparco Evos, swapping DCT paddles, changing interior trim buttons, performing a rear seat delete, and adding carbon fibre components.

Q3: When was the E92 M3 produced?
A3: The E92 M3, along with the E90 sedan and E93 convertible, was produced from May 2007 to October 2013.

Q4: Are there common issues with the E92 M3's V8 engine?
A4: The most commonly discussed issue is potential rod bearing wear. However, this is a well-documented concern that can be proactively managed and repaired with proper maintenance and specialised components.

Q5: Where can I find more information on E92 M3 options?
A5: Information regarding interior upholstery and paint colour options for the E90, E92, and E93 M3 can be found through dedicated enthusiast resources and forums.

Conclusion

The BMW E92 M3 remains a highly desirable and special automobile. Its exclusive V8 engine, combined with a chassis that prioritises driver engagement over electronic intervention, creates an unfiltered and exhilarating driving experience. While it requires attentive maintenance, particularly concerning its renowned rod bearings, the rewards are immense. For those who appreciate the raw emotion and mechanical purity of a high-revving, naturally-aspirated engine, the E92 M3 stands as a modern classic, a testament to a bygone era of automotive engineering excellence.
