Brake Pad Sensor Replacement Guide

The brake pad wear sensor is a small but crucial component in modern vehicles, particularly those with electronic brake wear monitoring systems like BMWs. It's designed to alert you when your brake pads are nearing the end of their service life, preventing potential damage to your brake rotors and ensuring optimal braking performance. When these sensors are replaced, especially after a brake pad change, it's essential to understand their function and the correct procedure for removal and installation. This guide will walk you through the process, drawing on real-world experiences to help you navigate the task with confidence.

Understanding the Brake Pad Wear Sensor

Unlike older systems that relied on simple mechanical indicators, modern vehicles often employ electronic sensors. For BMWs, particularly models like the E90 325xi, the brake pad wear sensor operates on a principle of variable resistance. As the brake pads wear down, the sensor's internal conductor is gradually abraded. This physical change alters the electrical resistance of the sensor. A new sensor typically exhibits very low resistance (around 0.5 ohms, as observed in the provided example), while a worn-out sensor will show significantly higher resistance (around 450 ohms). This change in resistance is detected by the vehicle's onboard computer (OBC), which then triggers a warning light on the dashboard when the resistance reaches a certain threshold, indicating the need for new brake pads.

Why Replace the Sensor?

Replacing the brake pads is only half the job when the wear sensor has been triggered. The OBC relies on the sensor's resistance value to accurately gauge the remaining life of the brake pads. If you only replace the pads but not the worn sensor, the OBC will continue to interpret the high resistance as an indication of worn pads. This will result in persistent warning lights and the inability to reset the service interval correctly. As demonstrated by the user experience, attempting to reset the onboard computer with a worn sensor can lead to erroneous mileage readings (e.g., from 3400 miles to -15,000 miles) and the dreaded red warning indicators. Therefore, to ensure the onboard computer functions as intended and to clear these warnings, replacing the brake pad wear sensor is a mandatory step.

Tools and Materials You'll Need

Before you begin, ensure you have the necessary tools and parts. This will make the process smoother and more efficient.

• New Brake Pad Wear Sensor (Ensure it's the correct part number for your specific BMW model, e.g., BMW #34356789445 for the E90 generation).
• Jack and Jack Stands
• Lug Wrench
• Socket Set (Metric sizes, typically 10mm, 13mm, 17mm, 19mm)
• Torque Wrench
• Wire Strippers/Cutters (if splicing is required, though most sensors have a plug-in connector)
• Pliers
• Flathead Screwdriver
• Gloves
• Safety Glasses
• Brake Cleaner
• Wheel Chocks

Step-by-Step Brake Pad Sensor Removal and Installation

The brake pad wear sensor is typically located on one of the front or rear brake calipers, depending on the vehicle's design. For the BMW E90 series, the sensor is usually found on the inner brake pad of either the front or rear axle. Always check both sides, as some vehicles may have sensors on both front and rear, or even on both sides of an axle.

1. Prepare the Vehicle

Safety first! Park your BMW on a level surface and engage the parking brake. Place wheel chocks behind the wheels that will remain on the ground. Loosen the lug nuts on the wheel you'll be working on, but do not remove them yet. Use your jack to lift the vehicle and securely place jack stands under the designated support points. Once the vehicle is stable, lower it onto the jack stands.

2. Remove the Wheel

Now, fully remove the lug nuts and take off the wheel. This will give you clear access to the brake caliper and the wear sensor.

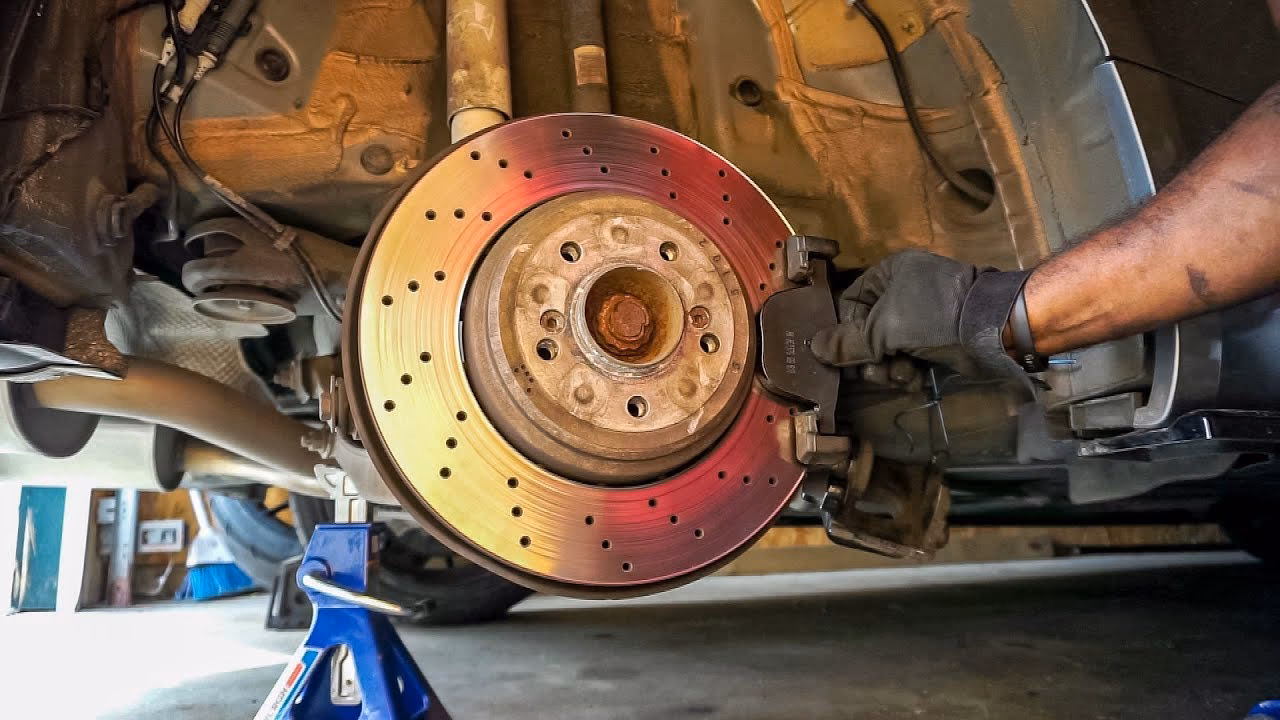

3. Locate the Brake Pad Wear Sensor

Examine the brake caliper. The wear sensor is a small wire with a plastic connector that usually plugs directly into the brake pad backing plate or the caliper itself. It's often positioned on the inner brake pad, as this pad typically wears slightly faster than the outer one. The sensor wire will run from the caliper area towards the vehicle's wiring harness.

4. Disconnect the Sensor

The sensor is usually connected via a simple push-and-release clip or a tab that needs to be depressed. Carefully inspect the connector. You might need a small flathead screwdriver to gently pry up a locking tab or release the connector. Avoid yanking on the wire, as this can damage the wiring harness. Some sensors might be tucked into a small recess in the caliper or brake shield; a bit of careful wiggling might be necessary.

5. Remove the Old Sensor

Once disconnected, the old sensor will either be clipped into the brake pad or brake caliper bracket. It usually slides or clips into place. You might need to gently pull it out or use pliers to carefully grip and remove it. Note how the old sensor was routed and secured; this will help you install the new one correctly.

6. Install the New Sensor

Take your new brake pad wear sensor. Ensure it's the correct part for your vehicle. Route the wire along the same path as the old one. Most new sensors will simply push into the designated slot on the brake pad backing plate or caliper bracket until it clicks securely into place. Make sure the connector is oriented correctly before pushing it in. Some sensors are designed to be a tight fit, which is normal.

7. Connect the New Sensor

Carefully connect the new sensor's electrical connector to the vehicle's wiring harness. Ensure it clicks firmly into place, indicating a secure connection. Double-check that the connector is fully seated and locked.

8. Reassemble and Torque

Before putting the wheel back on, it's a good opportunity to inspect the brake pads and rotor for any other issues. If everything looks good, reinstall the wheel. Thread the lug nuts back on by hand and then tighten them in a star pattern. Lower the vehicle off the jack stands. Using your torque wrench, tighten the lug nuts to the manufacturer's specified torque (refer to your BMW owner's manual for the exact specification, typically around 140 Nm or 103 lb-ft for BMWs).

9. Reset the Onboard Computer (OBC)

With the new sensor installed and the wheel secured, you can now reset the service indicator. The procedure varies slightly between BMW models, but for the E90 series, it generally involves the following:

• Turn the ignition ON (engine off).
• Press and hold the trip reset button on the instrument cluster.
• While holding the trip reset button, turn the ignition OFF.
• Release the trip reset button.
• Press and hold the trip reset button again.
• Turn the ignition ON (engine off).
• Wait for the service interval display to appear (it might flash or show a countdown).
• Release the trip reset button.
• Turn the ignition OFF.
• Start the engine to confirm the warning lights have cleared.

Consult your owner's manual or a reliable BMW forum for the precise reset procedure for your specific model year, as button locations and sequences can differ. The goal is to reset the brake pad wear warning to a positive mileage value (e.g., 31,000 miles as per the user example).

Troubleshooting Common Issues

If the warning lights do not clear after replacing the sensor and attempting the reset procedure, consider the following:

• Incorrect Sensor: Ensure you purchased the correct part number for your BMW. Even minor variations can cause incompatibility.
• Faulty New Sensor: Although rare, the new sensor could be defective. Check its resistance if possible or try another unit.
• Wiring Issues: Inspect the wiring harness leading to the sensor connector for any signs of damage, corrosion, or loose connections.
• Incorrect Reset Procedure: Double-check the exact reset sequence for your model. It's easy to miss a step or perform it in the wrong order.
• Other Brake Issues: The OBC might be detecting another fault within the braking system that hasn't been addressed.

Resistance Comparison: New vs. Old Sensor

As highlighted in the user's experience, the difference in resistance between a new and old sensor is substantial:

This significant increase in resistance is the key indicator that triggers the warning light. It's a clever system that provides a reliable warning before catastrophic brake failure.

Frequently Asked Questions (FAQs)

Q1: Can I reuse an old brake pad wear sensor?

No, once a brake pad wear sensor has been triggered (meaning its resistance has increased significantly due to wear), it must be replaced. Reusing a worn sensor will prevent the onboard computer from resetting correctly and the warning lights will persist.

Q2: Do all cars have brake pad wear sensors?

Not all cars have electronic brake pad wear sensors. Many older vehicles rely on purely mechanical indicators (a small metal tab that squeals against the rotor when the pads are low) or have no system at all, requiring manual inspection. However, most modern vehicles, especially premium brands like BMW, incorporate electronic sensors for more precise monitoring.

Q3: Where is the brake pad wear sensor located on my BMW?

The location varies by model. For many BMWs, including the E90 series, the sensor is typically found on the inner brake pad of either the front or rear axle. It's a wire that plugs into the caliper or pad backing plate.

Q4: How do I know if my brake pad wear sensor needs replacing?

You'll usually see a yellow or red warning light on your dashboard, often accompanied by a message indicating "Brake Pads Worn" or a similar alert. This light is triggered when the sensor's resistance reaches a predetermined threshold.

Q5: Can I drive with a worn brake pad wear sensor light on?

While the warning light indicates that your brake pads are low and need attention, it doesn't necessarily mean your brakes are immediately unsafe. However, it's crucial to have them inspected and replaced as soon as possible to prevent further damage to the rotors and ensure optimal braking capability.

Conclusion

Replacing the brake pad wear sensor is a straightforward DIY task that is essential for maintaining the integrity of your BMW's electronic monitoring system. By understanding its function, following the correct replacement procedure, and performing the necessary onboard computer reset, you can ensure your vehicle's safety systems are operating correctly and avoid persistent warning lights. Remember to always prioritize safety by using jack stands and torque wrenches correctly. If you're ever unsure about any step, it's best to consult a qualified mechanic.
