BMW X5 E53 Warning Lights Explained

It's a common, and frankly, rather unnerving experience for BMW X5 E53 owners: the sudden illumination of the ABS, DSC, and brake warning lights, often referred to as the 'trifecta'. This cluster of illuminated warnings can strike without much prior notice, leaving drivers bewildered, especially when diagnostic tools report no fault codes. This article aims to demystify this common issue, exploring the potential culprits and offering a systematic approach to diagnosis and resolution for your 2002 BMW X5 4.4i with 126,xxx miles, as described by a concerned owner.

Understanding the 'Trifecta' of Warning Lights

The simultaneous illumination of the ABS (Anti-lock Braking System), DSC (Dynamic Stability Control), and the amber brake warning light on a BMW X5 E53 typically indicates a fault within the braking or stability control systems. These systems are intrinsically linked, and a problem in one area can often trigger warnings in the others.

The fact that these lights remain illuminated constantly, even after ECU resets or battery disconnections, suggests a persistent fault rather than a transient glitch. The owner's experience of these lights appearing after a brake service, specifically after replacing front pads and rotors, and then rear pads and a sensor, is a significant clue.

Potential Causes for Persistent Warning Lights

While the specific number of continuity links isn't a standard diagnostic term for this issue, the underlying problem often lies in the wheel speed sensors, the ABS/DSC control module, or the wiring harness connecting them. Given the owner's detailed account, let's break down the most probable causes:

1. Wheel Speed Sensors (ABS Sensors)

These sensors are crucial for the ABS and DSC systems. They monitor the rotational speed of each wheel. If a sensor is faulty, dirty, or has damaged wiring, it can send incorrect or no information to the control module, leading to the warning lights.

• Contamination: Brake dust, dirt, or road salt can accumulate on the sensors or their reluctor rings, affecting their readings. Cleaning them, as the owner has done, is a good first step.
• Damage: The sensors themselves can fail, or their wiring can become damaged, especially during brake work when components are disturbed. The owner's recent replacement of CV joints and then brake components increases the likelihood of wiring damage or sensor misalignment.
• Incorrect Installation: If a sensor is not seated correctly or the gap between the sensor and the reluctor ring is incorrect, it can cause intermittent or constant faults.

2. ABS/DSC Control Module

The central control unit for these systems can also fail. This can be due to internal electronic faults, water ingress, or power supply issues. A failing module might not correctly process signals from the wheel speed sensors, even if the sensors themselves are functional.

3. Wiring Harness and Connectors

The wiring connecting the wheel speed sensors to the ABS module is a common point of failure. Vibration, corrosion, or physical damage (especially during repairs) can lead to open circuits, short circuits, or poor connections. The owner's description of performing significant brake work makes this a prime suspect.

4. Brake Pad Wear Sensors

While the brake pad wear sensors primarily trigger the brake pad warning light, their failure or incorrect installation could theoretically influence other systems, though it's less common for them to cause the full 'trifecta' on their own without other accompanying faults.

5. Alternator and Battery Issues

Low voltage or fluctuating voltage from the alternator or a weak battery can cause a myriad of electronic gremlins in modern vehicles, including false triggering of ABS/DSC lights. The owner has tested the alternator and battery voltage, which is a good diagnostic practice.

Diagnostic Steps and What to Check

The owner has already performed many essential checks. Let's elaborate on some key areas and potential next steps:

1. Comprehensive Scan Tool (GT1/ISTA-D)

The owner's frustration with the Peake tool not retrieving codes is understandable. While the Peake tool is useful for basic engine codes, BMW's integrated systems (ABS, DSC, etc.) often require a more advanced diagnostic tool like the dealership's GT1 (or its modern equivalent, ISTA-D/Rheingold). These tools can access modules that basic OBD-II scanners cannot and can provide more detailed, manufacturer-specific fault information. It's highly probable that a GT1 scan would reveal codes that the Peake tool is missing, potentially pinpointing a specific wheel speed sensor or a fault within the ABS module itself.

2. Wheel Speed Sensor Resistance and Voltage Drop Tests

The owner mentioned performing voltage drop tests on the wheel speed sensors. While resistance checks can indicate a broken wire or sensor coil, voltage drop tests (under load or during rotation) can reveal issues with the sensor's output signal or the integrity of the wiring and connections.

Standard Readings (Approximate):

Note: These are general figures. Always consult the specific service manual for your 2002 X5 4.4i for precise specifications. Variations between sensors are normal, but significant differences or complete absence of signal from one sensor compared to others can indicate a fault.

3. Wiring Harness Inspection

Given the recent work, a thorough visual inspection of the wiring for all four wheel speed sensors is paramount. Pay close attention to:

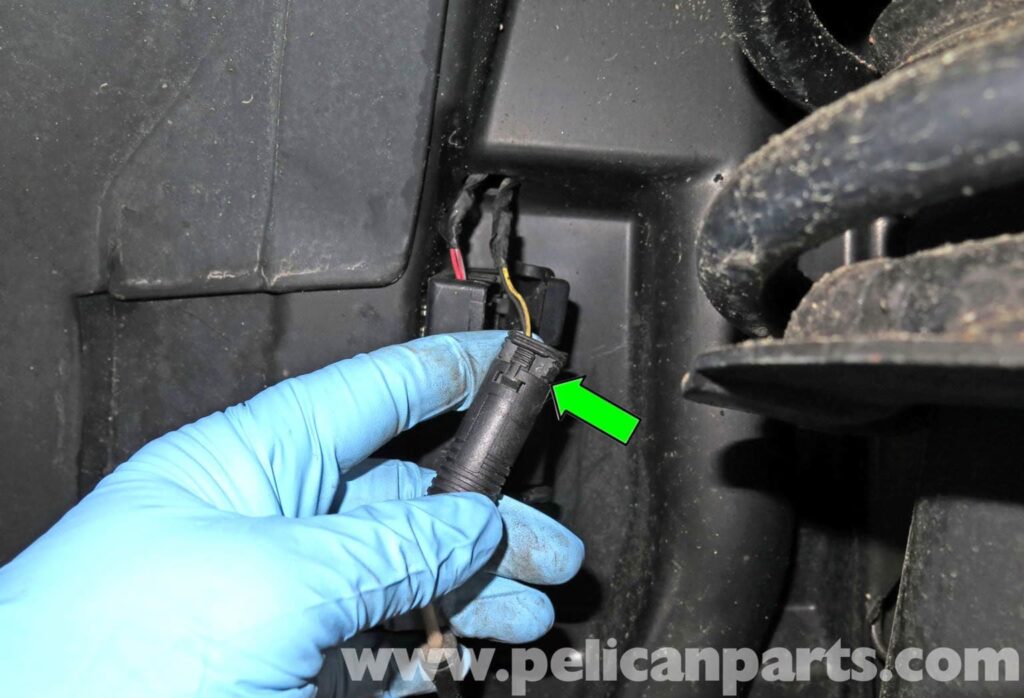

• Sensor Connectors: Check for corrosion, bent pins, or loose connections.
• Wire Loom: Follow the wires from the sensors back towards the ABS module. Look for any signs of chafing, pinching, cuts, or repairs that may have been done improperly. Areas around the wheel wells, suspension components, and engine bay are common spots for damage.
• ABS Module Connections: If accessible, check the connectors at the ABS module itself for corrosion or damage.

4. Reluctor Ring Inspection

The reluctor rings (or tone rings) are toothed rings that the wheel speed sensors read. Ensure they are clean, free from debris, and not cracked or damaged. Sometimes, during CV joint replacement, the ABS ring can be damaged or knocked out of place.

5. ABS/DSC Module Functionality

If all sensors and wiring appear to be in order, the ABS/DSC module itself becomes a suspect. These modules can be sensitive to voltage spikes or wear out over time. Sometimes, a module can be sent out for repair by specialist companies, which is often more cost-effective than a new unit from BMW.

6. Continuity Testing

To specifically address the idea of 'continuity links', this refers to checking the electrical continuity of the wires between the sensor and the ABS module. This involves using a multimeter set to continuity mode (often indicated by a beep). With the relevant component disconnected (e.g., sensor and ABS module connector), you test if there is an unbroken path for the electrical current.

Steps for continuity testing:

1. Disconnect the wheel speed sensor and the corresponding connector at the ABS module.
2. Set your multimeter to the continuity setting.
3. Place one probe on the wire's terminal at the sensor end and the other probe on the corresponding terminal at the ABS module connector.
4. A beep or a very low resistance reading (close to 0 Ohms) indicates good continuity.
5. Repeat for all wires of all sensors.
6. Also, test for shorts to ground: With one probe on a wire terminal and the other on the chassis ground, there should be no continuity (no beep/infinite resistance).

Addressing Specific Owner Questions

"I am left with taking the car to the stealer or an indy that can hook it up to a GT1, will this pull codes that I am not seeing with my peake tool?"

Yes, absolutely. As mentioned, dealership-level diagnostic tools like the GT1/ISTA-D have access to all vehicle modules and can retrieve codes related to ABS, DSC, transmission, and other systems that basic OBD-II scanners often miss. This is the most logical next step to get definitive diagnostic information.

"I have read that when the problem is resolved that the lights turn off without a reset or a battery DC, I read one place that the dealer must reset the trifect light? Is that true?"

Generally, if the underlying fault is corrected, the warning lights will extinguish themselves after the next drive cycle or a system reset. However, some specific faults or a module reset might require a diagnostic tool to clear the fault memory. It's not always the case that a dealer *must* reset them, but a proper scan tool is usually needed to clear persistent codes.

"Also a side question but when the pads or rotors become thinner than recommended does this either throw a code or display a message other than the brake pad sensor wearing..."

Typically, significantly worn pads or rotors that are below minimum thickness do not directly trigger the ABS/DSC lights unless they cause a physical issue, like a sensor being damaged or a component failing due to the excessive wear. The primary indication of pad wear is the brake pad wear sensor triggering the brake warning light when the pad material reaches a certain minimum thickness. Rotor thickness is usually checked manually during inspections. While the system monitors pad wear, it's not sophisticated enough on this model year to trigger ABS/DSC faults solely based on rotor thickness unless it leads to another failure.

Troubleshooting Summary Table

Frequently Asked Questions (FAQ)

Q1: Can I safely drive my X5 with these warning lights on?

A1: While the car may still be drivable, your ABS and DSC systems are likely deactivated. This means you will not have anti-lock braking or electronic stability control, significantly reducing your safety margin, especially in adverse weather conditions or emergency maneuvers. It's advisable to get the issue diagnosed and resolved as soon as possible.

Q2: Is it possible for the lights to turn off on their own after some driving?

A2: In some cases of intermittent faults, the lights might temporarily go out. However, if they are constantly illuminated from startup, it indicates a persistent fault that requires repair. They are unlikely to resolve themselves without intervention.

Q3: My Peake tool shows no codes. Does this mean there's no problem?

A3: Not necessarily. As discussed, basic OBD-II scanners often cannot communicate with or retrieve fault codes from all of the BMW's integrated modules, such as the ABS/DSC module. A more advanced BMW-specific tool is required.

Q4: Could the CV joint replacement have caused this?

A4: It's possible. During CV joint replacement, the technician may have inadvertently damaged the ABS sensor wiring or the reluctor ring. Even if it worked fine for 3000 miles, the damage might have been subtle and worsened over time.

Q5: Where can I find an Indy shop with a GT1 in the Inland Empire?

A5: Searching online forums dedicated to BMWs, particularly E53 X5 models, can yield recommendations for reputable independent specialists in your area. Local BMW enthusiast groups or clubs are also excellent resources for such information. Asking directly on these forums, as the owner did, is often the best approach.

Conclusion

The 'trifecta' of warning lights on a BMW X5 E53, especially when no codes are present on basic scanners, points towards a complex but solvable issue within the ABS/DSC system. The most likely culprits are the wheel speed sensors, their wiring, or the ABS control module. Given the recent brake work, meticulous inspection of the sensor wiring and connections is a critical step. Ultimately, investing in a diagnostic session with a professional who has access to BMW-specific diagnostic tools like the GT1/ISTA-D is the most efficient way to accurately pinpoint the fault and avoid unnecessary parts replacement. Addressing this promptly will restore your vehicle's safety features and your peace of mind.
