UK Number Plate Font & Legality Guide

Ensuring your vehicle's number plates are not only visually appealing but also fully compliant with UK regulations is crucial. One of the most common questions we receive pertains to the specific font used for number plates and the legality of various digit types. This guide will delve into the official font, the precise dimensions required, and the nuances surrounding 3D and 4D number plates under the latest standards.

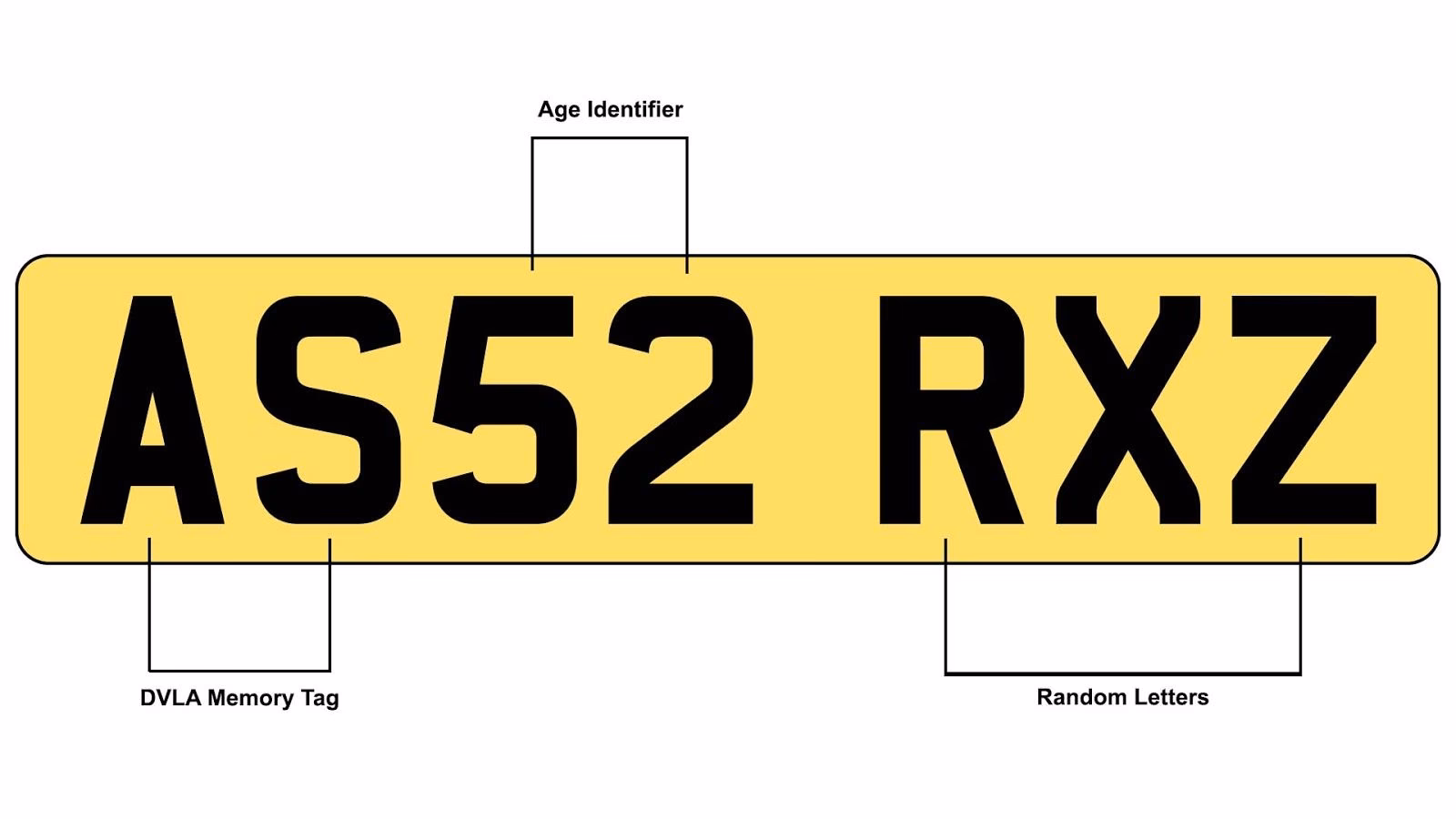

The Legal Number Plate Font: Charles Wright

For any number plate fitted in the UK since September 2001, there is a mandatory font that must be used: Charles Wright. This font was specifically chosen for its clarity and readability, which is essential for automatic number plate recognition (ANPR) systems used by law enforcement and for general road safety. Any deviation from this font can result in your number plates being deemed illegal, potentially leading to fines.

Number Plate Dimensions and Spacing: A Detailed Breakdown

Beyond the font itself, the precise dimensions and spacing of characters are strictly regulated. These rules ensure consistency across all vehicles, aiding in quick identification and the effectiveness of enforcement cameras. The regulations differ slightly between standard cars and larger vehicles, and motorcycles/tricycles.

Car and Large Vehicle Number Plate Dimensions

For all cars and large vehicles, the following specifications must be adhered to:

Motorcycles and Tricycles Number Plate Dimensions

Motorcycles and tricycles have slightly different, more compact requirements:

Please note: Images provided for illustrative purposes may not be to scale. Always adhere to the specified measurements.

The Legality of 3D and 4D Number Plates Under BS AU 145e

The introduction of the BS AU 145e standard has brought significant clarification, particularly regarding 3D and 4D number plates. The overarching goal of this legislation is to ensure that number plates are readable by safety cameras and that the characters are clearly distinguishable. The DVLA has provided specific guidance on this matter.

What is BS AU 145e?

BS AU 145e is the current British Standard for vehicle number plates. It evolved from previous versions (like BS AU 145d) to incorporate new technologies and address modern identification requirements. If a number plate meets the BS AU 145e standard, it automatically meets the BS AU 145d standard as well.

Are 3D Gel Digits Legal Under BS AU 145e?

Yes, provided they meet certain criteria. The DVLA has clarified that 3D gel digits are considered legal under BS AU 145e as long as they do not create any 'highlighting or 3D effects' beyond their actual physical dimension. This means they must maintain a solid black appearance and not have additional visual enhancements that could interfere with camera readability.

Are 3D/4D Plates with Coloured or Clear Parts Legal?

No, these are illegal. Specifically, plates with digits that include clear or coloured parts, often marketed as "Krystal" or "Neon" 4D plates, are not compliant with BS AU 145e. The legislation mandates that digits must be 'solid black'. Any coloured or transparent elements that alter the fundamental black appearance of the digit will render the plate illegal.

Are 3D Digits Legal Under BS AU 145e? (Further Clarification)

The legality of 3D digits depends on their construction. Fonts that are not solid black, such as those with a "high-line" or "carbon-effect" finish, are illegal on any plate supplied or fitted after September 1st, 2021, when BS AU 145e became mandatory. However, as mentioned, solid black acrylic or gel digits that are affixed to the front of plates are currently viewed by the DVLA as legal, provided they adhere to the "solid black" and non-reflective criteria.

What Makes 3D/4D Plates Illegal?

The primary reasons for the illegality of certain 3D/4D plates under BS AU 145e are:

• Non-Solid Black Digits: The requirement for digits to be a uniform, solid black colour is paramount.
• Highlighting or 3D Effects: Any embellishments that create extra visual effects beyond the physical depth of the digit can interfere with camera recognition.
• Removable Digits: The legislation implies that digits should be affixed securely and non-removably to prevent tampering.

The key distinction lies in whether the 3D effect is inherent to the digit's solid black construction or if it's achieved through additional materials or processes that compromise the solid black requirement. Plates with black plastic digits placed on top of clear or coloured plastic digits, or 3D effect flat digits created through printing or transferring onto reflective material, are explicitly illegal because they do not meet the 'solid black' digit requirement.

Why These Rules Exist

The stringent regulations surrounding number plate fonts, dimensions, and digit types are in place for several critical reasons:

• ANPR System Compatibility: Automatic Number Plate Recognition systems are designed to read plates with specific fonts and dimensions quickly and accurately. Non-compliance can lead to system errors and identification failures.
• Law Enforcement: Clear and legible number plates are essential for traffic enforcement, identifying vehicles involved in incidents, and general policing.
• Road Safety: Ensuring all vehicles are easily identifiable contributes to overall road safety and accountability.

Frequently Asked Questions (FAQs)

Q1: Are gel digits legal under the new standard BS AU 145e?

Yes, the DVLA has clarified that providing they create no ‘highlighting or 3D effects’ beyond their physical dimension, 3D gel digits are legal under the new standard BS AU 145e. They must be solid black.

Q2: Are 3D/4D plates with digits that include either clear or coloured parts legal?

No, under BS AU 145e these are illegal, because the digits must be ‘solid black’. This includes "Krystal" or "Neon" 4D plates.

Q3: Are 3D digits legal under BS AU 145e if they have a carbon effect?

No, fonts that are not solid black, such as carbon-effect fonts, are illegal on any plate supplied or fitted after September 1st, 2021.

Q4: Can I have my number plate digits in a colour other than black?

No, the regulations mandate that all characters on a number plate must be solid black.

Q5: Where can I find the official letter from DVLA regarding legal fonts?

The DVLA has issued letters clarifying these regulations, often available for download on reputable number plate supplier websites or through official government channels. These letters provide the definitive guidance for Registered Number Plate Outlets.

By understanding and adhering to these regulations, you can ensure your vehicle's number plates are legal, safe, and correctly identified, avoiding any potential penalties. Always source your number plates from registered suppliers who are aware of and comply with these critical standards.
