Dura-Ace Brakes: Pads & Tyre Clearance Demystified

When it comes to high-performance cycling, Shimano's Dura-Ace groupset stands as a pinnacle of engineering excellence. However, even with top-tier components, understanding the nuances of compatibility and practical limitations is crucial for optimal performance and rider safety. This comprehensive guide delves into two common queries faced by cyclists: selecting the correct disc brake pads for Dura-Ace systems and deciphering the tyre clearance capabilities of the revered Dura-Ace 7800 rim brakes.

Ensuring your braking system is in perfect working order is paramount, not just for speed but, more critically, for safety. Whether you're upgrading, maintaining, or simply curious, having the right knowledge about your Dura-Ace brakes will empower you to make informed decisions and keep your machine running flawlessly on the roads of the UK and beyond.

Understanding Dura-Ace Disc Brake Pad Compatibility

Shimano Dura-Ace disc brakes, particularly the R9170 and the newer R9270 series, are renowned for their powerful and consistent stopping performance. But what specific pads are compatible with these sophisticated calipers? The answer hinges on understanding pad types, materials, and the presence of cooling fins.

Pad Types: Resin (Organic) vs. Metallic (Sintered)

Shimano offers two primary types of disc brake pads, each with distinct characteristics suited to different riding conditions and preferences:

• Resin (Organic) Pads: These pads are made from organic materials bound together with resin. They are generally quieter, offer a stronger initial bite, and are kinder to rotors. They perform exceptionally well in dry conditions and are often preferred for road cycling due to their modulation and quiet operation. However, they tend to wear faster, especially in wet or muddy conditions, and can be more susceptible to fade under prolonged, heavy braking due to lower heat resistance. Shimano's resin pads often come with the 'L03A' or 'K03S' designation for road calipers.
• Metallic (Sintered) Pads: Composed of metallic particles bonded together at high temperatures, metallic pads are known for their durability, superior performance in wet and muddy conditions, and excellent heat resistance. They offer consistent braking power even on long descents. The trade-off is that they can be noisier, especially when wet, and may feel less modulated than resin pads. They also tend to cause more wear on rotors over time. Shimano's metallic pads for road calipers might have designations like 'L04C' or 'K04S'.

It's crucial to note that while most Shimano disc brake calipers can use either resin or metallic pads, some rotors are specifically designed for resin pads only. Always check your rotor's designation (often marked 'Resin Pad Only') to avoid premature wear or damage.

The Role of Cooling Fins (Ice-Tech)

Many Dura-Ace disc brake pads, particularly the more advanced options, feature Shimano's Ice-Tech cooling fins. These aluminium fins are designed to dissipate heat generated during braking, preventing fade and ensuring consistent performance. While not strictly necessary for compatibility, using finned pads with compatible calipers (which most Dura-Ace road calipers are) can significantly enhance braking performance and pad longevity, especially during long descents or heavy braking.

Identifying Compatible Pads for Your Dura-Ace Caliper

The key to compatibility lies in the pad shape. Dura-Ace road disc calipers (e.g., BR-R9170, BR-R9270) typically use pads with a specific, compact shape. Shimano assigns a series code to these pads, such as 'L' series (e.g., L03A, L04C) or 'K' series (e.g., K03S, K04S). These series codes indicate the pad shape and are interchangeable within that shape, regardless of whether they are resin or metallic, or if they have fins. Always consult your caliper's manual or look for the pad code printed on your existing pads.

For example, if your Dura-Ace R9170 caliper uses an L03A resin pad, you can also fit an L04C metallic pad, as they share the same physical shape. The 'A' and 'C' simply denote the material and the '03'/'04' a slight revision, while the 'L' confirms the shape for road disc calipers.

Table: Resin vs. Metallic Disc Brake Pads

Third-party manufacturers also produce compatible pads for Dura-Ace calipers. When considering these, ensure they explicitly state compatibility with your specific Dura-Ace caliper model (e.g., BR-R9170) and verify the pad shape matches. Quality can vary significantly, so it's often wise to stick with reputable brands or genuine Shimano pads for critical braking components.

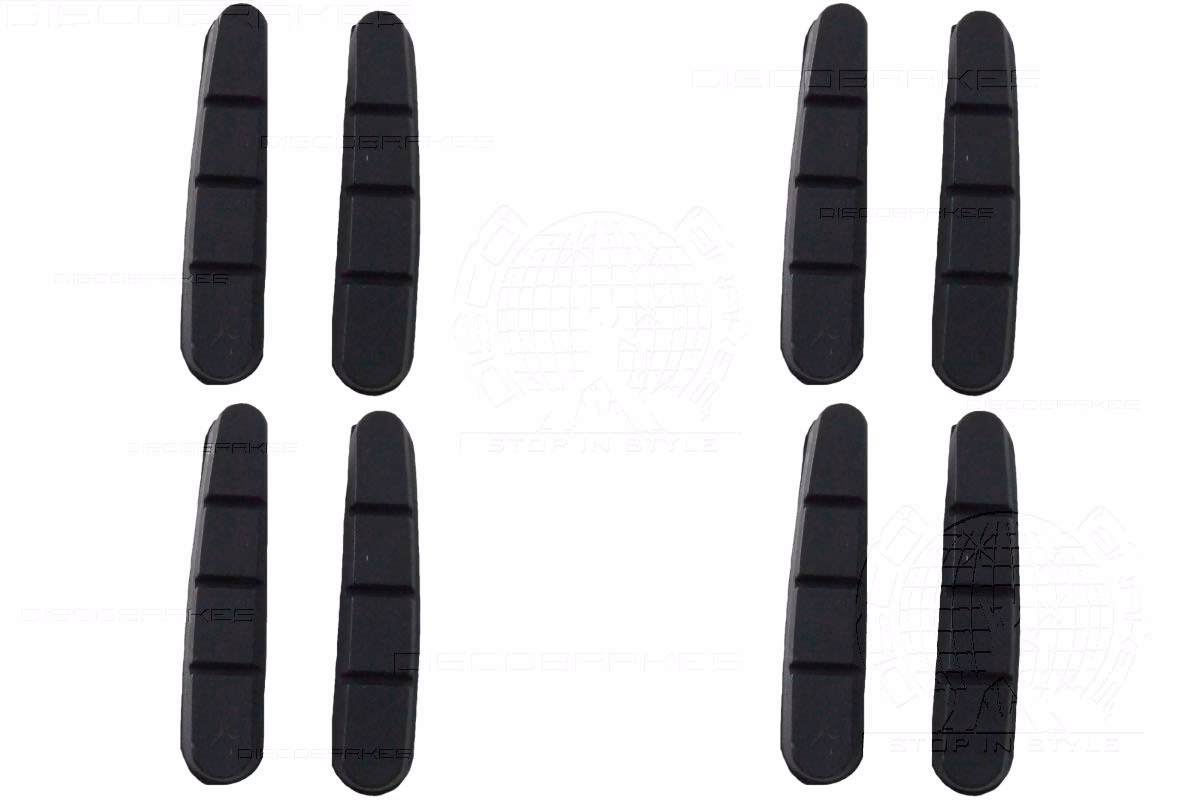

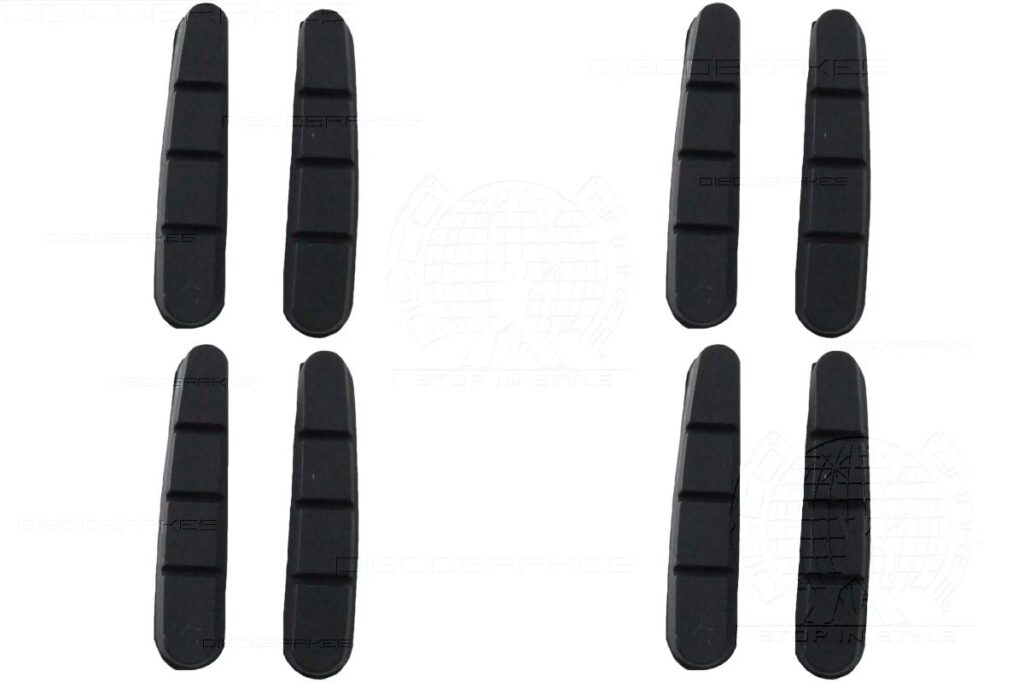

Dura-Ace 7800 Rim Brake Tyre Clearance: Can 28mm Tyres Fit?

The Shimano Dura-Ace 7800 groupset, launched in the mid-2000s, represents a significant era in road cycling, known for its superb shifting and classic aesthetics. However, unlike modern disc brake systems, the 7800 series uses traditional dual-pivot rim brakes (BR-7800). A common question for cyclists with frames designed for this era of components is whether they can comfortably fit wider tyres, specifically 28mm.

The straightforward answer is that Dura-Ace 7800 rim brakes, by their very design, offer limited tyre clearance. They are categorised as 'short reach' calipers, meaning the distance from the brake mounting bolt to the centre of the brake pad is relatively short. This design was optimised for the narrower tyres prevalent at the time, typically 23mm or 25mm.

Fitting a true 28mm tyre with a Dura-Ace 7800 brake caliper, particularly with sufficient room for comfort and safety (and certainly for mudguards), can be a significant challenge. The dual-pivot design, while offering excellent stopping power for its time, does not inherently provide generous vertical or horizontal clearance for wider rubber.

Challenges with 28mm Tyres and 7800 Brakes

• Vertical Clearance: The primary issue is often the vertical space between the top of the tyre and the brake caliper's arch. A 28mm tyre can rub against the brake body, especially if the wheel flexes or if there's any road debris.
• Horizontal Clearance: The width of the brake arms themselves can also be tight, causing the tyre sidewall to rub against the inner face of the brake arms.
• Mudguards: If you're considering 28mm tyres for touring or winter riding, the addition of mudguards becomes virtually impossible with 7800 brakes due to the severe lack of space.

For those seeking to run 28mm or wider tyres, the traditional solution has often been to opt for a bike designed with cantilever brake bosses or modern long-reach rim brakes, or indeed, a disc brake specific frame.

Exploring Alternatives for Improved Tyre Clearance

While sticking with Dura-Ace 7800 brakes and aiming for 28mm tyres is difficult, there are several avenues to explore, though each comes with its own set of compromises:

1. Tyre Choice and Actual Width

Not all 28mm tyres are created equal. The 'actual' width of a tyre can vary significantly based on the internal rim width. Some 28mm tyres, when mounted, might measure closer to 26mm or 27mm, which *might* just squeeze in. Conversely, some 25mm tyres can puff up to 27mm. Experimenting with different tyre brands and models known to run slightly narrower for their stated size could be a viable, albeit marginal, solution. However, this is often a trial-and-error process with no guarantee of success or ample clearance.

2. Alternative Rim Brake Calipers

If you're committed to your frame but need more tyre clearance, swapping the 7800 calipers for different models is an option:

• Long-Reach Road Calipers: Modern long-reach calipers (e.g., some Tektro, Shimano R451/R650, or even certain Campagnolo models) are designed to offer more clearance. These brakes typically have a reach measurement of 47-57mm or even 57-73mm, compared to the 39-49mm of short-reach 7800 calipers. While they offer improved clearance, they might not aesthetically match the Dura-Ace 7800 groupset, and their stopping power might not be on par with the high-end 7800. Compatibility with your frame's brake mounting (recessed nut vs. standard hex bolt) is also a factor.
• Vintage Side-Pull Brakes: As highlighted in some cycling circles, certain vintage short-reach side-pull brakes from the late 1980s, such as Weinmann 500, Weinmann 605, or some Dia-Compe models, surprisingly offered reasonable tyre clearance for their era. Their arm shapes were often more generous. However, these brakes typically lack the stopping power and modulation of modern dual-pivot designs. They also often used a standard hex nut attachment rather than the recessed Allen key bolt common on modern frames, which might require modification or specific hardware.
• Center-Pull Brakes: Another vintage option, like the Weinmann 999 center-pull, can offer excellent tyre clearance. However, fitting these to a modern road frame designed for side-pulls is complex, requiring specific cable stops or routing solutions, often making them impractical for a straightforward conversion.

It's important to weigh the trade-offs: sacrificing some braking performance or aesthetics for increased tyre clearance. For serious riding, modern long-reach calipers are generally a more practical choice than very old vintage options, unless you're building a period-correct bike where authenticity trumps performance.

Frame Limitations

Ultimately, the frame itself plays a significant role in tyre clearance. Even if you find brakes that technically fit a 28mm tyre, the chainstays, seatstays, and fork blades of a frame designed in the Dura-Ace 7800 era might not have the necessary width to accommodate wider tyres comfortably. For genuinely wide tyres (28mm and above, especially with mudguards), a frame specifically designed for such clearance is often the best solution.

General Brake Maintenance Tips

Regardless of whether you have disc or rim brakes, regular maintenance is key to their performance and longevity:

• Inspect Pads Regularly: Check for wear indicators. Replace pads before they wear down to the backing plate.
• Clean Rotors/Rims: Keep disc rotors free of oil and grease. For rim brakes, clean your rims regularly to prevent abrasive wear on pads and rim.
• Check Cables/Hoses: Ensure brake cables are smooth and free of fraying (for mechanical brakes) or hydraulic hoses are free of leaks and damage (for hydraulic disc brakes).
• Bed In New Pads: Always bed in new disc brake pads to ensure optimal performance. This involves a series of controlled stops to transfer pad material to the rotor, creating an even braking surface.
• Adjust Calipers: Ensure calipers are centred over the rotor (disc brakes) or rims (rim brakes) to prevent rubbing and ensure even pad wear.

Frequently Asked Questions (FAQs)

Q: Can I use metallic disc brake pads if my rotor says 'Resin Pad Only'?

A: No, you absolutely should not. Using metallic pads on a 'Resin Pad Only' rotor can lead to excessive wear, reduced braking performance, and potential damage to the rotor due to the higher heat and abrasive nature of metallic pads.

Q: How often should I replace my disc brake pads?

A: The lifespan of disc brake pads varies greatly depending on riding conditions, terrain, rider weight, and braking habits. As a general rule, inspect them every few hundred miles or before major rides. Replace them when the pad material is worn down to approximately 0.5mm or less, or when they no longer provide consistent braking power.

Q: Are finned disc brake pads better than non-finned pads?

A: Finned pads (Ice-Tech) are designed to dissipate heat more effectively, which can lead to more consistent braking performance on long descents and extend pad life by reducing heat-induced fade. While not strictly necessary for casual riding, they offer a noticeable advantage for demanding conditions or heavier riders.

Q: Can I convert my Dura-Ace 7800 bike to disc brakes?

A: No. Converting a rim brake specific frame (like one designed for Dura-Ace 7800) to disc brakes is not feasible. Disc brakes require specific mounting points on the frame and fork, which are fundamentally different from rim brake mounts. Attempting such a conversion would compromise the structural integrity and safety of the bike.

Q: What does 'short reach' mean in relation to rim brakes?

A: 'Short reach' refers to the distance from the brake caliper's mounting bolt to the centre of the brake pad slot. Short-reach calipers typically have a range of 39-49mm, designed for frames where the brake track on the rim is very close to the mounting bolt. This design generally limits the amount of tyre clearance available.

Q: How can I measure my current tyre clearance?

A: You can roughly measure clearance by inserting an Allen key or a small coin between the tyre and the closest part of the brake caliper (usually the arch or the arms). If you have less than a few millimetres of clearance, fitting a wider tyre will be problematic. For more precise measurement, use calipers to measure the actual width of your mounted tyre and the available space within the frame and brake caliper.

Understanding the intricacies of your Dura-Ace braking system, be it modern disc brakes or classic rim brakes, is essential for a safe and enjoyable riding experience. Always prioritise compatibility and safety, and don't hesitate to consult a professional mechanic if you're unsure about any aspect of your bike's maintenance.
