In the world of cycling, reliable braking is not just a convenience; it's a critical safety feature and a cornerstone of performance. For decades, the evolution of bicycle braking systems has been driven by the pursuit of greater efficiency, control, and durability. Among the most significant advancements in rim brakes is the dual-pivot caliper brake. This design has become a standard, particularly on road bikes, offering a distinct advantage over its predecessors. But what exactly is a dual-pivot caliper brake, and why has it earned such a prominent place in modern cycling?
At its core, a dual-pivot caliper brake is a mechanism designed to clamp onto the wheel's rim, creating friction to slow or stop the bicycle. Unlike older single-pivot designs, which have one central pivot point for both brake arms, the dual-pivot system incorporates two distinct pivot points. This seemingly simple change in geometry brings about a cascade of benefits, transforming the braking experience from merely adequate to truly exceptional. It's a testament to clever engineering, realising a braking system that is not only lightweight and compact but also remarkably durable and highly effective.
Understanding the Dual-Pivot Mechanism
To truly appreciate the dual-pivot caliper brake, it's essential to understand how its unique design translates into superior performance. Traditional single-pivot brakes, while functional, often suffered from limited mechanical advantage and a tendency for one arm to move more than the other, leading to uneven pad wear and less efficient braking. The dual-pivot system elegantly solves these issues.
With two pivot points, typically one on each brake arm, the dual-pivot design allows for a more symmetrical and efficient application of force. When the brake lever is squeezed, the cable pulls on one arm, which in turn, through a clever linkage or cam mechanism, causes the other arm to move simultaneously and equally towards the rim. This coordinated movement ensures that both brake pads contact the rim with equal force, maximising friction and power transfer. This improved mechanical advantage means less effort is required at the lever to achieve significant stopping power, leading to reduced hand fatigue on long rides or during prolonged descents.
Key Advantages of Dual-Pivot Design
The engineering behind dual-pivot brakes has led to considerable progress in several critical areas:
- Reduction of Tolerance and Deflection: One of the most significant improvements lies in the minimisation of play and flex within the system. Older designs could exhibit a degree of 'sponginess' as the caliper arms or pivots would flex under load, absorbing some of the braking force rather than transferring it directly to the rim. Dual-pivot calipers are engineered with tighter tolerances and stiffer materials, resulting in much less deflection. This means that nearly all the force applied at the lever is translated into stopping power at the rim, providing a much firmer and more immediate braking feel.
- Firm and Instantaneous Braking Response: The reduction in tolerance and deflection, combined with the optimised mechanical advantage, culminates in a braking system that offers a remarkably firm and instantaneous response. When you pull the brake lever, the pads engage the rim almost immediately, and with a solid, reassuring feel. This rapid engagement is crucial for safety, allowing riders to react quickly to changing road conditions or unexpected obstacles. It also enhances control, as the rider can precisely modulate braking force.
- Enhanced Durability and Assured Longer Service Life: Modern dual-pivot brakes are built to last. The design distributes stress more evenly across the components, reducing wear and tear on individual parts. Improved materials, often including high-grade aluminium alloys and precision-machined pivot points, contribute to the overall robustness. This means that the calipers themselves maintain their performance characteristics over a much longer period, requiring less frequent adjustment or replacement of the main components.
- Improved Pad Durability: A notable advancement, specifically highlighted in the context of dual-pivot brakes, is the significant improvement in brake pad durability. With some designs, pad life can be improved by as much as 100%. This is partly due to the symmetrical pad engagement, which ensures even wear across the pad's surface. Uneven wear, common in single-pivot systems, leads to pads wearing out prematurely on one side. Furthermore, advancements in brake pad compounds themselves, optimised for the consistent pressure and even contact provided by dual-pivot calipers, contribute to this extended longevity. Longer-lasting pads mean less frequent maintenance, reduced running costs, and more consistent high-response braking over extended periods of riding.
How Dual-Pivot Brakes Work in Detail
The elegance of the dual-pivot system lies in its ability to generate high braking power with relatively light lever effort and excellent control. When the brake lever is squeezed, the brake cable pulls on the inner arm of the caliper. This inner arm is connected to the outer arm via a linkage or cam. As the inner arm moves, it pivots around its own pivot point, and simultaneously, the linkage system forces the outer arm to pivot around its separate pivot point. This coordinated movement ensures that both brake pads travel an equal distance towards the rim and make contact at the same time, applying pressure symmetrically. This symmetrical action not only maximises the braking force but also ensures that the brake pads wear evenly, extending their lifespan and maintaining consistent performance.
The mechanical advantage gained from this dual-pivot action means that less force is required at the lever to generate significant clamping power at the rim. This translates into a more comfortable braking experience, especially during long descents where constant braking might otherwise lead to hand fatigue. Furthermore, the firm and direct feel provided by the reduced deflection allows for superior modulation – the ability to finely control the amount of braking force applied, from a gentle scrub of speed to an emergency stop.
Dual-Pivot vs. Single-Pivot Caliper Brakes: A Comparison
To fully grasp the advantages of dual-pivot brakes, it's helpful to compare them directly with their single-pivot predecessors.
| Feature | Single-Pivot Caliper Brake | Dual-Pivot Caliper Brake |
|---|---|---|
| Mechanism | One central pivot point for both arms. | Two distinct pivot points, one for each arm, linked for coordinated movement. |
| Braking Power | Generally lower mechanical advantage, requiring more lever force for equivalent stopping power. | Higher mechanical advantage, providing greater stopping power with less lever effort. |
| Modulation | Can be less precise due to potential flex and uneven arm movement. | Superior modulation, allowing for fine control over braking force. |
| Pad Wear | Often uneven due to asymmetrical arm movement. | Even pad wear due to symmetrical arm movement, extending pad life. |
| Deflection/Flex | More prone to flex, leading to a 'spongier' feel. | Significantly reduced deflection, resulting in a firmer, more immediate feel. |
| Weight | Can be lighter in some very basic designs, but often not significantly so when considering performance. | Often very lightweight due to advanced materials and compact design, despite the added pivot. |
| Durability | Functional, but less robust over time due to uneven stress distribution. | Excellent long-term durability, consistent performance due to balanced design. |
| Typical Use | Older road bikes, some entry-level or commuter bikes. | Modern road bikes, touring bikes, and higher-performance urban bikes. |
Maintenance and Adjustment
Even with their superior durability, dual-pivot caliper brakes require routine maintenance to ensure optimal performance and safety. Here are some key aspects:

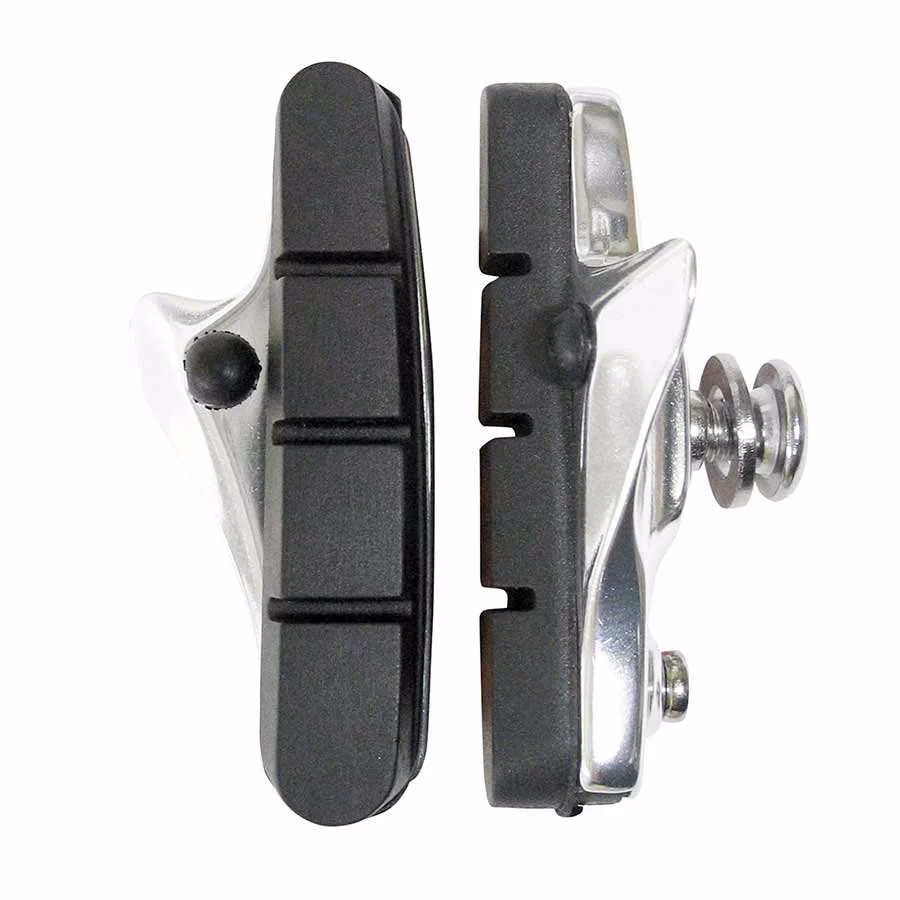

- Brake Pad Inspection and Replacement: Regularly check your brake pads for wear. Look for the wear indicators (grooves) on the pads. If they are no longer visible, or if the pads feel hard and glazed, it's time for replacement. Ensure you use the correct pads for your rim material (e.g., carbon-specific pads for carbon rims). When replacing, ensure the pads are correctly aligned with the rim and have the proper toe-in (a slight angle where the front of the pad touches the rim first).
- Cable Tension: Over time, brake cables can stretch slightly, leading to a 'looser' lever feel. Adjust the cable tension using the barrel adjuster on the caliper or brake lever. This allows for fine-tuning of the lever throw and engagement point.
- Caliper Centring: The caliper needs to be centred over the rim so that both pads strike the rim simultaneously and equally. Most dual-pivot calipers have a centring screw or bolt that allows for minor adjustments. If the caliper is severely off-centre, you may need to loosen the main mounting bolt, centre the caliper by hand, and then re-tighten.
- Cleaning: Keep your calipers and brake pads clean. Dirt and road grime can accumulate on the calipers, affecting their smooth operation, and can embed in the pads, leading to reduced braking power and accelerated rim wear. Use a clean cloth to wipe down the calipers and a stiff brush or fine sandpaper to scuff the surface of the pads if they become glazed.
- Lubrication: Occasionally, a small amount of light lubricant (like a dry chain lube or specific cable lubricant) can be applied to the pivot points of the caliper to ensure smooth operation. Avoid getting lubricant on the brake pads or rim braking surface.
Choosing the Right Dual-Pivot Brakes
When considering dual-pivot brakes, whether as an upgrade or for a new build, several factors come into play. Look for models from reputable manufacturers known for their quality and engineering. The material construction (e.g., forged aluminium, CNC-machined alloys) will influence both weight and stiffness. Compatibility with your bike's frame (short-reach vs. long-reach calipers) is also crucial, ensuring the pads align correctly with the rim. While most modern road bikes use short-reach calipers, older frames or those designed for wider tyres might require long-reach versions.
Frequently Asked Questions (FAQs)
Are dual-pivot brakes better than single-pivot brakes?
Generally, yes. Dual-pivot brakes offer superior stopping power, better modulation, more even pad wear, and a firmer, more responsive feel compared to single-pivot designs. They have largely replaced single-pivot calipers on modern road bikes due to these significant performance advantages.
Can I upgrade my bike to dual-pivot brakes?
In most cases, yes, if your bike frame is designed for caliper brakes. You'll need to ensure the reach of the new dual-pivot calipers matches the requirements of your frame and wheels (i.e., short-reach or long-reach). It's a straightforward swap for most mechanically inclined individuals, but if unsure, a professional bike mechanic can assist.
How often should I replace brake pads on dual-pivot calipers?
The frequency depends heavily on riding conditions, frequency of use, and your riding style. However, thanks to the improved durability of pads on dual-pivot systems, they typically last longer than on single-pivot systems. Regularly inspect your pads for wear indicators. As a general guideline, they might need replacing every 1,000 to 3,000 miles, but this can vary wildly. If you ride frequently in wet or dirty conditions, or if you do a lot of descending, they will wear faster.
What does 'modulation' mean in the context of bicycle brakes?
Brake modulation refers to the ability to precisely control the amount of braking force applied. Good modulation means you can smoothly transition from a gentle slowing to a powerful stop without the brakes feeling 'on/off' or grabby. Dual-pivot brakes excel at modulation due to their firm feel and predictable response, allowing riders to maintain control even in challenging situations.
Are dual-pivot caliper brakes suitable for all riding conditions?
Dual-pivot caliper brakes are excellent for dry to moderately wet conditions and are the standard for road cycling, racing, and light touring. However, their performance can be significantly reduced in very wet, muddy, or icy conditions, as rim brakes rely on friction with the wheel's rim. For extreme conditions or off-road riding, disc brakes offer superior all-weather performance. That said, for the vast majority of road cyclists, dual-pivot calipers provide more than adequate stopping power and control.
Conclusion
The dual-pivot caliper brake represents a significant leap forward in bicycle braking technology. Its ingenious design, incorporating two pivot points for symmetrical and efficient force application, has resulted in a system that is not only remarkably lightweight and compact but also delivers firm, instantaneous braking response with exceptional durability. The improvements in reduced tolerance, minimised deflection, and significantly extended brake pad life make dual-pivot calipers a cornerstone of modern road cycling, ensuring riders can enjoy high-response braking over longer periods with confidence and control. For anyone seeking reliable, powerful, and easily maintainable stopping power for their road bike, the dual-pivot caliper brake remains an outstanding choice.
