Citroën DS3 Brake Caliper Removal: A Step-by-Step Guide

Maintaining your vehicle's braking system is paramount for safety. The brake caliper, a crucial component, plays a vital role in the braking process by squeezing the brake pads against the brake disc. If you're undertaking a brake pad replacement or investigating a braking issue on your Citroën DS3, knowing how to safely remove the caliper is an essential skill. This guide will walk you through the process, ensuring you have the knowledge and confidence to tackle this job.

Understanding the Brake Caliper

Before we dive into the removal process, it's helpful to understand what a brake caliper is and how it functions. The brake caliper is a clamp-like device that houses the brake pads. When you press the brake pedal, hydraulic fluid is forced into the caliper, pushing a piston (or pistons) outwards. This piston then presses the brake pads against the rotating brake disc (rotor), creating friction that slows and stops the vehicle. The caliper's integrity is therefore directly linked to your car's stopping power.

Tools and Materials You'll Need

To successfully remove the brake caliper from your Citroën DS3, you'll require a specific set of tools. Having the correct equipment will make the job easier and safer. Here's a list of commonly needed items:

• Socket Set: You'll likely need various socket sizes, typically ranging from 13mm to 19mm, depending on the specific bolts used on your DS3. A ratchet and extension bars will also be beneficial.
• Wrench Set: Similar to socket sizes, you'll need corresponding wrenches.
• Torque Wrench: Essential for re-tightening bolts to the manufacturer's specifications.
• Jack and Jack Stands: For safely lifting and supporting the vehicle. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Brake Cleaner: For cleaning components.
• Wire Brush: For cleaning rust and debris from bolt threads.
• Penetrating Oil (e.g., WD-40): To help loosen stubborn bolts.
• Brake Caliper Hanger or Strong Wire: To suspend the caliper, preventing strain on the brake hose.
• Gloves and Safety Glasses: To protect yourself.
• Container: To catch any spilled brake fluid.

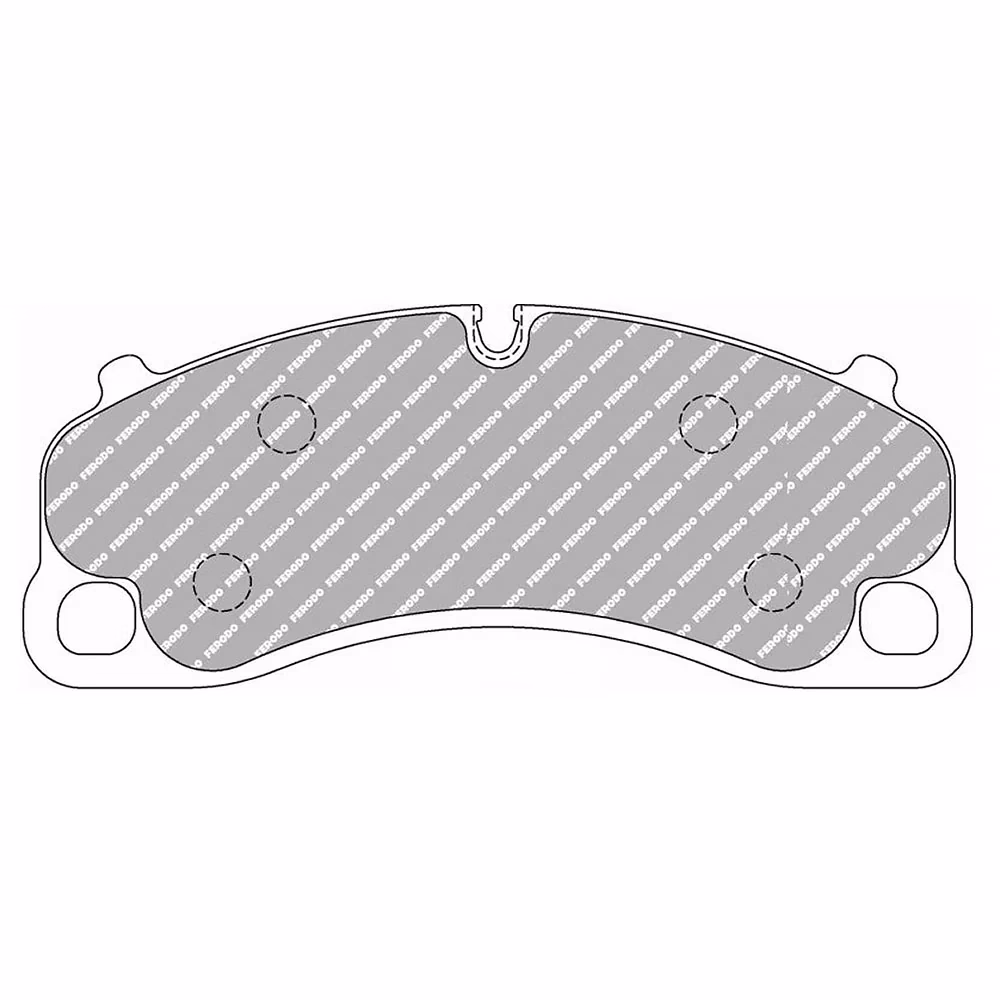

• New Brake Pads and potentially New Caliper Bolts: If you are replacing these components.

Safety First!

Working on your brakes is a critical safety task. Always ensure the vehicle is on a flat, level surface. Engage the handbrake firmly and use wheel chocks on the wheels that will remain on the ground. When lifting the vehicle, use a reliable jack and always support it with sturdy jack stands. Never place any part of your body under a vehicle supported only by a jack. Wear appropriate safety gear, including gloves and eye protection, as brake fluid can be corrosive and brake dust is harmful.

Step-by-Step Removal Process

1. Loosen the Wheel Nuts

Before jacking up the car, use a lug wrench or socket to slightly loosen the wheel nuts on the wheel you'll be working on. Do not remove them completely at this stage. This just breaks the initial tightness.

2. Safely Lift and Support the Vehicle

Using your jack, lift the front or rear of the Citroën DS3 until the wheel you're working on is off the ground. Place a jack stand securely under a designated jacking point on the chassis and slowly lower the vehicle onto the stand. Ensure the vehicle is stable before proceeding.

3. Remove the Wheel

Now, fully remove the wheel nuts and then the wheel itself. Set the wheel aside safely.

4. Locate the Brake Caliper and Bolts

With the wheel removed, you'll see the brake disc (rotor) and the brake caliper mounted over it. The caliper is typically held in place by two mounting bolts, often referred to as slider pins or caliper bolts. These are usually located on the back of the caliper assembly. You might need to rotate the steering wheel (for front brakes) or have a helper apply slight pressure to the brake pedal (carefully!) to position the caliper bolts for easier access, though this is often not necessary.

5. Loosen and Remove the Caliper Bolts

Identify the caliper mounting bolts. On many vehicles, including the DS3, one of these bolts might have a rubber dust boot. You may need to hold the slider pin with a wrench while loosening the bolt with a socket or wrench. For the Citroën DS3, the caliper mounting bolts are typically accessed from the rear. Use the appropriate size socket and ratchet to loosen these bolts. If they are tight, apply some penetrating oil and allow it to soak in for a few minutes. Once loosened, remove both caliper bolts completely. Keep these bolts safe; you'll need them for reinstallation.

6. Separate the Caliper from the Disc

With the bolts removed, the caliper should now be free. However, it's still connected to the vehicle by the brake hose. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a caliper hanger or a piece of sturdy wire to suspend the caliper from the suspension spring or another suitable sturdy point. This takes the weight off the brake hose and prevents damage.

7. Inspect and Prepare for Reassembly (or Replacement)

Once the caliper is removed and safely suspended, you can proceed with replacing the brake pads or inspecting the caliper for any signs of damage, leaks, or seized pistons. If you are replacing the caliper, this is the point where you would disconnect the brake hose. Be prepared for a small amount of brake fluid to leak out when the hose is disconnected; have a container ready to catch it. You will also need to disconnect the brake line from the caliper. This usually involves a banjo bolt and crush washers, which must be replaced with new ones upon reassembly.

Reinstallation of the Brake Caliper

Reinstallation is essentially the reverse of the removal process. Ensure all components are clean. If you've replaced the brake pads, you'll likely need to retract the caliper piston(s) using a brake caliper piston tool or C-clamp to make space for the new, thicker pads. Make sure the slider pins are clean and lubricated with appropriate brake grease. Reattach the caliper to its mounting bracket, ensuring it sits correctly over the new pads. Reinstall the caliper mounting bolts and tighten them to the manufacturer's specified torque. Refer to your Citroën DS3's service manual for the exact torque figures. Reinstall the wheel, tighten the wheel nuts by hand, then lower the vehicle. Finally, tighten the wheel nuts to the manufacturer's specified torque in a star pattern.

Important Considerations and Tips

• Brake Fluid: If you disconnect the brake hose, you will need to bleed the brake system afterwards to remove any air.
• Slider Pins: These are crucial for the caliper to move freely. Ensure they are clean, lubricated, and not seized.
• Torque Settings: Always use a torque wrench to tighten caliper bolts and wheel nuts to the correct specifications. Overtightening or undertightening can lead to serious problems.
• One Side at a Time: It's best practice to work on one side of the vehicle at a time. This way, you have a reference point for how the other side is assembled.
• Inspect Brake Hoses: While the caliper is off, check the brake hose for any cracks, bulges, or signs of wear. Replace if necessary.

Common Questions (FAQ)

Q1: Do I need to disconnect the brake hose?

A1: If you are only replacing brake pads, you typically do not need to disconnect the brake hose. However, if you are replacing the caliper itself or suspect a hose issue, you will need to disconnect it. Be prepared to bleed the brakes afterwards.

Q2: What is the torque setting for the caliper bolts on a Citroën DS3?

A2: Torque specifications can vary slightly depending on the exact model year and engine. It is crucial to consult your Citroën DS3's official service manual for the precise torque values for the caliper mounting bolts and slider pins. Generally, they are quite high, often in the region of 30-50 Nm for slider pins and higher for mounting brackets, but always verify.

Q3: Can I just let the caliper hang by the brake hose?

A3: Absolutely not. This can damage the brake hose, leading to leaks or failure, which is extremely dangerous. Always suspend the caliper using a dedicated hanger or wire.

Q4: What happens if I don't bleed the brakes after disconnecting the hose?

A4: If air enters the brake system, your brakes will become spongy and ineffective. You will have significantly reduced stopping power, posing a serious safety risk. Proper bleeding is essential.

Q5: How do I retract the caliper piston?

A5: You'll need a brake caliper piston tool or a C-clamp. Place the tool or clamp against the piston and gently push it back into the caliper body. Ensure you have a clean rag or container to catch any displaced brake fluid as the reservoir level rises.

By following these steps carefully and prioritizing safety, you can successfully remove and reinstall the brake caliper on your Citroën DS3, ensuring your braking system remains in excellent working order. Regular maintenance and awareness of these procedures are key to a safe and reliable driving experience.
