Whether you're looking to replace a blown speaker, fix a faulty window regulator, repair a stubborn door latch, or simply customise your vehicle's interior, gaining access behind your car's door panel is often the first, and most crucial, step. While it might seem daunting at first, removing a car door panel is a task well within the capabilities of the average DIY enthusiast, provided you approach it with patience, the right tools, and a clear understanding of the process. This guide will walk you through each step, ensuring you can safely and effectively remove your car door panel, paving the way for your next automotive project.
Before you begin, remember that every car model can have subtle differences in its door panel design and fastener locations. What holds true for one vehicle might vary slightly for another, even within the same manufacturer's range. Therefore, while this guide provides universal principles and common practices, always consult your vehicle's specific service manual if you have one, or look for model-specific videos if you encounter difficulties. The key is to proceed carefully, methodically, and without excessive force.
Essential Tools for the Job
Having the correct tools makes all the difference, preventing damage to your panel and making the job significantly smoother. Don't underestimate the importance of quality tools; they are an investment that pays off in the long run.
- Plastic Trim Tools: These are absolutely indispensable. Made from durable plastic, they are designed to pry and lever without scratching or marring your delicate interior plastics and paintwork. A good set will include various shapes and sizes to tackle different angles and clip types.
- Screwdriver Set: You'll likely encounter a variety of screw heads, so a comprehensive set including Phillips, Torx (star-shaped), and possibly flathead drivers will be necessary. Pay attention to the size of the screw head to ensure you use the correct driver, preventing stripping.
- Socket Set: Some door panels, or the components behind them, might be secured with bolts, requiring a socket and ratchet.
- Pick Tool Set: A set of small, angled pick tools can be incredibly useful for prying open small plastic caps that conceal screws, or for manipulating tiny clips and connectors in tight spaces.
- Small Magnet (Optional but Recommended): Inevitably, a screw or small part might fall into the door cavity. A small extendable magnet can be a lifesaver for retrieving these lost items.
- Shop Towels or Microfibre Cloths: Keep these on hand to protect surfaces, wipe away grime, and prevent scratches if you need to rest the panel down.
- Container for Fasteners: A small tray or labelled plastic bags are excellent for keeping screws, clips, and other small parts organised. It's easy to forget which screw came from where if you have a pile of them.
- Headlamp or Torch: Even in daylight, the tight, dark spaces behind a door panel benefit greatly from direct illumination.
- Spare Clips (Optional): It’s not uncommon for a few plastic retaining clips to break during removal, especially on older vehicles where plastic can become brittle. Having a small assortment of universal door panel clips on hand can save you a trip to the auto parts shop.
Preparation is Key
Before you even touch a tool, a little preparation goes a long way:
- Park Safely: Ensure your vehicle is on a level surface, the engine is off, and the handbrake is fully engaged.
- Disconnect the Battery (Recommended): If you're dealing with electrical components like window switches, speakers, or airbags (though airbags are usually in the pillar, not the door panel itself, it's good practice), it's always safest to disconnect the negative terminal of your car's 12V battery. Wait at least 10-15 minutes after disconnecting to allow any residual power in capacitors to dissipate.
- Clear the Work Area: Remove anything from the door pockets and ensure you have ample space around the door to work comfortably and to safely set the removed panel aside.
Step-by-Step Guide to Door Panel Removal
This systematic approach will help you navigate the process efficiently and safely.
1. Locate and Remove Visible Fasteners
Start by thoroughly inspecting the door panel for any obvious screws or bolts. Common locations include:
- Armrest: Often, screws are hidden under a rubber mat in the armrest cubby or beneath a plastic cap that blends into the armrest design.
- Door Pull Handle: Inside the grab handle, there might be screws, again possibly hidden under a cap.
- Door Handle Bezel: The trim piece surrounding the interior door handle often conceals a screw or two. You may need to gently pry this bezel off with a plastic trim tool.
- Door Edge: Occasionally, screws are located along the bottom or side edges of the door panel, facing inwards.
Use the appropriate screwdriver or socket to remove these fasteners. Place them immediately into your organised container, perhaps even labelling them if there are different types or lengths. This will save you a headache during reassembly.
2. Detach Window and Mirror Control Panels
Most modern cars integrate the window and mirror control switches into a removable panel, usually located on the armrest. Use a plastic trim tool to gently pry up this entire switch assembly. Start at one edge and work your way around. Once it pops free, carefully lift it out. You'll then need to disconnect the wiring harnesses attached to the switches. These usually have a small tab that needs to be pressed or a clip that needs to be slid to release the connector. Be gentle; these plastic tabs can be brittle.
This is where patience and observation are crucial, as highlighted in your initial prompt. Many manufacturers hide additional fasteners to give the interior a cleaner look. Common hiding spots include:
- Behind Decorative Trim Strips: Some door panels have long, thin decorative trim pieces (e.g., wood, carbon fibre, or chrome effect) that can be carefully pried off with a plastic trim tool. These often conceal screws underneath.
- Tweeter Grilles: If your car has a separate tweeter speaker in the door, its grille might pop off to reveal a screw.
- Under Plastic Caps: Look for small, circular or rectangular plastic caps that blend into the panel. These are designed to be pried off with a small flathead screwdriver or a pick tool, revealing a screw beneath. Don't force them; they should pop off relatively easily.
Take your time to thoroughly inspect the entire panel. Run your hand over the surface to feel for any indents or covers. A good light source will help you spot these elusive fasteners.
4. Disconnect the Interior Door Handle Assembly
The interior door handle typically has a cable or rod that connects it to the door latch mechanism inside the door. Once any screws securing the handle bezel are removed (as in step 1), you might need to pull the handle out slightly or rotate the entire handle assembly to release it. Once loose, you'll see the cable or rod. The cable usually has a small plastic clip that pivots away, allowing the cable end to slide out of its housing. Rods often have a plastic clip that rotates 90 degrees to release the rod.
5. Carefully Pry the Main Door Panel Off
With all visible and hidden fasteners removed, and the control panels and door handle detached, the main door panel is now held in place by a series of plastic clips around its perimeter, and often by a lip that hooks over the top edge of the door frame (near the window).
Start at a lower corner of the door panel. Insert one of your plastic trim tools into the gap between the door panel and the metal door frame. Gently but firmly pry outwards. You should hear a distinct 'pop' as the first clip releases. Work your way around the bottom and sides of the door panel, prying outwards to release each clip. Be consistent with your force to avoid cracking the panel. As you release the clips, the panel will start to pull away from the door.
6. Disconnect Remaining Wiring and Cables
Even after all clips are released, the door panel will not come completely free. It will still be connected by various electrical wires and possibly the main door latch cable or rod. Carefully support the panel (you might need a helper, or use your knee) so it doesn't hang by its wires. Reach behind the panel and disconnect any remaining electrical connectors (e.g., for speakers, door lights, power mirrors, or central locking actuators). Again, look for release tabs or sliding locks on these connectors. Finally, ensure the main door latch cable or rod (if not already disconnected at the handle) is free from the panel itself.

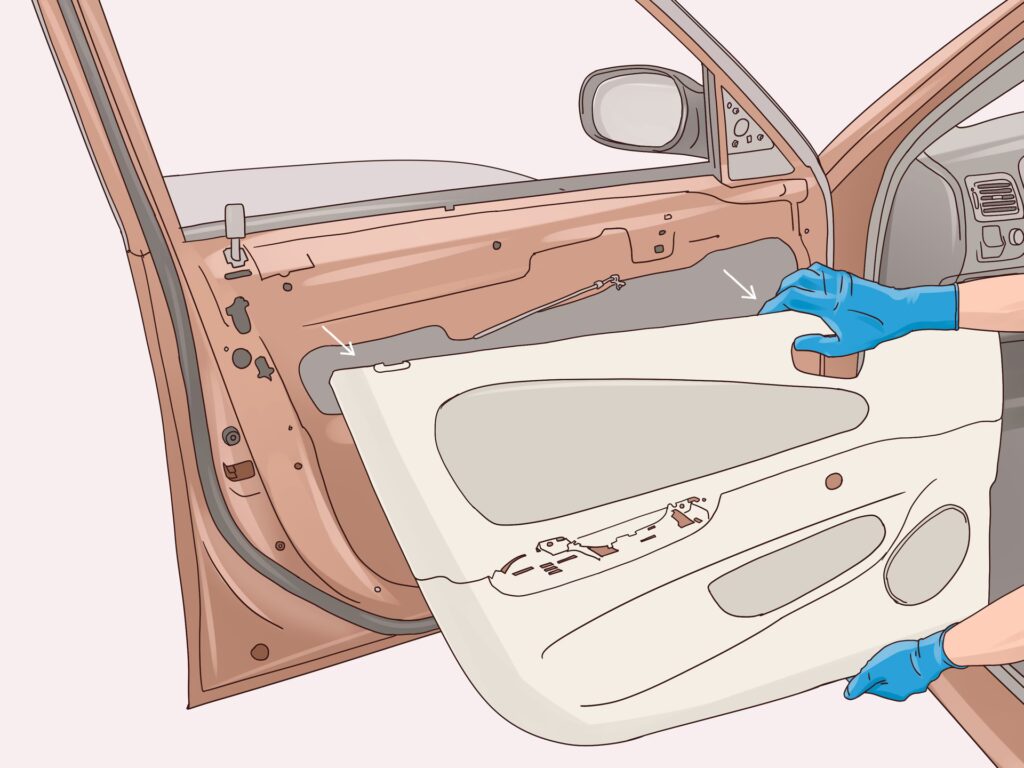

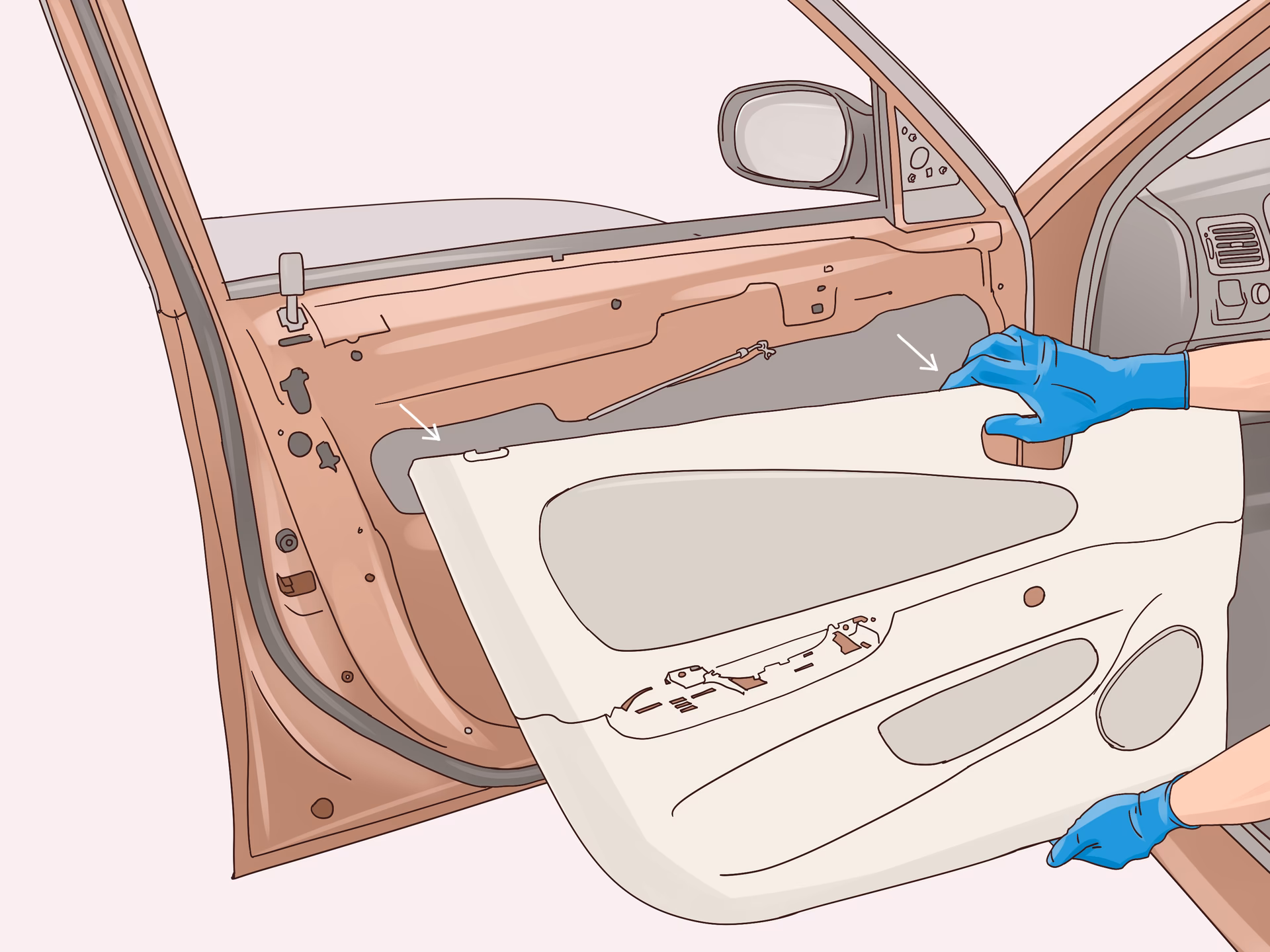

7. Remove the Panel
Once all connections are free, the door panel should now be ready to be fully removed. Most panels are designed to lift straight upwards and off the door frame, as they hook over the top edge of the window opening. Lift the panel clear of the door and set it aside in a safe place where it won't get scratched or damaged, perhaps on a clean shop towel.
Accessing the Door Latch Mechanism
As mentioned in the prompt, removing the door panel is the essential first step to access the door latch. Once the panel is off, you will gain full visibility of the inner workings of the door. The door latch mechanism itself is typically bolted to the side of the door frame (the part that meets the car's body when closed). You'll usually see 2-3 large Torx or hex head bolts securing it from the edge of the door. The interior and exterior door handles, as well as the central locking actuator, will have rods or cables connecting to this latch assembly. To remove the latch, you would typically:
- Disconnect the rods/cables from the latch unit.
- Unplug any electrical connectors for the central locking or sensor.
- Unbolt the latch unit from the door frame.
- Carefully manoeuvre the latch unit out of the door cavity, which can sometimes be tricky due to tight clearances.
While this article focuses on panel removal, understanding that the panel is the gateway to these deeper repairs is crucial.
Reassembly: The Reverse Process
Putting the door panel back on is essentially the reverse of removal. A few tips for reassembly:
- Reconnect Everything: Ensure all electrical connectors and cables (especially the door latch cable) are securely reattached before snapping the panel back on. Test the window, locks, and speakers (if applicable) before fully securing the panel.
- Align Clips: Make sure all the plastic clips on the back of the panel are in place and aligned with their corresponding holes in the door frame. Push firmly around the perimeter of the panel to seat all the clips. You should hear satisfying 'snaps'.
- Secure Top Lip: Ensure the top lip of the door panel correctly hooks over the window frame before pushing the clips in.
- Reinstall Fasteners: Replace all screws and bolts, starting with the hidden ones, then the control panels, and finally the visible screws. Don't overtighten, as this can strip threads or crack plastic.
Troubleshooting Common Issues
Even with the best intentions, you might encounter a few snags:
- Broken Clips: This is very common, especially on older cars. Don't panic. Replace them with new ones. Universal kits are available online or at auto parts stores.
- Stuck Screws: If a screw head is stripped or seized, use a penetrating oil (like WD-40) and let it sit. For stubborn Phillips heads, a manual impact driver can sometimes help.
- Wiring Not Connecting: Double-check that all connectors are fully seated and that the release tabs have clicked into place. Ensure no wires are pinched.
- Panel Won't Come Off: You've likely missed a screw or a hidden fastener. Re-inspect the entire panel carefully. Don't force it.
Essential Door Panel Tools & Their Uses
| Tool | Primary Use | Why it's Important |
|---|---|---|
| Plastic Trim Tools | Prying, separating trim, releasing clips | Prevents scratches and damage to interior plastics and paint. |
| Screwdriver Set | Removing various types of fasteners (Phillips, Torx) | Ensures correct fit, preventing stripped screw heads. |
| Socket Set | Removing bolts (e.g., securing latch, larger components) | Provides leverage and precise fit for hex/Torx bolts. |
| Pick Tool Set | Prying small caps, manipulating tiny clips/connectors | Offers precision for intricate parts, avoids damage. |
| Shop Towels | Protecting surfaces, cleaning grime | Keeps interior clean, prevents scratches on the removed panel. |
Frequently Asked Questions
Q: How long does it typically take to remove a car door panel?
A: For a first-timer, it can take anywhere from 30 minutes to 2 hours per door, depending on the complexity of your specific car model and your familiarity with tools. With practice, it becomes much quicker.
Q: Do I really need to disconnect the battery?
A: While not strictly necessary if you're only removing the panel and not working with electrical components, it's highly recommended as a safety precaution. It eliminates the risk of short circuits or accidental airbag deployment if your car's system is sensitive.
Q: Can I do this without special plastic trim tools?
A: You could attempt it with flathead screwdrivers wrapped in tape, but it's highly advised against. Metal tools will almost certainly scratch, dent, or mar your interior plastic and paintwork. Plastic trim tools are inexpensive and prevent costly damage.
Q: What if I break a plastic clip during removal?
A: It's a common occurrence, especially on older, more brittle plastic. Don't worry. Most auto parts stores and online retailers sell universal door panel clips in various sizes. It's a good idea to have some spares on hand before you start.
Q: Are all car door panels removed in the same way?
A: The general principles (screws, clips, top lip) are largely consistent across different car models. However, the exact locations of fasteners, the type of clips used, and the method for detaching specific components (like door handles or control panels) can vary significantly. Always proceed cautiously and consult model-specific resources if available.
Q: How do I know if I've found all the hidden fasteners?
A: If the panel feels like it's still firmly attached in one spot after you've released the perimeter clips and checked all obvious locations, there's almost certainly a hidden fastener there. Gently try to separate the panel slightly in that area and look for a screw or clip. Using a bright torch and even feeling with your fingertips can help locate them.
Removing your car's door panel is a fantastic skill for any car owner to master. It opens up a world of DIY repairs and upgrades, saving you money and giving you a deeper understanding of your vehicle. Remember to be patient, methodical, and always prioritise safety. With this guide, you're well-equipped to tackle the job with confidence.
