The intricate workings of modern diesel engines often rely on precise timing and the correct functioning of various components. Among these, the timing sprockets play a crucial role in ensuring the engine runs smoothly and efficiently. Specifically, the DW8 engine, known for its robust performance, has a particular arrangement involving its sprockets. This article delves into what happens if a DW8 sprocket is not connected, exploring the potential ramifications for your engine's operation, starting characteristics, and overall health. We'll also touch upon the adjustability of these sprockets and how to identify and rectify such issues.
Understanding the DW8 Sprocket System
The DW8 engine, like many diesel powerplants, utilises a system of sprockets and chains (or belts, depending on the specific configuration) to synchronise the rotation of the crankshaft and camshaft(s). This synchronisation is absolutely vital. The crankshaft dictates the movement of the pistons, while the camshaft controls the opening and closing of the valves. If these two are out of sync, the engine will not run correctly, if at all. The DW8 sprocket system is designed for durability and precision, ensuring that the fuel injection timing and valve timing remain optimal throughout the engine's operating range.
Consequences of a Disconnected DW8 Sprocket
A disconnected DW8 sprocket is, frankly, a recipe for disaster. The primary and most immediate consequence is a complete loss of timing. Imagine the engine's internal components trying to operate in a coordinated dance, but suddenly, one of the dancers is completely out of step. This leads to a cascade of problems:
Starting Difficulties

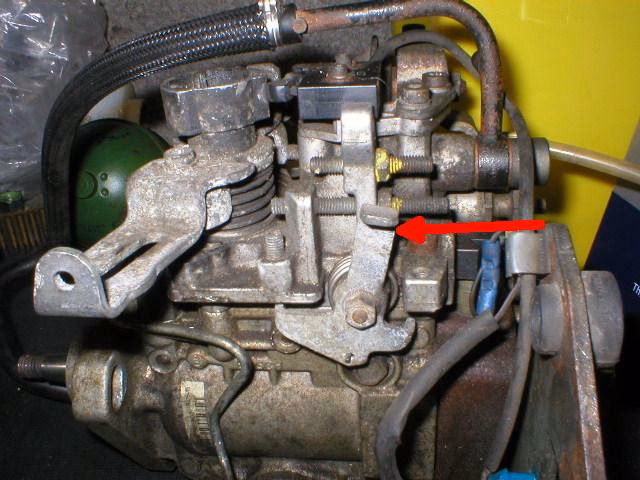

One of the most commonly reported issues when a timing component like a sprocket is not correctly connected or has slipped is extreme difficulty in starting the engine. The engine might crank over, but it simply won't 'catch' and run. This is because the critical moment for fuel injection and spark (in a petrol engine, but the principle of precise timing applies) is missed. In the context of the DW8, if the electronic pump's advance mechanism is not properly connected or is faulty, and the engine is powered up, it can default to a full advance setting. This advanced timing can make starting incredibly challenging, often accompanied by unusual noises. The engine might sound like it's trying to start, but it's labouring against itself due to the incorrect timing.
Poor Engine Performance
Even if the engine does manage to start with a disconnected sprocket (which is unlikely for extended periods), the performance will be severely compromised. You can expect:
- Rough Idling: The engine will likely run very unevenly at idle, with noticeable vibrations and fluctuations in RPM.
- Lack of Power: There will be a significant reduction in power output. The engine won't accelerate effectively, and you might feel a general sluggishness.
- Misfires: The engine may misfire, meaning that some cylinders are not firing correctly, leading to a jerky and uneven running experience.
- Increased Fuel Consumption: When the timing is off, the engine has to work much harder to produce power, leading to a noticeable increase in fuel usage.
- Unusual Noises: As mentioned, incorrect timing, particularly if it locks to full advance, can create abnormal knocking or pinging sounds from the engine, often referred to as 'dieseling' or 'knocking'.
Potential for Catastrophic Engine Damage
This is the most severe outcome. If the timing is drastically out due to a disconnected sprocket, it can lead to internal engine damage. For example, if the valves and pistons are not synchronised, a piston could collide with an open valve. This catastrophic event would likely result in bent valves, damaged pistons, and potentially even damage to the cylinder head or block. The cost of repairing such damage would be substantial, often exceeding the value of the vehicle.
Adjustability of DW8 Sprockets
It's important to note that some DW8 sprockets are indeed adjustable. This adjustability is a feature that allows for fine-tuning of the engine's timing, particularly after certain components have been replaced or if there are minor wear-related discrepancies. However, this adjustability also means that if the locking mechanisms or adjustment bolts are not properly secured, the sprocket can move out of its intended position, leading to the problems discussed. Getting them out of alignment is a possibility, which is why meticulous work during timing belt or chain replacement is paramount.
Identifying a Disconnected Sprocket
Identifying a disconnected sprocket can be challenging without disassembling parts of the engine. However, here are some indicators:
- Symptoms: The most obvious signs are the difficulty in starting, rough running, lack of power, and unusual engine noises.
- Diagnostic Trouble Codes (DTCs): Modern vehicles often have sensors that monitor engine timing. A significant desynchronisation might trigger a check engine light and store specific DTCs related to camshaft or crankshaft position correlation. A diagnostic scan can reveal these codes.
- Visual Inspection (if accessible): If you or a mechanic can gain access to the timing cover area, a visual inspection might reveal if the timing chain or belt has jumped off a sprocket, or if a sprocket itself has become loose.
What to Do If You Suspect a Disconnected Sprocket
If you experience any of the symptoms described, it is crucial to stop driving the vehicle immediately and have it inspected by a qualified mechanic. Continuing to drive with a timing issue can lead to further, more severe damage.
The repair process will typically involve:
- Diagnosis: The mechanic will perform a thorough diagnosis, which may include a visual inspection, diagnostic code reading, and potentially checking the timing marks on the sprockets and crankshaft.
- Accessing the Timing Components: This often requires removing various engine covers, accessories, and sometimes even engine mounts to gain proper access to the timing belt or chain and sprockets.
- Realigning or Replacing: If a sprocket has slipped, the mechanic will realign it and ensure it is correctly secured. If the sprocket itself is damaged or worn, it will need to be replaced. The timing belt or chain may also need to be replaced if it has been compromised.
- Reassembly and Testing: Once the timing components are correctly in place, the engine will be reassembled, and then tested to ensure it starts and runs correctly without the previous symptoms.
Preventative Maintenance is Key
The best way to avoid the problems associated with a disconnected DW8 sprocket is through diligent preventative maintenance. This includes:
- Regular Timing Belt/Chain Replacement: Follow the manufacturer's recommended intervals for replacing the timing belt or chain and associated components (like tensioners and idler pulleys).
- Using Quality Parts: Always use high-quality replacement parts from reputable manufacturers when performing maintenance on the timing system.
- Professional Installation: Ensure that any work on the timing system is carried out by experienced and qualified mechanics. The precision required is significant.
Common Questions About DW8 Sprockets
Q1: Can a DW8 engine run at all with a disconnected sprocket?
It is highly unlikely that an engine will run properly, or even at all, if a primary timing sprocket is completely disconnected. The loss of synchronisation is too severe for combustion to occur correctly.
Q2: What is meant by 'full advance' on the electronic pump?
'Full advance' refers to the timing of the fuel injection being set to the earliest possible point in the combustion cycle. While some advanced timing can improve performance, excessive or locked-in full advance can cause knocking, difficulty starting, and potential engine damage.
Q3: How often should the DW8 timing system be checked?
The timing system components should be replaced according to the manufacturer's service schedule. Regular checks during routine servicing are also advisable to identify any early signs of wear or potential issues.
Q4: Is it a difficult job to fix a disconnected DW8 sprocket?
Yes, working on the timing system is considered a complex and critical job. It requires specific tools, knowledge of engine timing, and meticulous attention to detail. It is best left to experienced professionals.
In conclusion, a disconnected DW8 sprocket is a serious mechanical issue that can lead to a range of problems, from difficult starting to catastrophic engine failure. Understanding the consequences and the importance of timely maintenance is key to keeping your DW8-powered vehicle running smoothly and reliably. Always prioritise professional servicing for critical engine components like the timing system.
