ADAS Calibration: Crucial After Wheel Alignment?

Understanding ADAS Calibration and Wheel Alignment

In the ever-evolving landscape of automotive technology, Advanced Driver Assistance Systems (ADAS) have become increasingly prevalent. These sophisticated systems, designed to enhance safety and driving comfort, rely on a network of sensors, cameras, and radar units to perceive the vehicle's surroundings. Features like adaptive cruise control, lane departure warning, automatic emergency braking, and blind-spot monitoring are all powered by ADAS. However, the very precision that makes these systems effective also means they are sensitive to even minor changes in a vehicle's geometry. This brings us to a crucial question: can ADAS be calibrated after a wheel alignment?

The short answer is: often, yes, and it's a critical consideration for maintaining the safety and functionality of your vehicle. While a wheel alignment focuses on ensuring your tyres make optimal contact with the road and your vehicle tracks straight, it can subtly influence the position of sensors that ADAS systems rely upon. This article will delve into the intricacies of ADAS calibration, its relationship with wheel alignments, and why it's a vital step after certain vehicle adjustments.

What Exactly is ADAS Calibration?

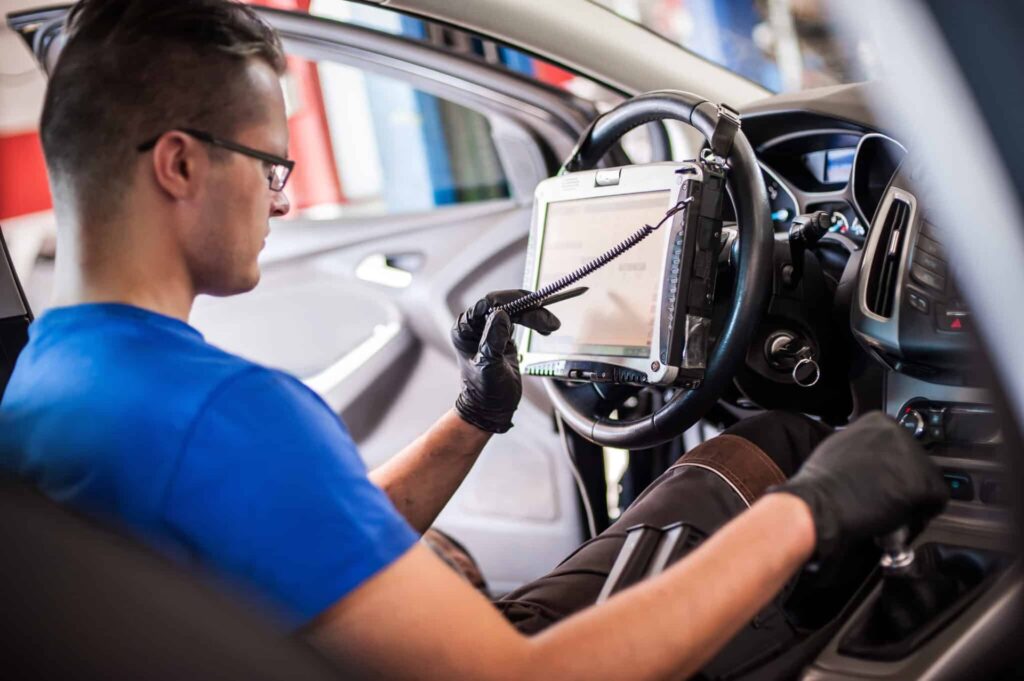

ADAS calibration is the process of precisely adjusting and aligning your vehicle's ADAS sensors, cameras, and radar systems. Think of it as fine-tuning these high-tech components to ensure they 'see' the world accurately, just as the manufacturer intended. Because ADAS relies on interpreting real-world data, even a slight misalignment can lead to significant issues. The data gathered by these sensors is processed by the vehicle's computer to inform decisions about braking, steering, and warnings.

Several factors can necessitate ADAS calibration:

• Windscreen Replacement: Modern windscreens often house forward-facing cameras for systems like lane departure warning and traffic sign recognition. Replacing a windscreen without recalibrating these cameras can render these features inoperable or inaccurate.
• Collision Repairs: Even minor impacts can shift the position of ADAS sensors, particularly those located in bumpers or near the grille. Repairs to these areas almost always require recalibration.
• Suspension Adjustments: Changes to the suspension system can alter a vehicle's ride height and geometry, potentially affecting the angle at which ADAS sensors are aimed.
• Wheel Alignment Changes: As we'll explore further, wheel alignment directly impacts the vehicle's orientation, which can in turn affect sensor positioning.
• General Wear and Tear: Over time, the cumulative effect of minor bumps and vibrations can lead to subtle shifts in sensor alignment.

If your ADAS sensor calibration is off, you might experience symptoms such as false warnings, systems failing to activate when needed, or incorrect readings, all of which compromise your safety.

How Do ADAS Systems Work?

To appreciate the need for calibration, it's helpful to understand how ADAS components function. Modern vehicles employ a variety of sensors:

These sensors provide a constant stream of data to the vehicle's control unit, enabling it to make real-time adjustments to speed, braking, and steering. Misalignment means this data is flawed, leading to the aforementioned safety risks.

The Link Between Wheel Alignment and ADAS Calibration

A wheel alignment ensures that your wheels are set to the correct angles relative to the road surface and to each other. This is crucial for tyre wear, handling, and fuel efficiency. When you perform a wheel alignment, the technicians adjust the steering and suspension components. These adjustments, while beneficial for driving dynamics, can alter the precise aiming of certain ADAS sensors, particularly those mounted on the chassis or within the suspension components.

Consider a forward-facing camera used for lane departure warning. This camera is typically mounted high on the windscreen and calibrated to 'see' lane markings at a specific height and angle. If a suspension adjustment during a wheel alignment subtly changes the vehicle's ride height or pitch, the camera's view of the road ahead is altered. Similarly, radar sensors in the bumper, often used for adaptive cruise control, are precisely angled to detect vehicles at specific distances and heights. Even a small change in the vehicle's stance can throw off this angle.

Therefore, while a wheel alignment itself doesn't directly adjust ADAS sensors, the changes it makes to the vehicle's geometry can necessitate a recalibration to ensure the ADAS components are functioning with their intended accuracy. Many manufacturers explicitly recommend ADAS recalibration after any service that affects vehicle height or alignment, including wheel alignments.

Types of ADAS Calibration

There are two primary methods for ADAS calibration:

1. Static ADAS Calibration: This is performed in a controlled workshop environment. It involves positioning the vehicle in a specific location relative to a set of calibrated targets. These targets are precisely placed at designated distances and heights, mimicking real-world road scenarios. The technician then uses specialised diagnostic equipment to adjust the ADAS sensors (usually cameras) to align with these targets. This method is typically required for camera-based systems like lane departure warning and traffic sign recognition.
2. Dynamic ADAS Calibration: This method requires driving the vehicle on the road under specific conditions. The vehicle is driven at predetermined speeds for a set duration, allowing the ADAS sensors (often radar and cameras) to gather real-world data and self-calibrate. This is commonly needed for systems like adaptive cruise control and blind-spot monitoring. The calibration process can take a considerable amount of driving time and requires specific road conditions, such as clearly marked lanes.

Your vehicle's manufacturer will specify which type of calibration is required for each ADAS feature, and sometimes a combination of both static and dynamic calibration may be necessary.

When Should You Get ADAS Calibration?

It's not just after accidents or major repairs that ADAS calibration is crucial. Here's a comprehensive list of situations where you should consider booking a calibration:

• Windscreen Replacement: As mentioned, this is a primary trigger for calibration, especially for forward-facing cameras.
• Accident Repair: Any collision, no matter how minor, can affect sensor alignment.
• Suspension Work: Repairs or replacements to suspension components can alter vehicle geometry.
• Wheel Alignment: Due to the potential impact on vehicle stance and sensor orientation.
• Tyre Size Changes: Fitting non-standard tyre sizes can alter the vehicle's effective rolling radius and ride height, potentially affecting sensor readings.
• Ride Height Modifications: Lowering or raising a vehicle will almost certainly require ADAS recalibration.
• Sensor Replacement or Adjustment: If any ADAS sensor is physically replaced or adjusted.
• ADAS Warning Lights: If any warning lights related to ADAS features illuminate on your dashboard.
• Malfunctioning Features: If you notice any ADAS features are not performing as expected (e.g., incorrect braking, false lane warnings).

The Importance of Correct ADAS Calibration

Driving with a misaligned ADAS system is not just inconvenient; it's a significant safety risk. Incorrect calibration can lead to:

• False Alarms: Your system might alert you to hazards that aren't there, leading to driver distraction or unnecessary braking.
• System Failures: Crucial safety features like automatic emergency braking might fail to activate when a real threat is present, leaving you vulnerable.
• Compromised Safety: Inaccurate sensor data can lead to the system making incorrect decisions, potentially causing accidents rather than preventing them.

OEM Position Statements highlight the necessity of ADAS calibration. Manufacturers like Toyota/Lexus/Scion, Honda/Acura, BMW, General Motors, and FCA/Stellantis have all issued statements emphasizing the importance of pre- and post-repair scanning and calibration for ADAS systems. This underscores the industry-wide recognition of ADAS calibration's critical role in vehicle safety.

Frequently Asked Questions (FAQs)

1. How often should ADAS calibration be performed?

ADAS calibration should be performed whenever there's a potential for sensor misalignment. This includes after windshield replacement, collision repairs, suspension work, wheel alignment, or if you notice any ADAS features malfunctioning. It's a proactive safety measure.

2. How long does ADAS calibration take?

The duration varies depending on the type of calibration and the specific vehicle. Static calibration can take a few hours, requiring precise setup and adjustment. Dynamic calibration involves driving, which can extend the process, potentially taking an hour or more of driving time depending on the required conditions.

3. Can I drive my car if the ADAS system is misaligned?

It is strongly advised not to drive with a misaligned ADAS system. The potential for system failure or false activations presents a significant safety hazard to yourself and other road users. If you suspect misalignment, seek professional recalibration immediately.

4. Is ADAS calibration covered by insurance?

Coverage for ADAS calibration can vary depending on your insurance policy and the circumstances of the repair. Following an accident that necessitates ADAS repair, it is typically included. However, for routine maintenance or voluntary alignment, it may be an out-of-pocket expense.

5. What's the difference between ADAS calibration and wheel alignment?

Wheel alignment focuses on the angles of your wheels for optimal tyre wear and handling. ADAS calibration focuses on the precise aiming and functioning of the sensors and cameras that enable advanced safety features. While related in that alignment can affect sensor positioning, they are distinct processes addressing different vehicle systems.

Conclusion

The integration of ADAS into modern vehicles represents a significant leap forward in automotive safety. However, this technological advancement comes with the responsibility of ensuring these systems are correctly calibrated. While a wheel alignment is a standard maintenance procedure, its potential to affect ADAS sensor orientation means that a subsequent recalibration is often a necessary step to guarantee the full functionality and safety of your vehicle's advanced driver assistance systems. Always consult with a qualified technician and refer to your vehicle manufacturer's guidelines to ensure your ADAS systems are performing optimally.
