Chrysler Fuel Injection: TBI & MPI Explained

When discussing fuel delivery in classic and modern Mopar small-block engines, a common question arises: did Chrysler ever employ a throttle body fuel injection (TBI) system? The answer, for a specific period, is yes. While many enthusiasts associate Mopar performance with the venerable carburettor or the sophisticated Multi-Port Injection (MPI) found in Magnum engines, Chrysler did indeed experiment with TBI. This article will delve into Chrysler's historical use of TBI, compare it with carburettor setups and MPI, and guide you through the intricacies of fuel system components and performance upgrades for your cherished Mopar.

The Evolution of Chrysler Fuel Systems

For decades, carburettors were the undisputed champions of fuel delivery in most internal combustion engines, and Chrysler's small-block A-engines were no exception. These mechanical marvels mixed air and fuel based on engine vacuum, providing a relatively simple and robust system. However, as emissions regulations tightened and the demand for greater fuel efficiency and drivability grew, manufacturers began to explore electronic fuel injection.

Chrysler's journey into electronic fuel injection for its small-block A-engines saw the introduction of a throttle body fuel injection system between 1987 and 1992. This system typically featured a small, 2-barrel throttle body. While it represented a step towards electronic control, its performance, particularly in terms of horsepower and torque, was often found lacking compared to its carburetted counterparts or the multi-port systems that would follow. It was a transitional technology, paving the way for more advanced systems.

The true leap forward for Mopar small-blocks came with the Magnum V-8 engines, which adopted a Multi-Port Injection (MPI) system. Unlike TBI, where injectors are centrally located in a throttle body (similar to a carburettor's position), MPI uses individual fuel injectors located in the intake manifold runners, delivering fuel directly to each cylinder's intake port. This precision allowed for much finer control over fuel delivery, leading to improved performance, emissions, and fuel economy.

Understanding Carburettor Systems

Before the widespread adoption of fuel injection, carburettors were the backbone of Mopar's fuel delivery. They are still highly popular for classic builds due to their simplicity and the distinctive sound they produce. Most aftermarket intake manifolds feature a dual attaching pattern, accommodating both Holley/Quick Fuel and Carter/Edelbrock (AFB/AVS) styles, though production manifolds typically only accept the Carter/Edelbrock variant.

Key carburettor types include:

• Holley/Quick Fuel & Carter/Edelbrock (AFB/AVS): These are the most common aftermarket options. Vacuum secondaries, based on the AVS model, are generally preferred for street use. They provide a smooth, steady fuel supply across various operating ranges, responding to engine load. Mechanical secondaries (often called 'double-pumpers') are better suited for manual transmissions or high-performance automatic setups with higher stall converters or aggressive rear axle ratios, as they open based on throttle position, providing an immediate surge of fuel.
• ThermoQuad Carter: A robust street carburettor known for its large vacuum secondaries, though finding parts for it can be challenging today.
• 6-Barrel Systems: A great street system that utilises three smaller carburettors on a specialised intake manifold for increased airflow.
• Holley 4500 (Dominator): The largest 4-barrel carburettor, designed primarily for racing applications like drag racing. These can flow over 1,000 CFM and require a specific mounting pad due to their size.

Regardless of the carburettor choice, a well-designed carburetted fuel system requires an electric fuel pump mounted near the tank, a mechanical fuel pump on the engine (in some setups), one or more fuel filters, and a fuel pressure regulator. For most carburettor applications, a delivery pressure of 5 to 7 psi is ideal, so the regulator should be adjustable within the 5- to 10-psi range.

Chrysler's Foray into Throttle Body Injection (TBI)

As confirmed, Chrysler did install a throttle body fuel injection system on their A-engines from 1987 to 1992. This system was a 2-barrel design, positioned much like a traditional carburettor atop the intake manifold. Fuel was injected into a central throttle body, then mixed with air and drawn into the cylinders. While it offered some advantages over carburettors in terms of cold starting and emissions control, its performance output in terms of raw horsepower and torque was often considered underwhelming.

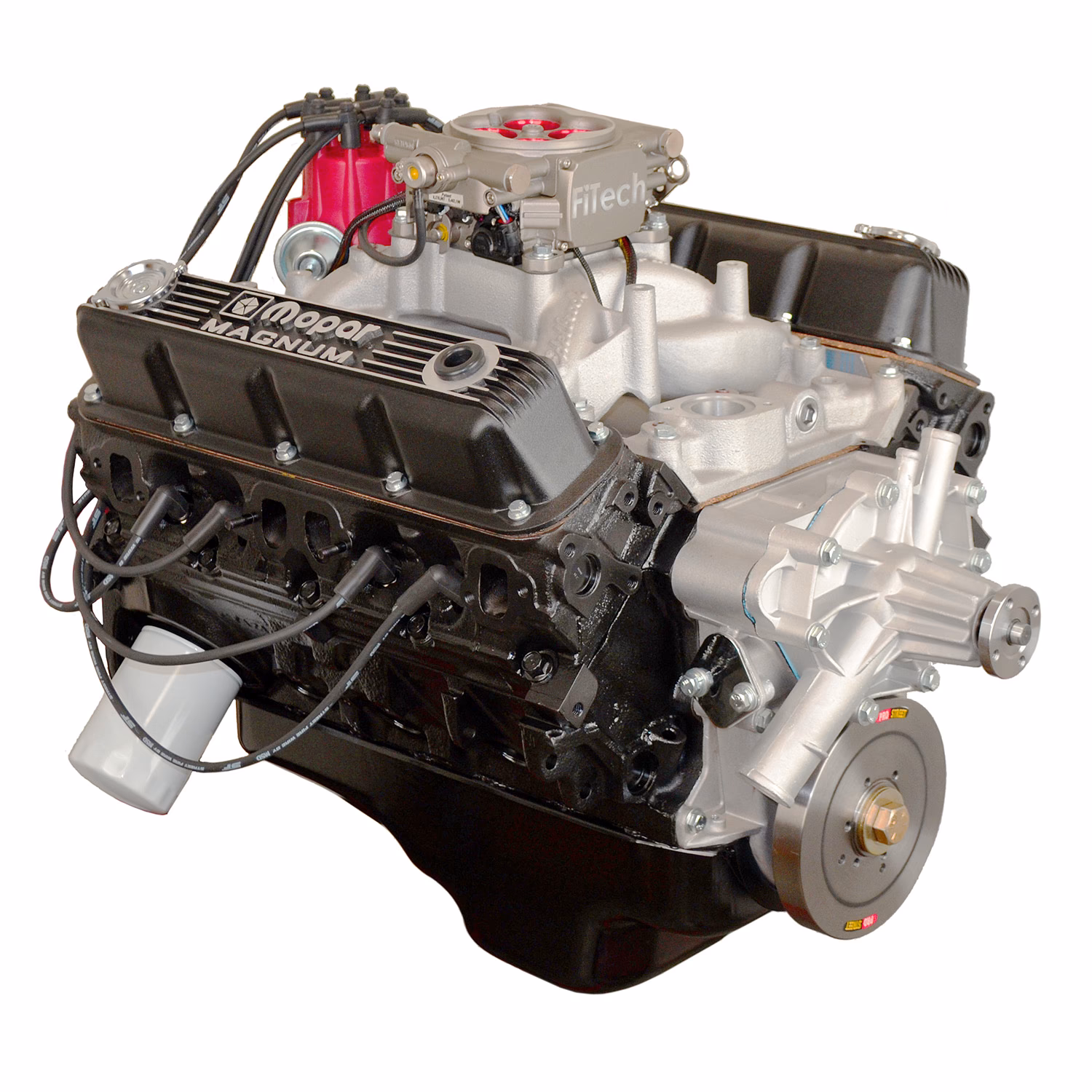

However, the concept of a 'throttle body' has evolved significantly in the aftermarket. Modern aftermarket TBI systems, such as the MSD Atomic EFI or Edelbrock's Pro-Flo 2, are a different breed entirely. These self-contained units often resemble a carburettor externally but house multiple large injectors within their basic housing, delivering precise fuel control. They are designed to support significantly higher horsepower levels (e.g., MSD Atomic EFI supporting up to 525 hp) and can even work with superchargers. These modern TBI systems offer the ease of installation and classic look of a carburettor while providing the benefits of electronic fuel injection, including self-tuning capabilities and improved efficiency. They often feature multiple sensors integrated directly into the unit for optimal performance.

Multi-Port Injection (MPI): The Magnum Standard

The Magnum MPI system is widely considered the best baseline for fuel injection in Mopar small-block V-8 engines, having been factory-installed on all Magnum V-8s. This system represents a significant leap in fuel delivery precision and efficiency. In an MPI system, each cylinder receives fuel from its own dedicated injector, mounted in the intake manifold port runner, close to the cylinder head. These injectors are essentially electric solenoids, precisely controlled by the Engine Control Module (ECM).

The ECM is the brain of the MPI system, controlling both fuel delivery (injector opening duration) and ignition timing. For the ECM to operate correctly, it relies on input from approximately eight different sensors, which monitor everything from engine speed and load to air temperature and oxygen content in the exhaust. This integrated control allows for highly optimised engine operation across all conditions.

When working on an MPI system, caution is paramount. The fuel lines operate under high pressure even when the engine is off. Always follow the factory pressure release procedure before attempting to disconnect any fuel lines to prevent injury.

Essential Fuel System Components

Regardless of whether you run a carburettor, TBI, or MPI system, several core components are critical for reliable fuel delivery:

• Fuel Pumps: Traditional A-engines typically use a mechanical fuel pump mounted on the passenger-side front of the engine, driven by an eccentric on the camshaft. Magnum engines, however, do not use mechanical pumps; they rely entirely on an electric fuel pump, usually mounted in the fuel tank or near it at the rear of the vehicle. For performance applications, a single electric fuel pump is often sufficient, but high-horsepower race setups might use multiple electric pumps, capable of flowing 150 to over 300 gallons per hour (gph).
• Fuel Regulators: If a mechanical fuel pump is removed or if electric fuel pumps are added, a fuel pressure regulator is essential. Its purpose is to maintain a consistent fuel pressure to the carburettor or injectors. The required pressure varies significantly: carburettors need 5-10 psi, while fuel injection systems operate at much higher pressures, typically 25-40 psi for TBI or MPI, requiring a regulator matched to that range.
• Fuel Lines: Many older A-engine vehicles came with 5/16-inch fuel lines. For any performance project, upgrading to a 3/8-inch fuel line, similar to those found on 426 Hemi and 440 big-blocks, is highly recommended to ensure adequate fuel flow. It's also wise to replace any rubber sections in older fuel lines due to potential degradation over time.
• Fuel Filters: One or more fuel filters are crucial to protect your fuel system components from contaminants. Ensure the filter matches the size of your fuel line.
• Fuel Injectors: Found in MPI and modern TBI systems, these are high-pressure nozzles that atomise fuel for efficient combustion. They must be appropriately sized for the engine's horsepower output.

Fuel Types and Efficiency

While most street cars run on standard petrol, other fuel types are prevalent in performance and racing circles:

• Ethanol Blends (E85): Common in many regions, E85 is 85% ethanol. Engines running on ethanol require significant changes to carburettor jetting or injector sizing due to ethanol's lower energy content and higher cooling properties.
• Methanol Alcohol: Popular in specific racing categories where legal, methanol also requires carburettors or injectors specifically designed or modified for its use, as it requires roughly double the fuel flow compared to petrol.

A key metric in engine performance and fuel efficiency is Brake Specific Fuel Consumption (BSFC). This ratio measures the fuel consumed in pounds per hour relative to the horsepower produced. For OEM petrol engines, BSFC is typically around 0.50. Highly tuned naturally aspirated race engines can achieve lower BSFC values (0.40-0.45), indicating greater efficiency. Forced induction engines (turbocharged or supercharged) tend to have higher BSFC (0.55-0.60) due to their increased power output and richer fuel requirements.

For engines running on methanol, the BSFC factor roughly doubles: around 1.00 for naturally aspirated versions and 1.10-1.20 for supercharged methanol engines.

Feature	Carburettor	Factory TBI (1987-92 Chrysler)	Modern Aftermarket TBI	Multi-Port Injection (MPI)
Fuel Delivery Method	Mechanical air/fuel mixing	Central electronic injection	Central electronic injection (often multi-injector)	Individual electronic injection per cylinder
Complexity	Relatively simple, mechanical	Basic electronic	Sophisticated electronic, self-tuning	Highly complex, computer-controlled
Performance Potential	High (especially larger units)	Limited (2-barrel, low HP)	High (e.g., 500+ HP capable)	Very High (precision control)
Fuel Control	Less precise, mechanical	Basic electronic	Precise, adaptive	Highly precise, individual cylinder control
Emissions Control	Poor to Moderate	Moderate	Good to Excellent	Excellent
Common Use	Classic builds, racing	Transitional factory systems	Retrofit EFI, street/strip	Modern performance, OEM

Performance Upgrades: Fuelling Your Mopar Beast

Upgrading your Mopar's fuel system is often a crucial step in increasing performance, whether you're starting with a carburetted A-engine or a Magnum MPI.

Magnum MPI Upgrades

When tuning a Magnum MPI system for performance, a systematic approach is key due to the ECM's comprehensive control. Initial steps often involve installing a cat-back exhaust system and a cold-air air cleaner. Reprogramming the production ECM for more spark and fuel is an optional but highly effective step. Further upgrades include installing headers, a bigger camshaft (often requiring upgraded valvesprings and retainers), and a single-plane fuel-injected intake manifold. For significantly increased horsepower (exceeding 300-350 hp), upgrading the fuel injectors is essential, which often necessitates further ECM reprogramming or the addition of an aftermarket programmable computer (from SCT, FAST, AEM) to override the stock unit.

A-Engine MPI Conversions

Converting an older carburetted A-engine to MPI offers modern drivability and performance. Several approaches exist:

• Complete Kits: Mopar Performance once offered a complete 340-360 MPI conversion kit, though it's now hard to find. These kits typically include all necessary hardware.
• Donor Systems: Utilising fuel injection hardware from a 1992-2003 production Magnum MPI engine is a viable option, though the ECM will require reprogramming for stand-alone operation.
• Aftermarket Sump Kits: Edelbrock offers universal EFI sump fuel kits that allow you to use your stock fuel tank and mechanical fuel pump while still benefiting from a high-pressure EFI system.
• Aftermarket Complete Kits: Edelbrock's Pro-Flo 2 kit, for instance, provides a complete solution for A-engines (318-360 ci), including a manifold and a 4-barrel throttle body, rated for up to 450 hp. For larger engines, higher-pound-per-hour injectors may be needed.
• Custom Conversions: Using programmable ignition systems from AEM or FAST, along with a fuel-injected intake manifold for A-engine heads and a 4-barrel throttle body (often around 1,000 CFM), allows for a highly customised setup. Removing the mechanical fuel pump and adding an electric one, along with a Magnum flexplate, are common requirements.

Integration with Power Adders (Nitrous Oxide & Superchargers)

Adding power adders like nitrous oxide or a supercharger dramatically increases an engine's fuel demands. Nitrous systems inject both nitrous and additional fuel simultaneously; direct-port injection systems use individual nozzles per cylinder, while plate systems use a central plate. For street nitrous kits on pump petrol, a decrease in spark advance (2-4 degrees) and colder spark plugs are necessary. Race-only nitrous setups may require even more significant adjustments.

Superchargers, which force more air into the engine, necessitate a lower compression ratio (around 8:1 max for pump petrol) and often dual 4-barrel carburettors or a robust EFI system capable of handling the increased fuel requirements. Forged pistons are highly recommended due to higher cylinder pressures. Supercharger manufacturers match blower size to engine cubic inches, and tuning often involves changing supercharger pulleys to adjust boost pressure, though typically limited to around 8 psi for street applications on pump petrol.

Frequently Asked Questions (FAQ)

Q: Did Chrysler ever use a factory throttle body injection system on their small-block engines?
A: Yes, Chrysler installed a small 2-barrel throttle body fuel injection system on A-engines from 1987 to 1992.

Q: What is the main difference between TBI and MPI?
A: TBI (Throttle Body Injection) uses one or two injectors mounted centrally in a throttle body, similar to a carburettor. MPI (Multi-Port Injection) uses individual injectors for each cylinder, located in the intake manifold runners.

Q: Why are Magnum engines considered to have MPI and not TBI?
A: All factory Magnum V-8 engines were equipped with a Multi-Port Injection (MPI) system, not TBI. This design provided more precise fuel delivery and better performance.

Q: Do I need an electric fuel pump if I have a mechanical one?
A: For most stock carburetted systems, a mechanical pump is sufficient. However, for performance applications or any fuel-injected system (TBI or MPI), an electric fuel pump mounted near the tank is typically required, often replacing the mechanical pump.

Q: How do I choose the correct fuel pressure regulator?
A: The regulator must match your fuel system's requirements. Carburettors need 5-10 psi, while fuel injection systems (TBI, MPI) require higher pressures, typically 25-40 psi or more, depending on the specific system.

Q: Can I convert my carburetted A-engine to fuel injection?
A: Absolutely. There are various aftermarket kits available, including complete MPI conversion kits, modern TBI systems that mimic carburettors, and custom setups using programmable EFI components.

Conclusion

The journey of Chrysler's small-block fuel systems from mechanical carburettors to sophisticated electronic injection showcases a continuous drive for improved performance, efficiency, and drivability. While Chrysler did briefly employ a factory throttle body injection system, the evolution led decisively towards Multi-Port Injection as seen in the Magnum engines. Understanding the nuances of each system – from carburettor types and tuning to the intricacies of MPI and modern aftermarket TBI solutions – is crucial for any Mopar enthusiast looking to maintain, restore, or upgrade their engine. Whether you prefer the classic rumble of a carburettor or the precise control of fuel injection, a well-matched and properly tuned fuel system is the heart of your Mopar's performance.
