Hybrid Braking: Understanding the System

Every vehicle requires consistent upkeep to function optimally, and this certainly extends to its braking system. While you might be familiar with the differences in brake maintenance between internal combustion engine (ICE) vehicles and electric vehicles (EVs), the world of hybrids presents its own unique considerations. Let's delve into the intricacies of how hybrid brakes operate and underscore the importance of their regular servicing.

What Exactly is a Hybrid Vehicle?

At its core, a hybrid vehicle is a clever fusion of two distinct power sources: a traditional internal combustion engine, typically fuelled by petrol or diesel, and an electric motor powered by a rechargeable battery. These hybrid powertrains are often designed to be more compact than their purely ICE counterparts, leading to enhanced fuel efficiency. For the most part, unless you're driving a plug-in hybrid (PHEV), you won't need to manually charge the vehicle's battery. Instead, the car intelligently employs a process called regenerative braking to replenish its energy reserves.

The vehicle's management system dynamically switches between its power sources based on driving conditions. For instance, during stop-start city driving, hybrids tend to favour electric power to maximise efficiency. Conversely, on open stretches of road, the hybrid might seamlessly transition to using its petrol engine, or a blend of both, to optimise its overall range. While specific designs and definitions can vary, the fundamental principle remains: hybrids leverage more than one energy source to propel you forward.

The Mechanics of Hybrid Braking

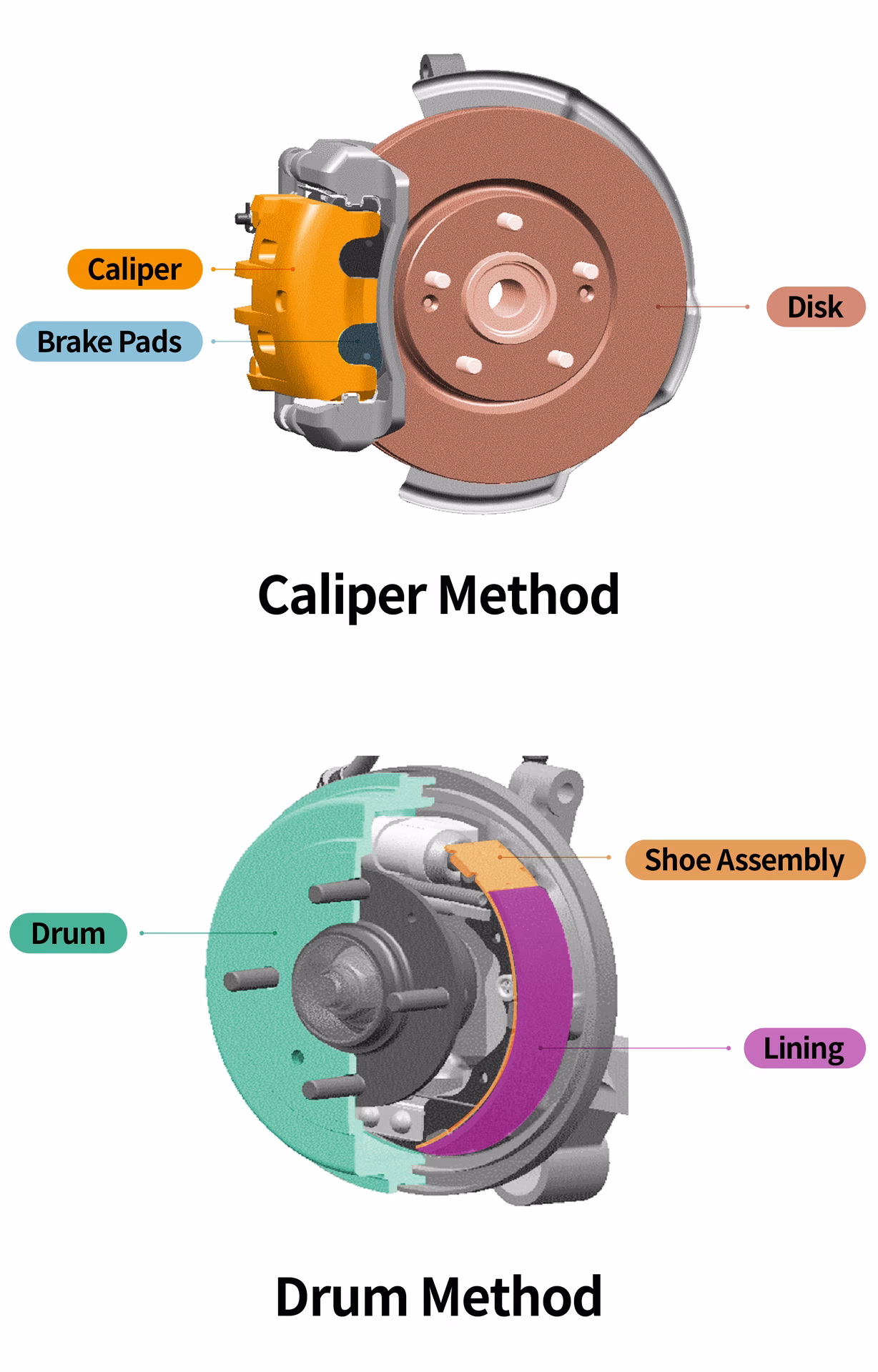

It's important to note that hybrid vehicles are equipped with the same fundamental brake components found in conventional ICE vehicles. This includes familiar parts like brake rotors, brake pads, and calipers. In a standard car, when you depress the brake pedal, the brake pads forcefully clamp onto the rotating rotors. This action generates friction, which is the primary mechanism for slowing the vehicle down.

However, hybrids introduce an additional layer of sophistication through regenerative braking. When you lift your foot off the accelerator pedal, the electric motor engages in reverse. This creates resistance, which in turn captures the vehicle's kinetic energy. This captured energy is then converted into electrical energy, which is used to recharge the hybrid's battery. Crucially, this regenerative process significantly reduces the reliance on the conventional friction brakes, thereby alleviating wear and tear on these components and extending their lifespan.

Understanding the Synergy: Friction vs. Regenerative Braking

The beauty of a hybrid braking system lies in its ability to seamlessly blend these two braking methods. When you press the brake pedal, the vehicle's computer first assesses the situation and prioritises regenerative braking. If more stopping power is required, or if the battery is already fully charged, the conventional hydraulic friction brakes will engage to provide the necessary force. This intelligent integration ensures both efficient energy recovery and robust stopping power when needed.

How Regenerative Braking Works in Detail:

• Energy Capture: When you decelerate, the electric motor acts as a generator.
• Kinetic to Electrical Conversion: The car's motion (kinetic energy) is converted into electrical energy.
• Battery Charging: This electrical energy is then fed back into the hybrid battery pack.
• Reduced Friction Brake Use: This process slows the vehicle down without significant use of the traditional brake pads and rotors.

Friction Braking in Hybrids:

• When it Engages: Used for harder braking, emergency stops, or when the battery cannot accept more charge.
• Components: Standard brake pads, rotors, calipers, and hydraulic fluid.
• Mechanism: Friction between pads and rotors converts kinetic energy into heat, slowing the car.

Brake Maintenance Recommendations for Hybrids

Brakes are, without question, a critical safety feature of any vehicle. Neglecting their maintenance can jeopardise your safety and the safety of others on the road. Therefore, regularly inspecting, servicing, and replacing brake components as needed is paramount for maintaining your vehicle's performance and reliability.

If you notice any unusual sounds, sensations, or performance issues with your hybrid's brakes, it's essential to have a qualified professional conduct a thorough visual inspection. Often, a routine brake service can effectively address and rectify many common problems.

Standard Hybrid Brake Service Includes:

The process for servicing hybrid brakes is largely comparable to that of a conventional ICE vehicle. Key steps typically involve:

• Descaling: This crucial step involves meticulously cleaning away any accumulated dust, rust, and corrosion from brake components. This ensures optimal contact and function.
• Bleeding: The brake fluid is flushed out to remove any trapped air bubbles or contaminants. Fresh, clean brake fluid is then introduced, ensuring proper hydraulic pressure and responsiveness.
• Lubrication: New, high-quality grease is applied to critical areas such as caliper sliders and brake shoe adjusters. This facilitates smooth movement, prevents seizing, and protects against rust.

Should any components be found to be worn or damaged beyond repair during the service, your mechanic will, of course, recommend and carry out the necessary replacements.

When Should Hybrid Brakes Be Serviced?

For regular combustion engine vehicles, a brake inspection is typically recommended every 10,000 kilometres or at least twice a year. Hybrid vehicle owners are generally advised to adhere to a similar maintenance schedule. As a minimum baseline, having your hybrid's brakes inspected at least once a year is a prudent practice.

Component Lifespans:

While specific lifespans can vary based on driving habits and conditions, here's a general guideline:

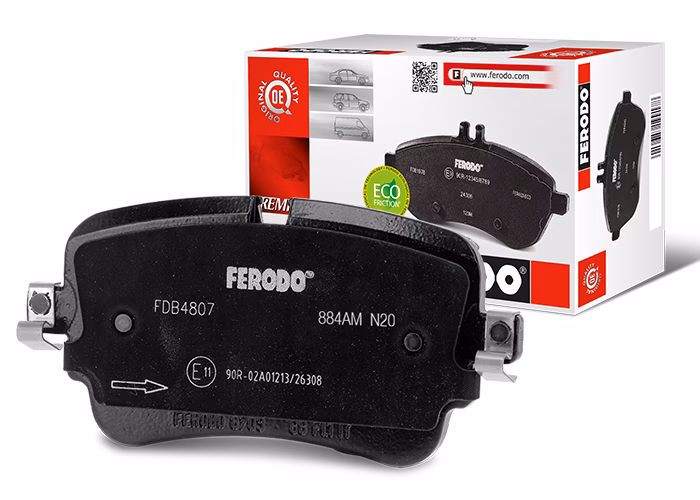

It's worth noting that most hybrid vehicles will typically require a brake pad replacement approximately every five years. For guidance on selecting the most suitable brake pads for your hybrid, consulting specialised resources or your mechanic is recommended.

Additional Tips for Hybrid Vehicle Maintenance

When it comes to maintaining your hybrid vehicle, always prioritise adhering to the service intervals and recommendations provided by the manufacturer. For any specialised hybrid maintenance tasks or repairs, it is strongly advised to entrust the work to an experienced mechanic who is proficient in hybrid technology and will utilise high-quality parts and supplies specifically designed for your vehicle.

Regular check-ups and servicing are vital for ensuring the longevity and optimal performance of your hybrid. Don't hesitate to seek expert advice from qualified professionals at reputable service centres for all your hybrid vehicle maintenance needs.

Frequently Asked Questions about Hybrid Brakes

Q1: Do hybrid brakes wear out faster than conventional brakes?

Generally, no. Thanks to regenerative braking, the conventional friction brakes on a hybrid vehicle experience less wear and tear, often leading to a longer lifespan for components like brake pads and rotors compared to a similar ICE vehicle.

Q2: Is hybrid brake fluid different from regular brake fluid?

The brake fluid itself is typically the same type (e.g., DOT 3, DOT 4). However, the system's complexity means it's crucial to use the correct specification recommended by the manufacturer and to have it flushed and replaced by a qualified technician.

Q3: Can I service my hybrid brakes myself?

While basic checks might be possible, the integrated nature of hybrid braking systems, particularly the electronic control units and regenerative braking integration, means that most servicing and repair work should be carried out by experienced professionals. Incorrect servicing could compromise safety and damage the system.

Q4: What are the signs that my hybrid brakes need attention?

Signs are similar to conventional vehicles: squealing or grinding noises, a spongy brake pedal, longer stopping distances, or warning lights on the dashboard. Given the unique nature of hybrids, it's always best to consult a specialist if you have any concerns.

Q5: How does regenerative braking affect the feel of the brakes?

Some drivers notice a slightly different initial feel when regenerative braking is active. The deceleration can feel more pronounced when simply lifting off the accelerator. However, modern systems are designed to provide a smooth and seamless transition between regenerative and friction braking when the brake pedal is applied.
