Distributor Basics: Function, Failure & Replacement

The Humble Distributor: A Look Back at Engine Ignition

While many modern vehicles have moved on to more sophisticated ignition systems, a significant number of cars still on the road rely on a component that might seem a little antiquated to the uninitiated: the distributor. For those who own or work on older vehicles, understanding the function and maintenance of a distributor is crucial for keeping that engine purring. This article delves into what a distributor does, why it's important, the signs of its failure, and what to expect when it needs attention.

What Exactly Does a Distributor Do?

In the realm of spark-ignition internal combustion engines with mechanically timed ignition, the distributor plays a pivotal role. Its primary purpose is to act as a high-voltage current router. Specifically, it takes the high voltage current generated by the ignition coil and directs it to the correct spark plug at precisely the right moment, and for the appropriate duration, in the engine's firing order. Think of it as the conductor of an orchestra, ensuring each instrument (spark plug) plays its note at the correct time.

The distributor typically consists of a rotating shaft driven by the engine, usually from the camshaft or crankshaft. Mounted on this shaft is a rotor, which spins inside a distributor cap. The cap has several terminals, each connected to a spark plug wire, and one central terminal that receives the high voltage from the ignition coil. As the rotor spins, it passes close to these terminals, allowing the electrical charge to jump across the gap and travel to the intended spark plug.

The Distributor's Role in Ignition Timing

Beyond simply distributing the spark, the distributor is also intrinsically linked to ignition timing. In older systems, the distributor often housed mechanical components like a vacuum advance and a centrifugal advance mechanism. The vacuum advance used engine vacuum to alter the timing based on engine load, while the centrifugal advance used weights that spun out with increasing engine speed to advance the timing. These mechanisms ensured that the spark occurred at the optimal point in the combustion cycle for performance and efficiency, depending on driving conditions.

Distributorless Ignition Systems vs. Traditional Distributors

It's important to note the evolution of ignition systems. Many modern cars have transitioned to what are known as distributorless ignition systems (DIS) or coil-on-plug (COP) systems. In these setups, the mechanical distributor is entirely eliminated. Instead, a crankshaft position sensor and camshaft position sensor provide precise timing information to the engine control unit (ECU). The ECU then directly controls individual ignition coils, each typically mounted atop or very near a spark plug, firing them at the exact moment required. This eliminates moving parts within the ignition distribution system, generally leading to increased reliability and accuracy.

Do Cars Still Use Distributors?

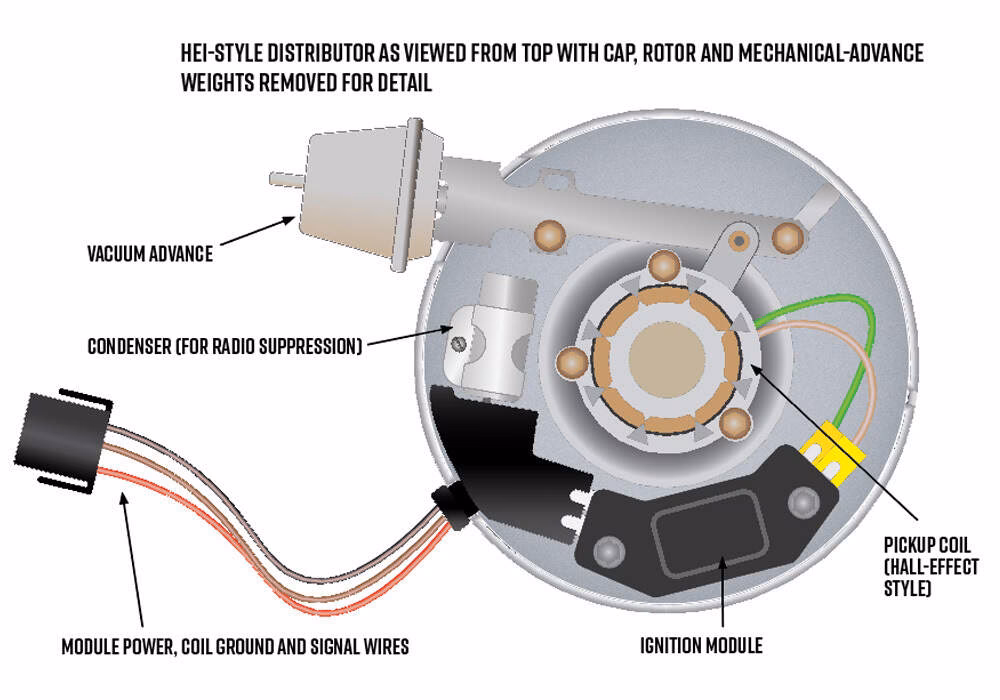

As mentioned, most new cars do not feature a traditional distributor. The industry has largely moved towards distributorless systems. However, vehicles manufactured from the mid-1980s and earlier, and many classic cars still in use today, will have a distributor. For instance, General Motors' High Energy Ignition (HEI) system, a form of electronic ignition that still used a distributor, was prevalent in GM vehicles from 1975 through the mid-1980s.

Signs Your Distributor Might Be Failing

Distributors, like any mechanical component, are subject to wear and tear. The distributor cap and rotor, in particular, are exposed to a harsh environment of heat, moisture, and vibration, which can lead to degradation over time. Recognizing the symptoms of a failing distributor is key to preventing more serious issues.

Common signs that your distributor may be going bad include:

• Check Engine Light: A malfunctioning distributor can trigger the Check Engine Light. This is often due to misfires or other ignition system faults.
• Engine Misfires: You might notice the engine running rough, stumbling, or hesitating. This happens when one or more cylinders aren't firing correctly due to a weak or misdirected spark.
• Difficulty Starting: A failing distributor can make it harder for the engine to start. You might experience a no-crank situation or the engine cranking but not firing up.
• Poor Performance: Reduced acceleration, loss of power, and decreased fuel economy can all be indicators of an ignition problem stemming from the distributor.
• Unusual Engine Noises: Sometimes, a failing distributor can contribute to knocking or pinging sounds as the combustion process is not happening as it should.
• Backfiring: Incorrect timing or a weak spark can lead to unburnt fuel igniting in the exhaust manifold, causing backfiring.

When Should a Distributor Cap and Rotor Be Replaced?

It's generally recommended to replace the distributor cap and rotor as a preventative maintenance measure. A common guideline is to replace them every 50,000 miles. However, if your vehicle doesn't cover a lot of mileage annually, it's a good practice to consider replacement every three years, as the materials can still degrade over time due to environmental exposure.

Can You Use WD-40 on a Distributor Cap?

While WD-40 is a fantastic penetrating oil and water displacer, its use on distributor caps and spark plug wires is a topic with differing opinions. Some mechanics advocate spraying it on to displace moisture and prevent corrosion, especially in damp conditions. The idea is that it can help ensure a good electrical connection and prevent misfires caused by moisture. However, it's crucial to use it sparingly and ensure it doesn't leave excessive residue that could impede electrical flow or attract dirt. It's generally considered a temporary fix or a helpful tool in very specific, damp situations, rather than a routine maintenance product.

Distributor Maintenance and Tune-Ups

The concept of a 'tune-up' has evolved significantly. In the past, tune-ups involved adjusting components like the distributor, ignition points, and carburetor, along with replacing wear items like spark plugs and condensers. Today, with electronic fuel injection and distributorless ignition, many modern cars don't require these traditional tune-ups. However, for vehicles with distributors, regular checks and maintenance are still important.

If your car has a distributor with points, these will require periodic adjustment (setting the point gap, typically around .016-.020 inches) and eventual replacement. Even electronic ignition systems within distributors benefit from checks of the cap, rotor, and spark plug wires.

How Long Do Car Distributors Last?

The lifespan of a distributor can vary. If well-maintained and not subjected to extreme conditions, a distributor can last for a considerable time. However, the cap and rotor are wear items and are typically the first to need replacement, as outlined in the preventative maintenance schedules. The internal components, if protected and properly lubricated (where applicable), can last for well over 100,000 miles. Complete distributor unit failures, while less common than cap or rotor issues, do occur, often due to bearing wear or internal electronic component failure.

Cost of Distributor Replacement

The cost to replace a distributor can vary depending on the make and model of your vehicle and your location. For a distributor cap and rotor replacement, you might expect labor costs to be in the region of £40-£60, with parts costing £30-£50. Replacing the entire distributor unit will naturally be more expensive, potentially ranging from £150 to £400 or more for parts and labor combined, especially for more complex or less common vehicles. It’s always wise to get a quote from a reputable mechanic.

Frequently Asked Questions

Q1: Do all distributors have points?
No. While early distributors relied on mechanical points and a condenser to interrupt the primary circuit of the ignition coil, later distributors, especially those with electronic ignition (like GM's HEI), use electronic components instead of points.

Q2: What voltage is needed for a spark plug?
Spark plugs typically require a voltage between 12,000 and 25,000 volts to fire, but this can increase significantly, sometimes up to 45,000 volts or more, depending on the engine's compression and the quality of the spark. The distributor's job is to deliver this high-voltage pulse.

Q3: What happens if the distributor gets wet?
If moisture gets inside the distributor cap, it can create a path for the high-voltage current to ground, bypassing the spark plugs. This can lead to misfires, rough running, or the engine stalling, especially in damp conditions. As the engine heats up, the moisture may evaporate, and the engine might run normally again.

Q4: Do fuel-injected cars use distributors?
Some older fuel-injected cars do use distributors, often with simplified electronic controls. However, most modern fuel-injected vehicles have moved to distributorless ignition systems.

Q5: Are car tune-ups still necessary?
For cars with traditional ignition systems (including distributors), tune-ups remain beneficial for maintaining optimal performance. For modern vehicles, the need for traditional tune-ups is significantly reduced, with maintenance often focused on diagnostics and replacing wear items as indicated by the vehicle's computer.

Conclusion

While the distributor may be a relic of automotive past for many, its function in older vehicles is undeniable. Understanding its role, recognizing the signs of wear, and performing appropriate maintenance will ensure that classic engines continue to run reliably. For those working on these vehicles, the distributor remains a key component to understand and maintain.
