When it comes to cycling, the wheels are often considered the unsung heroes, silently contributing to the overall performance and ride quality of your bicycle. For those who still appreciate the reliable simplicity of rim brakes, particularly on road bikes and some cyclocross machines, choosing the right carbon wheelset can make a significant difference. But what exactly elevates a good carbon rim brake wheel from the ordinary to the exceptional? It boils down to a few key considerations that impact everything from comfort to longevity. Let's delve into the core elements that define a truly superior carbon rim brake wheel.
The Magic of Lower Pressures
One of the most significant advancements in modern cycling technology has been the acceptance and embrace of lower tyre pressures. Historically, road cyclists favoured high pressures, believing it equated to speed. However, research and real-world testing have shown that lower pressures can, in fact, lead to a more comfortable ride and, crucially, fewer impedance losses. Impedance losses refer to the energy dissipated through the tyre and tube as they deform and rebound over imperfections in the road surface. When tyres are inflated to excessively high pressures, they become less compliant, bouncing off every bump rather than absorbing it. This constant jarring not only leads to rider fatigue but also translates to a loss of momentum.
Carbon rim brake wheels designed to facilitate lower pressures offer a host of benefits. Firstly, they often feature wider internal rim widths, which allow the tyre to seat more effectively and adopt a more favourable, less-squashed profile. This wider base provides a larger contact patch with the road, distributing weight more evenly and reducing the pressure exerted by the tyre on the road surface. Consequently, the tyre can deform more readily, absorbing road vibrations and small impacts that would otherwise be transmitted through the frame to the rider. This increased compliance translates directly into a smoother, more comfortable ride, especially over longer distances or on less-than-perfect tarmac.
Secondly, as mentioned, lower pressures reduce impedance losses. When the tyre deforms less drastically, less energy is wasted in the process. This means more of your pedalling effort is converted into forward motion, leading to a more efficient ride. For competitive cyclists, this can mean shaving valuable seconds off race times. For recreational riders, it translates to less effort required to maintain a given speed, making rides more enjoyable and less taxing. Therefore, a good carbon rim brake wheel will be designed with tyre compatibility in mind, allowing for the use of wider tyres (often 25mm, 28mm, or even larger) at lower pressures, thereby unlocking these performance and comfort benefits.
Durability: Withstanding the Heat and the Miles
While the aerodynamic advantages and lightweight nature of carbon fibre are well-established, one of the historical concerns with carbon wheels, particularly rim brake versions, has been their susceptibility to heat build-up. When braking, especially on long descents where the brakes are applied intermittently or continuously, friction between the brake pad and the rim generates significant heat. If this heat is not managed effectively, it can lead to the resin within the carbon layup softening, potentially causing the rim to warp or even fail – a scenario no cyclist wants to experience.
This is where the importance of superior resin technology comes into play. The best carbon rim brake wheels are constructed using advanced resins with exceptionally high melting points. These high-temperature resins are crucial for dissipating heat effectively and maintaining the structural integrity of the rim under braking stress. Manufacturers invest heavily in research and development to find and implement resins that can withstand temperatures far exceeding those generated during even the most demanding braking situations. This not only provides peace of mind for the rider but also ensures consistent braking performance, even after prolonged use on steep descents.
Beyond heat resistance, durability also encompasses the wheel's ability to withstand the general rigours of cycling. This includes resistance to impacts from potholes or road debris, as well as the stresses of cornering and general riding. High-quality carbon layups, coupled with robust hub construction and reliable spokes, contribute to an overall durable wheelset. A well-built carbon rim brake wheel should feel solid and responsive, without any flex or creaking that might indicate a weakness in its construction. The braking track itself should also be designed for longevity, offering consistent performance over many miles of use.
Key Features of a Quality Carbon Rim Brake Wheel
When evaluating carbon rim brake wheels, several specific features warrant close attention:
Rim Design and Construction
- Aerodynamics: While often associated with deeper section wheels, even shallower rims can benefit from aerodynamic profiling. Look for rims with shapes designed to minimize drag.
- Internal Rim Width: As discussed, wider internal widths (typically 19mm or more) are ideal for accommodating modern, wider tyres and enabling lower pressures.

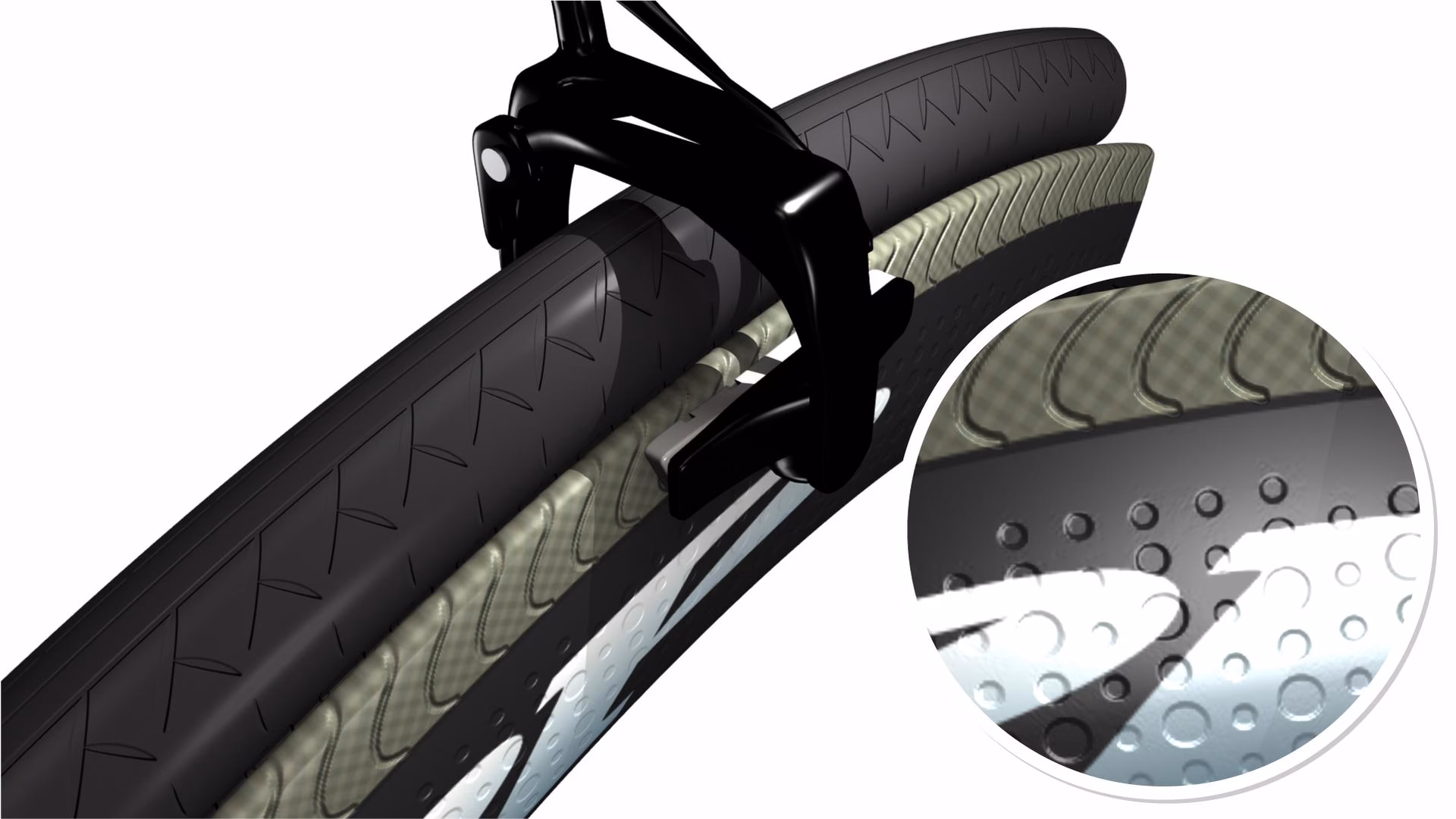

- Braking Track: The surface of the rim where the brake pads make contact is critical. High-quality wheels will have a braking track that is precisely engineered for optimal grip and heat dissipation. Some may feature textured surfaces or special coatings to enhance braking performance in various conditions.
- Carbon Layup: The way the carbon fibre is layered and cured significantly impacts the wheel's strength, stiffness, and weight. Reputable brands use sophisticated layups to balance these properties.
Hubs and Spokes
- Hub Quality: The hubs are the heart of the wheel. High-quality hubs feature smooth-spinning bearings (often ceramic or high-grade steel) and robust construction to handle the forces transmitted through the spokes.
- Spoke Count and Type: The number, type, and lacing pattern of the spokes all contribute to the wheel's stiffness, aerodynamics, and durability. Bladed or blunted spokes can offer aerodynamic benefits, while well-tensioned, strong spokes are essential for structural integrity.
- Freehub Body: Ensure the freehub body is compatible with your drivetrain (e.g., Shimano, SRAM, Campagnolo) and is robust enough to handle the torque from your cassette.
Table: Factors Affecting Carbon Rim Brake Wheel Performance
| Factor | Impact on Performance | What to Look For |
|---|---|---|
| Tyre Pressure | Comfort, Rolling Resistance, Grip | Ability to run lower pressures (wider internal rim width) |
| Rim Resin Melting Point | Braking Performance, Durability (Heat Resistance) | High-temperature resins, robust braking track |
| Internal Rim Width | Tyre Profile, Comfort, Stability | Wider is generally better (19mm+) for modern tyres |
| Hub Bearings | Rolling Efficiency, Longevity | Smooth, sealed bearings (ceramic or high-quality steel) |
| Braking Track Design | Braking Power, Modulation, Heat Dissipation | Consistent surface, good heat management properties |
Frequently Asked Questions
Q1: Can I use very low tyre pressures with carbon rim brake wheels?
A1: Yes, many modern carbon rim brake wheels are designed to accommodate wider tyres and lower pressures (e.g., 25-32mm tyres at 70-90 PSI, depending on rider weight and conditions). This enhances comfort and reduces rolling resistance. Always check the manufacturer's recommended tyre pressure range for your specific wheelset and tyre combination.
Q2: How do I maintain the braking surface on my carbon wheels?
A2: Regularly clean the braking track with a mild detergent and water to remove dirt, grit, and debris that can wear down both the rim and the brake pads. Inspect the braking track for any damage or excessive wear. Always use brake pads specifically designed for carbon rims, as using the wrong pads can damage the braking surface and compromise braking performance.
Q3: Are carbon rim brake wheels suitable for all weather conditions?
A3: While modern carbon wheels have improved significantly in wet weather performance, rim brakes, in general, can be less effective in wet conditions compared to disc brakes. The braking track can become contaminated with water and road grime, reducing friction. High-quality carbon wheels with well-designed braking tracks and appropriate brake pads will perform better, but it's always wise to exercise caution and brake earlier in wet conditions.
Q4: What is the lifespan of a carbon rim brake wheel?
A4: The lifespan of a carbon wheel can vary greatly depending on the quality of construction, the rider's weight, riding style, and maintenance. With proper care, regular inspection, and avoiding significant impacts, a well-maintained carbon wheelset can last for many thousands of miles. However, it's essential to inspect the braking track for wear and the rim for any signs of delamination or damage, especially after heavy use or impacts.
Conclusion
Choosing the right carbon rim brake wheel involves understanding the interplay between tyre pressure, resin technology, and overall build quality. By prioritising wheels that allow for comfortable, low-pressure tyre setups and are constructed with high-temperature resistant resins, you can ensure a ride that is not only faster and more efficient but also safer and more enjoyable. The evolution of carbon fibre technology has made these wheels a formidable choice for discerning cyclists, offering a compelling blend of performance, comfort, and durability.
