Understanding Your Vehicle's Oil Pan: More Than Just a Sump
The oil pan, often overlooked in the grand scheme of automotive mechanics, plays a crucial role in your engine's health and longevity. It's not just a simple container; it's a vital component of the lubrication system, housing the engine oil and ensuring it's readily available for all moving parts. Over time, or due to various external factors, the oil pan can develop issues, ranging from minor leaks caused by loose fasteners to more significant problems requiring a complete replacement. This guide will delve into the intricacies of oil pan maintenance, focusing on how to tighten a loose oil pan and the comprehensive process involved in replacing a factory oil pan, particularly within the context of popular LS engine swaps.
The Importance of a Secure Oil Pan
A properly functioning oil pan is essential for several reasons. Firstly, it acts as a reservoir for the engine's lifeblood – the oil. This oil lubricates critical engine components, reduces friction, dissipates heat, and helps keep the engine clean. Secondly, the oil pan often houses the oil pickup tube, which draws oil from the pan to the oil pump, ensuring continuous lubrication. A compromised oil pan, whether due to a leak or physical damage, can lead to low oil levels, potentially causing catastrophic engine failure. A loose oil pan, indicated by oil seepage around the gasket or bolt heads, signifies a breach in the seal that needs immediate attention.
Tightening Your Oil Pan: A Step-by-Step Approach
While tightening an oil pan might sound straightforward, it requires a methodical approach to ensure the seal is re-established without causing further damage. The process usually involves addressing the bolts that secure the pan to the engine block. However, it's crucial to understand that simply tightening bolts on a leaking oil pan might only be a temporary fix, especially if the gasket has degraded or the pan itself is warped. For minor seepage, a careful tightening procedure can sometimes resolve the issue.
Step 1: Safety First
Always ensure your vehicle is safely supported on jack stands before working underneath it. Never rely solely on a jack. Wear appropriate safety gear, including gloves and eye protection.
Step 2: Locate the Oil Pan and Bolts
The oil pan is typically located at the bottom of the engine. You'll need to identify the bolts that secure it to the engine block. These are usually arranged in a pattern around the perimeter of the pan.
Step 3: Drain the Oil (Recommended)

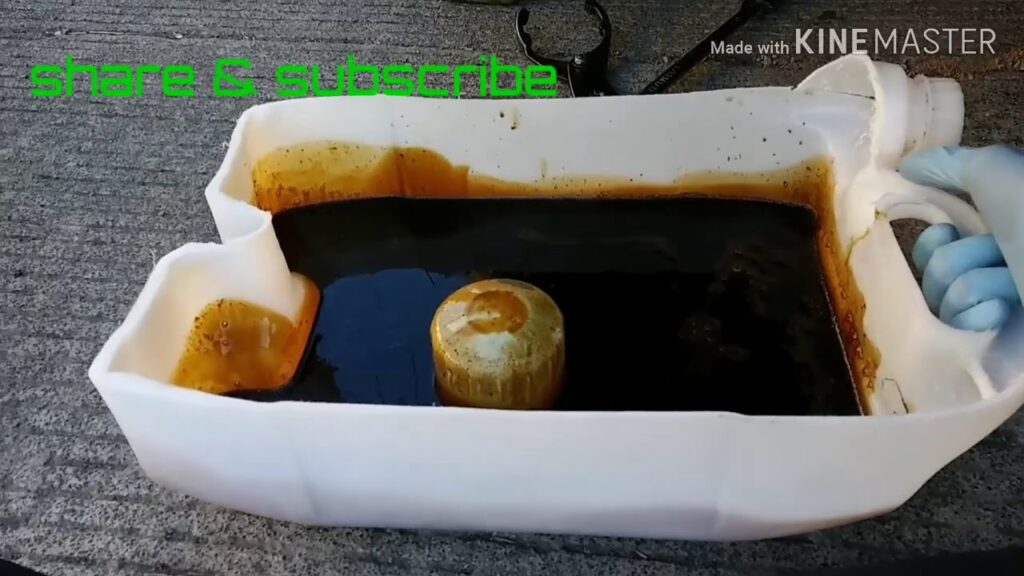

While not always strictly necessary for just tightening bolts, draining the oil first is often recommended. This prevents oil from spilling while you work and allows you to inspect the oil for any contaminants. To drain the oil, locate the drain plug on the bottom of the oil pan. Place a suitable container underneath and carefully remove the drain plug with the appropriate wrench. Allow all the oil to drain out. Once drained, reinstall the drain plug, ensuring it's snug but not overtightened.
Step 4: Tighten the Oil Pan Bolts
Using a socket wrench, systematically tighten the oil pan bolts. It's crucial to follow a specific tightening sequence, often a star or criss-cross pattern, similar to how you would tighten lug nuts on a wheel. This ensures even pressure distribution across the gasket, preventing leaks and potential warping of the pan. Do not overtighten the bolts, as this can strip the threads or damage the oil pan flange or gasket. Refer to your vehicle's service manual for the correct torque specifications and tightening sequence. If you don't have a torque wrench, tighten the bolts until they are snug, then give them a slight additional turn. If you are experiencing leaks, it's often a sign that the gasket needs replacement rather than just tightening the bolts.
Step 5: Refill and Check for Leaks
After tightening the bolts, refill the engine with the correct type and amount of engine oil. Start the engine and let it run for a few minutes, allowing the oil to circulate. Check the oil pan area for any signs of seepage or leaks. If leaks persist, it's highly probable that the oil pan gasket requires replacement.
Replacing Your Factory Oil Pan: A More Involved Process
Replacing an oil pan is a more labour-intensive task than simply tightening bolts. It often involves lifting the engine, disconnecting various components, and ensuring a perfect seal with a new gasket. This is particularly true when discussing engine swaps, where the factory oil pan might not be compatible with the new chassis or engine mounts.
The Challenge of LS Swaps and Oil Pan Fitment
When undertaking an LS engine swap, one of the most common challenges encountered is oil pan fitment. LS engines, known for their power and versatility, come with a variety of oil pan designs, each intended for specific applications. The relationship between the engine mounts, the front crossmember, and the overall chassis design dictates which oil pan will fit without modification. This is where confusion often arises, as different motor mount kits and chassis configurations can significantly impact oil pan clearance.
Key Factors in LS Oil Pan Selection:
- Crossmember Clearance: The primary concern is ensuring the oil pan clears the front crossmember. The depth and shape of the oil pan's sump are critical.
- Ground Clearance: Especially in lowered vehicles, the sump's depth can lead to insufficient ground clearance, making it vulnerable to damage from road debris.
- Motor Mounts: The type and position of motor mounts significantly influence how the engine sits in the chassis, directly affecting oil pan clearance.
- Transmission Compatibility: While not directly related to the pan itself, the chosen transmission and its mount can impact the engine's overall angle and position, influencing pan fitment.
- Sump Depth and Location: Pans can have front, rear, or centre sumps, each with different clearance requirements.
Popular Stock Oil Pans for LS Swaps:
Several factory LS oil pans have become popular choices for engine swaps due to their proven fitment in a variety of applications:
| Oil Pan Type | Vehicle Origin | Key Features & Fitment Notes |
|---|---|---|
| F-Body Camaro/Firebird (1998-2002) | Camaro, Firebird | Most common for swaps. Rear sump (5" deep). Can require modification for some chassis, especially older GM vehicles. Often fits C2/C3 Corvettes unmodified. |
| C/K Truck (2002-2006) | Silverado, Sierra, Escalade | Rear sump (8.25" deep). Long, shallow front section. Excellent for trucks, but the deep rear sump can cause clearance issues in cars. |
| C5 Corvette “Y” (Batwing) | C5 Corvette | Shallow pan with side kickouts. Ideal for Mustang II style suspensions and custom street rod frames. Prevents interference with wider crossmembers. |
| Cadillac CTS-V (2004-2007, 2009-up) | Cadillac CTS-V | A good compromise between F-Body and Truck pans. Rear sump (5.5" deep). Often fits GM A-bodies and G-bodies with minimal overhang. |
| Hummer H3 Alpha (LH8) | Hummer H3 | Long, shallow front section clears many crossmembers. However, the 7.5" deep rear sump can cause ground clearance problems in lowered vehicles. |
Considerations for Specific Swaps:
Modifying Stock Pans: In some cases, stock oil pans can be modified. This might involve notching the crossmember and reinforcing it, or cutting and re-welding sections of the oil pan itself. However, this requires welding expertise and careful measurement to avoid compromising the pan's integrity or sealing capabilities.
Aftermarket Oil Pans: For many challenging swaps, aftermarket oil pans are the preferred solution. These are specifically designed to provide optimal clearance and ground height for particular chassis and engine combinations. Brands like Holley, Canton Racing, and Milodon offer a wide range of LS-specific oil pans, often fabricated from steel or aluminum for durability and weight savings.
Essential Components with an Oil Pan:
When selecting an oil pan, it's vital to ensure it comes with, or you have, the correct accompanying parts:
- Oil Pickup Tube: This must be matched to the oil pan's depth and design to ensure proper oil pickup.
- Windage Tray: This deflects oil that has been thrown around by the rotating crankshaft, improving oil control and preventing aeration.
- Dipstick and Tube: The dipstick and its mounting location must be compatible with the chosen oil pan. Some pans have the dipstick tube integrated into the pan itself, while others use the block-mounted provision.
The Replacement Procedure: A General Overview
Replacing an oil pan typically involves these steps:
- Safely lift and support the vehicle.
- Drain the engine oil.
- Remove any components obstructing access to the oil pan (e.g., exhaust components, starter motor, sway bar).
- Support the engine using an engine hoist or support bar, as the engine mounts might need to be loosened or removed.
- Unbolt the old oil pan from the engine block. This can sometimes be tricky, as the pan might be held in place by RTV sealant or a gasket.
- Clean the engine block's oil pan sealing surface meticulously. Remove all traces of the old gasket and sealant.
- Prepare the new oil pan: Install the new oil pickup tube, windage tray, and dipstick tube if applicable. Ensure all these components are correctly seated.
- Apply a new oil pan gasket and/or RTV sealant according to the manufacturer's instructions.
- Carefully position the new oil pan and start threading the bolts by hand to ensure they don't cross-thread.
- Tighten the oil pan bolts in the correct sequence and to the specified torque.
- Reinstall any removed components.
- Refill the engine with the correct type and amount of oil.
- Start the engine and check thoroughly for leaks.
Oil Coolers and Temperature Management
Maintaining optimal oil temperature is crucial for engine health, especially in high-performance applications or vehicles subjected to demanding use. Engine oil operates most efficiently within a specific temperature range, typically suggested by manufacturers to be between 220°F and 240°F. Temperatures exceeding 250°F can lead to oil breakdown, significantly reducing its lifespan and lubricating properties. Conversely, oil that is too cool can increase viscosity, leading to greater internal friction, reduced power output, and potential for inadequate lubrication due to slower oil flow. Furthermore, cooler oil temperatures may not reach the necessary threshold to burn off contaminants like fuel and water, which can be particularly detrimental in turbocharged engines where oil also serves a cooling function for the turbocharger itself.
Adding an oil cooler is a common method to manage oil temperature. However, simply fitting an in-line cooler without considering temperature regulation can result in the oil running too cool. This is where a thermostatic bypass becomes invaluable. Factory LS oil pans often feature a bypass port designed for this purpose. A thermostatic bypass allows oil to circulate through the cooler only when it reaches a predetermined temperature (typically around 180°F to 200°F), enabling the engine to warm up efficiently. Once the oil reaches the target temperature, the bypass opens, allowing oil to flow through the cooler for temperature regulation. This ensures the oil is neither too cool nor too hot, promoting optimal engine performance and longevity.
Cooler and Filter Location:
The placement of the oil cooler is usually in front of the radiator or air conditioning condenser to benefit from airflow. However, other locations are possible as long as adequate airflow is maintained. Remote oil filters, often necessitated by aftermarket oil pans, require careful consideration for their mounting location to ensure easy access for maintenance and protection from road hazards. Braided lines are often used for their durability and aesthetic appeal.
Frequently Asked Questions
Q1: How often should I check my oil pan for leaks?
A1: It's good practice to visually inspect your oil pan for leaks during regular maintenance, such as during oil changes. Any new or worsening oil spots under your vehicle should be investigated promptly.
Q2: Can I just tighten the oil pan bolts if I see a small leak?
A2: While tightening the bolts might temporarily stop a minor leak, it's often a sign that the oil pan gasket is failing. If tightening doesn't resolve the leak, the gasket will likely need replacement.
Q3: What are the common causes of oil pan damage?
A3: The most common cause is impact with road debris, speed bumps, or curbs, especially in vehicles with low ground clearance or lowered suspensions. Improper jacking or lifting can also damage the pan.
Q4: Do all LS swap oil pans require a remote oil filter?
A4: Many aftermarket LS swap oil pans are designed to use a remote oil filter setup. However, some aftermarket pans are designed to retain the factory-style oil filter mount, so it's important to check the product specifications.
Q5: Is it possible to reuse an old oil pan gasket?
A5: It is strongly advised against reusing an old oil pan gasket. Gaskets are designed for a single installation and can become brittle or compressed over time, compromising the seal.
By understanding the critical role of your oil pan and following proper maintenance procedures, you can help ensure the optimal performance and longevity of your engine. Whether it's a simple tightening or a more involved replacement, paying attention to this often-underestimated component is key to a healthy vehicle.
