Diesel engines have powered countless vehicles for decades, renowned for their immense torque and impressive fuel efficiency. A cornerstone technology behind their consistent performance and ongoing evolution is direct injection, a sophisticated fuel delivery system that has been meticulously refined over many years. This method ensures fuel is delivered precisely where and when it’s needed, optimising the combustion process for unparalleled power and economy.
Unlike older, indirect injection systems where fuel was introduced into a pre-combustion chamber, direct injection means the fuel is sprayed directly into the main combustion chamber of each cylinder. This crucial difference allows for far greater control over the combustion event, leading to significant advancements in diesel engine performance, emissions, and overall refinement. It's a technology that fundamentally reshaped what diesel engines are capable of.
- A Brief History of Diesel Direct Injection
- The Heart of the System: The High-Pressure Fuel Pump
- Precision Delivery: The Injectors
- The Combustion Event: Faster, Quieter, More Powerful
- Advantages of Direct Injection in Diesel Engines
- The Evolution: Common Rail Direct Injection (CRDI)
- Direct Injection vs. Indirect Injection: A Comparison
- Maintaining Your Direct Injection Diesel Engine
- Frequently Asked Questions (FAQs)
- Q: Can I use direct injection on a petrol engine?
- Q: What is 'diesel knock' and does direct injection reduce it?
- Q: Are direct injection diesel engines more expensive to maintain?
- Q: How does the 'positive displacement' pump work like a four-stroke engine?
- Q: What happens if an injector fails in a direct injection system?
A Brief History of Diesel Direct Injection
Direct injection isn't a new concept in the world of diesel engines; in fact, its fundamental principles have been a part of diesel engine design since the 1950s. Early systems laid the groundwork for the highly advanced direct injection engines we see on our roads today. The core idea – injecting fuel directly into the cylinder – has remained constant, but the precision, control, and efficiency with which this is achieved have evolved dramatically, transforming noisy, smoky engines into clean, powerful workhorses.
The Heart of the System: The High-Pressure Fuel Pump
This is where direct injection truly distinguishes itself and showcases its engineering brilliance. The system relies on an incredibly robust, positive displacement fuel pump. Imagine a miniature, highly precise engine itself, but instead of burning fuel, it's meticulously pumping it. This pump is engineered to generate immense and stable fuel pressures, which are absolutely essential for overcoming the extreme compressive forces within the cylinder. Without this immense pressure, the rising piston's compression would simply push air back into the fuel line rather than allowing fuel to be injected.
The pump ensures that fuel is forced into the chamber against pressures that can reach thousands of pounds per square inch (or hundreds of bar), precisely at the moment the piston reaches its peak compression. This consistent and powerful delivery of fuel is paramount to the efficiency and power output of a direct injection diesel engine.

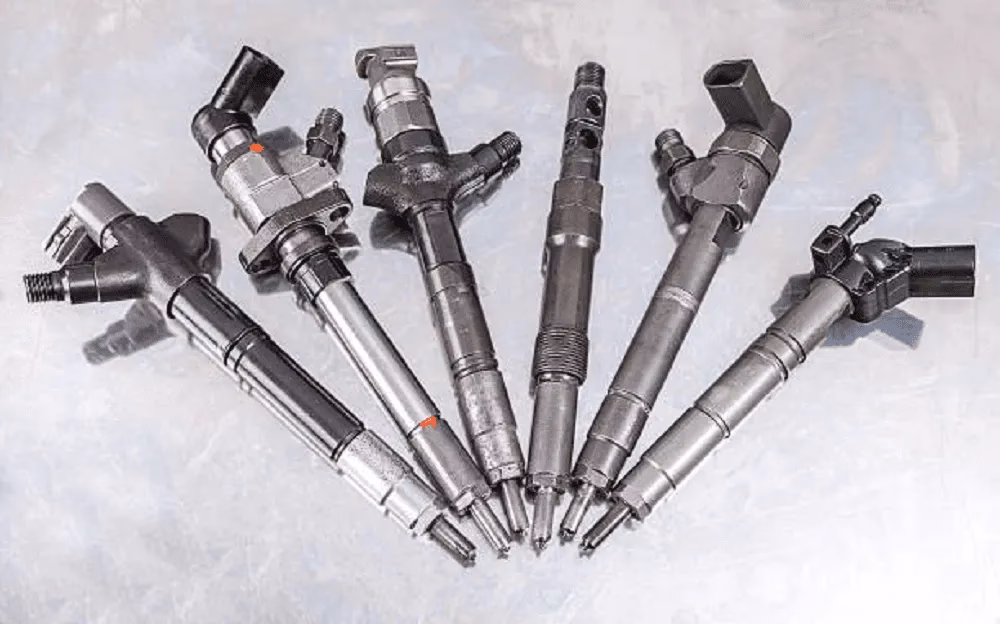

Precision Delivery: The Injectors
Mounted directly in the cylinder head, often positioned where a spark plug would be found in a petrol engine, these injectors are the final delivery point for the fuel. They are designed to withstand the harsh, high-pressure, and high-temperature environment of the combustion chamber while precisely atomising and spraying a finely misted charge of diesel. The ability to introduce a large, finely atomised quantity of fuel quickly and efficiently is vital for rapid and complete combustion, which directly contributes to the engine's power, efficiency, and reduced emissions.
The Combustion Event: Faster, Quieter, More Powerful
The direct injection system's ability to precisely time the fuel delivery – just as the piston reaches top dead centre (TDC) – significantly enhances the combustion process. This timing is critical. As the fuel is injected into the highly compressed, hot air, it ignites almost instantly, leading to a much faster and more complete burn. This rapid and controlled combustion results in a more efficient conversion of fuel energy into mechanical power.
Furthermore, the direct and controlled injection often contributes to a quieter engine operation compared to some older indirect injection designs, as the combustion event is more contained and predictable, reducing the characteristic 'diesel knock'.
Advantages of Direct Injection in Diesel Engines
- Enhanced Fuel Efficiency: By injecting fuel directly into the combustion chamber, fuel consumption is optimised. Less heat is lost to the cylinder walls, and the fuel burns more completely, leading to better mileage figures.
- Increased Power Output: The precise control over fuel delivery and combustion timing allows for more effective energy release, resulting in higher torque and horsepower figures for a given engine size.
- Reduced Emissions: More complete combustion means fewer unburnt hydrocarbons and particulate matter, contributing significantly to cleaner exhaust emissions. Modern direct injection systems, especially Common Rail, are instrumental in meeting stringent emission standards.
- Improved Cold Starting: Direct injection often allows for easier and quicker cold starts due to the direct ignition of fuel within the hot, compressed air, even in colder climates.
- Better Throttle Response: The immediate and direct nature of fuel delivery contributes to a more responsive engine feel, making the vehicle more pleasant to drive.
The Evolution: Common Rail Direct Injection (CRDI)
While the fundamentals of direct injection have been around for decades, the technology has undergone significant evolution. The most prominent advancement, and what powers most modern diesel vehicles, is the Common Rail Direct Injection (CRDI) system. In CRDI, a single high-pressure pump supplies fuel to a common 'rail' or accumulator, which maintains extremely high pressure (often exceeding 2,000 bar or 29,000 psi) regardless of engine speed or load.
From this common rail, electronically controlled injectors deliver fuel to each cylinder. This electronic control allows for multiple, precise injection events per combustion cycle (e.g., pilot, main, and post-injections). These multi-stage injections further optimise combustion, significantly reduce engine noise, and drastically lower emissions. It’s this multi-stage injection capability, combined with ultra-high pressures, that truly sets modern direct injection systems apart from their predecessors.
Direct Injection vs. Indirect Injection: A Comparison
To better understand the advancements, here's a brief comparison between direct and indirect injection systems:
| Feature | Direct Injection (DI) | Indirect Injection (IDI) |
|---|---|---|
| Fuel Delivery Location | Directly into main combustion chamber | Into a pre-combustion chamber or swirl chamber |
| Fuel Pressure Required | Very High (e.g., 500-2000+ bar) | Lower (e.g., 100-200 bar) |
| Combustion Efficiency | Higher, more complete combustion | Slightly lower, some heat loss |
| Fuel Economy | Superior | Good, but less efficient than DI |
| Power Output | Higher specific power | Lower specific power |
| Noise Levels | Generally quieter (especially CRDI) | Often louder, more 'diesel knock' |
| Emissions | Lower emissions, easier to control | Higher particulate and NOx emissions |
| Cold Starting | Generally better | Can be more challenging, often requires glow plugs for longer |
| Complexity | More complex, higher manufacturing cost | Simpler, lower manufacturing cost |
Maintaining Your Direct Injection Diesel Engine
While robust and designed for longevity, these sophisticated systems benefit immensely from proper maintenance. Always use high-quality diesel fuel from reputable sources, as impurities can severely damage the precision components of the fuel pump and injectors. Regular fuel filter replacement is absolutely crucial to protect these expensive parts from contaminants and water. Adhering strictly to manufacturer-recommended service intervals for oil changes and other maintenance items will also significantly contribute to the longevity and optimal performance of your direct injection diesel engine.
Frequently Asked Questions (FAQs)
Q: Can I use direct injection on a petrol engine?
A: Yes, direct injection is also widely used in modern petrol (gasoline) engines, commonly known as GDI (Gasoline Direct Injection) or FSI (Fuel Stratified Injection). While the principles and components are adapted for petrol, it offers similar benefits in terms of efficiency, power, and emissions control.
Q: What is 'diesel knock' and does direct injection reduce it?
A: 'Diesel knock' is the characteristic rattling sound of a diesel engine, caused by the rapid, uncontrolled ignition of fuel. Modern direct injection systems, especially Common Rail with its multiple, precisely timed injection events, significantly reduce this by better controlling the combustion process. This leads to a smoother, quieter, and more refined engine operation.
Q: Are direct injection diesel engines more expensive to maintain?
A: The components like the high-pressure pump and injectors are highly engineered and can be expensive to replace if they fail. However, with proper maintenance, adherence to service schedules, and the use of good quality fuel, they are designed for exceptional longevity. Routine maintenance costs are generally comparable to other modern, complex engine designs.
Q: How does the 'positive displacement' pump work like a four-stroke engine?
A: It doesn't literally burn fuel, but its internal mechanism mimics the piston-and-cylinder arrangement found in a four-stroke engine. It uses a piston (or multiple plungers) moving within a precisely machined bore to draw in and then forcefully expel a fixed volume of fuel with each stroke. This mechanical action creates the necessary high pressure, differing from centrifugal pumps which rely on impeller speed to generate pressure.
Q: What happens if an injector fails in a direct injection system?
A: A faulty injector can lead to various noticeable issues, including misfires, reduced engine power, increased fuel consumption, rough idling, excessive smoke from the exhaust (which may be black, white, or blue depending on the fault), and even engine warning lights illuminating on your dashboard. It's crucial to address injector issues promptly to prevent further damage to the engine's internal components, such as pistons or catalytic converters.
