Every sturdy structure, from a simple garden patio to a bustling motorway, relies on one fundamental element: its foundation. And at the heart of many durable foundations in the UK lies a robust sub-base, often specified as MOT Type 1. But what exactly is MOT Type 1 sub-base, why is it so vital, and how do recycled aggregates play a pivotal role in modern construction? This comprehensive guide will delve into these essential materials, their applications, and the significant advantages they offer, ensuring your next project stands the test of time and traffic.
The Unsung Hero: What is a Sub-Base and Why is it Essential?
At its core, a sub-base is a crucial layer of aggregate material laid beneath the surface course of a road, driveway, patio, or any paved area. Its primary function is multifaceted: it provides a stable, supporting layer for the overlying surfaces and, critically, helps to spread the load evenly over the subgrade – the natural ground beneath. Without an adequate sub-base, the weight of vehicles or heavy foot traffic would concentrate directly onto the natural ground, leading to uneven settlement, cracks, and premature failure of the surface. Imagine trying to build a house on quicksand; the sub-base prevents this by creating a firm, consistent platform.
For any project involving paving that will bear a significant load or experience heavy foot traffic – such as driveways, car parks, or even substantial garden paths – having a well-constructed sub-base is not just advised, it's absolutely essential. It acts as a drainage layer, preventing water accumulation that can undermine the structure, and also helps to prevent frost heave, a phenomenon where water freezing in the ground causes surfaces to lift and crack. In essence, the sub-base is the hidden strength that underpins the longevity and integrity of your paved surfaces.

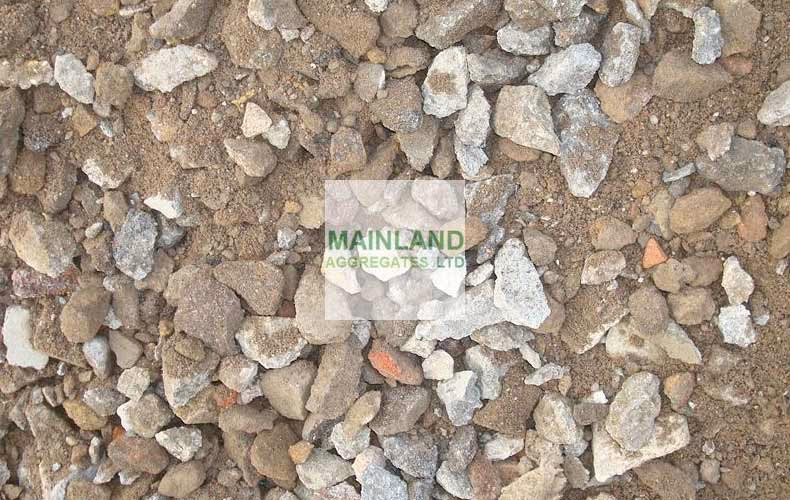

Understanding MOT Type 1 Sub-Base: The Gold Standard
When it comes to sub-base materials, MOT Type 1 is widely considered the industry standard in the United Kingdom, particularly for projects requiring compliance with Department of Transport (DoT) specifications. The 'MOT' in its name stands for Ministry of Transport, reflecting its approval for use in the construction of pavements and highways. This designation signifies that the material meets stringent quality and grading requirements outlined in the Specification for Highway Works 803.
MOT Type 1 sub-base is specifically graded to 40mm to dust. This particular grading is crucial; it means the aggregate contains a mixture of stone sizes, from particles as large as 40mm down to fine dust. This varied particle size distribution allows for high compatibility and interlocking when compacted, creating an exceptionally dense and stable layer. The presence of 'fines' (the dust particles) fills the voids between the larger stones, binding the material together and enhancing its load-bearing capabilities and resistance to water penetration. Whether it's a new road, a commercial car park, or a robust residential driveway, MOT Type 1 provides the unyielding foundation necessary for high-performance surfaces.
Recycled Aggregates: A Sustainable and Smart Choice
In an era of increasing environmental awareness and resource conservation, recycled aggregates have emerged as a cornerstone of sustainable construction. This term refers to materials that have been repurposed from construction and demolition waste. Instead of being sent to landfill, materials like asphalt, brick, and concrete are collected, processed, and given a new life. These waste products are meticulously crushed, mixed, and graded to meet specific requirements for various construction applications, including sub-bases.
The benefits of utilising recycled aggregates extend far beyond mere waste diversion. Firstly, and perhaps most significantly, their use protects natural resources and environments. The extraction and production of primary, or quarried, aggregates involve extensive quarrying operations that can significantly impact landscapes and local ecosystems. By choosing recycled options, the demand for new quarrying is reduced, preserving natural habitats and finite geological resources. Secondly, recycled aggregates often present a more economical option. Since their production does not involve the energy-intensive process of quarrying, they are typically a cheaper alternative to traditional quarried materials, making them ideal for projects operating under budget constraints. Furthermore, recycled aggregates often come from local demolition projects, reducing the environmental impact and cost associated with long-distance transportation from quarries.
6F2 vs. Recycled Type 1: Understanding the Nuances
While both 6F2 and Recycled Type 1 are by-products of demolition and play crucial roles in construction, they serve different primary purposes due to their composition and grading. Understanding these differences is key to selecting the right material for your specific project.
6F2, often known as 'crusher run' or sometimes referred to as 6F5 when delivered to site, is a coarse aggregate material. It's a combination of mortar, crushed hardcore, and concrete work, typically varying in size from 75mm down to dust. Its coarser nature and larger maximum aggregate size make it excellent for:
- Bulk Fill: Ideal for levelling out large areas on building projects, filling trenches, or raising ground levels.
- Temporary Hard Standing: Provides a robust, temporary surface for construction vehicles or site compounds.
- Firming Up Areas: Effective in areas prone to water retention, helping to create a stable, drier base.
- Underlying Layer: Can be used as a substantial initial layer beneath finer materials like Type 1 crushed/primary aggregates.
Recycled Type 1, as discussed, is also a combination of mortar, crushed hardcore, and occasionally asphalt, but it is specifically processed and graded to meet the stringent MOT Type 1 specification. This means it is graded to 40mm to dust, resulting in a much finer and more compactable material. Its primary use is to create a sturdy, highly compactable surface suitable for load-bearing applications.
Here's a comparative overview:
| Feature | 6F2 (Crusher Run) | Recycled Type 1 |
|---|---|---|
| Composition | Mortar, crushed hardcore, concrete | Mortar, crushed hardcore, occasionally asphalt |
| Grading (Size Range) | 75mm to dust | 40mm to dust |
| Primary Use | Bulk fill, temporary surfaces, firming up, underlying layer | Sub-base for pavements, driveways, high-load areas |
| Compaction | Good for bulk, less dense than Type 1 | Highly compactable, creates dense, sturdy surface |
| MOT Approval | Generally not MOT approved for main sub-base layers | MOT approved (Specification for Highway Works 803) |
| Cost | Often slightly cheaper for bulk fill | Cost-effective alternative to primary Type 1 |
Applications: Where Do These Aggregates Shine?
Both MOT Type 1 and its recycled counterpart, along with 6F2, have diverse applications across various construction and landscaping projects:
- Driveways and Patios: MOT Type 1 is the go-to choice for creating a robust sub-base for driveways, especially those anticipating heavy vehicle traffic, or patios that will bear significant weight or frequent use. The high compatibility ensures a stable, long-lasting surface that resists rutting and settlement.
- Highways and Pavements: As its name suggests, MOT Type 1 is approved and widely used in the construction and repair of public roads, footpaths, and other transport infrastructure where adherence to strict standards is paramount.
- Industrial and Commercial Hardstandings: For areas requiring exceptional load-bearing capacity, such as lorry parks, factory yards, or temporary construction access roads, a thick layer of compacted MOT Type 1 is indispensable.
- Drainage Projects: While not primarily a drainage aggregate, the excellent compaction properties of Type 1 can contribute to stable foundations for drainage systems, preventing movement and ensuring their longevity. 6F2, with its coarser nature, can also be useful in certain drainage applications where larger voids are beneficial.
- General Building Foundations: Both materials can be used for levelling and firming up ground beneath smaller domestic building foundations or shed bases, providing a stable platform.
The choice between them often hinges on the project's specific requirements for load-bearing, drainage, and budget. If the job does not explicitly demand specific quality regulations in accordance with local council rules for public works, then a standard or recycled sub-base aggregate can be a perfectly suitable and often more economical option.
Choosing the Right Sub-Base for Your Project
Making the right choice of sub-base material is crucial for the success and longevity of your project. Consider the following factors:
- Load Bearing Requirements: For surfaces that will endure heavy loads, such as driveways, commercial yards, or public footpaths, MOT Type 1 (whether primary or recycled) is the superior choice due to its proven compaction and load-spreading capabilities.
- Regulatory Compliance: If your project falls under local council regulations or Department of Transport specifications (e.g., public roads, new developments), then MOT Type 1 is typically a mandatory requirement.
- Budget Constraints: If your project is under a low budget, recycled aggregates offer a highly cost-effective alternative to regular quarried aggregates without compromising on performance. They are just as effective and durable as natural quarried materials.
- Environmental Impact: Opting for recycled aggregates significantly reduces your project's environmental footprint by diverting waste from landfill and decreasing the demand for virgin quarrying. This aligns with modern sustainable construction practices.
- Project Type: For bulk filling, creating temporary access, or firming up water-prone areas, 6F2 (crusher run) might be the more appropriate and cost-effective solution due to its larger aggregate size and specific properties.
Remember, the quality of your sub-base directly impacts the final surface. Investing in the correct material and proper installation techniques will save you time, money, and hassle in the long run.
Laying a Sub-Base: A General Overview
While this article focuses on the materials themselves, a brief understanding of the laying process reinforces their importance. Once the area is excavated and the subgrade prepared (often with a geotextile membrane), the chosen sub-base material is laid in layers. Each layer must be thoroughly compacted using a plate compactor or roller. This compaction is critical to achieve the desired density, stability, and load-bearing capacity. Proper drainage considerations, including adequate falls and potential use of drainage channels, should also be integrated into the design. The goal is to create a firm, level, and well-drained base that will support the subsequent layers, whether they are block paving, asphalt, or concrete.
Frequently Asked Questions About Sub-Bases and Aggregates
Q: Is recycled MOT Type 1 as good as primary (quarried) MOT Type 1?
A: Yes, absolutely. Recycled MOT Type 1 is processed and graded to meet the exact same Specification for Highway Works 803 as primary MOT Type 1. This means it performs just as effectively in terms of load-bearing, compaction, and durability. The main difference lies in its sustainable origin.
Q: What's the main difference between 6F2 and MOT Type 1?
A: The primary difference is their grading and intended use. 6F2 is coarser (up to 75mm to dust) and is typically used for bulk fill, temporary surfaces, or as a coarser underlying layer. MOT Type 1 is finer (40mm to dust) and is specifically designed and approved for creating highly compactable, load-bearing sub-bases for permanent paved surfaces like roads and driveways.
Q: Can I use recycled aggregates for my new driveway?
A: Yes, certainly! Recycled MOT Type 1 is an excellent and highly recommended choice for driveways. It provides a robust, durable, and cost-effective sub-base, performing identically to quarried Type 1, while also offering significant environmental benefits.
Q: How thick should my sub-base be?
A: The ideal thickness of your sub-base depends on the anticipated load and the nature of the subgrade. For a standard domestic driveway, a compacted depth of 150-200mm (6-8 inches) of MOT Type 1 is often recommended. For heavier loads or commercial applications, greater depths may be required. Always consult with a professional or refer to relevant building regulations for specific project requirements.
Q: Are recycled aggregates always cheaper?
A: Generally, yes. Because recycled aggregates utilise existing waste materials and bypass the energy-intensive quarrying process, they are typically more cost-effective than virgin quarried materials. Additionally, sourcing them from local demolition projects can reduce transport costs, further contributing to savings.
Conclusion
The foundation of any successful construction or landscaping project lies quite literally in its sub-base. Understanding the role of materials like MOT Type 1 sub-base and the benefits of recycled aggregates is crucial for making informed decisions that impact both the immediate success and the long-term durability of your work. Whether you're building a new driveway, laying a patio, or contributing to a larger infrastructure project, choosing the right material ensures a stable, resilient, and enduring result. By embracing recycled aggregates, you not only secure a high-quality foundation but also contribute positively to environmental sustainability, making your project a testament to smart, responsible construction.
