Renault CAN Systems: Diagnostic vs. Multimedia

Modern Renault vehicles are sophisticated machines, relying on intricate electronic networks to function seamlessly. Gone are the days of simple wiring harnesses; today, your car is a complex web of interconnected computers, known as Electronic Control Units (ECUs), all communicating via various Controller Area Network (CAN) bus systems. Understanding these networks is paramount for effective diagnosis and maintenance. While you might know about the OBD-II port for diagnostics, did you know your Renault likely uses multiple CAN buses, each with a distinct purpose? This article delves into the critical distinction between your Renault's Motor Diagnostic CAN and its Multimedia CAN, shedding light on their functions, importance, and how they impact your vehicle's operation and repair.

At its core, a CAN Bus is a robust vehicle bus standard designed to allow microcontrollers and devices to communicate with each other in applications without a host computer. It's a message-based protocol, meaning that messages are broadcast onto the bus, and any device can read them. This eliminates the need for vast amounts of individual wiring, simplifying vehicle architecture and reducing weight. Instead of a dedicated wire for every signal, multiple signals share the same two wires (CAN High and CAN Low), significantly streamlining the electrical system.

The Motor Diagnostic CAN: The Vehicle's Lifeline

The Motor Diagnostic CAN, often referred to as the Powertrain CAN or High-Speed CAN, is the backbone of your Renault's most critical operational systems. This network handles communication for components that are directly responsible for the vehicle's movement, safety, and core functionality. It's a high-priority, high-speed network designed for rapid and reliable data exchange where even milliseconds of delay could have significant implications.

On this bus, you'll find ECUs that control vital functions such as the engine, transmission, braking, and safety systems. Key modules connected to the Motor Diagnostic CAN typically include:

• Engine Control Unit (ECU): Manages fuel injection, ignition timing, emissions, and overall engine performance.
• Transmission Control Unit (TCU): Controls gear shifts, clutch engagement, and transmission fluid pressure.
• Anti-lock Braking System (ABS) / Electronic Stability Program (ESP) Module: Monitors wheel speed, controls braking pressure, and helps maintain vehicle stability.
• Airbag Control Unit (ACU): Manages airbag deployment and crash sensor data.
• Power Steering Control Module: Assists with steering effort and sometimes integrates with advanced driver-assistance systems.
• Body Control Module (BCM) (for critical functions): While the BCM often bridges multiple networks, its safety-critical functions (e.g., immobiliser, central locking related to engine start) often reside on or communicate directly with the diagnostic CAN.

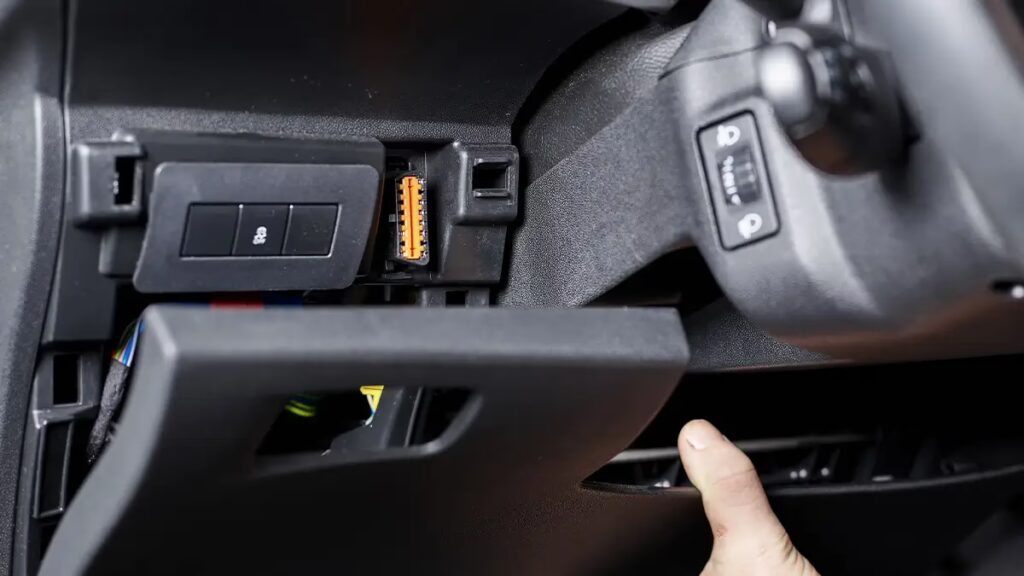

When you connect a diagnostic tool to your Renault's OBD-II port, you are primarily accessing this Motor Diagnostic CAN. This allows mechanics and advanced DIYers, using tools like the Haynes Autofix system, to retrieve Diagnostic Trouble Codes (DTCs), monitor live data streams (e.g., engine RPM, sensor readings), perform system tests, and reset warning lights. Due to the safety-critical nature of the systems it controls, the Motor Diagnostic CAN is designed for extreme robustness and reliability. A fault on this bus can directly impact the vehicle's drivability and safety, often triggering dashboard warning lights and potentially putting the car into 'limp home' mode.

The Multimedia CAN: Comfort and Convenience

In contrast to the Motor Diagnostic CAN, the Multimedia CAN, often referred to as the Comfort CAN or Low-Speed CAN, handles communication for less safety-critical, but equally important, comfort and infotainment systems. While still a vital part of the vehicle's overall operation, a malfunction on this bus is unlikely to prevent the car from driving safely.

This network connects various ECUs responsible for enhancing the driving experience and providing convenience features. Modules typically found on the Multimedia CAN include:

• Infotainment System Head Unit: Controls the radio, CD player, USB input, and often integrated navigation.
• Display Screen Module: Manages the visual output for navigation, media, and vehicle settings.
• Climate Control Module: Regulates heating, ventilation, and air conditioning.
• Parking Assist Modules: Sensor data for parking aids and reversing cameras.
• Central Locking System Module (for non-critical functions): Controls door locks, electric windows, and mirrors.
• Instrument Cluster (for non-critical data): Displays information like fuel level, external temperature, and trip computer data, often receiving some of this via the multimedia CAN or a gateway from the diagnostic CAN.

Diagnostics on the Multimedia CAN focuses more on user experience issues – for example, a non-responsive touchscreen, malfunctioning parking sensors, or issues with the radio. While diagnostic tools can access this bus to read fault codes related to these systems, the implications for vehicle operation are generally less severe than those on the Motor Diagnostic CAN. The data rates on this bus are typically lower, as the information exchanged (e.g., a button press for volume control) doesn't require the same instantaneous response as engine management data.

Key Differences Summarised

To better understand the distinction, here's a comparative table outlining the core differences between these two vital Renault CAN bus systems:

Why Multiple CAN Buses?

The implementation of multiple CAN buses in modern Renaults, and indeed most contemporary vehicles, is a strategic design choice driven by several crucial factors:

• Safety and Redundancy: The most important reason is to isolate critical systems from non-critical ones. If a fault occurs in the infotainment system on the Multimedia CAN, it should not, under any circumstances, affect the operation of the brakes or the engine. Separating these networks ensures that a single point of failure in a non-essential system doesn't compromise vehicle safety.
• Bandwidth Management: Different systems generate and require different amounts of data at varying speeds. The engine ECU, for example, needs to send and receive hundreds of messages per second to ensure optimal performance. Placing high-bandwidth, high-priority traffic on its own dedicated bus prevents it from being delayed or overwhelmed by less time-sensitive data from, say, the radio.
• Cost and Complexity: While it might seem counter-intuitive, using multiple, optimised CAN buses can sometimes reduce overall system complexity and cost. Modules can be designed with specific bus interfaces, and wiring can be tailored to the requirements of each network, rather than forcing all modules onto a single, overly complex bus that would need to accommodate all possible data rates and criticality levels.
• Modularity and Scalability: Separating functions into different bus systems makes it easier for manufacturers to add or remove features, upgrade components, or even develop new vehicle variants without redesigning the entire electrical architecture from scratch.

Impact on Diagnostics and Repair

For anyone working on a Renault, whether a professional mechanic or a confident home DIYer, understanding the distinction between these CAN bus systems is vital. When a dashboard warning light illuminates or a system malfunctions, knowing which CAN bus is likely involved can significantly narrow down the diagnostic process.

• If you have an engine management light, ABS fault, or transmission issue, your focus should immediately turn to the Motor Diagnostic CAN. Tools that connect via the OBD-II port, like the advanced Haynes Autofix system, are designed to pull specific fault codes and live data from these critical ECUs, guiding you directly to the potential problem area.
• Conversely, if your navigation screen is blank, the climate control isn't responding, or the electric windows are intermittent, the issue is more likely to reside within the Multimedia CAN. While these faults are less critical for driving, they still require proper diagnosis using a scan tool capable of communicating with the relevant comfort modules.

Modern diagnostic tools are sophisticated enough to identify which CAN bus a fault code originates from, providing invaluable clues. Without this understanding, you might find yourself chasing ghosts on the wrong network, wasting time and effort.

Frequently Asked Questions

Can a fault on the Multimedia CAN affect the engine's performance?

Generally, no. This is precisely why manufacturers separate the CAN buses. The Motor Diagnostic CAN is isolated to prevent faults in non-critical systems from compromising essential driving and safety functions. While some information might be shared between networks via a central gateway ECU, a direct impact on engine performance from a multimedia fault is highly unlikely.

Are all Renault models the same in terms of CAN bus architecture?

While the fundamental principles of CAN bus separation remain consistent, the specific implementation, number of buses, and even the speeds of those buses can vary significantly between different Renault models and generations. Newer models tend to have more complex networks with additional dedicated buses for specific functions (e.g., advanced driver-assistance systems). Always refer to the specific workshop manual or wiring diagrams for your particular Renault model.

What is the role of the OBD-II port in accessing these CAN networks?

The OBD-II (On-Board Diagnostics II) port, mandated by regulations, primarily provides access to emissions-related diagnostic information, which largely resides on the Motor Diagnostic CAN. However, modern diagnostic tools connected to the OBD-II port often act as a gateway, allowing communication with other CAN buses (like the Multimedia CAN) and even proprietary manufacturer networks that might exist within the vehicle. The OBD-II connector itself is a physical interface, but the diagnostic tool determines which networks it can communicate with.

Can I diagnose CAN bus problems myself at home?

With the right tools and a solid understanding, yes, to a certain extent. Basic OBD-II scanners can read fault codes from the Motor Diagnostic CAN. More advanced consumer-grade diagnostic tools, like those offered by Haynes Autofix, provide deeper insights, allowing you to read manufacturer-specific codes and sometimes access live data from various ECUs, including those on the Multimedia CAN. However, complex CAN bus issues, such as bus termination problems or wiring faults, may require specialised equipment and professional expertise.

What happens if a CAN bus fails entirely?

If the Motor Diagnostic CAN fails, the vehicle will likely cease to operate correctly, or at all. You might experience multiple warning lights, loss of power, or the car simply won't start. If the Multimedia CAN fails, you'll lose functionality of the systems on that bus – for example, a blank infotainment screen, non-working parking sensors, or climate control issues – but the vehicle should still be drivable.

In conclusion, the sophisticated network of CAN buses is a cornerstone of modern Renault engineering. Distinguishing between the Motor Diagnostic CAN and the Multimedia CAN is not just academic; it's a practical necessity for anyone involved in maintaining or repairing these vehicles. Understanding which systems reside on which network empowers you to diagnose problems more efficiently, ensuring your Renault remains safe, reliable, and comfortable on the road. Embrace the complexity, and you'll unlock the full potential of your vehicle's diagnostics.
