DS150E VCI Diagnostic Kit Explained

Understanding the DS150E VCI Diagnostic Kit

In the ever-evolving world of automotive repair, having the right diagnostic tools is paramount. For mechanics and car enthusiasts alike, staying ahead of complex vehicle systems requires sophisticated equipment. One such powerful tool that has gained significant traction is the DS150E VCI (Vehicle Communication Interface) diagnostic kit. This article delves into what the DS150E VCI is, its core functionalities, the benefits it offers, and why it has become an indispensable part of modern vehicle maintenance and repair.

What is a VCI?

Before we focus specifically on the DS150E, it's crucial to understand what a VCI is in the context of automotive diagnostics. A Vehicle Communication Interface (VCI) is essentially a hardware device that acts as a bridge between a vehicle's Electronic Control Units (ECUs) and a diagnostic computer or software. Modern vehicles are packed with ECUs, each controlling various functions from the engine and transmission to airbags and ABS. These ECUs communicate using standardised protocols, and the VCI translates these communications into a format that diagnostic software can understand and interpret. Think of it as a universal translator for your car's complex electronic language.

Introducing the DS150E VCI Diagnostic Kit

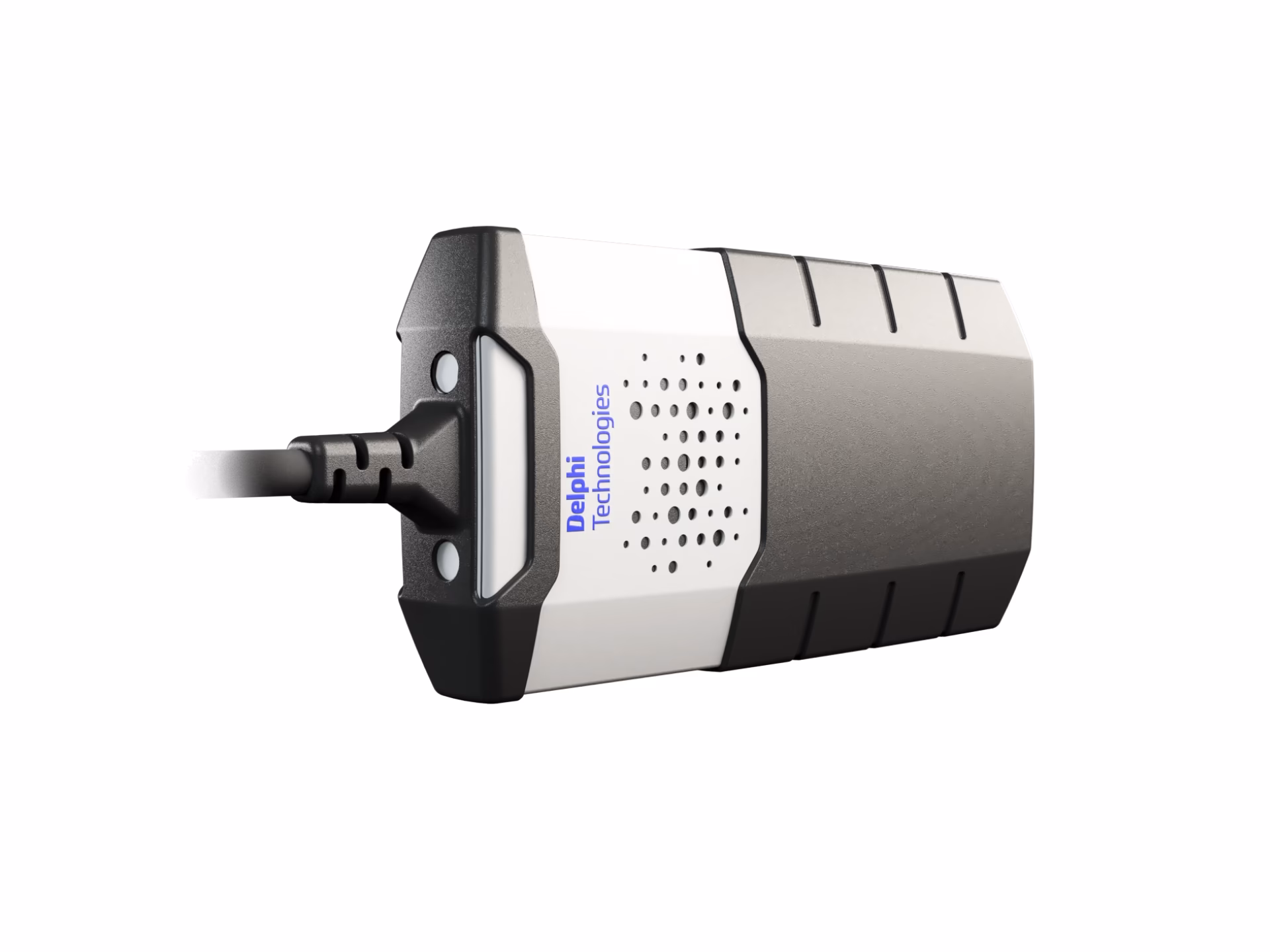

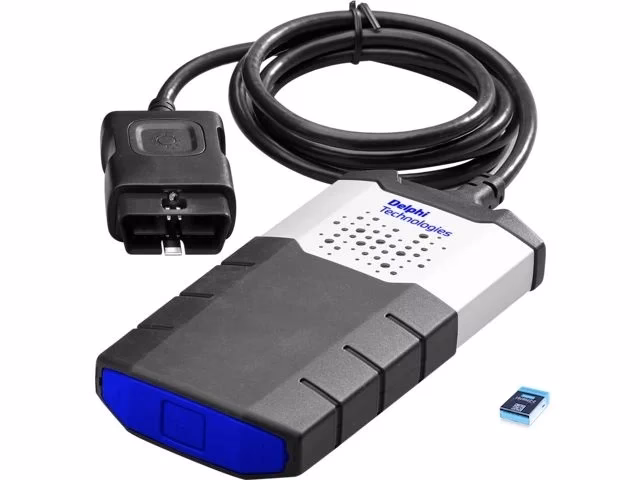

The DS150E VCI diagnostic kit is a popular and versatile tool designed to perform a wide range of diagnostic functions across a vast array of vehicle makes and models. It typically consists of the VCI hardware unit, which connects to the vehicle's OBD-II (On-Board Diagnostics II) port, and accompanying software that runs on a laptop or tablet. This combination allows users to access, read, and clear diagnostic trouble codes (DTCs), view live data streams from various sensors, perform component tests, and even carry out coding and programming functions on certain ECUs.

Key Features and Functionalities

The DS150E VCI diagnostic kit is renowned for its comprehensive feature set. Here are some of the most significant:

• Fault Code Reading and Clearing: This is the primary function. The DS150E can read generic and manufacturer-specific DTCs stored in the vehicle's ECUs. It can then clear these codes after a fault has been rectified, turning off warning lights like the 'Check Engine' light.
• Live Data Stream: The kit allows you to monitor real-time data from engine sensors, such as RPM, vehicle speed, coolant temperature, oxygen sensor readings, and much more. Visualising this data in graph or numerical format is invaluable for diagnosing performance issues.
• Component Testing: For many vehicles, the DS150E can activate and test individual components, such as fuel injectors, cooling fans, or solenoids. This helps to isolate faulty parts quickly.
• ECU Identification: It can identify the specific ECUs installed in the vehicle and read their identification numbers, software versions, and other important details.
• Actuator Tests: Similar to component testing, this allows you to send commands to actuators to check their functionality.
• Adaptations and Resetting: The DS150E can perform various adaptation functions, such as resetting service indicators, calibrating steering angle sensors, and performing throttle adaptations after replacements.
• Coding and Programming (Limited): While not as advanced as dedicated manufacturer tools, some versions of the DS150E software can perform basic coding functions, such as registering new injectors or changing certain vehicle configurations.
• Wide Vehicle Coverage: One of the most compelling aspects of the DS150E is its extensive coverage of European, American, and Asian vehicle brands, often supporting vehicles from the early 2000s up to recent models.

How the DS150E Works

The process of using a DS150E VCI diagnostic kit is generally straightforward:

1. Connection: Connect the VCI hardware unit to the vehicle's OBD-II port, typically located under the dashboard.
2. Software Installation: Install the diagnostic software onto your laptop or tablet. Ensure you have the correct version compatible with your VCI hardware.
3. Establish Communication: Connect the VCI unit to your computer, usually via USB or Bluetooth. Launch the diagnostic software and select the appropriate vehicle make, model, and year. The software will then attempt to establish communication with the vehicle's ECUs through the VCI.
4. Diagnostics: Once communication is established, you can navigate through the software menus to perform various diagnostic functions, such as reading fault codes, viewing live data, or running tests.
5. Analysis and Repair: Interpret the data provided by the software to diagnose the fault. Based on the findings, carry out the necessary repairs.
6. Code Clearing and Verification: After repairs, clear any stored fault codes and re-scan the vehicle to ensure the issue is resolved and no new codes have appeared.

Benefits of Using the DS150E VCI Diagnostic Kit

The advantages of incorporating the DS150E into your diagnostic arsenal are numerous:

• Cost-Effectiveness: Compared to dealership-specific diagnostic tools or more expensive professional scanners, the DS150E offers a highly competitive price point, making advanced diagnostics accessible to independent garages and serious DIY enthusiasts.
• Versatility: Its ability to cover a broad spectrum of vehicles means you don't need multiple diagnostic tools for different car brands. This saves money and simplifies the diagnostic process.
• Time Savings: Quickly identifying fault codes and accessing live data significantly reduces diagnostic time, allowing for faster repairs and increased workshop efficiency.
• Improved Accuracy: Direct access to ECU data provides a more accurate diagnosis than relying solely on visual inspection or guesswork.
• Empowerment for DIYers: For individuals who enjoy working on their own cars, the DS150E provides the capabilities to understand and address many common issues, saving them money on labour costs.
• Comprehensive Data: Access to live data and component testing aids in identifying subtle performance issues that might otherwise go unnoticed.

DS150E vs. Other Diagnostic Tools

It's helpful to understand where the DS150E fits within the broader landscape of automotive diagnostic tools. Here's a simplified comparison:

As you can see, the DS150E strikes a balance between the simplicity of basic code readers and the comprehensive, albeit expensive, capabilities of manufacturer-specific tools. It offers a significant upgrade in diagnostic power without the prohibitive cost of OEM equipment.

Common Issues Addressed with the DS150E

The DS150E is instrumental in diagnosing a wide array of common automotive problems, including:

• Engine Misfires: Identifying which cylinder is misfiring and the potential causes (e.g., spark plugs, ignition coils, injectors).
• Transmission Problems: Reading transmission-specific fault codes and monitoring transmission fluid temperature and shift solenoid data.
• ABS/ESP Faults: Diagnosing issues with wheel speed sensors, hydraulic units, and control modules.
• Airbag System Warnings: Identifying faulty sensors, wiring, or control modules related to the airbag system.
• Emissions Control Issues: Diagnosing problems with catalytic converters, oxygen sensors, EGR valves, and particulate filters.
• Electrical Faults: Tracing electrical issues by monitoring sensor inputs and outputs.

Important Considerations and Best Practices

While the DS150E is a powerful tool, using it effectively requires some understanding and adherence to best practices:

• Software Updates: Ensure your diagnostic software is kept up-to-date. Manufacturers frequently release updates that add new vehicle models, improve existing functions, and fix bugs.
• Quality Hardware: Be aware that there are many variations of VCI hardware available, some of which may be lower quality. Purchasing from a reputable supplier is recommended to ensure reliable performance.
• Vehicle Compatibility: While coverage is broad, always double-check if the specific vehicle you are working on is supported by the software version you are using.
• Safety First: Always follow safe workshop practices. Ensure the vehicle is properly secured, disconnect the battery if performing work that could cause a short circuit, and wear appropriate personal protective equipment (PPE).
• Understanding the Data: Simply reading a fault code isn't enough. You need to understand what the code means, what symptoms are associated with it, and what the live data is telling you to accurately diagnose the problem.

Frequently Asked Questions (FAQs)

Q1: Can the DS150E diagnose all car problems?

A1: The DS150E is very comprehensive but cannot diagnose every single issue, especially those related to very new models or highly specialised systems. For advanced programming or module flashing, dealership-level tools are typically required.

Q2: Do I need a laptop to use the DS150E?

A2: Yes, the DS150E VCI kit requires a laptop, desktop, or tablet with the compatible diagnostic software installed to function.

Q3: Is the DS150E legal to use?

A3: Yes, the DS150E is a legitimate diagnostic tool. However, ensure you are using genuine or reputable software and hardware to avoid issues.

Q4: How often should I update the software?

A4: It's advisable to update the software whenever new versions are released, typically several times a year, to maintain the broadest vehicle coverage and latest features.

Q5: Can the DS150E reset the engine ECU?

A5: The DS150E can reset certain parameters within the engine ECU, such as adaptations, but it cannot perform a full factory reset of the ECU itself without specific manufacturer protocols.

Conclusion

The DS150E VCI diagnostic kit represents a significant leap forward for anyone involved in vehicle maintenance and repair. Its ability to provide deep diagnostic insights across a vast range of vehicles at an accessible price point makes it an invaluable asset. Whether you're a professional mechanic looking to enhance your workshop's capabilities or a dedicated car owner aiming to take control of your vehicle's health, the DS150E offers the power and versatility needed to effectively diagnose, understand, and resolve automotive issues. Investing in a reliable DS150E kit is an investment in efficiency, accuracy, and ultimately, better vehicle care.
