Your Guide to Car Diagnostic Scanners

That dreaded 'Check Engine' light illuminating on your dashboard can instantly fill any car owner with a sense of dread. Is it something minor, or a sign of a major, costly repair? In the modern era of automotive technology, understanding what your car is trying to tell you is no longer solely the domain of professional mechanics. With the right tools, you can perform your own diagnostic scans, interpret fault codes, and gain valuable insights into your vehicle's health. This guide will delve into the essential tools required for a comprehensive car diagnostic scan and, crucially, help you navigate the myriad of options to choose the best OBD2 scanner for your needs.

Understanding the Heart of Modern Car Diagnostics: OBD2

Before we dive into the tools, it's vital to grasp the concept of OBD2, or On-Board Diagnostics II. This is a standardised system implemented in all cars sold in the UK, Europe, and many other regions since the early 2000s (and 1996 in the USA). It's essentially your car's self-diagnostic and reporting system, monitoring key components and systems for faults. When a problem is detected, it stores a Diagnostic Trouble Code (DTC) and often illuminates the 'Check Engine' light (also known as a Malfunction Indicator Lamp, or MIL). An OBD2 scanner is the device that connects to your car's OBD2 port (typically located under the dashboard) to read these codes and access other vital vehicle data.

Essential Tools for a Car Diagnostic Scan

While the term 'diagnostic scan' might sound complex, the primary tool required is an OBD2 scanner. However, the world of scanners is diverse, ranging from simple code readers to advanced professional-grade devices. Let's explore the types of tools you might need:

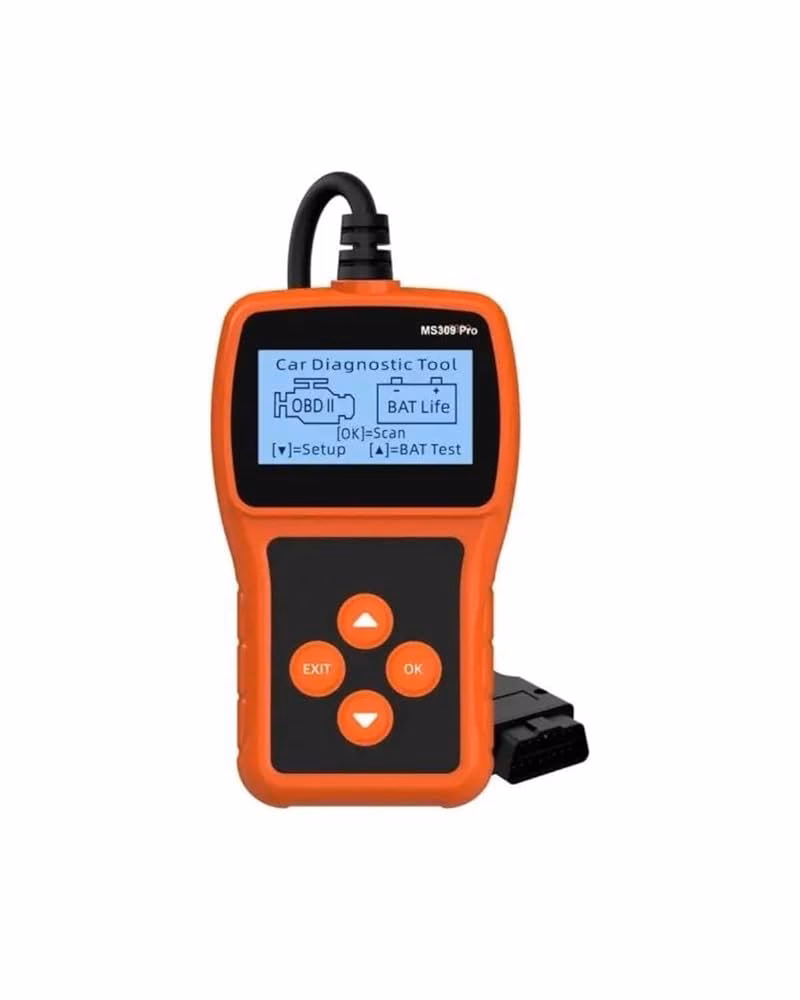

1. The Universal OBD2 Scanner / Code Reader

For most everyday car owners, a universal OBD2 scanner is the cornerstone of their diagnostic toolkit. These devices are designed to work with virtually all OBDII and CAN-compliant vehicles manufactured after 1996 (USA) or 2000 (EU/Asia). They typically connect via a cable directly to your car's 16-pin OBDII port and are powered by the vehicle's battery.

A good example of such a device is the ANCEL AD310 Scanner or the VXDAS OBD2 Scanner Car Diagnostic Scan Tool. Their primary functions revolve around the engine system:

• Reading and Clearing Diagnostic Trouble Codes (DTCs): This is the fundamental feature. When your 'Check Engine' light comes on, the scanner will display a code (e.g., P0301 for a misfire in cylinder 1). You can then look up the definition of this code. Once the fault is fixed, you can use the scanner to clear the code and turn off the light.
• Live Data Stream: This is an incredibly powerful feature. Instead of just reading codes, you can view real-time data from various sensors in your engine, such as engine RPM, vehicle speed, oxygen sensor readings, coolant temperature, and fuel pressure. This data can be invaluable for diagnosing intermittent issues or verifying repairs.
• Freeze Frame Data: When a fault code is set, the OBD2 system captures a 'snapshot' of the engine's operating conditions at that exact moment. Freeze frame data shows you parameters like engine speed, coolant temperature, and fuel trim values, helping you understand the circumstances under which the fault occurred.
• I/M Readiness Monitors: Important for emissions testing (like the MOT in the UK), this function checks if all the vehicle's emissions-related systems have completed their self-tests. If they haven't, your car might not pass its emissions test.
• Retrieving Vehicle Information: Most scanners can display your vehicle's VIN (Vehicle Identification Number), Calibration ID, and Calibration Verification Numbers (CVN).

These universal scanners are generally user-friendly, affordable, and faster than some Bluetooth-based alternatives, making them ideal for quick checks and basic fault diagnosis.

2. Specialised & Advanced Diagnostic Tools

While universal scanners are great for generic engine codes, some vehicles and specific systems require more advanced or brand-specific tools. This is where devices like the FORScan ELMconfig OBD2 Adapter USB Scanner with MS-CAN/HS-CAN Switch come into play.

• Brand-Specific Capabilities: Tools like the FORScan adapter are designed to work specifically with certain manufacturers, in this case, Ford and Mazda vehicles. This allows them to access not just the generic OBD2 engine codes, but also proprietary systems and modules that a universal scanner cannot reach. This includes modules for ABS (Anti-lock Braking System), SRS (Supplemental Restraint System, i.e., airbags), transmission, body control modules, and more.
• MS-CAN/HS-CAN Switch: This feature is crucial for Ford/Mazda vehicles as it allows the adapter to communicate with different high-speed (HS-CAN) and medium-speed (MS-CAN) data networks within the car, unlocking access to a wider range of modules and functions.
• Advanced Functions: Beyond just reading and clearing codes, these professional-grade tools often offer advanced functionalities such as module programming, coding new parts (e.g., a new battery or injector), performing system tests, and even activating specific components for diagnostic purposes. This level of functionality typically requires accompanying software on a laptop.
• Airbag Resistor Bypass Tool Kit: Often mentioned alongside advanced diagnostic tools, an airbag resistor bypass tool kit isn't a scanner itself but a crucial accessory for diagnosing SRS (airbag) system faults. When troubleshooting an airbag system, you might need to disconnect an airbag module to test wiring or other components. This kit provides resistors that mimic the presence of an airbag, allowing you to bypass a specific component and prevent the SRS light from coming on or safely test circuits without triggering a fault or deployment. It's a specialist tool for intricate SRS diagnostics and repairs, often used by mechanics or advanced DIYers.

Choosing between a universal and a specialised scanner depends heavily on your vehicle and the depth of diagnostics you intend to perform.

How to Choose a Good OBD2 Scanner

With so many options available, selecting the right OBD2 scanner can feel overwhelming. Consider the following factors to make an informed decision:

1. Vehicle Compatibility

Ensure the scanner explicitly states compatibility with your car's make, model, and year. While most universal scanners support OBDII/CAN protocols (meaning 1996+ US, 2000+ EU/Asian cars), some niche vehicles or very old models might have specific requirements. If you own a Ford or Mazda and want deep diagnostics, a FORScan-compatible adapter is a must.

2. Core Functionality: Reading and Clearing Codes

This is non-negotiable. The scanner must be able to accurately read both hard (current) and pending (intermittent) fault codes and provide clear definitions. It should also allow you to clear the codes and reset the 'Check Engine' light once a repair has been made.

3. Advanced Data Reading Capabilities

Don't underestimate the value of:

• Live Data Stream: Essential for real-time monitoring and diagnosing intermittent issues that don't always set a code. Look for scanners that can display multiple parameters simultaneously and, ideally, graph the data over time.
• Freeze Frame Data: Provides critical context for understanding why a fault occurred.
• I/M Readiness Monitors: Crucial for preparing your vehicle for its annual MOT emissions test.

4. User Interface and Ease of Use

A good scanner should be intuitive to operate. Look for:

• Clear Display: A backlit, high-contrast screen (like the 128x64 pixel display on the ANCEL AD310) is vital for readability, especially in varying light conditions.
• Simple Navigation: Well-labelled buttons and a straightforward menu system make using the device less frustrating.
• Built-in DTC Library: A scanner with an integrated library of fault code definitions saves you from constantly looking them up online.

5. Updateability

Automotive technology evolves. A scanner that can receive firmware updates (often via USB connection to a computer) will ensure compatibility with newer vehicles and access to new features down the line. This future-proofing is an important consideration for longevity.

6. Connectivity and Power

• Wired (USB): Offers reliable, direct connection and is usually powered directly by the car's OBD2 port (8.0 to 18.0 V). This is generally faster and more stable than wireless options.
• Wireless (Bluetooth/Wi-Fi): While convenient (often connecting to a smartphone app), some wireless scanners can be slower or less reliable, especially cheaper models. For serious diagnostics, a wired connection is often preferred.

7. Build Quality and Durability

Consider how often you'll be using the scanner. A robust, well-constructed device will withstand the rigours of garage use. Check reviews for comments on materials and overall durability.

8. Price vs. Features

As with any tool, you generally get what you pay for. Basic code readers are very affordable, while advanced professional scanners can cost hundreds or even thousands of pounds. Assess your needs: for occasional 'Check Engine' light diagnosis, a basic universal scanner like the ANCEL AD310 is excellent value. For deeper dives into specific vehicle systems or for professional use, investing in a more capable, brand-specific tool is justified.

Comparison Table: OBD2 Scanner Types

Performing a Basic Diagnostic Scan: A Step-by-Step Guide

Once you have your chosen OBD2 scanner, performing a basic diagnostic scan is straightforward:

1. Locate the OBD2 Port: In most vehicles, it's under the dashboard on the driver's side, often near the steering column.
2. Turn Off the Engine: Ensure your car's ignition is off before connecting the scanner.
3. Connect the Scanner: Plug the scanner's cable firmly into the OBD2 port.
4. Turn On the Ignition: Turn your car's ignition to the 'ON' position (don't start the engine unless the scanner specifically instructs you to). The scanner should power up automatically.
5. Navigate the Menu: Use the scanner's buttons to navigate to the 'Read Codes' or 'Diagnostics' menu option.
6. Read Codes: The scanner will communicate with your car's ECU (Engine Control Unit) and display any stored DTCs. Make a note of these codes.
7. Look Up Definitions: If your scanner doesn't have a built-in library, use the internet to find detailed explanations for each code.
8. View Live Data (Optional but Recommended): If your scanner supports it, view the live data stream. This can help confirm sensor readings or identify parameters that are out of range.
9. Clear Codes (After Repair): Only clear codes *after* you have diagnosed and fixed the underlying problem. Clearing codes without fixing the issue will only result in the 'Check Engine' light returning.
10. Disconnect the Scanner: Turn off the ignition before unplugging the scanner.

Understanding Diagnostic Trouble Codes (DTCs)

DTCs are alphanumeric codes that specify a particular fault. They generally follow a standard format:

• Pxxxx: Powertrain codes (engine, transmission) - Most common codes read by universal scanners.
• Bxxxx: Body codes (airbags, central locking, power windows).
• Cxxxx: Chassis codes (ABS, traction control).
• Uxxxx: Network communication codes.

The first digit indicates the type (P, B, C, U). The second digit indicates whether it's a generic (0) or manufacturer-specific (1) code. The remaining digits pinpoint the specific system and fault.

Beyond the Engine: Diagnosing Other Systems

While a universal OBD2 scanner excels at engine-related issues, modern cars have numerous other complex systems that can develop faults, each with its own warning light:

• ABS (Anti-lock Braking System) Light: Indicates a problem with the braking system's anti-lock function.
• SRS (Supplemental Restraint System / Airbag) Light: Points to a fault in the airbag system.
• Transmission Warning Light: Signals an issue with the automatic or manual gearbox.

To diagnose these systems, you typically need a more advanced or brand-specific scanner, as these systems often use proprietary communication protocols that basic OBD2 scanners cannot access. This is precisely where tools like the FORScan adapter for Ford/Mazda become indispensable for the home mechanic or small garage, allowing them to delve deeper than generic engine codes.

Frequently Asked Questions (FAQs)

Q1: Can a generic OBD2 scanner clear all codes?

A generic OBD2 scanner can clear universal (P0xxx) engine and transmission-related codes. However, it generally cannot clear manufacturer-specific codes (P1xxx, Bxxxx, Cxxxx, Uxxxx) for systems like ABS, SRS, or body electronics. For these, you'll need a more advanced or brand-specific diagnostic tool.

Q2: Do I need a mechanic for a diagnostic scan?

For basic 'Check Engine' light diagnosis, no. A good quality universal OBD2 scanner empowers you to read and understand the codes yourself. However, interpreting complex live data, diagnosing intermittent issues, or dealing with non-engine related faults might still require the expertise and advanced equipment of a professional mechanic.

Q3: How often should I scan my car?

You don't need to scan your car regularly unless a warning light appears or you notice unusual behaviour. However, performing a quick scan before a long journey or a pre-purchase inspection of a used car can be a good proactive measure.

Q4: What does 'I/M Readiness' mean?

'I/M Readiness' stands for Inspection/Maintenance Readiness. It refers to the status of your vehicle's self-diagnostic monitors for its emissions control systems. Before an MOT emissions test, all these monitors should show a 'Ready' status. If they are 'Not Ready' (e.g., after a battery disconnection), you might need to drive the car through a specific 'drive cycle' for the monitors to complete their tests.

Q5: Is a more expensive scanner always better?

Not necessarily. The 'best' scanner depends on your specific needs. A budget-friendly universal scanner is perfect for occasional engine light checks. If you own a specific brand like Ford/Mazda and want to delve into ABS, SRS, and other modules, a mid-range or brand-specific tool offers better value. Professional mechanics require high-end, multi-system scanners that justify their higher price tag through extensive features and vehicle coverage.

Conclusion

Empowering yourself with the knowledge and tools for car diagnostics is a smart move for any vehicle owner. A reliable OBD2 scanner, whether a simple code reader or a more advanced, brand-specific device like the FORScan ELMconfig adapter, can save you time and money by helping you quickly identify potential issues. Understanding the difference between universal and specialised tools, and knowing what features to look for, will ensure you choose the right diagnostic companion for your garage. So, next time that 'Check Engine' light illuminates, you'll be well-equipped to face the challenge head-on, transforming a moment of dread into an opportunity for informed action.
