Ford Focus P0301: Cylinder 1 Misfire Explained

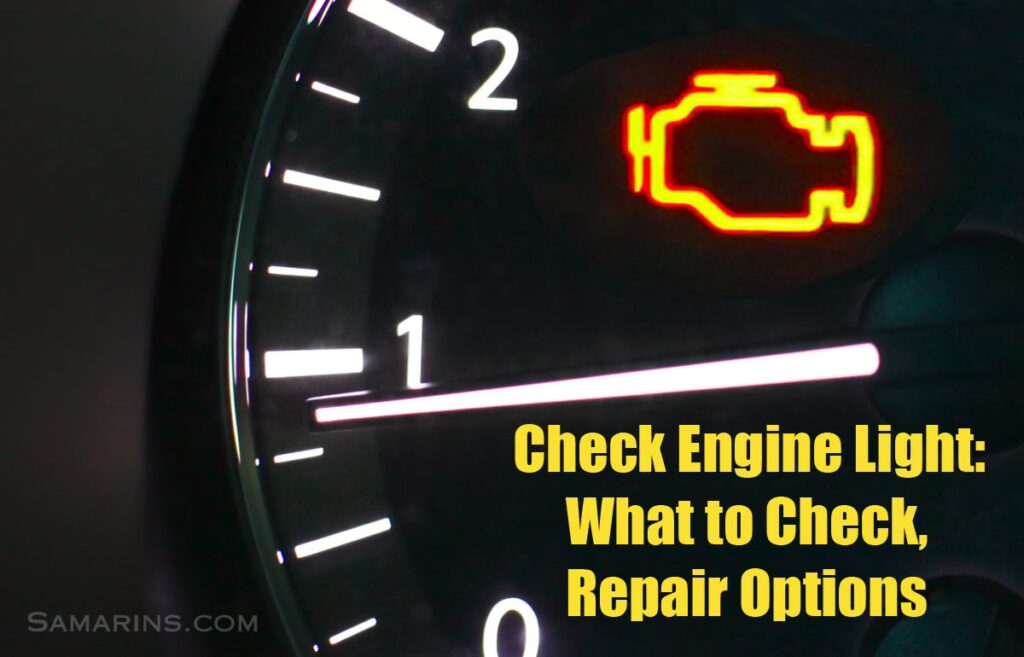

When your Ford Focus's check engine light illuminates, it's always a call for attention, but if it's flashing, it's an immediate cry for help. A flashing check engine light signifies a severe issue, often a catalyst-damaging misfire that can lead to significant and expensive damage to your vehicle's exhaust system, particularly the catalytic converter. Among the various diagnostic trouble codes (DTCs) that can trigger this urgent warning, P0301 for a Ford Focus points directly to a misfire in cylinder number one. This guide will delve into what P0301 truly means, why it's so critical, and how to effectively diagnose and address the underlying problem to protect your beloved Focus.

Understanding the P0301 Trouble Code

The P0301 code is part of a series of OBD-II (On-Board Diagnostics II) codes related to engine misfires. Specifically, 'P' stands for Powertrain, '0' indicates a generic code applicable to all OBD-II vehicles, '3' denotes an ignition system or misfire, and '01' pinpoints the specific cylinder. Therefore, P0301 translates to 'Cylinder 1 Misfire Detected'. This means your Focus's Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that cylinder number one is not combusting fuel efficiently or at all. This inefficiency can manifest as a rough idle, loss of power, hesitation during acceleration, or even a noticeable shaking of the vehicle.

While a P0300 code indicates a 'Random/Multiple Cylinder Misfire' without identifying a specific cylinder, P0301 narrows the problem down significantly, allowing for more targeted troubleshooting. This precision is invaluable for diagnosing the issue efficiently.

The Criticality of a Flashing Check Engine Light

It cannot be stressed enough: if your Ford Focus's check engine light is flashing, you must do not drive the vehicle. This isn't merely a suggestion; it's a critical warning. A flashing light indicates that the misfire is severe enough to be dumping raw, unburnt fuel into the exhaust system. This raw fuel then enters the catalytic converter, a crucial component designed to reduce harmful emissions by converting toxic pollutants into less harmful gases.

When raw fuel reaches the hot catalytic converter, it ignites, causing extreme temperatures that can melt the internal structure of the converter. This damage is irreversible and incredibly costly to repair, often running into hundreds, if not thousands, of pounds. Furthermore, the excessive heat can also damage oxygen (O2) sensors and other exhaust components. Continuing to drive with a flashing light is akin to actively destroying expensive parts of your car, turning a potentially minor repair into a major financial headache.

Initial Diagnosis: Scanning for Codes

The very first step in diagnosing a P0301 code, or any check engine light, is to use an OBD-II scanner. These devices are readily available and relatively inexpensive. Many automotive parts stores in the UK also offer free diagnostic scans. The scanner will confirm the P0301 code and might reveal other related codes that could provide additional clues, such as fuel system codes (e.g., P0171, P0172 for lean/rich conditions) or other misfire codes.

Once you have confirmed P0301, the diagnostic process begins by focusing on cylinder number one, which is typically the cylinder closest to the timing belt or chain side of the engine, but always consult your Ford Focus's specific service manual for exact cylinder numbering.

Common Causes of P0301 in a Ford Focus

A misfire requires an issue with one of the three fundamental elements for combustion: spark, fuel, or air. Here's a breakdown of the most common culprits:

1. The Ignition System

The ignition system is the most frequent cause of misfires, especially specific cylinder misfires like P0301. It comprises:

• Spark Plug: A worn, fouled, or incorrectly gapped spark plug in cylinder 1 is a prime suspect. Over time, spark plugs degrade, leading to a weak or inconsistent spark.
• Ignition Coil Pack: Most modern Ford Focus models use individual coil-on-plug (COP) ignition coils for each cylinder. A faulty coil pack for cylinder 1 will fail to deliver the high voltage necessary to fire the spark plug.
• Spark Plug Wires (if applicable): Older Focus models or specific engine variants might use spark plug wires. A damaged, cracked, or high-resistance wire to cylinder 1 can prevent adequate spark delivery.

2. The Fuel System

Fuel delivery issues specific to cylinder 1 can also cause a misfire:

• Leaking Fuel Injector: A fuel injector that is stuck open or leaking can either dump too much fuel into the cylinder (making it run too rich to ignite properly) or spray fuel at the wrong time. This is a common cause of catalyst-damaging misfires.
• Clogged Fuel Injector: Conversely, an injector that is partially clogged won't deliver enough fuel, leading to a lean misfire.
• Low Fuel Pressure: While less likely to affect only one cylinder, overall low fuel pressure can sometimes manifest as a single-cylinder misfire if one injector is particularly sensitive.

3. Air Intake and Vacuum Leaks

An engine needs the correct air-to-fuel ratio. An unmetered air leak near cylinder 1 (e.g., a cracked intake manifold gasket, a loose vacuum hose) can cause that specific cylinder to run too lean, leading to a misfire. While often associated with P0300 or lean codes (P0171), a localised leak can sometimes trigger P0301.

4. Engine Mechanical Issues

These are typically the most serious and expensive causes, but they must be considered if other diagnostics yield no results:

• Low Compression: Issues like worn piston rings, a bent valve, a damaged valve seat, or a blown head gasket can prevent cylinder 1 from building adequate compression, making combustion impossible.
• Timing Issues: A jumped timing chain or belt can cause valves to open and close at the wrong time, severely impacting combustion in one or more cylinders. While often a P0300 trigger, it's worth considering.
• EGR System Issues: A faulty Exhaust Gas Recirculation (EGR) valve stuck open or leaking near cylinder 1 could introduce too much exhaust gas, diluting the air/fuel mixture and causing a misfire.
• Crankshaft/Camshaft Position Sensors: While these usually affect multiple cylinders or prevent the engine from starting, a faulty sensor providing incorrect timing data can theoretically contribute to misfire conditions.

Step-by-Step Diagnostic Process for P0301

Once you've confirmed the P0301 code, here's a logical diagnostic flow:

1. Visual Inspection:
   • Carefully remove the spark plug from cylinder 1. Inspect its condition: Is it wet with fuel (leaking injector), oily (burning oil), or extremely white (running lean)? Check the gap and for any signs of wear or damage.
   • Inspect the ignition coil for cylinder 1. Look for cracks, burn marks, or signs of arcing.
   • Check the wiring harness to the coil and injector for any visible damage or loose connections.
2. Swap Components: This is a highly effective diagnostic technique.
   • Spark Plug Swap: Move the spark plug from cylinder 1 to an adjacent cylinder (e.g., cylinder 2) and put cylinder 2's plug into cylinder 1. Clear the code and run the engine briefly (if safe). If the misfire moves to cylinder 2 (P0302), you've found your faulty spark plug.
   • Ignition Coil Swap: Similarly, swap the coil pack from cylinder 1 with a known good one from another cylinder. If the misfire moves, the coil pack is faulty.
   • Fuel Injector Swap (Advanced): If the issue persists after spark plug and coil swaps, and you suspect the injector, you can swap it with another cylinder. This is more involved and may require special tools or new seals. If the misfire follows the injector, it's the culprit.
3. Fuel System Checks:
   • Fuel Injector Pulse Test: Using a noid light or oscilloscope, check if the injector for cylinder 1 is receiving the proper electrical pulse.
   • Fuel Pressure Test: Connect a fuel pressure gauge to the fuel rail. While less likely to pinpoint a single cylinder issue, it can rule out overall fuel delivery problems.
   • Injector Resistance Test: Measure the resistance of the cylinder 1 injector and compare it to others or specifications.
4. Compression Test: If all other avenues are exhausted, perform a compression test on cylinder 1. Compare the reading to the other cylinders and the manufacturer's specifications. A significantly lower reading indicates a serious internal engine problem (e.g., bad valve, worn piston rings, head gasket issue). A 'wet' compression test (adding a small amount of oil to the cylinder) can help differentiate between piston ring and valve issues.
5. Vacuum Leak Test: Use a smoke machine or spray unlit propane/carb cleaner around the intake manifold and vacuum lines near cylinder 1. A change in engine RPM indicates a leak.

Comparative Analysis of Misfire Causes

Here's a quick overview to help differentiate potential causes:

Frequently Asked Questions About P0301

Can I drive my Ford Focus with a flashing check engine light and P0301?

Absolutely not. As detailed above, a flashing check engine light indicates a catalyst-damaging misfire. Driving your car in this condition will almost certainly lead to irreversible and extremely costly damage to your catalytic converter and oxygen sensors. It is highly recommended to stop driving immediately and arrange for diagnosis and repair.

Which is worse, a flashing or non-flashing check engine light?

A flashing check engine light is significantly worse. A steady light usually indicates an emissions-related issue that requires attention soon, but generally isn't causing immediate, severe damage. A flashing light signals an active, severe misfire that is actively destroying expensive components, making it an emergency situation.

My Ford Focus is shaking and the check engine light is flashing. What does this mean?

If your Focus is shaking violently and the check engine light is flashing, it's a strong indication that one or more cylinders are severely misfiring. The shaking is the engine struggling to run smoothly due to the lack of proper combustion. This is a clear sign that you should not drive the vehicle and seek immediate professional help.

How much does it typically cost to fix a P0301 code on a Ford Focus?

The cost varies wildly depending on the root cause. Replacing a single spark plug or ignition coil might only cost £50-£150 for parts and labour. A new fuel injector could be £150-£400. However, if the issue is a serious mechanical problem like a bent valve or a blown head gasket, repairs could easily run into £800-£2000+. The key is accurate diagnosis to avoid unnecessary expenses.

What tools do I need to diagnose P0301 myself?

At a minimum, you'll need an OBD-II scanner to read the codes. For further diagnosis, a spark plug socket set, a ratchet, a set of feeler gauges (for spark plug gap), and potentially a multimeter for electrical tests are very useful. For advanced diagnostics, a fuel pressure gauge and a compression tester would be necessary.

Can bad fuel cause a P0301 code?

Yes, contaminated or low-quality fuel can certainly lead to misfires. If the fuel in cylinder 1 is compromised, it won't ignite properly. This is less common for a single-cylinder misfire unless the contamination is isolated, but it's a possibility, especially if you've recently refuelled.

Conclusion

A P0301 code on your Ford Focus, especially when accompanied by a flashing check engine light, is an urgent warning that should not be ignored. It signifies a misfire in cylinder number one that can quickly escalate into significant damage to your exhaust system, particularly the costly catalytic converter. Understanding the potential causes, from simple spark plug issues to more complex mechanical failures, is the first step towards an effective repair.

Remember, the golden rule is to not drive your vehicle if the check engine light is flashing. Prioritise a thorough diagnosis using an OBD-II scanner and systematic troubleshooting, starting with the most common culprits like the ignition and fuel systems. Addressing P0301 promptly and correctly will not only restore your Focus's performance but also save you from potentially massive repair bills down the line. Act quickly, diagnose accurately, and keep your Focus running reliably on the road.
