Ford IDS: Your Essential Diagnostic Tool

In the intricate world of modern automotive engineering, where vehicles are increasingly controlled by complex electronic systems and myriad onboard computers, a reliable and comprehensive diagnostic tool is no longer a luxury but an absolute necessity. For owners of Ford, Lincoln, and Mercury vehicles, this indispensable tool is the Ford Integrated Diagnostic System (IDS). Designed to provide unparalleled diagnostic coverage and programming capabilities, IDS offers the same level of precision and functionality used by factory-trained technicians. Whether you're a professional mechanic or a dedicated DIY enthusiast looking to delve deep into your vehicle's electronic brain, understanding and utilising Ford IDS is paramount for effective maintenance and repair.

What Exactly is Ford IDS?

The Ford Integrated Diagnostic System, or IDS, stands as the premier diagnostic solution developed by Ford Motor Company. It was introduced to replace the Worldwide Diagnostic System (WDS) and has since become the sole equipment offering complete diagnostic coverage for current and future Ford, Lincoln, and Mercury vehicles across various regions, including North America. Since its advent alongside On-Board Diagnostics II (OBD-II) for all 1996 and newer models, IDS has evolved into a diagnostic powerhouse, capable of interacting with virtually every electronic control unit (ECU) within a Ford vehicle.

Essentially, IDS is a PC-based scan tool. This means that while it relies on specialised hardware to communicate with your vehicle, the primary interface and processing power come from a compatible computer. This setup allows for a highly flexible and continually updated system, adapting to the ever-changing complexities of modern automotive technology. Its core purpose is to enable technicians and enthusiasts to diagnose fault codes, read real-time dynamic data, activate executive structures, and perform critical resets and programming of electronic control boxes on the vehicle, ensuring optimal performance and safety.

The Ford VCM II: Your Vehicle's Voice

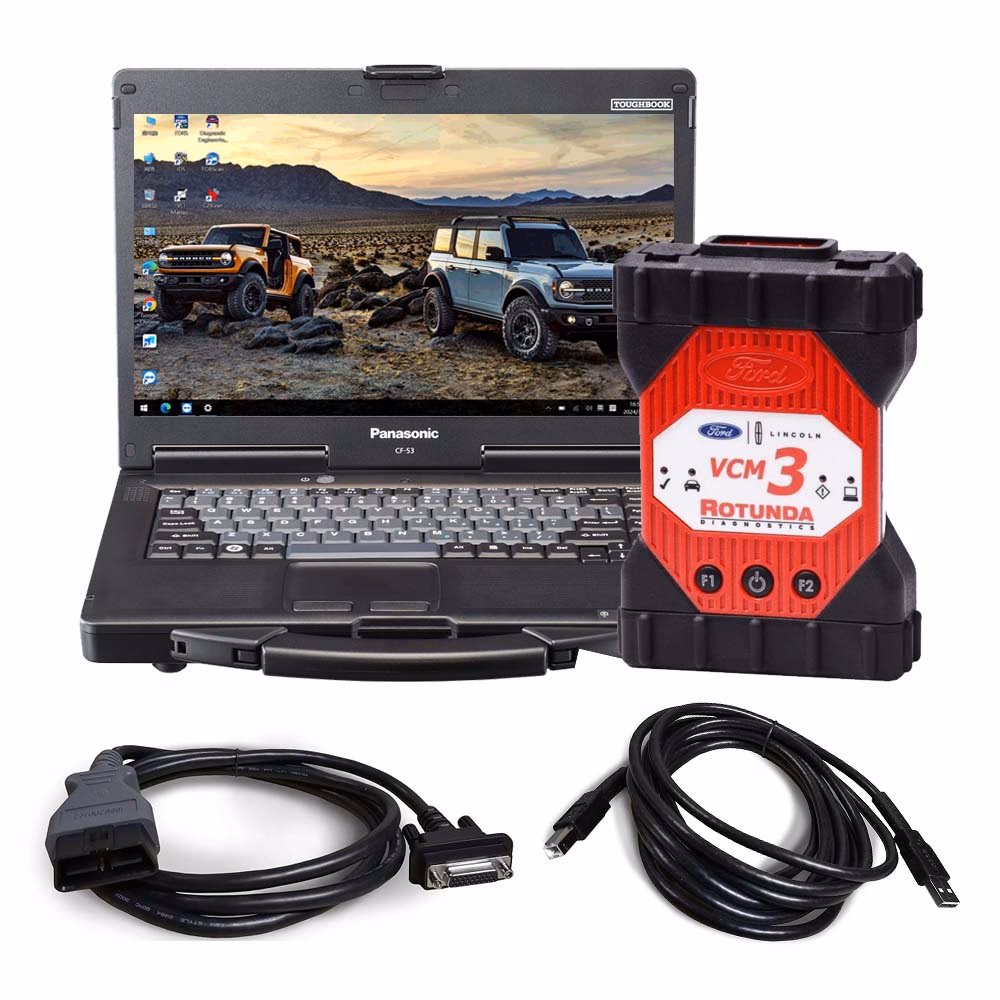

At the heart of the Ford IDS system lies a crucial piece of hardware: the Vehicle Communication Module II (VCM II). This device is the bridge that allows your diagnostic laptop to communicate seamlessly with your Ford vehicle. Connecting to the vehicle via the standard 16-pin OBD-II port, typically located in the driver's footwell, the VCM II facilitates the exchange of data between the vehicle's ECUs and the IDS software running on your computer.

The VCM II can be connected to your laptop in two primary ways: through a USB cable for a direct and stable connection, or via 802.11 wireless technology. The wireless capability offers significant advantages, allowing you to diagnose or reprogram a vehicle from anywhere within your workshop, without being tethered directly inside the vehicle. This flexibility enhances efficiency and convenience. While wireless functionality is a key design feature, it's worth noting that USB connection is often recommended or required for firmware updates to the VCM II itself or for extensive vehicle datalogging tasks.

When considering VCM II hardware, it is critical to seek out genuine units or reputable packages that include it. While various 'knock-offs' may be available at significantly lower prices, these often come with substantial risks. Such unofficial devices may require older versions of the IDS software, which can be challenging to license and may not offer full compatibility with newer vehicle models or all diagnostic functions. Investing in a legitimate VCM II, often available from Ford Rotunda Specialty Tools or authorised dealers, ensures you have the reliable and fully functional hardware necessary for comprehensive diagnostics.

Deciphering the Ford IDS Software: A Deep Dive

The Ford IDS software is a sophisticated application designed by Ford Motor Company to provide a comprehensive diagnostic and programming solution. It's an indispensable tool for anyone working on Ford, Lincoln, and Mercury vehicles, offering a wide array of functions that go far beyond what generic OBD-II scanners can achieve.

Key Features & Specifications:

• Automatic Vehicle Recognition: The software can automatically identify the connected vehicle, simplifying the initial setup process.
• Read & Clear Diagnostic Trouble Codes (DTCs): Essential for identifying and resolving issues, IDS provides detailed information on fault codes across all vehicle systems.
• Live Data-stream with Recording & Playback: Users can view real-time data from various sensors and modules, and even record this data for later analysis, which is invaluable for intermittent faults.
• Guided Fault Finding: The system often provides guided procedures to help technicians pinpoint the root cause of issues.
• Software Re-flash for Existing ECUs: Allows for updating the software on existing electronic control units, crucial for addressing known issues or improving performance.
• Programming & Installation of New ECUs: From Powertrain Control Modules (PCM) to Anti-lock Braking Systems (ABS), Instrument Clusters, Air Bag modules, and Fuel Pumps, IDS enables the programming and installation of new ECUs.
• Program New Keys: A vital function for security and convenience, allowing new transponder keys to be programmed to the vehicle.
• Injector Coding: For diesel engines, IDS can code new fuel injectors to the engine control unit, optimising fuel delivery.
• Set, Adjust or Remove Speed Governors: Certain vehicle types or fleet vehicles may have speed limitations that can be adjusted or removed.
• DPF Regeneration: For diesel vehicles, IDS can initiate and monitor Diesel Particulate Filter (DPF) regeneration cycles.
• Brake Bleeding & Steering Angle Resets: Important maintenance and calibration functions after brake system work or steering component replacement.
• Comprehensive Language Support: Available in multiple languages including English, German, French, Italian, Spanish, Swedish, Dutch, Danish, Finnish, Norwegian, and Portuguese.

The IDS software is regularly updated to ensure compatibility with the latest Ford models and to introduce new features and functions. This commitment to continuous improvement means that Ford IDS remains at the forefront of automotive diagnostics.

Setting Up Your Ford IDS Scan Tool: A Step-by-Step Guide

Getting your Ford IDS system up and running involves a few key steps, from ensuring you have the right hardware to activating your software subscription-based service.

Step 1: PC Requirements

While Ford recommends specific models like the Panasonic Toughbook CF53 or Dell Latitude E5440 for their robust design and touchscreen interfaces, any modern laptop capable of running the software will suffice. Generally, a Windows-based PC with a minimum of 4 GB RAM, 20 GB of free hard drive space, and a 64-bit operating system is required. A high-speed internet connection is also highly recommended for downloads, updates, and license validation.

Step 2: Obtain VCM II Hardware

As discussed, the VCM II is indispensable. It connects to your vehicle's OBD-II port and communicates with your laptop via USB or wireless. Ensure you acquire a genuine VCM II unit to guarantee full functionality and compatibility with the latest IDS software versions. Official Ford Rotunda Specialty Tools or authorised suppliers are the best sources.

Step 3: Download IDS Software

Once you have a capable laptop and VCM II, you can download the IDS software. Visit the official Ford Motor Company website or Ford Tech Service website. These are the only authorised sources. Navigate to the download section and select the latest version of the IDS software. Follow the on-screen instructions for installation. While the software can be downloaded and installed without a license, it will not be able to communicate with your vehicle until activated. This allows you to explore the interface and available functions beforehand.

Step 4: Obtain & Activate License

Ford IDS operates on a subscription model, requiring a license to unlock its full capabilities and enable vehicle communication. Licenses can be purchased for various durations, from a couple of days to a full year. Upon opening the IDS program for the first time, it will typically notify you about the lack of a valid license and provide options for acquisition. After purchasing, you'll receive a license code (often 20 digits) which you'll need to enter to activate the program. An internet connection is crucial for this validation process. If you're not prompted, you can usually find 'License Management' within the IDS Set Up menu (under System Utilities) to input the code manually.

Mastering Ford IDS: Putting It to Work

With a successfully activated license, you're ready to put Ford IDS to work diagnosing and programming your vehicle. The process is intuitive, but a few key steps ensure a smooth experience.

Connecting and Starting a Session:

1. Connect the VCM II to your vehicle by plugging the 16-pin DLC connector into the OBD-II port.
2. Connect the VCM II to your laptop. This can be done using the provided USB cable or wirelessly if you have the D-link adapter set up.
3. Turn the vehicle's ignition key to the 'run' position (engine off).
4. Launch the Ford IDS program on your laptop, ensuring you run it as an administrator.
5. From the main interface, select the vehicle icon to start a new work session. The IDS will then attempt to automatically identify your vehicle.

Once connected, the IDS system provides unparalleled access to your vehicle's systems. You can virtually test and monitor all vehicle functions, retrieve and clear any DTCs (Diagnostic Trouble Codes), view live data streams, and proceed with more advanced programming tasks. It offers a user-friendly interface that, despite its depth, is designed for efficient navigation.

Pro Tip: Any time you are reprogramming or diagnosing a vehicle using the IDS, it is strongly recommended that a backup file of the vehicle's current configuration be created. This safeguard can be invaluable in case of unforeseen issues during the diagnostic or programming process, allowing you to restore the vehicle to its previous state.

Maintaining Your IDS System: Staying Current

To ensure continuous functionality and access to the latest diagnostic capabilities, keeping your Ford IDS system updated is essential. This involves two primary aspects: license validation and software updates.

License Validation:

The IDS license, being a subscription-based service, requires regular validation with Ford's server. This typically needs to occur at least once every 29 days. When you start the IDS program, a 'Validate' button will automatically appear if validation is due. Simply click this button while connected to the internet, and the system will re-authenticate your license. Failure to validate within the specified period will render your license invalid, preventing the program from communicating with your vehicle.

Software Updates:

Ford frequently releases updates for the IDS software to incorporate new vehicle models, diagnostic procedures, and re-flashing files. When updates are available, the IDS program will prompt you to install them upon startup. It is crucial to complete these updates before continuing to use the program, as they often contain critical bug fixes and expanded vehicle coverage. Staying updated ensures your IDS tool remains compatible with the latest Ford vehicles and offers the most accurate diagnostic information.

The Ford Diagnostic Transform: A Specialist's Edge

Beyond the standard IDS functionality, Ford also utilises highly specialised tools for specific ECU diagnostics and engineering tasks. One such tool is the Ford Diagnostic Transform, which is used to perform diagnostics on ECUs with the Ford DET (Diagnostic Engineering Tool) in conjunction with a Vector CANcaseXL interface. This is typically for more advanced, engineering-level diagnostics rather than routine workshop use, but it's part of the broader Ford diagnostic ecosystem.

Prerequisites for Ford Diagnostic Transform:

• Windows 7 32-bit only (a critical system requirement).
• The DET (Diagnostic Engineering Tool) from Ford must be installed on the test PC.
• Vector CANcaseXL drivers should be installed on the PC. These drivers are available for download from Vector.

Connecting the Hardware:

1. Connect the Vector CANcaseXL to your PC.
2. Connect the ECU under test to the Vector CANcaseXL interface on the proper channel.

Setting Up the Transform:

The setup involves configuring specific properties within the DET environment:

1. Choose one or both of the following: Click the DIDFilePath property to browse to the CSV file containing Data Identifier (DID) information, or click the DTCFilePath property to browse to the CSV file containing Diagnostic Trouble Code (DTC) information.
2. Select the CANChannelNumber from the drop-down list. This specifies the channel of the Vector CANcaseXL to which the ECU is connected.
3. Note that FixedChallengeBytes and KEYDOWNEncryptedKey properties are reserved for future use.
4. Export the configured ports.
5. Save the Harness configuration.

Ports and Data Identifiers (DIDs) / Diagnostic Trouble Codes (DTCs):

The Transform uses various 'ports' for communication. Common ports include:

• Security Unlock: Used to unlock a particular ECU (0-Lock, 1-Unlock).
• ReadDataByIdentifier: Connects to a message type Signal, used to specify a 2-byte DID ID to be read at a particular time.
• ReadDTCByStatus: Connects to an enumerated Signal, used to specify the DTC status to be read.
• DiagnosticSessionControl: Used to start and stop the diagnostic session.
• Tester Present: Used to keep the ECU in the current mode continuously.

For DIDs and DTCs, ports are populated based on information provided in specific CSV (Comma Separated Values) files. For example, a DID CSV file might define a 'RCM Configuration ID' (0xDE04) for a specific ECU (RC6X), which then creates 'iDID_DE04_RCM Configuration ID' (inport) and 'oDID_DE04_RCM Configuration ID' (outport). If the 'RW/R' parameter in the CSV is 'R' (Read-only), only an outport is created. Similarly, a DTC CSV file defines DTC IDs and names, creating corresponding outports like 'DTC_801013_ERR_LOP_HIGH_RES_ERR 0'.

CSV File Formats:

These files are crucial for defining the diagnostic parameters:

DID CSV File Format:

DTC CSV File Format:

Test Cases:

• To read DIDs: Use the ReadDataByIdentifier Signal to transmit DID IDs and read the specified DID.
• To read DTCs: Transmit the appropriate value on the ReadDTCByStatus Signal.

This Ford Diagnostic Transform, while highly technical, underscores the depth of Ford's diagnostic capabilities, catering to both everyday workshop needs and specialised engineering requirements.

Ford IDS Software FAQs

Q: How do I get Ford IDS software?

A: Ford IDS software can be downloaded from the official Ford Motor Company website or Ford Tech Service website. You will need to create an account and purchase a license to access the full functionality of the software.

Q: What is Ford IDS software?

A: Ford IDS (Integrated Diagnostic System) is the official diagnostic and programming tool used by Ford dealerships and authorised repair shops to diagnose and repair Ford, Lincoln, and Mercury vehicles. It provides comprehensive access to vehicle systems.

Q: Is FORScan the same as IDS?

A: No, FORScan is a third-party diagnostic software that can be used to diagnose and modify settings on Ford, Mazda, and Lincoln vehicles. While FORScan and IDS share some similarities in their capabilities, IDS is the official, comprehensive diagnostic tool developed and used by Ford dealerships, offering a deeper level of integration and programming functions.

Q: What is the difference between Ford FDRS and IDS?

A: Ford FDRS (Ford Diagnostic and Repair System) is another diagnostic tool for Ford vehicles used by some independent repair shops. While both are diagnostic tools, IDS is generally considered the primary and official diagnostic tool used by Ford dealerships for older and current models, whereas FDRS is a newer, web-based system that is progressively replacing IDS for very latest models and complex programming tasks, especially with newer security protocols. They operate with different communication modules (VCM II for IDS, VCMM for FDRS).

Q: How do I activate my IDS license?

A: Once you have purchased your Ford IDS license, you will typically be prompted within the IDS software itself to enter a 20-digit license code. An internet connection is required for the code to be validated and activated.

Q: How do I download Ford as-built data?

A: Ford as-built data, which represents the factory configuration of a specific vehicle, can usually be downloaded from the Ford Motor Company website or through specific dealer portals. You will need to enter your vehicle’s VIN (Vehicle Identification Number) to access the correct as-built data.

Q: Does FDRS replace IDS?

A: FDRS is gradually superseding IDS for newer Ford vehicle models and certain advanced programming functions, particularly those requiring cloud-based updates and enhanced security. However, IDS remains the official tool for a vast range of Ford vehicles from 1996 onwards and is still actively used in dealerships, meaning it hasn't been completely replaced yet, but rather supplemented and for newer vehicles, superseded.

Q: Does Ford IDS work on Windows 10?

A: Yes, the latest versions of Ford IDS software are compatible with Windows 10. However, older or 'knock-off' versions of the software or hardware might have specific operating system requirements, such as Windows 7 32-bit for certain specialised tools like the Ford Diagnostic Transform.

Q: Who makes Ford IDS?

A: Ford IDS software is developed by Ford Motor Company itself, ensuring its direct compatibility and comprehensive coverage for Ford, Lincoln, and Mercury vehicles.

IDS vs. Other Diagnostic Tools: A Comparison

While Ford IDS is the official diagnostic tool, it's helpful to understand how it compares to other popular diagnostic options for Ford vehicles.

Conclusion

The Ford Integrated Diagnostic System (IDS) is an exceptionally powerful and indispensable tool for anyone involved in the maintenance and repair of Ford, Lincoln, and Mercury vehicles. Its comprehensive capabilities, from reading basic diagnostic trouble codes to performing complex ECU programming and module replacements, provide factory-level precision that generic scan tools simply cannot match. While the initial investment in hardware and the ongoing subscription for the software license might seem substantial, the ability to accurately diagnose problems, perform essential updates, and ensure your vehicle runs optimally makes IDS a worthwhile investment for both professional workshops and dedicated enthusiasts.

By understanding what IDS is, how its VCM II hardware functions, and the intricacies of its software and licensing, you can unlock the full potential of this diagnostic powerhouse. Keeping your system updated and validated ensures you always have access to the latest diagnostic information and programming files, allowing you to confidently tackle the complexities of modern Ford vehicles. Whether you're troubleshooting a persistent fault or customising your vehicle's features, Ford IDS puts unparalleled control at your fingertips, solidifying its position as the premier diagnostic solution for Ford vehicles.
