Detroit Diesel engines are renowned for their power, durability, and advanced technology. To ensure these robust powerplants operate at peak performance and to facilitate efficient troubleshooting, Detroit Diesel developed DiagnosticLink. This sophisticated diagnostic software is an indispensable tool for technicians working with a wide range of Detroit Diesel engines, from on-highway trucks to industrial and marine applications. Understanding its standard features is key to leveraging its full potential and minimising downtime.
What is Detroit DiagnosticLink?

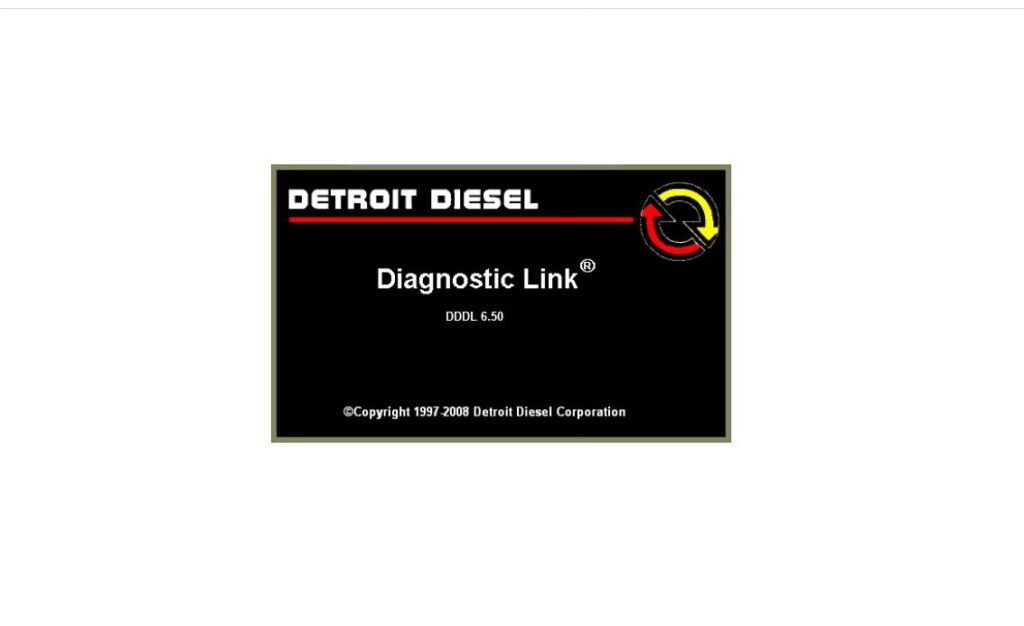

Detroit DiagnosticLink is a powerful diagnostic application designed specifically for Detroit Diesel engines. It provides technicians with the ability to communicate with the engine's Electronic Control Module (ECM) to diagnose issues, monitor engine performance, and configure various engine parameters. It's the digital key to understanding and maintaining the complex systems that govern modern Detroit Diesel power. Think of it as the primary interface between the mechanic and the engine's brain.
Core Diagnostic Capabilities
At its heart, DiagnosticLink excels at providing comprehensive diagnostic information. This includes the ability to:
1. Retrieve and Interpret Fault Codes
One of the most fundamental functions of any diagnostic tool is its capacity to read fault codes. DiagnosticLink allows technicians to quickly access Diagnostic Trouble Codes (DTCs) stored within the ECM. These codes are vital clues that point towards specific malfunctions within the engine's systems. Beyond simply listing the codes, DiagnosticLink often provides descriptive text associated with each code, offering insights into the likely cause of the problem. This immediate access to diagnostic information significantly speeds up the troubleshooting process.
2. View Live Engine Data (Parameter Monitoring)
Beyond identifying faults, DiagnosticLink offers real-time monitoring of a vast array of engine parameters. This live data stream is crucial for understanding how the engine is behaving under various operating conditions. Technicians can observe:
- Engine Speed (RPM)
- Coolant Temperature
- Oil Pressure and Temperature
- Fuel Pressure and Temperature
- Air Intake Temperature and Pressure
- Throttle Position
- Injector Pulse Widths
- Various sensor readings (e.g., MAP, MAF, EGT)
By observing these parameters as they fluctuate, technicians can identify anomalies that might not trigger a fault code but indicate a developing issue. This proactive approach to monitoring can prevent minor problems from escalating into major failures. The ability to monitor engine parameters in real-time is a cornerstone of effective preventative maintenance.
3. Perform Active Commands and Actuator Tests
DiagnosticLink doesn't just passively observe; it allows technicians to actively command engine components. This feature is invaluable for testing the functionality of specific actuators and sensors. For instance, a technician can:
- Command the EGR valve to open or close
- Test the idle shutdown timer
- Cycle the fuel pump
- Perform injector tests
- Activate the diagnostic indicator lamps
By directly controlling these components, technicians can isolate faulty parts and confirm if a system is responding as expected. This active testing capability is a significant time-saver compared to traditional methods of diagnosing actuator issues.
Configuration and Calibration
Modern engines rely on precise configurations and calibrations to operate efficiently and meet emissions standards. DiagnosticLink provides the tools to manage these settings:
1. Engine Parameter Configuration
Technicians can adjust various engine parameters to suit specific applications or operational needs. This might include:
- Setting engine idle speeds
- Configuring cruise control settings
- Adjusting engine protection parameters (e.g., high coolant temperature shutdown)
- Setting road speed limits
These configurations are often critical for optimising fuel economy, performance, and compliance with regulations. Engine configuration ensures the engine is tailored to its specific role.
2. Component Calibration
When components like injectors or sensors are replaced, they often require calibration to ensure accurate operation. DiagnosticLink facilitates this process, allowing the new component's data to be correctly programmed into the ECM. This is particularly important for ensuring precise fuel delivery and emissions control.
Data Logging and Analysis
DiagnosticLink's data logging capabilities are a powerful asset for diagnosing intermittent faults or analysing performance trends over time. Technicians can record live engine data during a test drive or specific operational cycles. This logged data can then be reviewed offline, allowing for detailed analysis without the need for the vehicle to be present. This feature is invaluable for:
- Capturing transient faults that may not be present when the vehicle is in the workshop
- Identifying patterns in performance degradation
- Providing data for remote expert analysis
The ability to log diagnostic data provides a historical record that aids in long-term engine health monitoring.
Key Benefits of Using DiagnosticLink
The standard features of Detroit DiagnosticLink translate into tangible benefits for any operation relying on Detroit Diesel engines:
Reduced Diagnostic Time
By providing direct access to fault codes, live data, and actuator controls, DiagnosticLink significantly reduces the time required to pinpoint the root cause of an issue. This means less guesswork and faster repairs.
Improved Accuracy
The software's ability to present precise, real-time data and perform specific tests leads to more accurate diagnoses, reducing the likelihood of misdiagnosis and unnecessary part replacements.
Enhanced Preventative Maintenance
Live data monitoring and data logging enable technicians to identify potential problems before they cause significant damage or downtime, facilitating a proactive approach to maintenance.
Optimised Performance and Fuel Economy
By allowing for precise configuration and calibration, DiagnosticLink helps ensure the engine is operating at its optimal settings, which can lead to improved fuel efficiency and performance.
Increased Uptime
Ultimately, the efficiency and accuracy provided by DiagnosticLink contribute to faster repairs and better preventative maintenance, both of which directly translate to increased vehicle or equipment uptime.
Comparison with Other Diagnostic Tools
While generic OBD-II scanners can provide basic information, Detroit DiagnosticLink offers a level of depth and specificity that is unparalleled for Detroit Diesel engines. Generic tools may only retrieve a limited set of generic codes, whereas DiagnosticLink provides access to manufacturer-specific codes, detailed parameter monitoring, and the ability to command specific engine functions. This makes it the essential diagnostic tool for any professional working with these engines.
| Feature | Detroit DiagnosticLink | Generic OBD-II Scanner |
|---|---|---|
| Fault Code Retrieval | Manufacturer-specific DTCs, detailed descriptions | Limited generic DTCs |
| Live Data Monitoring | Extensive engine parameters, real-time display | Basic powertrain data |
| Actuator Tests | Yes, extensive control over components | Limited or no active control |
| Parameter Configuration | Yes, for engine settings and features | No |
| Data Logging | Yes, for detailed analysis | Limited or no logging capabilities |
| Application Specificity | Detroit Diesel engines only | Broad range of vehicles (OBD-II compliant) |
Frequently Asked Questions
Q1: What hardware is required to use Detroit DiagnosticLink?
DiagnosticLink typically requires a compatible diagnostic interface adapter (e.g., a J1939 interface cable) and a laptop or PC running the software. The specific interface may vary depending on the engine model and year.
Q2: Can DiagnosticLink be used on engines other than Detroit Diesel?
No, DiagnosticLink is specifically designed for Detroit Diesel engines and their associated ECMs. It will not function correctly with other engine manufacturers.
Q3: Is DiagnosticLink difficult to learn?
While it is a sophisticated tool, Detroit Diesel provides training and documentation to help technicians become proficient. With some experience, most technicians find it intuitive, especially if they have prior experience with other diagnostic software.
Q4: How often should I update DiagnosticLink?
It's advisable to keep your DiagnosticLink software updated to the latest version. Updates often include new engine model support, bug fixes, and improved functionality, ensuring you have the most effective diagnostic capabilities.
Q5: Can I perform engine software updates using DiagnosticLink?
Yes, in many cases, DiagnosticLink can be used to flash or update the engine's ECM software, provided you have the correct software files and follow the proper procedures.
Conclusion
Detroit DiagnosticLink is far more than just a fault code reader. Its comprehensive suite of standard features, including parameter monitoring, active testing, configuration capabilities, and data logging, makes it an indispensable tool for the diagnosis, maintenance, and optimisation of Detroit Diesel engines. Investing in the proper training and keeping the software updated will ensure that technicians can fully harness its power, leading to more efficient repairs, reduced downtime, and ultimately, a healthier and more productive engine.
