Rock in Your Brakes? Here's What Happens

Encountering a rock in your vehicle’s brake system can be more than an annoying inconvenience; it poses significant risks to the functionality and safety of your brakes. We understand how critical regular vehicle maintenance is, and part of that maintenance sometimes includes removing small rocks or debris that can get lodged in the brake system. Left unattended, such obstructions can cause damage or unusual noises during braking, transforming a minor issue into a potentially hazardous situation. When we address the issue of a stone trapped in the brakes, we’re not just talking about a simple annoyance. This can actually lead to impaired braking performance or create hazardous driving conditions. It’s a problem that we must approach with caution and deal with promptly to ensure the continued effectiveness of the braking system and our safety on the road. This comprehensive guide will walk you through the process, emphasising the safety precautions necessary to protect both your vehicle and yourself while performing this task, or knowing when to seek professional help.

Understanding the Threat: What Happens When a Rock Gets Trapped?

A seemingly insignificant piece of gravel can cause a surprising amount of havoc within the precise mechanisms of your braking system. When a rock becomes lodged, it often gets caught between the brake rotor and the caliper, or between the brake pad and the rotor. This creates an immediate obstruction that disrupts the smooth operation of these critical components. The initial consequence is often an alarming noise, but the potential for damage extends far beyond mere sound.

Immediate Effects and Potential Damage

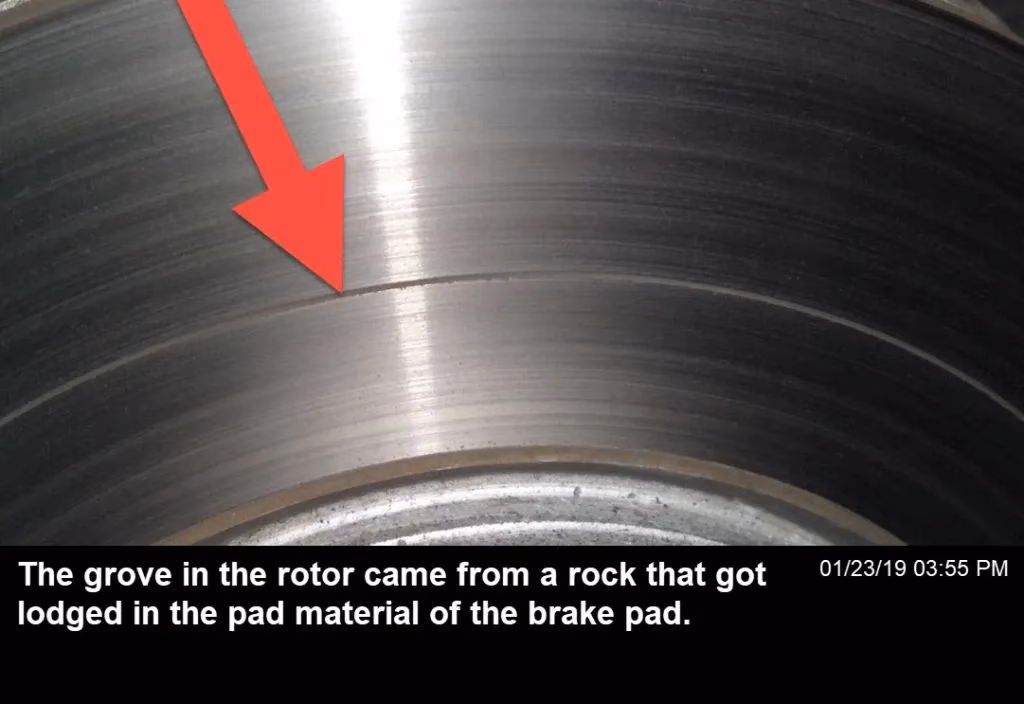

• Scoring and Grooving: As the wheel rotates, the trapped rock grinds against the brake rotor, creating deep scores or grooves on its surface. This uneven wear compromises the rotor's ability to dissipate heat and provide consistent friction, leading to reduced braking efficiency.
• Brake Pad Damage: The rock can also gouge the brake pad material, causing premature and uneven wear. A damaged pad won't make full contact with the rotor, further impairing braking performance and potentially leading to a pull to one side when braking.
• Caliper Issues: In severe cases, a rock can become so firmly wedged that it damages the brake caliper itself. This could mean bending or breaking components, or even compromising the piston's ability to apply pressure evenly, which is a serious safety concern.
• Uneven Braking: With components compromised, the vehicle may experience uneven braking, where one wheel brakes more effectively than another. This can cause the vehicle to pull sharply to one side during braking, potentially leading to loss of control, especially at higher speeds or in emergency situations.
• Overheating: The increased friction and compromised heat dissipation caused by the rock can lead to localised overheating of the brake components, further warping rotors and accelerating wear.

Identifying the Culprit: Recognising Brake Issues

When tackling brake maintenance, recognising the signs of reduced braking efficiency and unexpected issues early on is vital for the safety and longevity of your vehicle’s braking system. Paying close attention to how your brakes feel and sound can provide crucial clues.

Understanding Brake Noises and Vibrations

We know that unfamiliar sounds or sensations when braking can indicate an array of brake problems. While some noises are normal (e.g., slight squeal from new pads), persistent or unusual sounds warrant immediate investigation.

• Grinding: A harsh, metallic grinding noise often suggests that the brake pads are worn down to the metal backing plate, which can subsequently damage the brake rotor. This metal-on-metal contact can dramatically reduce braking efficiency and indicates a critical need for immediate attention.
• Squealing: A high-pitched squealing sound can mean several things. It might be an initial sign of pad wear (some pads have wear indicators that squeal when low). However, it could also mean debris such as stones are trapped in the brakes, or simply a build-up of brake dust. If the squeal is accompanied by reduced braking power, it's more likely a sign of trouble.
• Thumping/Pulsation: A thumping or pulsating sensation through the brake pedal usually points to a warped rotor, which occurs due to uneven heating and cooling of the brake rotors. This causes the pad to make inconsistent contact with the rotor surface.

Examining Brake Components for Wear

We always inspect the brakes thoroughly to identify any signs of wear or damage. Calipers, brake pads, and brake rotors should be checked for wear and tear. If we suspect a stone is caught in the brakes, which can produce a distinct noise, prompt removal is necessary to avoid further damage. Regularly inspecting and maintaining these components prevents unexpected issues and maintains optimal brake performance.

Taking Action: Safe Removal and Maintenance

Keeping your vehicle’s brake system in top condition ensures consistent braking efficiency and safety. Addressing a trapped rock or performing routine maintenance requires a methodical approach and strict adherence to safety protocols.

Safety First: Essential Precautions

Before attempting any work on your vehicle's brakes, always prioritise safety. Work on a flat, stable surface. Engage the parking brake and consider chocking the wheels that are not being worked on. Always use a reliable jack and secure the vehicle with jack stands before placing any part of your body under the vehicle. Wear appropriate personal protective equipment, including safety glasses and gloves, as brake dust can be harmful and components can be sharp.

Attempting Rock Removal (DIY)

If you suspect a small rock is lodged, you can attempt to dislodge it carefully. This is primarily for minor obstructions that are visible and accessible without extensive disassembly.

1. Locate the Rock: With the wheel removed (following safe jacking procedures), visually inspect the area between the brake rotor and the caliper, and between the brake pads and the rotor. Use a torch for better visibility.
2. Gentle Dislodgement: For visible and accessible stones, you can try to dislodge them using a flathead screwdriver or a thin, non-marring pry tool. Be extremely careful not to scratch or damage the rotor surface or the brake pads. Sometimes, a blast of compressed air can also help.
3. Water Flush: A careful stream of water from a hose (not a high-pressure washer directly on components) can sometimes help wash out small debris. Ensure the area is thoroughly dried afterwards to prevent rust.
4. Rocking the Vehicle: In some very minor cases, gently rocking the vehicle back and forth (with the engine off and in neutral, if safe to do so) or slowly driving a short distance with light brake application on a safe, private road might dislodge a loosely trapped stone. However, this carries a risk of further damage and should only be attempted if you are confident it won't worsen the situation.

Crucial Warning: If the rock is deeply lodged, not visible, or requires excessive force to remove, stop immediately. Attempting to force it out can cause significant and costly damage to calipers, rotors, or brake lines. This is when professional help is essential.

Cleaning the Brake System

Regular cleaning can prevent debris build-up and help identify issues early.

Materials Needed: Brake cleaner, pressure washer or hose, compressed air, dust mask, safety glasses.

1. First, we ensure the vehicle is on a level surface and the wheels are secured.
2. Then, with the brake cleaner and a pressure washer or hose, we remove the brake dust and grime from the wheels, being careful to avoid direct high-pressure water on the brake components as it can cause damage. It’s advisable to wear a mask to avoid inhaling brake dust, which can be harmful.
3. Subsequently, we use compressed air to dry the brakes and blow out any remaining dust or debris from hard-to-reach places. Ensure the brake cleaner has evaporated completely before reassembly.

Replacing Brake Pads and Rotors

If inspection reveals significant wear or damage, replacement is necessary. This is a more involved task, and if you're unsure, it's best left to a professional.

Steps for Replacement:

1. Loosen the lug nuts before lifting the car.
2. Jack up the vehicle and secure it with jack stands.
3. Remove the wheel to gain access to the brake assembly.
4. Carefully remove the caliper mounting bolts and slide the caliper off the rotor. Do not let the caliper hang by the brake hose; support it with a hanger or wire.
5. Remove the old brake pads from the caliper bracket.
6. Remove the rotor retaining screw (if present) and slide the old rotor off the hub.
7. Inspect and replace rotors if needed. Clean the hub surface thoroughly.
8. Install the new rotor, ensuring it sits flush against the hub.
9. Install new pads into the caliper bracket, ensuring they are correctly seated. Use brake grease on contact points (not the friction surface) to prevent noise.
10. Compress the caliper piston(s) using a proper brake caliper tool to make space for the new, thicker pads.
11. Reassemble the brake parts, carefully sliding the caliper back over the new pads and rotor. Reinstall and tighten the caliper mounting bolts to the manufacturer's specified torque.
12. Reattach the wheel and hand-tighten the lug nuts.
13. Lower the vehicle and torque the lug nuts to the manufacturer’s specifications using a torque wrench.
14. Before driving, pump the brake pedal several times until it feels firm. This resets the caliper pistons against the new pads. Test the brakes at low speed in a safe area.

When to Call the Pros: Recognising Advanced Issues

When attempting to remove a rock stuck in your brakes, there are times when the issue escalates beyond a simple DIY fix. Recognising when to seek out a mechanic can safeguard your vehicle from further damage and ensure your safety on the road.

Indicators That It’s Time for Professional Help:

• The presence of a rock stuck in brakes has led to uneven braking, an immediate red flag that indicates serious compromise to the system.
• You’ve attempted removal, but the rock is lodged firmly within the brake caliper or behind the backing plate, making it inaccessible or requiring excessive force.
• Activation of the parking brake doesn’t help dislodge the stone, or the issue persists after your best efforts.
• You notice visible damage to any brake components, such as deep gouges in the rotor, a bent caliper, or a leaking brake line.
• The brake pedal feels spongy, sinks to the floor, or requires excessive force to stop the vehicle.
• Any warning lights related to the braking system (e.g., ABS light, brake system warning light) appear on your dashboard.

Situations That Require Expert Intervention

Unusual noises or the feeling that something is “off” can be unnerving. It’s in these situations that we rely on the specialised knowledge of certified professionals to diagnose and rectify such issues. Expert intervention is not just about fixes—it’s about ensuring that your vehicle remains safe and roadworthy, particularly if you are experiencing uneven braking or if the caliper has been compromised.

A professional mechanic has the right tools, knowledge, and experience to safely diagnose and repair complex brake issues. They can properly inspect all components, replace damaged parts, and ensure the entire system is functioning optimally, including bleeding the brake lines if necessary. Remember, the goal is always to maintain optimal function and safety.

If the situation is so severe that you cannot safely reach a mechanic, it’s appropriate to contact roadside assistance for immediate support. We must never compromise on safety, as trying to force a rock from a brake caliper might lead to further damage or risk to ourselves and others on the road.

Frequently Asked Questions (FAQs)

Q1: Can a small stone really damage my car's brakes?

A: Absolutely. Even a small stone, if trapped in the right (or wrong) place, can cause significant damage. It can score the brake rotor, damage the brake pad, or even compromise the brake caliper, leading to reduced braking performance, uneven braking, and costly repairs if left unaddressed. The constant friction and pressure against the components can quickly escalate a minor issue into a serious safety hazard.

Q2: What sound does a rock in the brakes typically make?

A: A rock in the brakes often creates a distinct grinding, scraping, or squealing noise, especially when you apply the brakes or sometimes even when driving normally. The sound might be metallic or gritty, and it can vary in intensity depending on the size of the rock and where it's lodged. It's often distinguishable from a typical worn pad squeal because it might be more intermittent or have a harsher quality.

Q3: How do I safely remove a rock from my brakes?

A: For small, visible rocks, you can try to remove the wheel (ensuring the car is safely supported on jack stands), then carefully use a flathead screwdriver or compressed air to dislodge it. A gentle stream of water might also help. However, if the rock is deeply lodged, not visible, or requires force, it's safer to seek professional help to avoid damaging critical brake components.

Q4: Is it safe to drive with a rock in my brakes?

A: It is generally not safe to drive with a rock lodged in your brakes. While a very small, loose stone might eventually fall out, a trapped rock can rapidly cause damage to your brake pads and rotors, leading to significantly reduced braking effectiveness, uneven braking, and potential loss of control. It's best to address the issue immediately or have your vehicle towed to a mechanic if you cannot safely resolve it yourself.

Q5: How can I prevent rocks from getting into my brakes?

A: While it's difficult to completely prevent small debris from getting into your brakes, regular cleaning can help. Avoid driving through loose gravel or construction sites if possible. Regularly inspect your wheels and brake assemblies for any lodged debris, especially after driving on unpaved roads. Keeping your wheel wells clean can also reduce the amount of debris that might get kicked up towards the brakes.

Conclusion

A small rock in your brake system might seem like a trivial issue, but as we’ve explored, it has the potential to cause significant damage and compromise your vehicle's safety. Understanding the sounds and sensations that indicate a problem, being able to perform basic inspections, and knowing when to either attempt a safe DIY removal or seek professional assistance are all crucial aspects of responsible vehicle ownership. Prioritising prompt action and regular maintenance ensures that your brakes remain in optimal condition, providing the reliable stopping power you need for safe journeys on the road. Don't underestimate the power of a tiny stone – your safety depends on it.
