Mastering Datsun Z-Car Rear Brake Restoration

For any classic car enthusiast, ensuring the safety and performance of their beloved vehicle is paramount. This holds especially true for the iconic Datsun 240Z, 260Z, and 280Z models. While their sleek lines and spirited engines capture the imagination, it's the often-overlooked braking system that truly dictates how enjoyable – and safe – your driving experience will be. After decades of service, or perhaps years spent dormant, the rear braking components on these legendary Z-cars almost invariably require significant attention, repair, or outright replacement. Understanding the intricacies of these systems, from the original drum setups to modern disc conversions, is crucial for any owner.

The passage of time is rarely kind to automotive components, and brake systems, exposed to heat, moisture, and constant stress, are particularly susceptible. Many common issues stem from simple wear and tear, but others can be more insidious, leading to compromised stopping power or even dangerous lock-ups. A thorough inspection and proactive maintenance regimen are not just recommended; they are absolutely essential for preserving your Z-car's integrity and ensuring your safety on every journey.

Understanding Your Datsun Z-Car's Rear Drum Brakes

The original Datsun 240Z, 260Z, and 280Z models were equipped with drum brakes on the rear axle. While effective in their day, these systems are prone to specific issues as they age. A comprehensive understanding of their components and common failure points is the first step towards a successful restoration.

Key Components of the Rear Drum Brake System:

• Brake Drums: These are the large, cup-shaped metal components that rotate with the wheel. When the brakes are applied, the shoes press outwards against the inner surface of the drum, creating friction to slow the vehicle. Over time, drums can become worn, grooved, or even warped, leading to vibrations or reduced braking efficiency.
• Brake Shoes: These are crescent-shaped components lined with friction material. They are forced against the inside of the brake drum by the wheel cylinder. Like brake pads on a disc system, shoes wear down and need regular replacement. Uneven wear can indicate issues with the wheel cylinder or adjusters.
• Wheel Cylinders: Perhaps one of the most common failure points on older Z-cars' rear brakes. The wheel cylinder is a hydraulic component that contains pistons. When brake fluid pressure builds, these pistons push the brake shoes outwards against the drum. A tell-tale sign of a failing wheel cylinder is a leak, which often manifests as a wet spot on your inner wheel or a drip under your tyre. Leaking fluid not only reduces braking efficiency but can also contaminate the brake shoes, leading to uneven braking or a spongy pedal. In severe cases, a seized wheel cylinder can cause the wheel to start locking up, which is incredibly dangerous.
• Drum Brake Hardware Kit: This often-overlooked collection of springs, clips, retainers, and self-adjusters is absolutely vital. These components ensure the shoes retract properly, maintain tension, and allow the system to self-adjust as the shoes wear. It is highly recommended to install new drum brake hardware whenever you change wheel cylinders or shoes. We've seen instances where old, fatigued springs or retainers break shortly after new shoes and drums are installed, causing the broken metal to ruin your new friction surfaces and drums. This seemingly small detail can save you significant time, money, and frustration.
• Self-Adjusting Mechanism: This system automatically adjusts the position of the brake shoes as they wear, maintaining a consistent pedal feel and effective braking. If these mechanisms seize due to rust or lack of lubrication, the brakes may not apply effectively or may drag.

Common Issues and Inspection Tips:

When inspecting your Z-car's rear drum brakes, pay close attention to:

• Fluid Leaks: As mentioned, check for any signs of brake fluid around the wheel cylinders or inside the drum assembly. Brake fluid is usually clear to amber and feels slippery.
• Shoe Wear: Inspect the thickness of the friction material on the brake shoes. If they are worn thin or show signs of uneven wear, replacement is necessary.
• Drum Condition: Look for deep grooves, cracks, or excessive scoring on the inner surface of the drum. If the drum is worn beyond its service limit (usually cast into the drum itself), it must be replaced.
• Hardware Integrity: Visually inspect all springs and clips for rust, stretching, or breakage. Ensure the self-adjuster mechanism moves freely.
• Tyre Marks: If you notice your Z-car pulling to one side under braking, or if there are scuff marks on your driveway indicating a wheel has locked up, the rear drum brakes are a prime suspect.

Brake Hoses and Hard Lines: The Lifelines of Your Braking System

Beyond the mechanical components within the drums, the integrity of your brake fluid delivery system – the hoses and hard lines – is absolutely critical. These are the arteries that carry hydraulic pressure from your master cylinder to the wheel cylinders, enabling your brakes to function.

Brake Hoses: Flexible Yet Fragile

Brake hoses are flexible lines that connect the rigid hard lines on the chassis to the moving components on the wheel assembly. They are designed to withstand high pressure and the constant flexing caused by suspension movement and steering. However, they are also a common point of failure on older vehicles.

• Rubber Hoses: The original equipment on Datsun Z-cars was rubber. Over time, rubber degrades due to exposure to UV light, road grime, temperature fluctuations, and internal exposure to brake fluid. Always inspect brake hoses for external cracking, bulges, or chafing. What's less visible, but equally dangerous, is internal breakdown. The inner lining of rubber hoses can delaminate or collapse, creating a flap or obstruction that acts like a one-way valve. This can cause a caliper or wheel cylinder to remain partially engaged, leading to dragging brakes, overheating, and premature wear, or even a complete loss of braking pressure.
• Stainless Steel Braided Hoses: A popular upgrade for classic Z-cars. These hoses feature a PTFE (Teflon) inner lining reinforced with a stainless steel braid, then typically covered with a clear protective sheath. They offer several advantages: a firmer pedal feel due to less expansion under pressure, greater durability, and resistance to external damage. While they are a more expensive option, the safety and performance benefits often outweigh the cost.

Hard Lines: The Backbone of the System

Hard lines are rigid metal tubes that run along the chassis, carrying brake fluid. They are typically made of steel and are prone to rust and corrosion, especially in areas exposed to road salt or moisture. While less prone to sudden failure than hoses, a rusted hard line can develop pinhole leaks or even burst under pressure. When replacing, ensure you use bendable hard lines designed for automotive brake systems and use proper flaring tools to create leak-free connections.

Disc Brake Conversion: A Modern Upgrade for Classic Z-Cars

For those who wish to move beyond the maintenance challenges and performance limitations of drum brakes, an affordable disc brake upgrade for the rear of your Datsun Z-car is an increasingly popular option. This conversion offers significant benefits:

• Improved Stopping Power: Disc brakes generally offer superior braking performance, especially under repeated heavy use, thanks to better heat dissipation.
• Enhanced Feel and Modulation: Disc brakes typically provide a more consistent and predictable pedal feel.
• Easier Maintenance: Replacing pads and inspecting rotors on a disc system is often much simpler and quicker than servicing a drum brake assembly.
• Cleaner Look: Many enthusiasts appreciate the modern, cleaner aesthetic of disc brakes visible through their wheels.
• Reliability: Disc brake systems are often less prone to the seizing and leaking issues common with old drum components like wheel cylinders.

What's Involved in a Rear Disc Brake Conversion?

A typical rear disc brake conversion kit for a Datsun Z-car will include:

• Calipers: The hydraulic component that squeezes the brake pads against the rotor.
• Rotors (Discs): The circular metal disc that rotates with the wheel, against which the pads are pressed.

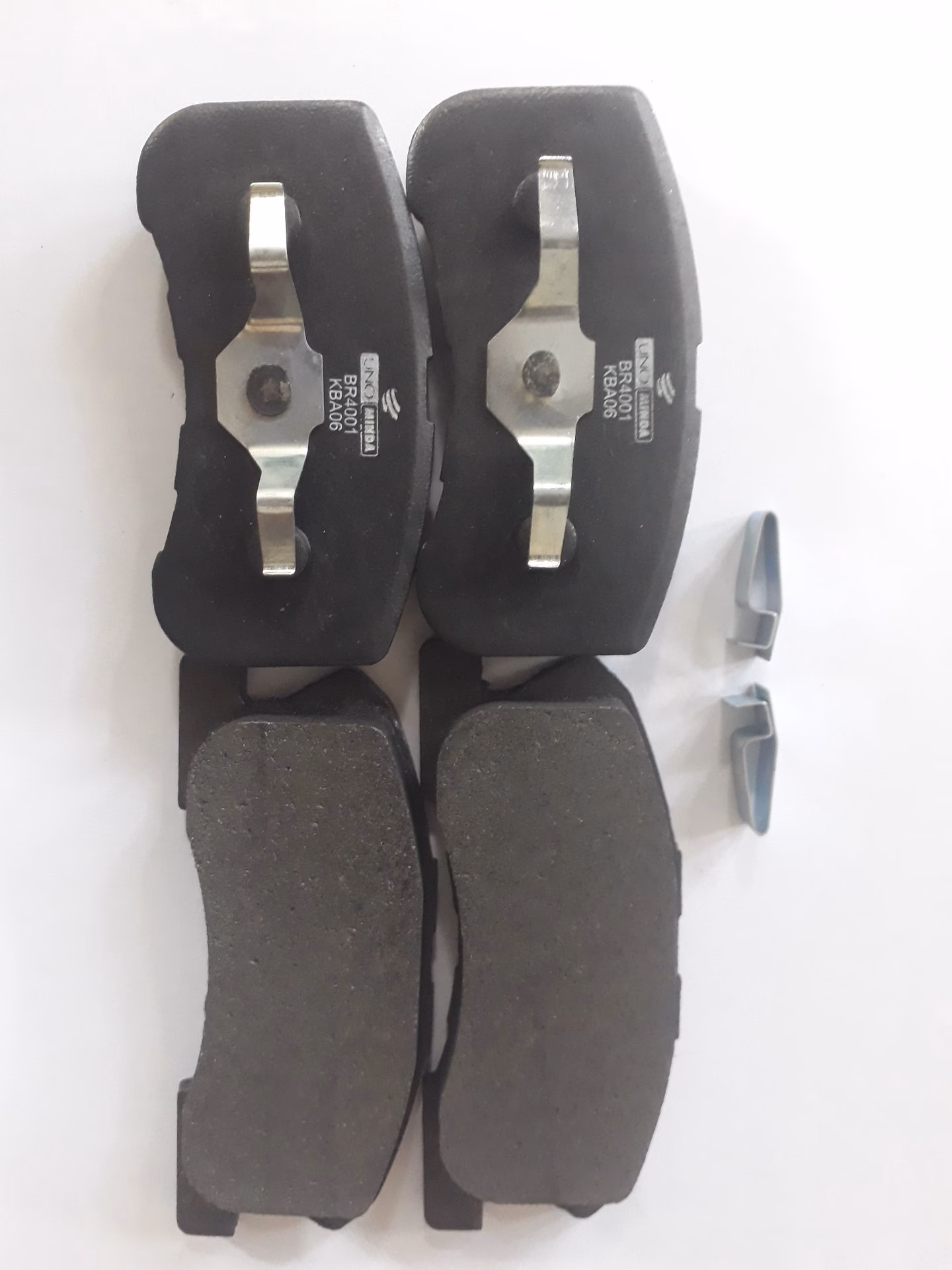

• Brake Pads: The friction material that clamps onto the rotor.
• Mounting Brackets: Custom brackets designed to adapt the new calipers to your Z-car's existing rear axle assembly.
• Hardware: All necessary bolts, shims, and clips for installation.
• Parking Brake Solution: This is often a key consideration. Some kits incorporate a mechanical parking brake mechanism within the disc caliper, while others might use a small drum brake "hat" design within the rotor for the parking brake.

While the initial outlay for a conversion kit is higher than simply replacing drum components, the long-term benefits in terms of performance, ease of maintenance, and peace of mind often make it a worthwhile investment for many Z-car owners.

Brake Fluid: The Unsung Hero

No discussion of brake systems would be complete without mentioning brake fluid. It's the medium that transmits the force from your foot on the pedal to the brake components at each wheel. Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. Water in brake fluid lowers its boiling point, which can lead to a spongy pedal or complete brake fade under heavy braking, as the water turns to steam. It also promotes internal corrosion within the brake lines, master cylinder, and wheel cylinders/calipers.

Regular brake fluid flushing and replacement (typically every 2-3 years, depending on fluid type and driving conditions) is crucial for maintaining brake system health and preventing costly component failures.

Troubleshooting Common Rear Brake Issues

Even with meticulous maintenance, issues can arise. Here are some common symptoms and their potential causes related to the rear brakes:

• Spongy Brake Pedal: Often indicates air in the brake lines, which requires bleeding the system. Could also be a failing master cylinder or severely worn brake shoes/pads.
• Vehicle Pulls to One Side During Braking: This suggests uneven braking force. On a drum system, it could be a seized wheel cylinder on one side, contaminated brake shoes, or a misadjusted self-adjuster. For disc brakes, a seized caliper or unevenly worn pads.
• Grinding or Squealing Noises from the Rear: Grinding usually means metal-on-metal contact, indicating severely worn brake shoes/pads or a broken hardware component within the drum. Squealing can be due to worn shoes/pads, or sometimes just dust or glaze on the friction material.
• Burning Smell After Driving: This often points to dragging brakes, where one or more brakes are not fully releasing. This could be caused by a seized wheel cylinder/caliper, a collapsed internal brake hose, or a misadjusted parking brake.
• Rear Wheel Locks Up: A very serious symptom. On drum brakes, this is a strong indicator of a seized wheel cylinder or a severely maladjusted self-adjuster.

Comparative Table: Drum Brakes vs. Disc Brake Conversion

Frequently Asked Questions About Datsun Z-Car Rear Brakes

How often should I inspect my Datsun Z-car's rear brakes?

It's advisable to inspect your Z-car's brakes at least once a year, or every 10,000 miles, whichever comes first. If you drive aggressively or notice any changes in braking performance, inspect them more frequently.

What are the clearest signs of a failing rear wheel cylinder?

The most common signs are visible brake fluid leaks on the inner side of the wheel or tyre, or a wet spot on the garage floor beneath the rear wheel. Another strong indicator is the wheel locking up unexpectedly, especially at low speeds.

Are stainless steel braided brake lines really worth the extra cost?

Many enthusiasts believe they are. While not providing a dramatic increase in stopping power, they offer a firmer, more consistent pedal feel by reducing hose expansion under pressure. More importantly, they are far more durable and resistant to the internal degradation that plagues old rubber hoses, offering a significant safety and longevity advantage.

Do I need to bleed my brakes after replacing rear brake components?

Absolutely. Any time the hydraulic system is opened (e.g., when replacing wheel cylinders or calipers, or disconnecting brake lines), air will enter the system. Air in the brake lines compresses, leading to a spongy pedal and reduced braking effectiveness. Proper bleeding is essential to restore full braking performance.

Can I convert just the rear brakes to disc, or do I need to do the front too?

You can certainly convert just the rear brakes to disc. Many owners choose to do this as a standalone upgrade. However, for optimal braking balance and performance, it's often recommended to consider a matched front and rear upgrade, or at least ensure your front brakes are in excellent condition to handle the potentially increased rear braking bias.

What type of brake fluid should I use in my Datsun Z-car?

Most Datsun Z-cars originally used DOT 3 brake fluid. DOT 4 is also compatible and offers a higher boiling point, which can be beneficial. Always check your service manual or consult with a specialist if you're unsure. Never mix DOT 5 (silicone-based) fluid with DOT 3 or DOT 4, as they are incompatible and can cause system damage.

Conclusion

The rear brakes on your Datsun 240Z, 260Z, or 280Z are more than just a collection of parts; they are a critical safety system that deserves your utmost attention. Whether you choose to meticulously restore the original drum brake setup, complete with new wheel cylinders, shoes, and essential hardware, or opt for the modern convenience and performance of a disc brake conversion, the investment in time and resources is well worth it. A properly functioning braking system not only ensures your safety and the safety of others on the road but also significantly enhances the driving pleasure of your cherished classic Z-car. Don't let neglected brakes diminish the joy of owning such a legendary machine; inspect, maintain, and upgrade as needed to keep your Z-car stopping as impressively as it goes.
