Cylinder Head Resurfacing: The Essential Guide

The heart of any internal combustion engine is its cylinder head, a complex component that houses valves, spark plugs, and injectors. Over time, due to extreme heat and pressure, the mating surface of the cylinder head can become warped or damaged. This is where a cylinder head resurfacing machine comes into play. These specialised tools are indispensable for engine rebuilding workshops, ensuring that the cylinder head can form a perfect seal with the engine block, thereby restoring optimal engine performance and preventing costly leaks.

What is Cylinder Head Resurfacing?

Cylinder head resurfacing, also known as skimming or milling, is the process of removing a thin layer of metal from the surface of a cylinder head. This is done to correct imperfections such as warpage, scoring, or damage caused by overheating or gasket failure. The goal is to achieve a perfectly flat and smooth surface that will create a tight seal with the engine block, crucial for compression and preventing coolant or oil leaks.

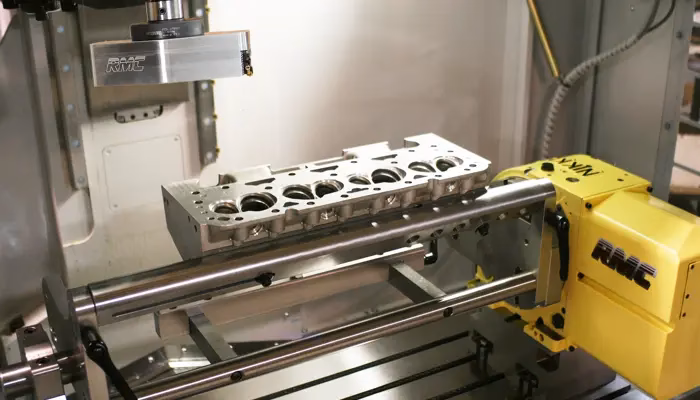

The Role of the Cylinder Head Resurfacing Machine

A cylinder head resurfacing machine is a precision-engineered piece of equipment designed to perform this delicate task with extreme accuracy. It typically consists of a sturdy base, a rotating cutting tool (often a milling head or grinding wheel), and a system for holding and moving the cylinder head. The machine operator carefully sets the depth of cut to remove only the necessary amount of metal, ensuring the integrity and correct dimensions of the cylinder head are maintained. The use of high-quality machines, often sourced from reputable manufacturers like Comec and Industrias Kras, is paramount for achieving professional results.

Why is Resurfacing Necessary?

Several factors can necessitate cylinder head resurfacing:

• Overheating: Excessive engine temperatures can cause the aluminium or cast iron cylinder head to warp.
• Head Gasket Failure: A blown head gasket can lead to combustion gases entering the cooling system or coolant entering the combustion chamber, often resulting in head damage.
• Wear and Tear: Over many years of service, minor imperfections can accumulate on the mating surface.
• Improper Installation: Incorrectly torqued head bolts can lead to uneven pressure and warping.

Failure to address these issues can lead to poor engine performance, increased fuel consumption, oil and coolant leaks, and even catastrophic engine failure.

Types of Cylinder Head Resurfacing Machines

The market offers a variety of machines to suit different workshop needs and budgets. These can be broadly categorised:

Traditional Milling Machines

These machines typically use a rotating cutter to mill the surface of the cylinder head. They offer excellent control and precision, making them a staple in many engine rebuilding shops. Examples include the Comec RP330 for smaller heads and the Comec RP850 for medium-sized components.

Grinding Machines

Grinding machines use abrasive wheels to remove material. They are particularly effective for achieving a very fine surface finish and can be suitable for certain types of engine heads.

Combination Grinding and Milling Machines

As the name suggests, these versatile machines combine both milling and grinding capabilities, offering flexibility for a wider range of tasks. The Industrias Kras KR-1000 is an example of such a machine.

CNC (Computer Numerical Control) Machines

For the highest levels of precision, automation, and repeatability, CNC machines are the ultimate solution. These machines are programmed with specific cutting paths and depths, ensuring consistent results with minimal operator intervention. They often incorporate advanced technologies like CBN (Cubic Boron Nitride) and PCD (Polycrystalline Diamond) tooling for faster, cleaner cuts. The Comec RP1000.CNC and Comec RP1400.CNC represent this advanced category.

Key Features to Consider

When selecting a cylinder head resurfacing machine, several factors are crucial:

• Machine Capacity: Ensure the machine can accommodate the size and weight of the cylinder heads and blocks you typically work on. Machines like the Comec RP1300 and Industrias Kras KR-1500 are designed for larger components.
• Precision and Accuracy: Look for machines with robust construction, high-quality spindle bearings, and precise feed mechanisms.
• Tooling Options: Consider the types of cutting tools the machine can accept and the availability of specialist tooling like CBN or PCD inserts.
• Ease of Use and Setup: A user-friendly interface and straightforward setup process can significantly improve workshop efficiency.
• Durability and Build Quality: Investing in a well-built machine from a reputable brand like Comec or Industrias Kras ensures longevity and reliability.
• Speed and Efficiency: Faster cutting speeds and shorter setup times translate directly to increased productivity.

A Comparison of Popular Models

To illustrate the range available, let's look at a few examples:

The Resurfacing Process: A Step-by-Step Overview

1. Inspection: The cylinder head is thoroughly inspected for cracks or severe damage before resurfacing.
2. Cleaning: The head is cleaned to remove all oil, dirt, and gasket residue.
3. Mounting: The cylinder head is securely mounted onto the resurfacing machine’s table or fixture.
4. Setting Depth: The operator carefully sets the cutting depth on the machine, usually aiming to remove between 0.003" and 0.010" (0.076mm to 0.254mm), depending on the damage.
5. Milling/Grinding: The machine’s cutting tool is engaged, and the surface is milled or ground to achieve flatness. Coolant is often used to prevent overheating and improve the finish.
6. Measurement: After the cut, the head is measured with precision instruments (like dial indicators or feeler gauges) to verify flatness.
7. Final Cleaning: The cylinder head is cleaned again to remove any metal shavings or coolant.

Frequently Asked Questions

Q1: How much material can be removed during resurfacing?

A: Typically, only a very small amount of material, usually between 0.003" and 0.010" (0.076mm to 0.254mm), is removed. Removing too much can affect valve timing and compression ratios. Always consult the manufacturer's specifications.

Q2: Can all cylinder heads be resurfaced?

A: Most cast iron and aluminium cylinder heads can be resurfaced. However, severely warped or cracked heads may be beyond repair and require replacement.

Q3: What is the difference between milling and grinding a cylinder head?

A: Milling uses a rotating cutting tool to shear away metal, while grinding uses an abrasive wheel. Milling generally provides a faster cut, while grinding can achieve a finer surface finish.

Q4: Do I need a special cutting tool for resurfacing?

A: Yes, specialised milling cutters or grinding wheels designed for cylinder head resurfacing are essential. For hardened surfaces or high-volume work, CBN or PCD tooling is recommended.

Q5: How long does the resurfacing process take?

A: The time can vary depending on the machine, the extent of the damage, and the material of the head, but it typically takes from 30 minutes to a couple of hours per head.

Conclusion

A cylinder head resurfacing machine is a critical investment for any engine rebuilding workshop. It is the tool that guarantees the precision and reliability required to restore an engine's peak performance. By understanding the function, types, and considerations involved, workshops can select the right machinery to meet their specific needs, ensuring flawless results and customer satisfaction. Whether you opt for a traditional milling machine or a state-of-the-art CNC unit, the commitment to quality equipment is key to success in the demanding field of engine repair.
