Repair Stripped Head Bolt Holes

It's a common, albeit frustrating, issue for engine builders: after painstakingly collecting all the necessary parts for an engine rebuild, a stripped thread in a critical area like a head bolt hole brings everything to a grinding halt. This is precisely the predicament M.K. found themselves in when assembling a small-block Chevy 350. The good news, as Jeff Smith explains, is that this isn't necessarily a job that requires a trip to the machine shop. With the right tools and a methodical approach, you can tackle this yourself.

Understanding the Problem: Stripped Threads

Stripped threads in an engine block, particularly for head bolts, are a serious concern. Head bolts are responsible for clamping the cylinder head securely to the engine block, ensuring a proper seal for the head gasket. A compromised thread means you cannot achieve the correct torque, leading to potential coolant and oil leaks, and ultimately, catastrophic engine failure. The original problem often stems from overtightening, cross-threading, or the use of lower-quality fasteners with poor thread fitment.

The Solution: Thread Repair Inserts

The most effective and common solution for stripped threads in an engine block is the use of thread repair inserts, often referred to by brand names like Heli-Coil or Time-Sert. These kits involve drilling out the damaged hole to a specific size, tapping new threads into the enlarged hole, and then installing a coiled or solid threaded insert that restores the original thread size and strength. This method is generally considered superior to simply using a larger bolt, as it maintains the original bolt size and ensures proper clamping force.

Heli-Coil Method for Small-Block Chevy

Jeff Smith outlines a practical approach for a common scenario: a stripped 7/16-inch, 14-thread-per-inch head bolt hole in a small-block Chevy. The recommended kit is a Heli-Coil kit, specifically PN 5521-7. This kit typically includes a special tap, an installation tool, and several thread inserts. You'll also need a 29/64-inch drill bit.

Key Steps and Considerations:

• Drilling Perpendicularity: The absolute most critical aspect of this repair is ensuring the new hole is drilled perfectly perpendicular to the engine deck. Any deviation will result in the bolt not seating correctly, compromising the seal.
• Drill Guide Fabrication: While dedicated drill guides exist, their quality can be questionable. A more reliable method is to fabricate your own. This involves creating a sturdy block (e.g., aluminium or steel) with precise holes. Two holes are used to locate the guide onto the existing head bolt pattern, and a third, larger hole houses a hardened steel bushing. This bushing should be the same inner diameter as your drill bit (29/64-inch). The bushing ensures the drill bit remains perfectly aligned. Some machining may be required to press this bushing into your fabricated guide.
• Alignment Check: Before drilling, test your drill guide by threading a head bolt through it into the block. If the bolt doesn't thread in smoothly, the guide's position is off.
• Drilling the Hole: With the guide securely in place, use your 29/64-inch drill bit to carefully enlarge the stripped hole. For small-block Chevy head bolt holes, which open into the water jacket, depth control isn't as critical as with blind holes. However, always exercise caution, especially near cylinder walls, as drilling too deep or off-centre can cause cracks into the cylinder bore – a much more significant problem.
• Tapping the Threads: Using the special tap provided in the Heli-Coil kit, carefully cut new threads into the drilled hole. Again, using your drill guide to start the tap ensures perpendicularity. Once the tap is started, you can remove the guide and finish cutting the threads.
• Installing the Insert: Follow the kit's instructions to install the thread insert. This usually involves using the provided tool to screw the insert into the newly tapped threads until it's flush with the block surface. Sometimes, two inserts may need to be stacked for proper depth.
• Breaking the Tang: Most inserts have a small tang at the bottom that needs to be broken off after installation. This ensures the head bolt can seat fully against the insert.

Cleaning Other Thread Holes

Once the primary repair is complete, it's good practice to clean the threads in the remaining head bolt holes. However, avoid using standard taps, as they remove material and can enlarge the holes, increasing the risk of future thread failure. ARP offers a specialized thread-cleaning tap (PN 911-0004 for 7/16 x 14 threads) that cleans without removing metal. While more expensive, it's a worthwhile investment for ensuring the longevity of your engine block's threads.

The Importance of Quality Fasteners

Jeff Smith strongly advocates for using high-quality head bolts, specifically recommending ARP fasteners. He highlights that many generic "high performance" Grade 8 bolts can have undersized or poorly manufactured threads, leading to a loose fit and reduced thread engagement. This marginal thread overlap significantly increases the likelihood of pulling threads from the block during torquing. ARP bolts, conversely, are manufactured to tighter tolerances, ensuring a snug fit and optimal thread engagement, which is crucial for achieving reliable clamping loads.

For a small-block Chevy, an appropriate ARP head bolt kit would be 134-3601. When assembling, ensure you use thread sealer on any bolt holes that open into the water jacket and apply ARP's Ultra-Torque lubricant under the bolt head flange and on the washer. ARP washers often have a specific radius designed to match the bolt head, so ensure correct orientation.

Time-Sert Method for Metric Applications

John provides a valuable alternative perspective, particularly for metric engines where standard thread repair kits might not reach deep enough or when specific thread sizes are required. He addresses the scenario of stripped metric threads, often found recessed deep within an engine block, making standard repairs challenging.

Metric Thread Repair Considerations:

• Recessed Threads: Many manufacturers use metric fasteners, and their thread holes can be recessed 1 3/8" to 2" into the block. Standard repair kits may not be long enough to reach these threads.
• Specialised Kits: For such applications, dedicated kits like Time-Sert are available, designed specifically for deep-seated threads. However, these can be costly ($400+).
• Alternative Approach (Example: Toyota Camry/Honda): John details a cost-effective method for a 2001 Toyota Camry 2.4L DOHC, which uses 11MM x 1.5 pitch head bolts. Since finding replacement bolts of the correct length with this specific thread pitch can be difficult, he suggests using 7/16" thread repair inserts instead. These are very close in size (0.433" vs. 0.437") and allow the use of readily available 7/16" Grade 8 Socket Head Cap Screws, which can be purchased in precise lengths.

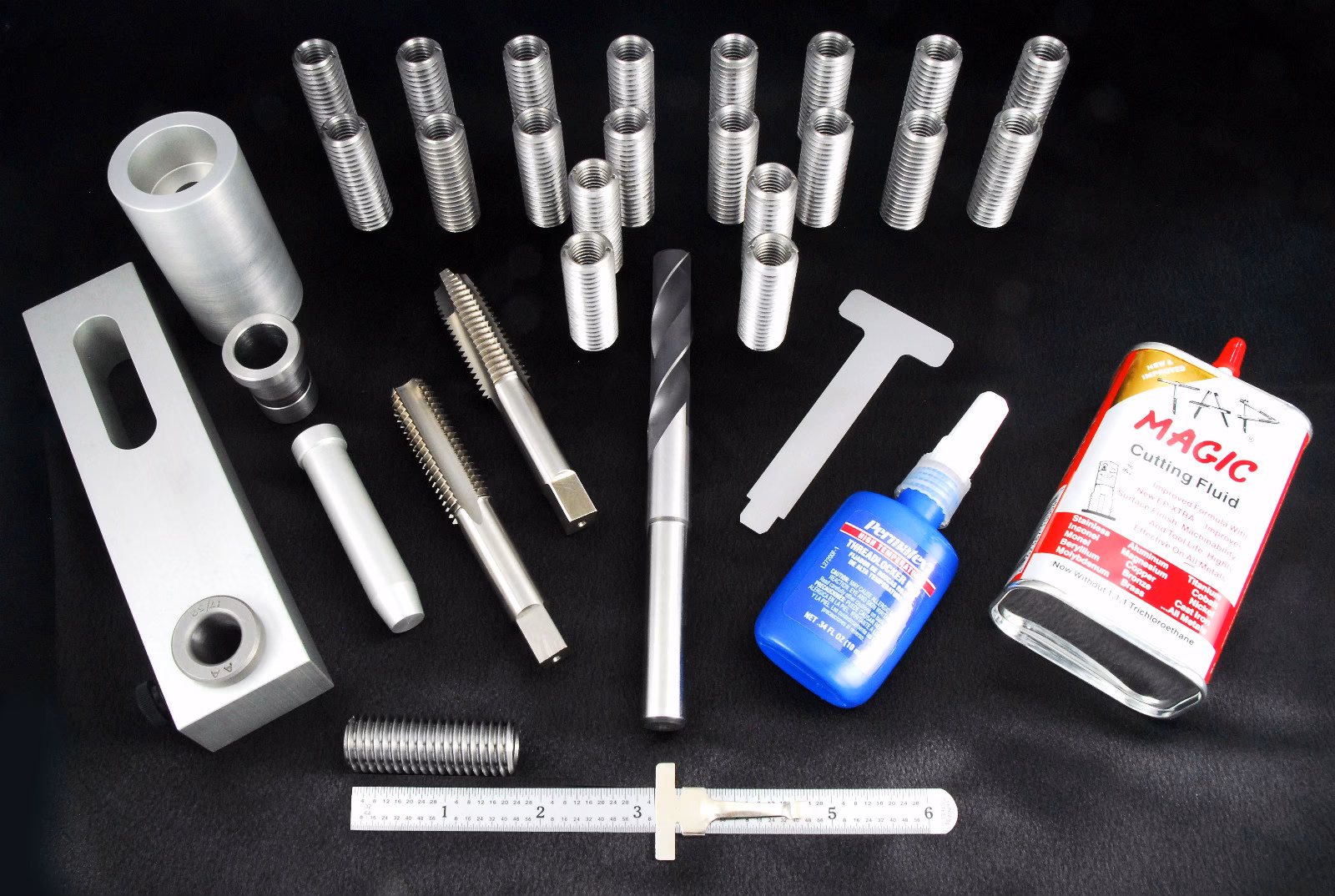

• Tools Required for Metric Repair: For this specific example, a 7/16" x 14 Time-Sert kit (P/N 0761) is recommended, along with longer inserts (P/N 076135, 1" long). The drill size for this insert is 29/64" (0.453"). If the existing hole is already slightly larger (e.g., 0.465"), drilling may not be necessary.
• Installation Nuances: When tapping, use thread cutting fluid. Clean threads thoroughly before using any thread-locking compound (though properly installed inserts often don't require it). For dead-end holes, chip management is less critical. Allow any thread locker to cure fully before assembly.
• Troubleshooting Insert Installation: If a bolt binds during initial threading, remove the insert, re-tap, and install a new one. Inserts can be removed by carefully gripping the top end with needle-nose pliers and spiralling them out clockwise.

Cost Comparison

The cost of repairing stripped head bolt holes can vary significantly:

While specialized kits can be expensive, the DIY approach using quality thread repair kits can be significantly more economical, especially when considering the potential cost of professional machine shop labour.

Final Thoughts on Engine Assembly

The process of repairing stripped head bolt holes, while detailed, is a testament to the importance of precision in engine building. By taking the time to ensure critical threads are correctly repaired and by using quality fasteners, you establish a solid foundation for a reliable engine. As Jeff Smith wisely puts it, "If you take care of the details, the details will take care of you." This meticulous approach helps prevent future issues like head gasket failures caused by uneven clamping forces, ensuring your engine performs as intended.

Frequently Asked Questions

Q1: Can I use a standard tap to re-thread a stripped head bolt hole?
A1: No, it's not recommended. Standard taps are designed to cut new threads or chase existing ones by removing material. Using one on a stripped hole will enlarge it, making it impossible to use the original bolt size and potentially compromising the block's integrity. Thread repair inserts are the correct solution.

Q2: How do I know if my head bolt hole is a blind hole or opens into the water jacket?
A2: For most common engines like the small-block Chevy, head bolt holes typically open into the water jacket. However, if you're unsure, consult your engine's service manual or carefully inspect the block's casting. For blind holes, precise depth control during drilling is essential.

Q3: Is it possible to over-tighten a thread insert?
A3: Yes, it is possible. The installation tools are designed to thread the insert until it's flush and properly seated. Forcing it further can damage the insert or the newly tapped threads in the block. Always follow the manufacturer's instructions carefully.

Q4: What if the thread insert feels loose after installation?
A4: If an insert feels loose, it likely wasn't installed correctly or the hole wasn't tapped properly. You may need to remove the insert (carefully, as described in the Time-Sert method) and re-tap the hole before installing a new insert. It's crucial that the insert is a tight fit in its tapped hole.

Q5: Do I need to use Loctite on the thread inserts?
A5: Properly installed thread inserts, especially solid ones like Time-Serts, generally do not require Loctite. They are designed to be a tight interference fit. However, some coiled inserts might benefit from a small amount of thread locker on the outside threads of the insert if it feels less than perfectly snug.
