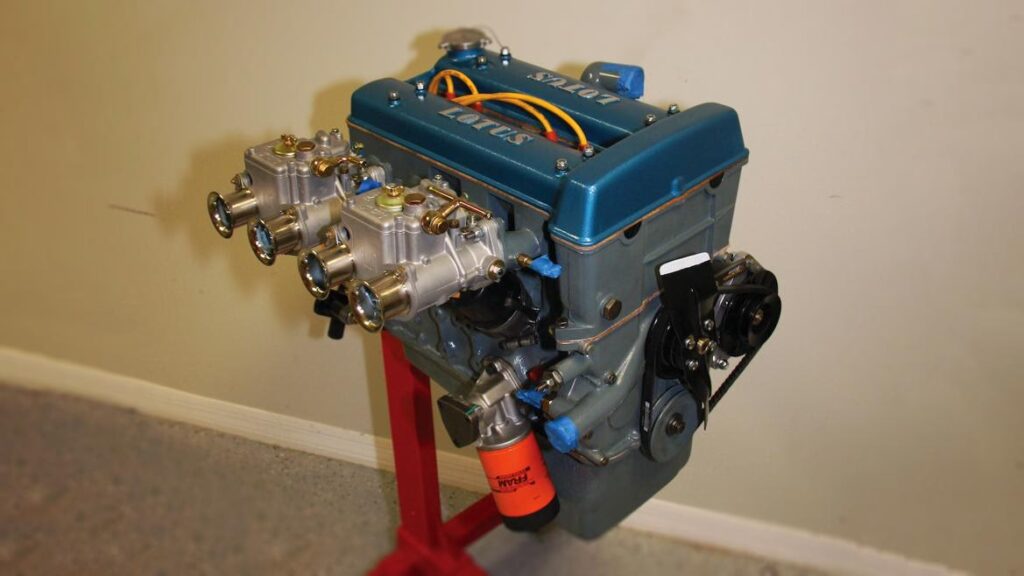

Rebuilding a Lotus Twin Cam: A Meticulous Guide

Rebuilding a classic Lotus Twin Cam engine is a unique undertaking, far removed from the typical engine overhaul. Fifty years after these iconic powerplants first rolled off the production line, the vast majority have lived a full and often demanding life. Consequently, you’ll discover that many of these engines are now dimensionally quite different from their original factory specifications. This necessitates a highly meticulous approach, where precision measurement and careful component selection are paramount, rather than simply ordering standard replacement parts.

The Uniqueness of a Lotus Twin Cam Rebuild

Unlike more commonplace engines, a Lotus Twin Cam rebuild rarely involves merely fitting 'standard' components. The passage of time, coupled with varied service histories, means that wear and tear have often altered critical dimensions. What might seem like a straightforward rebuild on paper quickly becomes a detective mission to uncover the engine's true state. Ignoring these subtle but significant changes can lead to compromised performance, premature wear, or even catastrophic failure. This is why a thorough understanding of the engine's current condition, rather than its theoretical original state, is the cornerstone of a successful rebuild.

Critical Pre-Dismantle Measurements: Your First Line of Defence

Before you even think about ordering a single new component, it is absolutely essential to make a series of key measurements. This pre-emptive diagnostic phase will dictate the entire rebuild strategy and save you considerable time, money, and frustration in the long run. Furthermore, resist the urge to discard any old, worn-out parts immediately. These components, particularly pistons, bearings, and even the block itself, hold valuable clues about how the engine has performed and where inherent problems might lie. Examining their wear patterns can reveal issues such as inadequate lubrication, excessive heat, or previous assembly errors.

The Cylinder Block – A Foundation of Truth

The cylinder block is the very foundation of your engine, and its integrity is non-negotiable. One of the first critical checks involves measuring the cylinder block height. Repeated machining of the top face over decades, perhaps to rectify corrosion or head gasket issues, can significantly reduce its original height. Failing to account for this could result in a standard compression height piston protruding above the top face at Top Dead Centre (TDC), leading to severe damage. This is a common pitfall and a prime example of why meticulous measurement is vital.

Another crucial aspect of block assessment is identifying core-shift and internal cylinder block corrosion. Core-shift, a manufacturing anomaly, refers to the displacement of the core used to form the internal passages during casting. This can lead to uneven cylinder wall thicknesses. Internal corrosion, often caused by neglected coolant changes, can also thin the cylinder walls. Both factors significantly influence whether a block can be successfully re-bored. The only reliable way to determine this is by subjecting the block to ultra-sonic testing, which accurately measures the thickness of the cylinder walls across their entire surface. Without this, a re-bore could leave an unacceptably thin wall, risking a complete failure.

The Crankshaft – The Heartbeat of the Engine

The crankshaft is another component that demands rigorous inspection. It should always be crack tested, preferably using magnetic particle crack testing equipment. This method reveals even the most minute surface cracks that are invisible to the naked eye. Beyond cracks, the crankshaft must also be checked for straightness. Over time, or due to severe engine events, a crankshaft can develop a slight bend, which will cause excessive vibration and bearing wear. Crucially, the actual stroke must also be verified. It's not uncommon for Lotus Twin Cam crankshafts to have been changed or even offset-ground in the past to alter the stroke, perhaps in an attempt to increase displacement. Knowing the true stroke is fundamental to selecting the correct piston compression height and ensuring proper engine geometry.

The Engine Builder's Imperative: Measure Twice, Order Once

It cannot be stressed enough: it is the responsibility of the engine builder to make all necessary measurements and checks before ordering new pistons or any other critical components. Relying solely on the assumption that 'standard' parts will fit is a recipe for disaster with these vintage engines. Therefore, it is absolutely paramount to cross-check the actual dimensions of your engine's components against the original Twin Cam engine dimensions stated in the Lotus workshop manual. Specifically, the Lotus Elan +2 manual (part number X050T0327ZD) provides invaluable baseline figures. Here are some of those critical standard dimensions:

Piston Selection and Optimising Performance

With a standard height block, a standard piston will typically sit approximately 0.020" down the bore at TDC. While this is acceptable, for optimal performance and efficiency, it is highly desirable to have the piston sitting flush with the cylinder block at TDC. This maximises the 'squish' effect, which promotes better fuel-air mixture turbulence and more efficient combustion. Achieving this ideal piston position often requires more than just a standard replacement piston.

This is where aftermarket forged pistons come into their own. Many reputable manufacturers offer forged pistons specifically machined to have a slightly greater compression height, for example, 1.543" (39.20mm). This additional height provides crucial scope for the top of the cylinder block to be machined to clean up any severe corrosion marks or to simply ensure a perfectly flat deck, while still allowing the piston to sit flush or slightly proud at TDC. A common specification for such a replacement piston, suited for a Lotus Twin Cam engine with a 72.74mm stroke crankshaft, might be a forged alloy piston set for a 3.267" (83.0mm) bore, with a compression height of 1.543" (39.20mm).

Beyond dimensional accuracy, modern aftermarket pistons offer significant performance advantages. High-quality forged pistons usually feature generous valve cut-outs. These larger reliefs accommodate bigger valves and increased camshaft lift, allowing for future performance upgrades without the risk of piston-to-valve contact. Furthermore, contemporary piston ring sets, such as those supplied by companies like Total Seal Rings, utilise narrow contact surface areas. This innovative design significantly reduces friction between the ring and the cylinder bore wall, leading to a measurable increase in power output and improved engine efficiency. Piston manufacturers typically supply a complete set including piston rings, gudgeon pins, and locking rings, along with a detailed installation guide to ensure the cylinder block is machined to the correct size for optimal piston skirt clearance.

The Cylinder Head: Balancing Act for Power

The cylinder head plays an equally vital role in an engine's performance, and its condition must be thoroughly assessed. It is highly desirable to check the cylinder head combustion chamber volume. This is accurately done using a Grade-A burette with a 50cc capacity. The volume of the combustion chamber is influenced by several factors:

1. The amount of material that has been removed from the cylinder head face due to previous skimming operations.
2. The size of the valves and their resultant position when installed in the combustion chamber. Larger valves, while beneficial for flow, can slightly reduce combustion chamber volume if not accounted for.
3. The extent of valve seat recession, which is dependent on both valve and seat wear. Recessed valves effectively increase the combustion chamber volume.

After meticulously measuring the combustion chamber volume and factoring in other engine dimensions, it is crucial to determine the static compression ratio. For road-going applications where 98 RON fuel is readily available, a safe maximum compression ratio of 10.5:1 is generally recommended. Exceeding this can lead to detonation and engine damage, especially with street fuels.

Common Pitfalls and Avoiding Costly Mistakes

Failing to carry out these critical measurements, particularly concerning piston compression height, will inevitably compromise the engine assembly and its ultimate performance. A stark example of poor assembly techniques recently came to light when a competitor purchased excessively tall pistons and then resorted to machining the tops off to suit the installation. This approach demonstrates a total disregard for piston crown thickness and its subsequent reduction in strength. Such a modification also creates immense challenges in holding and machining the piston crown precisely square to the bore, not to mention the subsequent need to re-balance all four pistons – a complex and highly specialised task.

It's important to understand that any piston profile is NOT a perfect cylinder. In reality, pistons are barrel-shaped in the vertical axis (tapering slightly towards the crown) and often oval in the horizontal axis (slightly wider across the gudgeon pin bosses). This complex geometry is designed to account for thermal expansion and ensure proper sealing and minimal friction when hot. Accurately machining the crown detail therefore requires a special fixture that precisely holds the piston by the gudgeon pin, ensuring the cut is perfectly square and concentric with the bore axis. Without such precision, the piston will not sit correctly in the bore, leading to poor sealing, increased wear, and reduced performance. The emphasis here is on accuracy.

Diagnosing Wear and Tear: What Old Parts Tell You

Beyond initial measurements, a thorough examination of the old components can provide invaluable diagnostic information. The pistons and rings, for instance, should be carefully examined to establish how they have worn during service. Uneven wear patterns on the piston skirts or ring lands can indicate bore distortion, poor lubrication, or incorrect clearances. The piston crowns and valve cut-outs should also be meticulously inspected for any signs of piston-to-valve contact. Even a slight outline of the valve might be seen in the bottom of the valve cut-out if contact has occurred. This suggests that the engine's rev limit may have been exceeded at some point, or that the valve springs are weak, leading to 'valve bounce' at high RPMs. The standard Lotus Twin Cam valve spring assembly has a seat pressure of 50-55lbs when installed at a height of 1.250" (31.75mm). If your old springs test significantly lower, replacement is essential to prevent future valve bounce and potential piston contact.

The crankshaft, in addition to crack testing and straightness, should also be checked for wear on the journals and for any signs of previous repairs or modifications. Experience shows that crankshafts can be changed or offset ground to increase stroke, so always verify against the manual.

Essential Resources for the Twin Cam Enthusiast

For those embarking on a Lotus Twin Cam rebuild, several publications can provide invaluable assistance in diagnosing engine problems and understanding component specifications. These technical handbooks offer detailed insights into the mechanics and metallurgy of engine components:

• ACL Engine bearings Technical Handbook - Published by ACL Bearing Company
• Pistons and Piston Rings Technical Handbook - Published by ACL Engine Parts
• ACL Engine Manual (Gregory's 413) - ISBN: 08556666803

Frequently Asked Questions (FAQs)

Can I use standard parts for my Lotus Twin Cam rebuild?

While some standard parts might still be available, it's highly unlikely that a complete rebuild with only standard components will be successful. Most Twin Cam engines have dimensionally changed over their long lifespan due to wear, machining, and previous repairs. Critical measurements are essential to determine what "standard" means for your specific engine.

Why are measurements so important before dismantling the engine?

Pre-dismantle measurements allow you to understand the current state of your engine's critical dimensions (like block height, crankshaft stroke, and bore integrity). This information is vital for accurately specifying and ordering replacement parts, preventing costly mistakes, and ensuring optimal engine geometry and performance.

What is "squish" and why should I optimise it?

Squish refers to the small clearance between the piston crown and the cylinder head's flat area at Top Dead Centre (TDC). Optimising squish, ideally by having the piston flush with the block, promotes turbulence in the combustion chamber, leading to more efficient fuel-air mixing, better combustion, and reduced detonation risk. This results in improved power and efficiency.

How do I know if my engine block can be re-bored?

The only reliable way to determine if your cylinder block can be safely re-bored is through ultrasonic testing. This process measures the exact thickness of the cylinder walls, revealing any core-shift or internal corrosion that might make a re-bore unsafe or compromise the block's integrity.

What compression ratio is safe for a road-going Twin Cam?

For a road-going Lotus Twin Cam engine using 98 RON fuel, a static compression ratio of up to 10.5:1 is generally recommended as a safe maximum. Exceeding this can increase the risk of detonation (knocking), especially with pump fuel, potentially leading to engine damage.

Rebuilding a Lotus Twin Cam engine is undoubtedly a labour of love, demanding meticulous attention to detail and a deep understanding of its unique characteristics. It's a process that rewards patience, precision, and a willingness to go beyond the conventional. By embracing thorough measurement, careful component selection, and a commitment to quality, you can ensure your cherished classic not only runs, but truly thrives for many more years to come. The effort invested in a proper rebuild will be evident in every smooth revolution and every exhilarating drive.
