Cooper S Turbo Upgrades Explained

Choosing the Right Turbo for Your Cooper S: A Comprehensive Guide

The MINI Cooper S, particularly the R53 and its successor, the R56, has long been a favourite for enthusiasts seeking a potent blend of performance and practicality. While both generations offer an engaging driving experience, the R56, with its inherent torque advantage, presents a slightly different canvas for modification. This article delves into the nuances of turbocharger upgrades for the Cooper S, focusing on a strategic approach that prioritises durability, usability, and a unique performance philosophy.

Many performance modifications for the Cooper S, especially the R53, often centre around pushing cylinder pressures and boost levels to the absolute limit. This can necessitate significant internal strengthening, such as decking the block to support cylinders under immense pressure, and often requires heavy-duty clutches to manage the resultant torque, which can lead to drivetrain strain. However, a compelling alternative exists, one that leverages the R56's inherent torque characteristics through intelligent gearing rather than brute force. This approach aims to create a more refined, reliable, and ultimately more enjoyable driving machine.

Understanding the R56's Torque Advantage

The R56 generation of the Cooper S, equipped with the Prince engine (often referred to as the N14 or N18 depending on the specific model year and variant), boasts a more substantial torque curve from the factory compared to its supercharged R53 predecessor. This means that rather than solely relying on increased boost pressure to generate power, we can exploit this existing torque more effectively. The proposed strategy focuses on using gearing to amplify this torque, creating a more efficient and less stressed power delivery system.

The Gearing-Centric Performance Philosophy

Instead of pushing the engine's internal components to their absolute limits with massive boost, this approach advocates for a more balanced build. The core idea is to use the gearbox and final drive ratios to their advantage. By shortening the gearing, the engine's already substantial torque can be amplified, allowing the car to accelerate more rapidly through the lower and mid-range gears. This reduces the reliance on extreme cylinder pressures and the associated stresses on the engine block and pistons. Furthermore, it alleviates the need for heavy, often uncomfortable, aftermarket clutches that can struggle with high torque loads.

Key Modifications for a Balanced Cooper S Build

This build strategy involves a carefully selected set of modifications designed to complement the gearing-focused approach. The aim is not necessarily to chase the highest possible horsepower figure, but rather to create a car that is lively, responsive, and reliable.

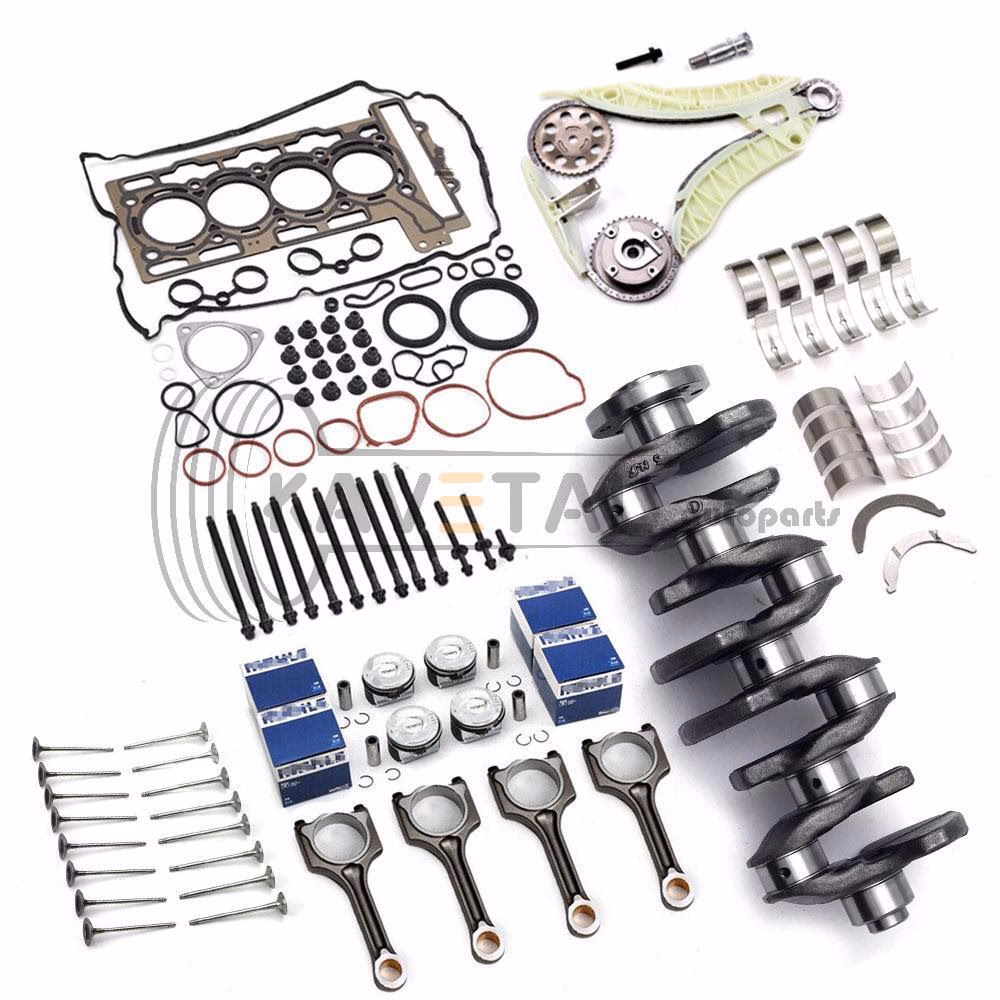

Engine Internals and Top End

A sensible approach to engine modifications would include:

• Stage 1 Map: A well-tuned ECU map is fundamental to optimising performance and drivability. This will be tailored to the specific modifications made.
• Air Intake: A performance panel filter, possibly within a JCW (John Cooper Works) airbox if it offers a distinct advantage over the stock unit, will improve airflow.
• Exhaust System: An Akrapovič downpipe, ideally with a sports catalytic converter (if emissions regulations permit and availability is confirmed), can free up exhaust gases. A de-cat pipe is often preferred for maximum flow, though this comes with emissions implications. The stock cat-back exhaust can be retained to maintain a discreet sound profile.
• Camshafts: Installing a pair of performance camshafts is a crucial step. These will alter the valve timing and lift to optimise the engine's breathing, particularly at higher RPMs, and complement the turbocharger's output.
• Cylinder Head: Removing and inspecting the cylinder head is good practice. Cleaning, checking for any wear, and potentially upgrading the valve springs can ensure reliability, especially if the camshafts are more aggressive.
• Head Gasket and Bolts: Using ARP head bolts provides superior clamping force, essential for maintaining head gasket integrity under increased cylinder pressures.
• Pistons and Connecting Rods: While not always necessary for this level of build, inspecting the pistons is important. Swapping to stronger connecting rods is a prudent measure, especially when aiming for enhanced performance and reliability. Better quality bearings for the crankshaft and connecting rods are also a wise investment.
• Crankshaft: Having the crankshaft checked for straightness and balanced is vital for smooth operation and long-term durability.
• Flywheel: A lightweight alloy flywheel will improve the engine's responsiveness, allowing it to rev more freely. This can be paired with the stock clutch, as the focus is on managing torque through gearing rather than overwhelming the clutch.

Transmission and Drivetrain

The heart of this performance philosophy lies within the transmission:

• Gearbox Overhaul: Disassembling the gearbox allows for thorough inspection and the installation of upgrades.
• MFactory ATB Differential: An MFactory Automatic Torque Biasing (ATB) differential is a key component. This limited-slip differential will improve traction by distributing torque to the wheel with the most grip, reducing wheel spin under acceleration.
• Reduced Final Drive Conversion: This is perhaps the most significant modification for this strategy. A shorter final drive ratio means the engine will reach higher RPMs for a given road speed. This effectively amplifies the engine's torque, allowing for quicker acceleration in each gear. For instance, a common upgrade might involve a final drive ratio change from the stock ~3.4:1 to something closer to 4.1:1 or even higher, depending on the desired outcome and the gearbox's internal limitations.

The Impact of Gearing on Performance

The difference created by this gearing-centric approach is substantial. Instead of trying to force the car through long gears, which can create weak points in cylinders or the clutch and drivetrain, this method makes better use of the leverage that additional torque creates. By using gearing to amplify this torque passively, the car's acceleration is improved without placing undue stress on the engine's core components. This shifts the load from internal engine stresses to external traction, resulting in an effortless drive with the potential for quicker engine spool-up and higher revs.

The investment of approximately £2,000 in gearing modifications, rather than solely on heavy clutches or engine strengthening that doesn't directly increase power, yields a significant return. The outcome is a car that requires a bit more driver involvement through the initial gears, but one that can effortlessly reach high speeds, potentially exceeding 140-150 mph.

Braking and Chassis Enhancements

To complement the increased performance, robust braking and chassis control are essential:

• Brake Upgrade: A caliper upgrade to a 330mm front and 280mm rear setup (or similar, depending on availability and specific requirements) will provide the necessary stopping power to manage the increased speeds safely.
• Tyres: A minimum tyre size of 215/45R17 is recommended, with 225/45R17 being ideal for enhanced grip and stability.
• Suspension: JCW coilovers are an excellent choice for a balanced and sporty ride.
• Anti-Roll Bars: A Hotchkis Competition rear anti-roll bar can significantly improve turn-in and reduce body roll. The decision on the front anti-roll bar is often personal; some prefer to run without one for a more direct feel, while others might opt for a smaller diameter bar to maintain a degree of front-end compliance.

Turbocharger Considerations

While this strategy focuses on gearing, the turbocharger itself still plays a vital role. For a Cooper S R56, a popular and effective choice for a balanced build like this would be a slightly larger, yet still responsive, turbocharger. Options often considered include:

• Upgraded OEM Turbo: Some specialists offer upgrades to the stock turbocharger, such as hybrid turbos that utilise larger compressor and turbine wheels within the original housing. This can offer improved flow without the lag associated with a completely new, larger unit.
• Aftermarket Turbo Kits: For more significant power gains, aftermarket turbo kits are available. When selecting one for this gearing-centric build, it's crucial to choose a turbo that offers a broad torque band rather than peaky power. A turbo that spools relatively early and maintains strong boost throughout the rev range will synergise best with the shorter gearing. Examples might include turbos from reputable manufacturers that are designed for the N14/N18 engine and offer a good balance of responsiveness and capacity.

It's important to note that the 'best' turbo is subjective and depends heavily on the desired power output and the specific goals of the build. For this particular philosophy, a turbo that enhances the mid-range torque without introducing excessive lag or requiring extreme boost pressures is paramount.

Frequently Asked Questions

What is the best turbo for a Cooper S R56?

The "best" turbo is subjective and depends on your goals. For a balanced build focusing on torque and gearing, a hybrid turbo or a carefully selected aftermarket turbo designed for responsiveness and a broad torque band would be ideal. Avoid turbos that only produce power at very high RPMs.

How much does a turbo upgrade cost for a Cooper S?

Turbo upgrade costs can vary significantly. A hybrid turbo might range from £800-£1500, while a complete aftermarket turbo kit could be £2000-£4000 or more, not including installation and supporting modifications.

Will a turbo upgrade affect my clutch?

Significantly increasing boost and power without considering the clutch can lead to slipping. However, the gearing-centric approach aims to manage torque effectively, potentially allowing the use of the stock clutch if it's in good condition and the power increase is moderate.

Is a de-cat pipe worth it on a Cooper S?

A de-cat pipe can improve exhaust flow and slightly increase power, but it will fail emissions tests and is illegal for road use in many areas. A sports cat offers a compromise.

What final drive ratio is best for a Cooper S?

For a performance-oriented build that prioritises acceleration, a shorter final drive ratio (e.g., 4.1:1 or higher) is beneficial. This needs to be balanced against the potential for increased fuel consumption and higher engine speeds at cruising speeds.

Conclusion

By adopting a gearing-centric performance philosophy, the MINI Cooper S R56 can be transformed into a remarkably lively, discreet, and capable car. This approach prioritises reliability and usability by strategically amplifying the engine's inherent torque, rather than pushing internal components to their limits. The result is a driving experience that is both exhilarating and refined, a testament to intelligent engineering and thoughtful modification.
