Aircraft Brake Packs Explained

When you think about stopping a colossal machine like an aeroplane, it's easy to imagine complex systems at play. While the entire braking system is indeed intricate, a core component responsible for the actual deceleration is the aircraft brake pack. Often overlooked by the general public, these units are marvels of engineering, converting immense kinetic energy into heat through the principle of friction.

The Analogy: From Bicycle to Aeroplane

To grasp the fundamental concept of an aircraft brake pack, we can draw a parallel to something more familiar: the brakes on a bicycle. On your bike, when you squeeze the brake lever, you activate calipers that press brake pads against the wheel rim. This friction is what slows your bicycle down. Now, imagine scaling this up significantly. An aircraft brake pack operates on a similar principle, but with a much more robust and sophisticated design.

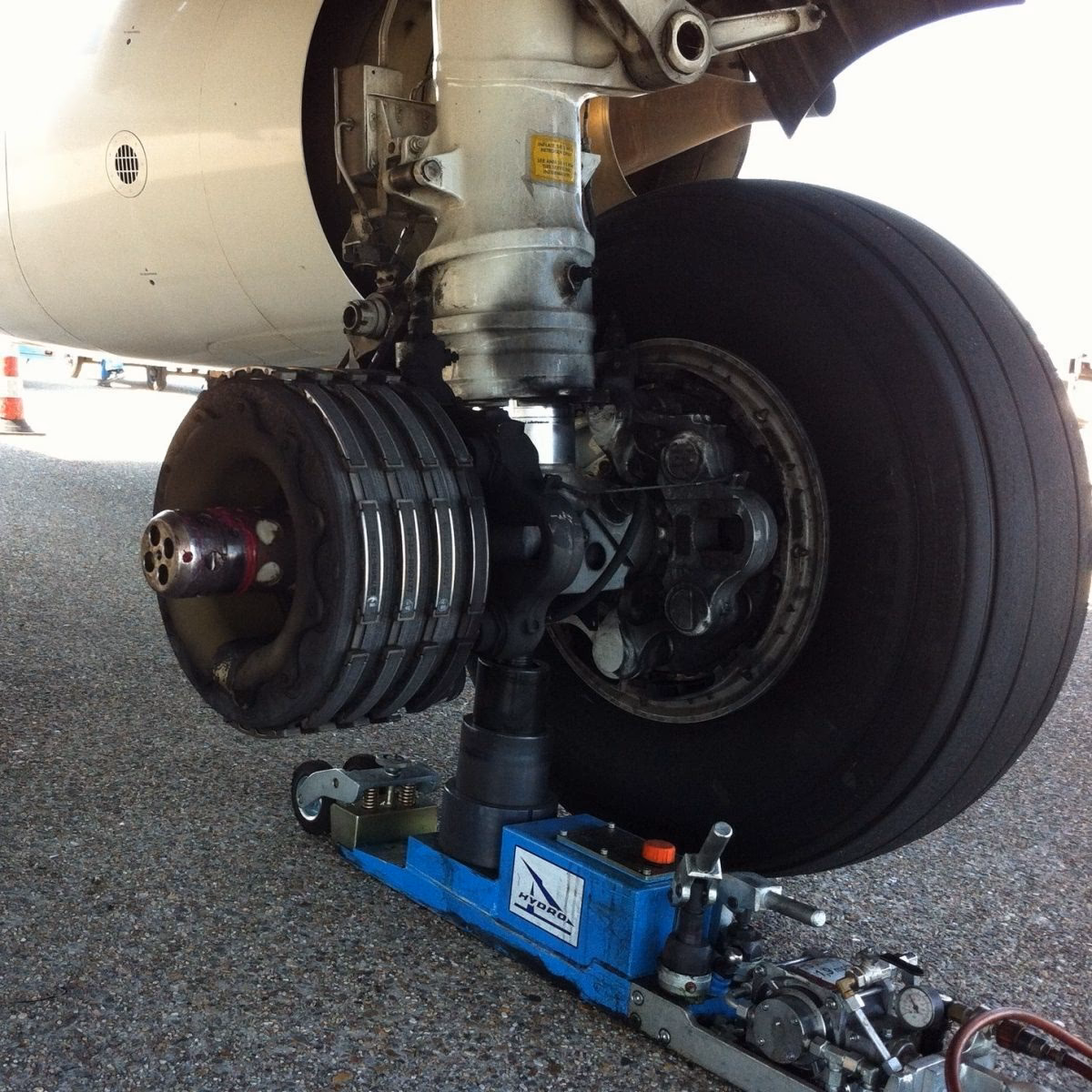

Deconstructing the Aircraft Brake Pack

At its heart, an aircraft brake pack is a sophisticated disc brake system. It comprises several key elements:

• Rotating Discs: These discs are physically attached to the inner rim of the aircraft's wheel. As the wheel spins, these discs spin along with it.
• Stationary Discs: These discs are keyed to the aircraft's axle, meaning they are fixed in place and do not rotate with the wheel.
• Interleaving: The rotating discs and stationary discs are arranged in an alternating, interleaved fashion, forming what is known as a 'pack'.
• Hydraulic Actuation: When the pilot applies the brakes, hydraulic pressure is introduced. This pressure forces multiple pistons, strategically spaced around the brake assembly, to push the discs together.

The magic happens when these interleaved discs are squeezed under immense hydraulic pressure. The friction generated between the rotating and stationary discs is what effectively slows the wheel down, and consequently, the entire aircraft. It’s important to understand that this friction process is not just about slowing down; it's also about managing the massive amount of energy involved. This kinetic energy is converted into thermal energy, or heat, which the brake pack is designed to dissipate safely.

The Importance of Friction

Friction is the cornerstone of any braking system, and in aircraft brake packs, it's amplified to an extraordinary degree. The surfaces of the discs are typically made from high-performance materials capable of withstanding extreme temperatures and pressures. Carbon composites are a common choice due to their excellent thermal properties and light weight, which is crucial in aviation. The more discs there are in a pack, the greater the potential surface area for friction, allowing for more effective and controlled braking.

Why Choose Collins Aerospace for Wheels and Braking Systems?

When it comes to aircraft safety and efficiency, the choice of braking system manufacturer is paramount. Collins Aerospace has established itself as a leader in this field, offering airlines compelling reasons to opt for their advanced solutions:

Cutting-Edge Technology

Collins Aerospace is committed to providing airlines with the latest technology. This means their braking systems are not only effective but also incorporate innovations that enhance performance, reduce wear, and improve overall operational efficiency. This includes advancements in materials science, hydraulic systems, and control logic.

Lowest Cost of Operation

Beyond performance, Collins Aerospace focuses on delivering systems that contribute to the lowest cost of operation for airlines. This is achieved through factors such as extended component life, reduced maintenance requirements, and improved fuel efficiency (due to lighter systems). Investing in their technology translates to long-term economic benefits for operators.

Decades of Experience and Reliability

With a legacy spanning decades, Collins Aerospace possesses a deep well of experience in supplying state-of-the-art wheels and brakes to a global clientele. This extensive track record speaks to the reliability and durability of their products. They understand the demanding nature of aviation and have a proven ability to meet the needs of customers operating in even the toughest environments, from extreme heat to icy runways.

The Science of Heat Dissipation

The immense heat generated during braking is a critical factor that engineers must address. Aircraft brake packs are designed with sophisticated heat dissipation mechanisms. The discs themselves are often ventilated, allowing airflow to pass through them and carry heat away. The materials used are also crucial; they must be able to absorb and withstand high temperatures without compromising structural integrity. The braking process is a delicate balance between generating enough friction to stop the aircraft and managing the resulting heat to prevent damage to the brake components.

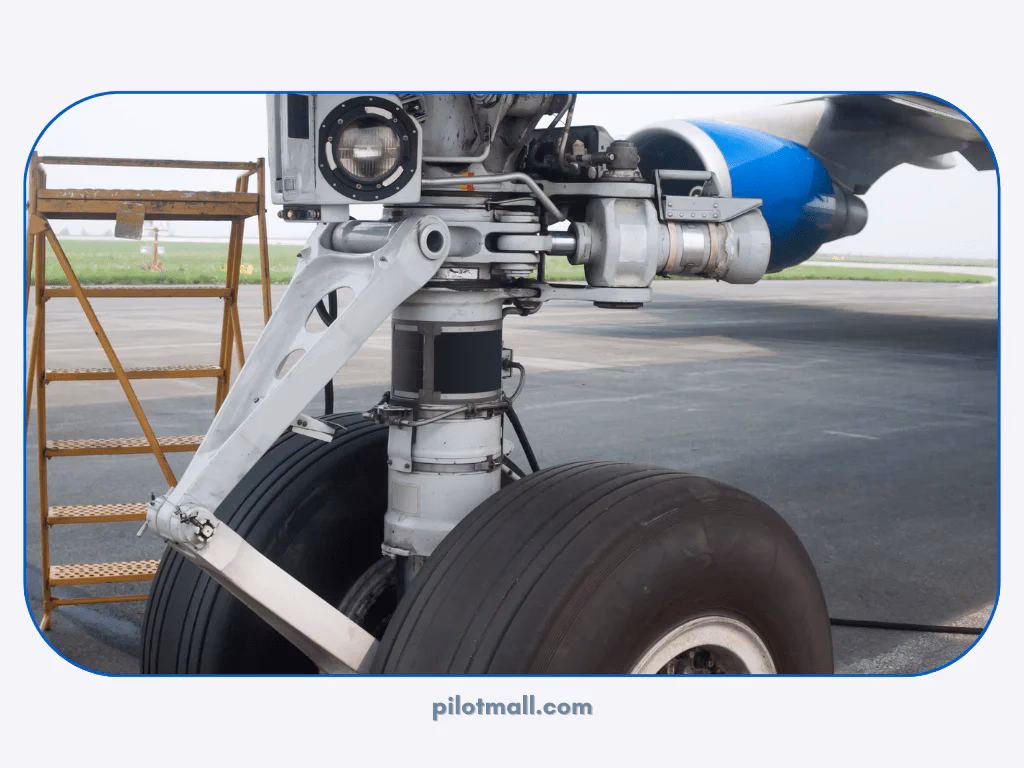

Types of Aircraft Brakes

While the disc brake pack is the most common type, it's worth noting that different aircraft may employ variations or supplementary braking systems. However, the principles of friction and hydraulic actuation remain central to most modern aircraft braking solutions. The specific design and number of discs within a brake pack can vary significantly depending on the size and weight of the aircraft, as well as its operational requirements.

Maintenance and Longevity

The longevity and effectiveness of an aircraft brake pack are heavily dependent on proper maintenance. Regular inspections, adherence to service bulletins, and timely replacement of worn components are essential. The advanced materials used in modern brake packs contribute to longer service intervals compared to older technologies, but they are still subject to wear and tear. Understanding the operational limits and maintenance schedules is crucial for flight safety.

Frequently Asked Questions

What is the primary function of an aircraft brake pack?

The primary function of an aircraft brake pack is to decelerate and stop the aircraft by converting kinetic energy into heat through friction between rotating and stationary discs.

How does an aircraft brake pack work?

It works by using hydraulic pressure to force interleaved rotating discs (attached to the wheel) and stationary discs (attached to the axle) together. The friction generated between these discs slows the wheel's rotation.

What materials are typically used in aircraft brake packs?

Carbon composites are commonly used due to their excellent thermal properties, light weight, and high strength, capable of withstanding extreme temperatures and pressures.

Why is heat management important in aircraft braking?

The braking process generates significant heat, which must be managed effectively to prevent damage to the brake components and ensure continued braking performance. This is achieved through material selection and disc design.

What are the benefits of choosing Collins Aerospace braking systems?

Collins Aerospace offers cutting-edge technology, the lowest cost of operation, and proven reliability backed by decades of experience in the aerospace industry.

Conclusion

The aircraft brake pack, though perhaps not the most glamorous part of an aeroplane, is undeniably one of its most critical. It's a sophisticated system that relies on the fundamental principle of friction, amplified and controlled through advanced engineering and materials. For airlines, choosing a reputable manufacturer like Collins Aerospace ensures access to reliable, efficient, and technologically advanced braking systems that are vital for safe and economical flight operations. The next time you experience a smooth landing, spare a thought for the powerful, yet elegantly designed, brake packs working tirelessly beneath you.
