Car Clutch Replacement: What to Expect

Understanding Your Car's Clutch System

In the realm of automotive mechanics, the clutch is a vital component, particularly in vehicles equipped with manual transmissions. While automatic transmissions are gaining popularity, a significant portion of the car market, especially in regions like India with a vast number of passenger cars, still relies heavily on manual gearboxes. This means clutch-related issues are a common concern for many vehicle owners. Understanding how your clutch works and what components are involved in its replacement is crucial for maintaining your car's performance and longevity.

At its core, the clutch system acts as a bridge between the engine and the wheels. When you press the clutch pedal, you effectively disengage the engine from the transmission. This allows you to change gears smoothly without grinding. If you were to press the clutch and simultaneously accelerate, the engine's speed would increase, but no power would be transmitted to the wheels. Therefore, the clutch is fundamental for controlling vehicle speed and facilitating gear shifts. Even a partial press of the clutch pedal results in only a portion of the engine's power being sent to the wheels.

Common Car Clutch Problems and Symptoms

Clutch issues can manifest in various ways, often signalling that a replacement or repair is imminent. Being aware of these symptoms can help you address problems before they become more severe:

• Clutch Slippage: This is perhaps the most frequently encountered problem. You'll notice a distinct drop in acceleration, feeling as though you're driving in a high gear at a low speed. There's a perceptible loss of power to the wheels, even at lower speeds. The ride might become jittery, sometimes accompanied by fluctuations in the engine's RPM (Revolutions Per Minute).
• Clutch Play: If the clutch pedal feels excessively light, and moving it more than half an inch (the typical free play is up to half an inch) disengages the clutch, it indicates that the flywheel and clutch disc are not separating completely when the pedal is pressed. This can result in a spongy feel to the clutch pedal.
• Clutch Pedal Turns Harder: A stiff clutch pedal can be caused by worn seals or blockages within the car's hydraulic system. This can put undue strain on the clutch release bearings, potentially damaging them if you exert too much force. In some cases, the clutch pedal might stick to the floor, or you might notice a burning smell, which is a serious indicator of a problem.
• Gears Not Changed Effectively on Pressing Clutch: You might find it difficult to change gears even when the clutch pedal is fully depressed. This could be due to simple issues like air in the hydraulic lines or worn bushes, or it might signify that the entire clutch assembly requires replacement.
• Car Suddenly Stops and Not Moving at all Despite Changing Gear: This is a critical symptom indicating a complete failure of the clutch system. The clutch plate and pressure plate likely need immediate replacement. In such scenarios, the car will need to be towed to a workshop, and it's possible that the flywheel, a more expensive component, may also require replacement.

Any of these signs point towards an issue with the clutch mechanism and necessitate an immediate inspection at a service centre. If your car refuses to move despite changing gears, it means the clutch system has failed and requires towing for a complete clutch kit assembly replacement.

Clutch Component Lifespan and Replacement

The clutch is considered a wear and tear item, meaning its lifespan isn't fixed and depends heavily on driving style and conditions. While some drivers might experience worn clutch plates as early as 10,000 kilometres, others can drive for over 100,000 kilometres without needing a replacement. It's important to note that clutch disc and pressure plate wear is generally not covered under warranty, even if the replacement occurs within the first year of the vehicle's purchase.

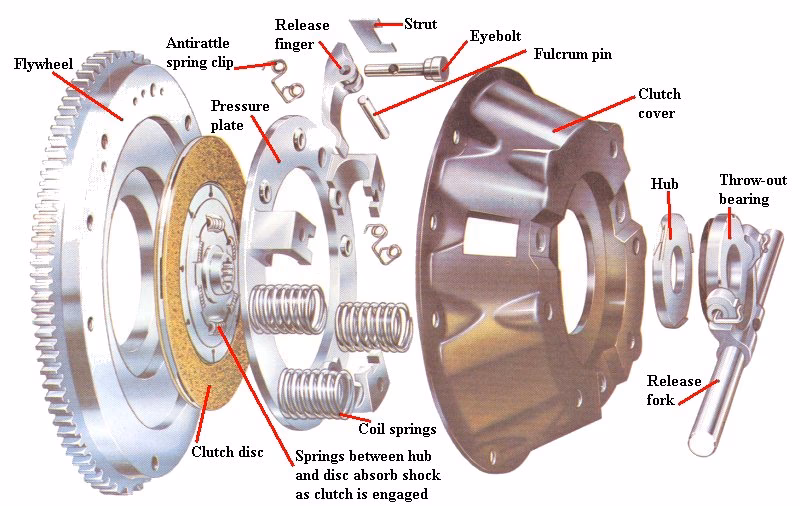

What Items Should Be Replaced in a Car Clutch?

When a clutch replacement is necessary, several key components are typically addressed to ensure a complete and reliable repair. The primary items usually replaced are:

• Clutch Disc Plate: This is the friction material that engages and disengages the engine power.
• Pressure Plate: This component applies pressure to the clutch disc, clamping it against the flywheel to transmit power.
• Clutch Release Bearing (Throw-out Bearing): This bearing is activated by the clutch fork and pushes against the pressure plate fingers to disengage the clutch.

In addition to these core components, it is also standard practice to:

• Replace Clutch Fluid: If your vehicle has a hydraulic clutch system, the fluid should be replaced to ensure proper operation and prevent contamination.

The Role of the Flywheel

The flywheel is another critical part of the clutch system. It's a heavy rotating disc that smooths out the power delivery from the engine and provides a surface for the clutch disc to engage with. While not always replaced during a standard clutch job, the flywheel's condition must be assessed. Factors such as wear, glazing, or warping can necessitate its replacement. A damaged flywheel can lead to premature wear of the new clutch components and cause operational issues. Therefore, a thorough inspection is vital.

Table: Indicative Clutch Replacement Costs (India Market)

The cost of a clutch overhaul can vary based on the vehicle type and the specific parts required. The following table provides an indicative range of costs in the Indian market:

Please note: These are indicative costs and can vary significantly based on the specific make and model of the car, the workshop chosen, and regional pricing. It is always advisable to get a precise quote from your chosen service provider.

How Long Does a Clutch Replacement Take?

The time required for a clutch replacement can vary depending on the vehicle's make and model, the complexity of the job, and the experience of the mechanic. For a common vehicle like a Hyundai i20, a clutch replacement typically takes anywhere from 4 to 8 hours. This includes the time to safely lift the vehicle, remove the gearbox, replace the clutch components (disc, pressure plate, release bearing), and reassemble everything. The flywheel inspection and potential replacement can add to this time.

How to Extend the Life of Your Clutch

While clutch wear is inevitable, adopting good driving habits can significantly prolong its lifespan and save you from premature replacement costs. Here are some essential tips:

• Avoid Riding the Clutch: Resting your foot on the clutch pedal while driving, or partially engaging the clutch unnecessarily, causes constant friction and heat, leading to accelerated wear.
• Depress the Clutch Fully When Changing Gears: Ensure you press the clutch pedal all the way down before shifting. Partial engagement during gear changes puts unnecessary stress on the synchronizers and the clutch itself.
• Do Not Use the Clutch Pedal as a Footrest: Similar to riding the clutch, keeping your foot on the pedal even when not actively shifting puts constant, albeit slight, pressure on the release bearing and can lead to premature wear.
• Avoid Starting in Higher Gears: Always start your car from a standstill in first gear. Attempting to start in second or higher gears requires the clutch to work much harder, increasing wear.
• Avoid Unnecessary Idling in Gear: If you're stopped for more than a brief period, it's better to shift into neutral and release the clutch pedal. Prolonged idling with the clutch engaged puts unnecessary strain on the system.
• Never Drive with the Handbrake Engaged: Driving with the handbrake partially or fully engaged forces the clutch to work against resistance, leading to rapid wear.
• Smooth Gear Changes: Practice smooth and timely gear changes. Jerky or forced gear shifts can damage the clutch and transmission components.

By following these basic principles, you can significantly extend the life of your clutch, potentially achieving up to 100,000 kilometres or more of trouble-free operation.

Frequently Asked Questions (FAQs)

Q1: Do I need to replace the clutch disc and pressure plate together?
Yes, it is highly recommended to replace both the clutch disc and the pressure plate simultaneously. They work in tandem, and if one is worn, the other is likely to be close to the end of its life as well. Replacing them together ensures optimal performance and prevents potential issues from mismatched wear.

Q2: How often should I check my clutch?
Regular servicing of your vehicle will typically include a check of the clutch system. However, if you notice any of the symptoms mentioned earlier, such as slipping, difficulty shifting gears, or a change in pedal feel, you should have it inspected immediately, regardless of your regular service schedule.

Q3: Can a faulty clutch damage other parts of my car?
Yes, a severely worn or malfunctioning clutch can potentially damage other components of the transmission or drivetrain due to improper engagement or excessive slippage. It's best to address clutch issues promptly to prevent further damage.

Q4: What is the difference between a clutch and a torque converter?
A clutch is used in manual transmissions to mechanically connect and disconnect the engine from the gearbox. A torque converter is used in automatic transmissions and uses fluid dynamics to transfer power, allowing for smoother operation and automatic gear changes.

Q5: Is it expensive to replace a car clutch?
Clutch replacement is a significant mechanical job and can be moderately expensive, primarily due to the cost of parts and the labour involved. The overall cost depends on the vehicle's make and model, and whether other components like the flywheel need replacement. However, it's often less expensive than major engine or transmission repairs.
